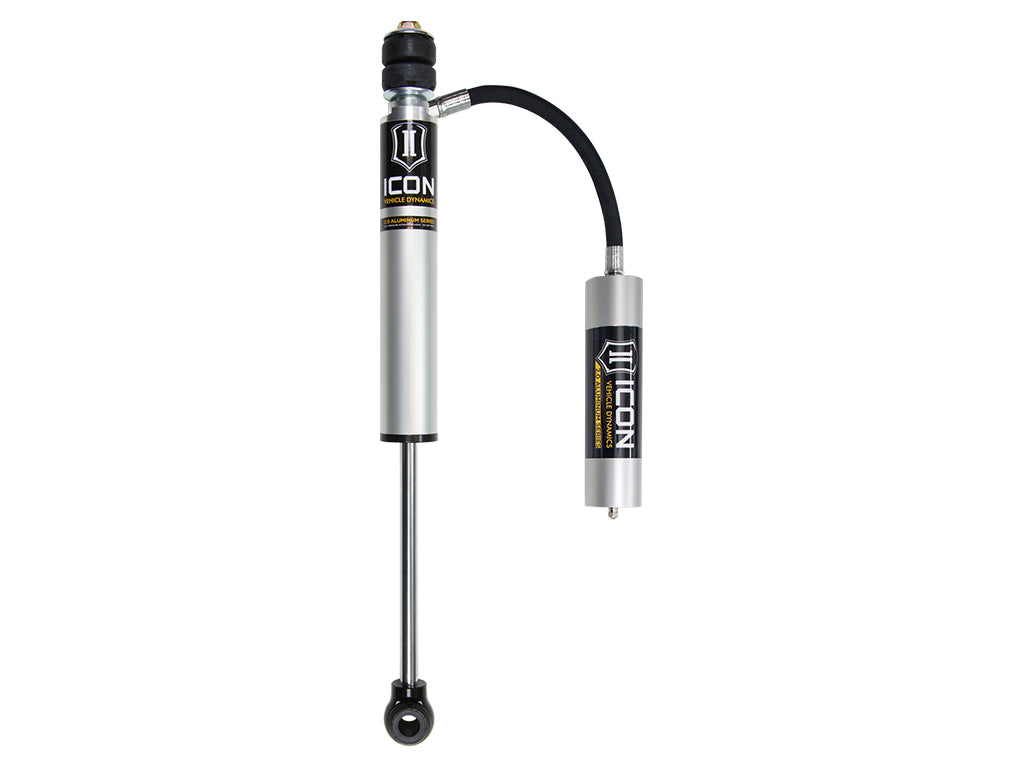

ICON Vehicle Dynamics 56524R Suspension Shock Absorber
ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Aluminum Series shock to handle extra abuse and punishment your suspension will need to endure.
Features
- Nitrogen charged monotube design with remote reservoir
- Fully rebuildable and re-tunable
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrile rubber top out bumper for noise free operation
- Rubber dust boot included for added shaft protection
Specifications
| Reservoir Hose Inside Diameter | .25 IN |
| Rod Diameter | .625 IN |
| Lower Mount Sleeve Inside Diameter | .75 IN |
| Minimum Ride Height Raising Distance | 0 IN |
| Shaft Diameter | 0.625 IN |
| AAP_UDA_22 | 1 |
| Shock Absorber Bore Size | 1.75 IN |
| Bore Diameter | 1.75 IN |
| Lower Mount Sleeve Overall Length | 1.825 IN |
| Reservoir Diameter | 2 IN |
| Cylinder Outside Diameter | 2 IN |
| Body Diameter | 2 IN |
| Service Parts | 202003 - 2.0 REMOTE RESI REBUILD KIT |
| Reservoir Hose Length | 29 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| AAP_UDA_4 | 55 |
| Reservoir Length | 8 IN |
| Cylinder Material | Aluminum |
| Body Material | Aluminum |
| Material | Aluminum |
| Finish | Anodized |
| Cylinder Finish | Anodized |
| Boot Color | Black |
| Bushing Color | Black |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Shaft Material | Chrome |
| AAP_UDA_12 | EA |
| Lower Mount Type | Eyelet |
| Body Color | Gray |
| Cylinder Color | Gray |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Self-Leveling | No |
| Mounting Hardware Included | No |
| Boot Included | No |
| Adjustable Rebound | No |
| Internal Rebound Spring | No |
| Coil Spring Insulator(s) Included | No |
| Includes Bump Stop | No |
| Hydraulic Lockout | No |
| Adjustable | No |
| Adjustable Damping | No |
| Dust Shield | No |
| External Reservoir | NO |
| Damping Type | Oil |
| Active or Passive Suspension | Passive |
| Grade Type | Performance |
| Bushing Material | Polyurethane |
| Reservoir Type | Remote |
| Dust Shield Material | Rubber |
| Bushing Material | Rubber |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Internal Construction Type | Single Tube |
| Suspension Type | Spring |
| Material | Steel |
| Upper Mount Type | Stem |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Gas Charged | Yes |
| Dust Shield Included | Yes |
| Remote Reservoir | Yes |
| Internal Rebound Bumper | Yes |
| Bushing Included | yes |
| California Prop 65 Warning | Yes |
| Dust Boot Included | Yes |
| Add-On Part | 56523R - 25 4RUNNER 0-3" DRIVER REAR 2.0 VS RR |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 52753 - 25 4RUNNER .75" DUAL RATE REAR SPRING KIT |
| Add-On Part | 56100 - 07-14 FJ/03-24 4RUNNER/22-24 TUNDRA/23-24 SEQUOIA REAR SHIN GUARDS |
| Color | Silver |
| Color | Black |
| Color | Gray |
| Valving Type | Digressive |
| Valving Type | Linear |
Note: APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles TECH NOTE: Compatible with 0-3” of rear lift over stock TECH NOTE: Shocks sold individually. Driver side shock part number 56523R is also required.
Short Description: SHOCK ABSORBER
Invoice Description: 56524R
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Warranty: 1 Year
