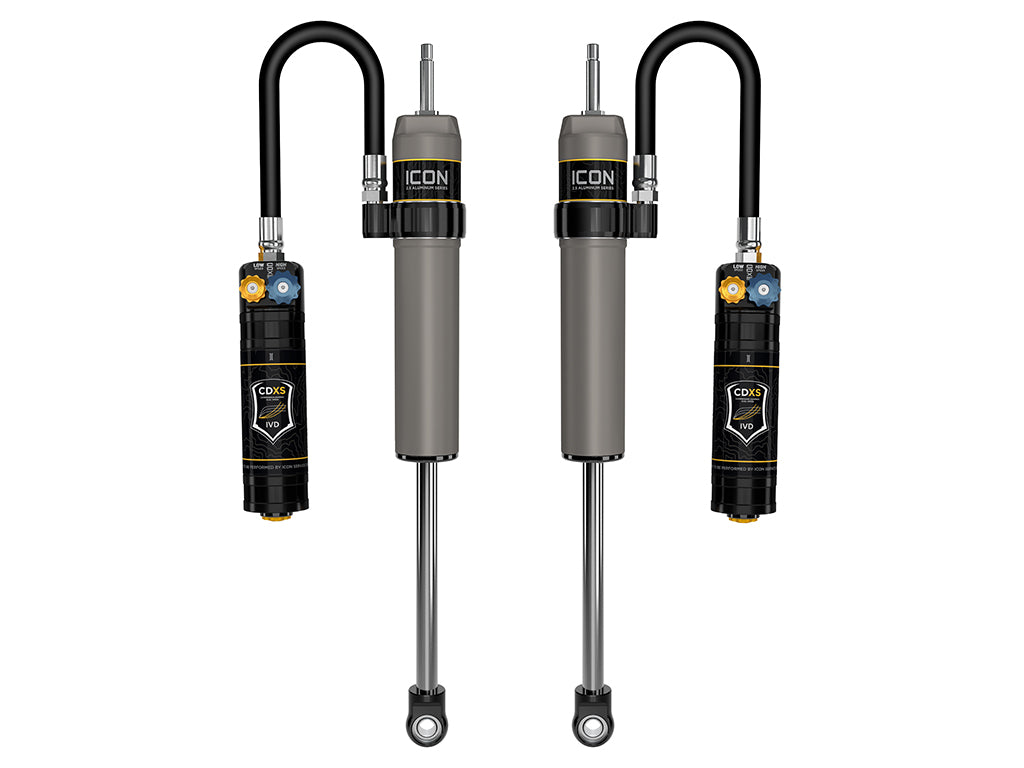

ICON Vehicle Dynamics 57872XP Suspension Shock Absorber Set
ICON V.S. 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.

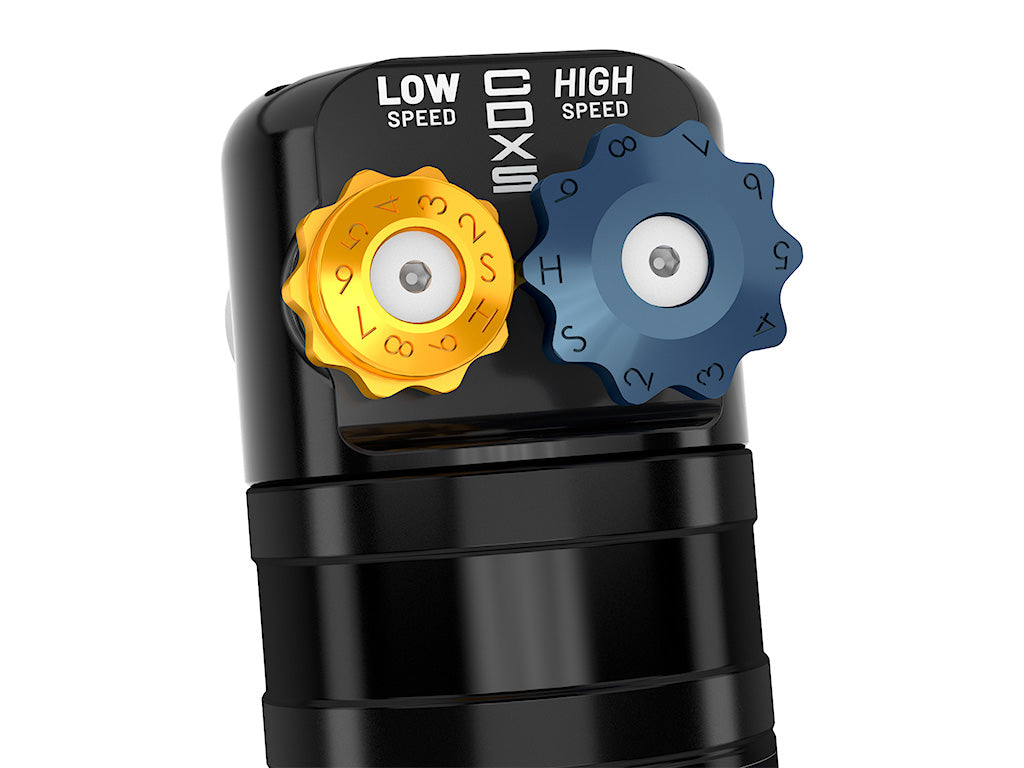

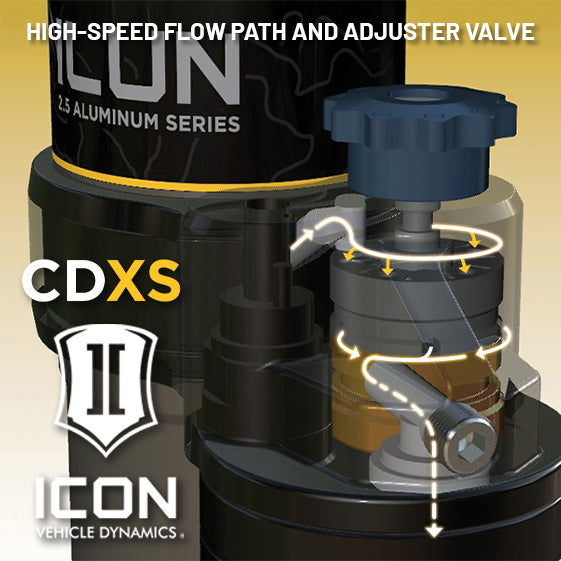

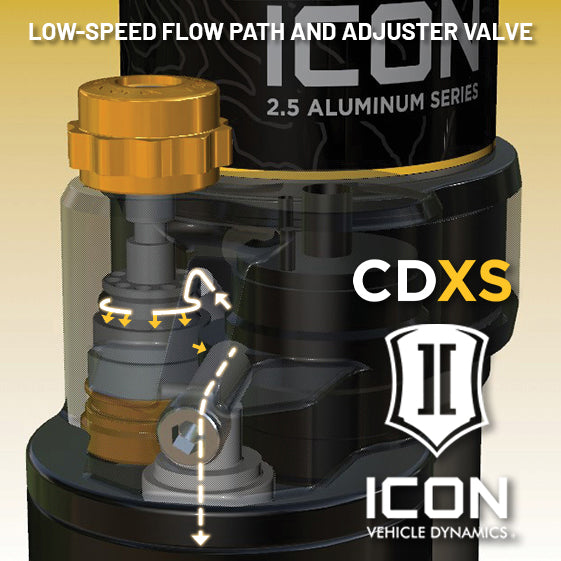

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
Features
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- Fully rebuildable and re-tunable

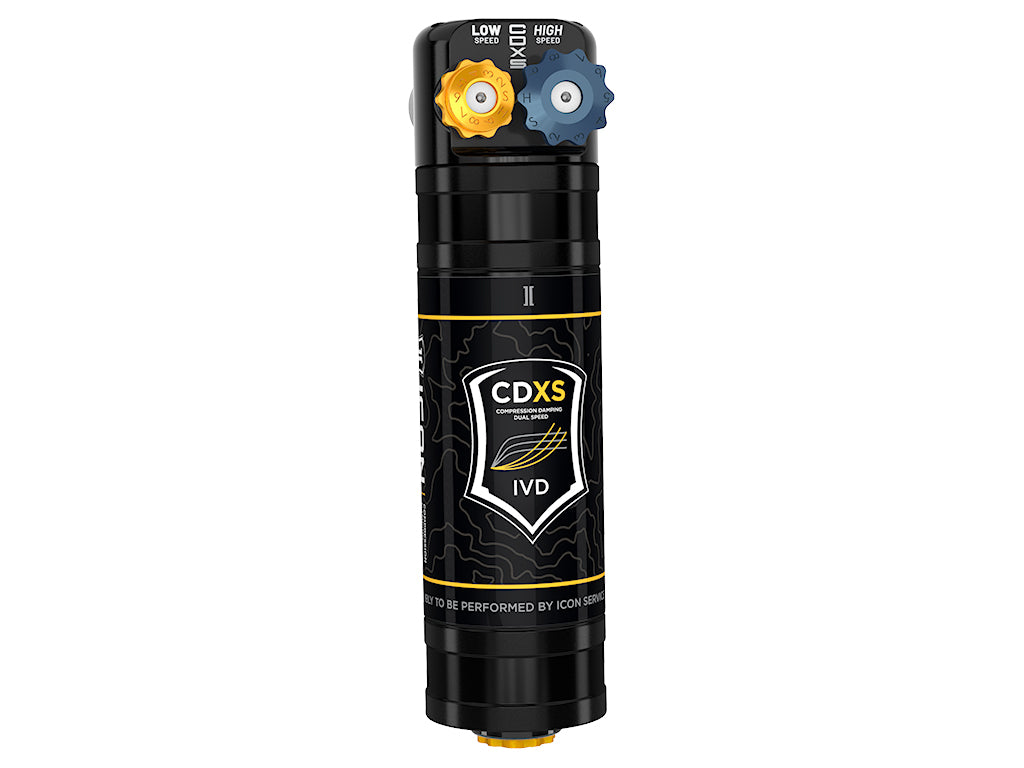

- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with remote reservoir
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road

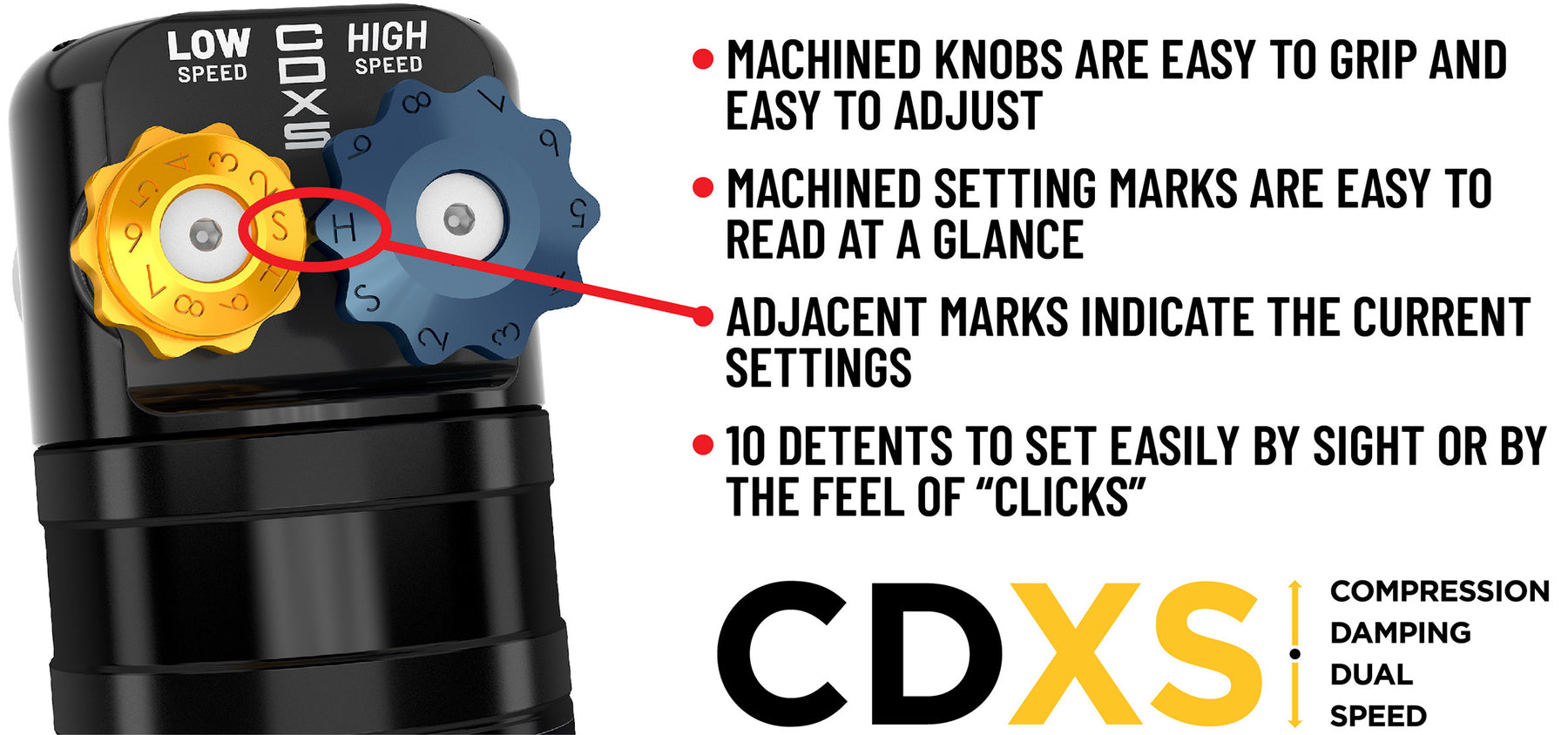

- ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- 7/8” diameter induction hardened, chrome plated shock shaft
- Rubber dust boot included for added shaft protection
Specifications
| Shaft Diameter | 0.875 IN |
| Bore Diameter | 2.25 IN |
| Tube Outside Diameter | 2.5 IN |
| Cylinder Diameter | 2.5 IN |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 52753 - 25 4RUNNER .75" DUAL RATE REAR SPRING KIT |
| Cylinder Material | Aluminum |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Shaft Material | Chrome |
| Valving Type | Digressive |
| Damping Adjustment Type | Dual Speed/Manual |
| Lower Mount Type | Eyelet |
| Cylinder Color | Gray |
| Includes Bump Stop | No |
| Adjustable Rebound | No |
| Damping Type | Oil |
| Active or Passive Suspension | Passive |
| Grade Type | Performance |
| Reservoir Type | Remote |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Upper Mount Type | Stem |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Adjustable | Yes |
| Boot Included | Yes |
| Gas Charged | Yes |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| California Prop 65 Warning | Yes |
| External Reservoir | Yes |
| Add-On Part | 56100 - 07-14 FJ/03-24 4RUNNER/22-24 TUNDRA/23-24 SEQUOIA REAR SHIN GUARDS |
Note: APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles TECH NOTE: Compatible with 0-3” of rear lift over stock
Short Description: SHOCK ABSORBER PAIR
Invoice Description: 57872XP
Definition: Suspension Shock Absorber Set
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year
