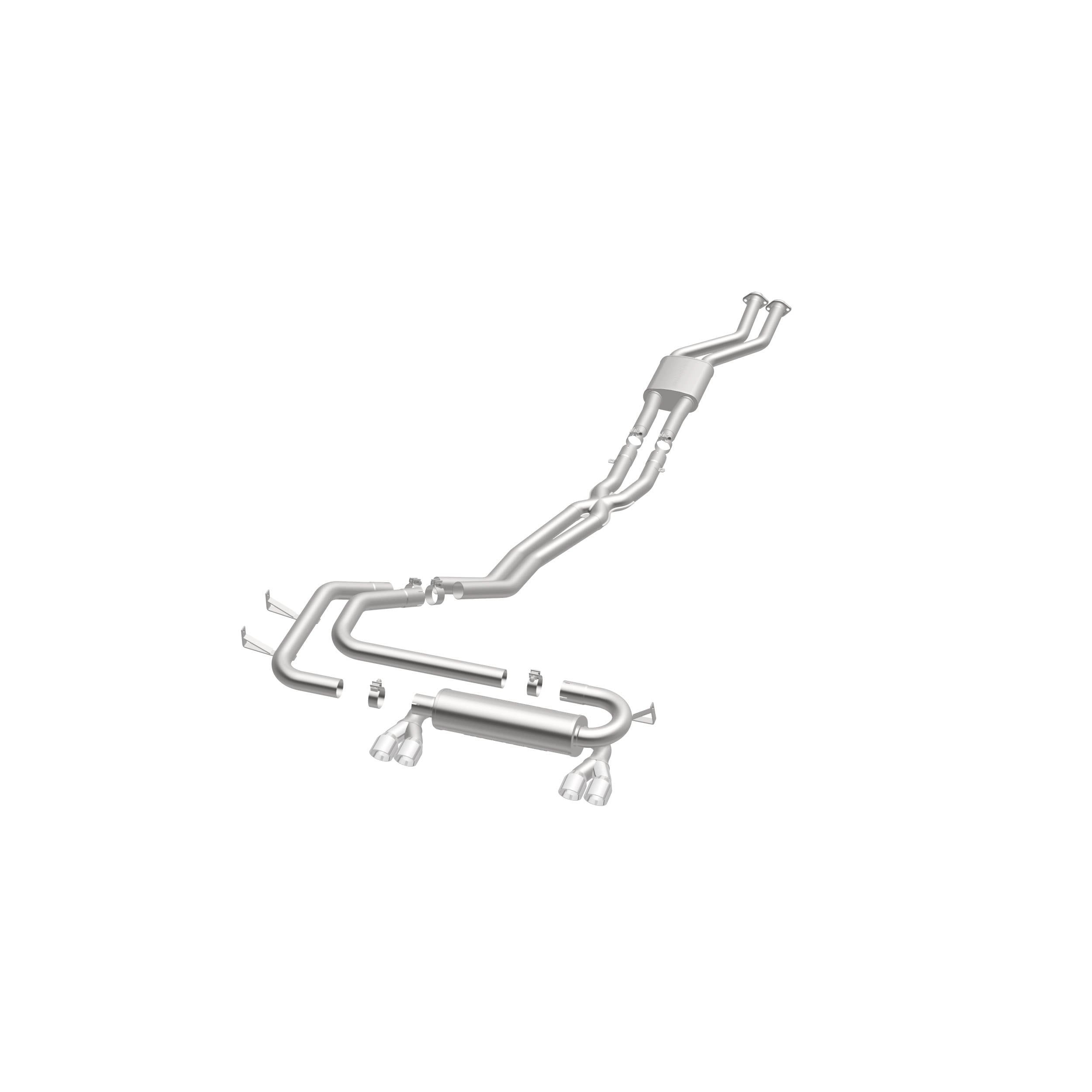

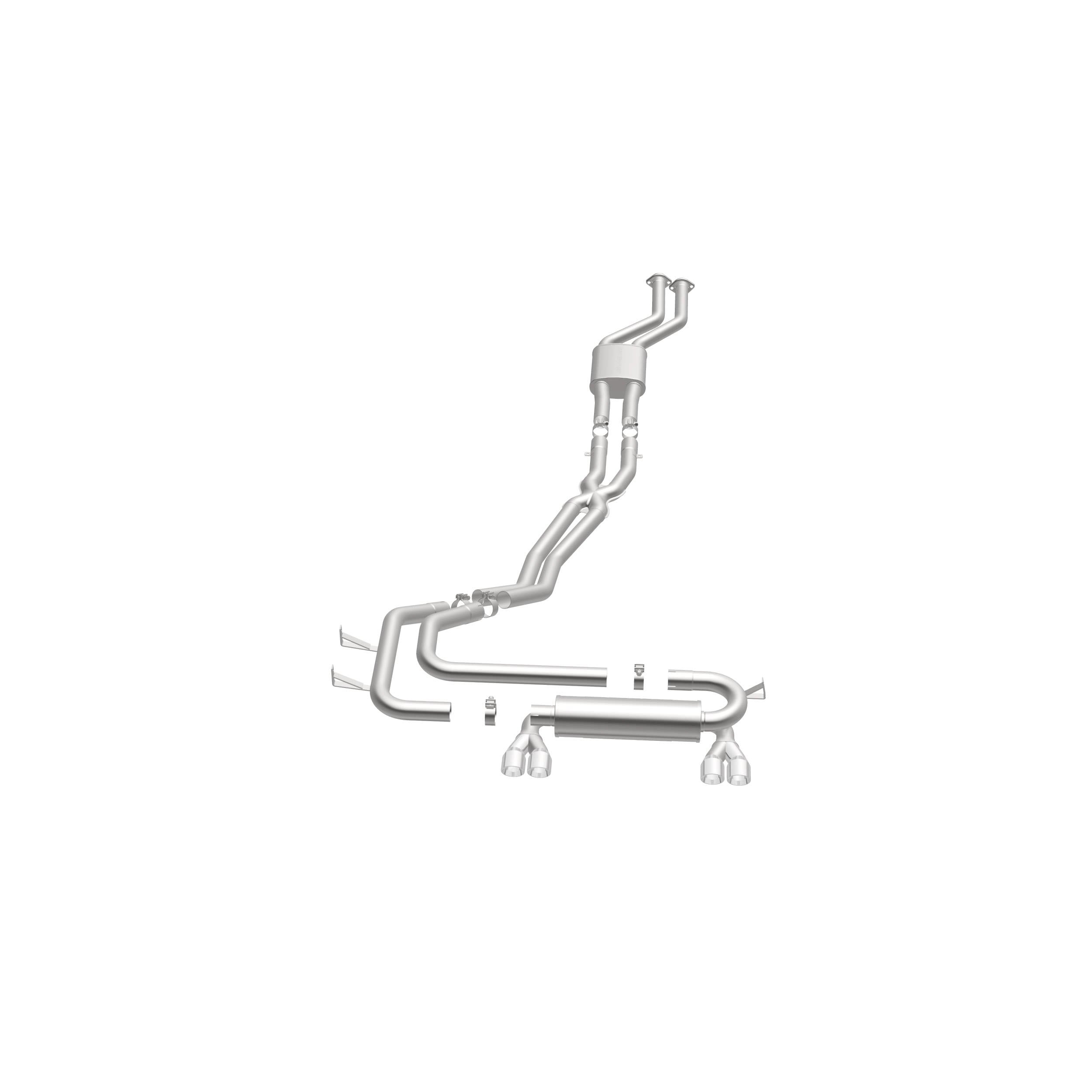

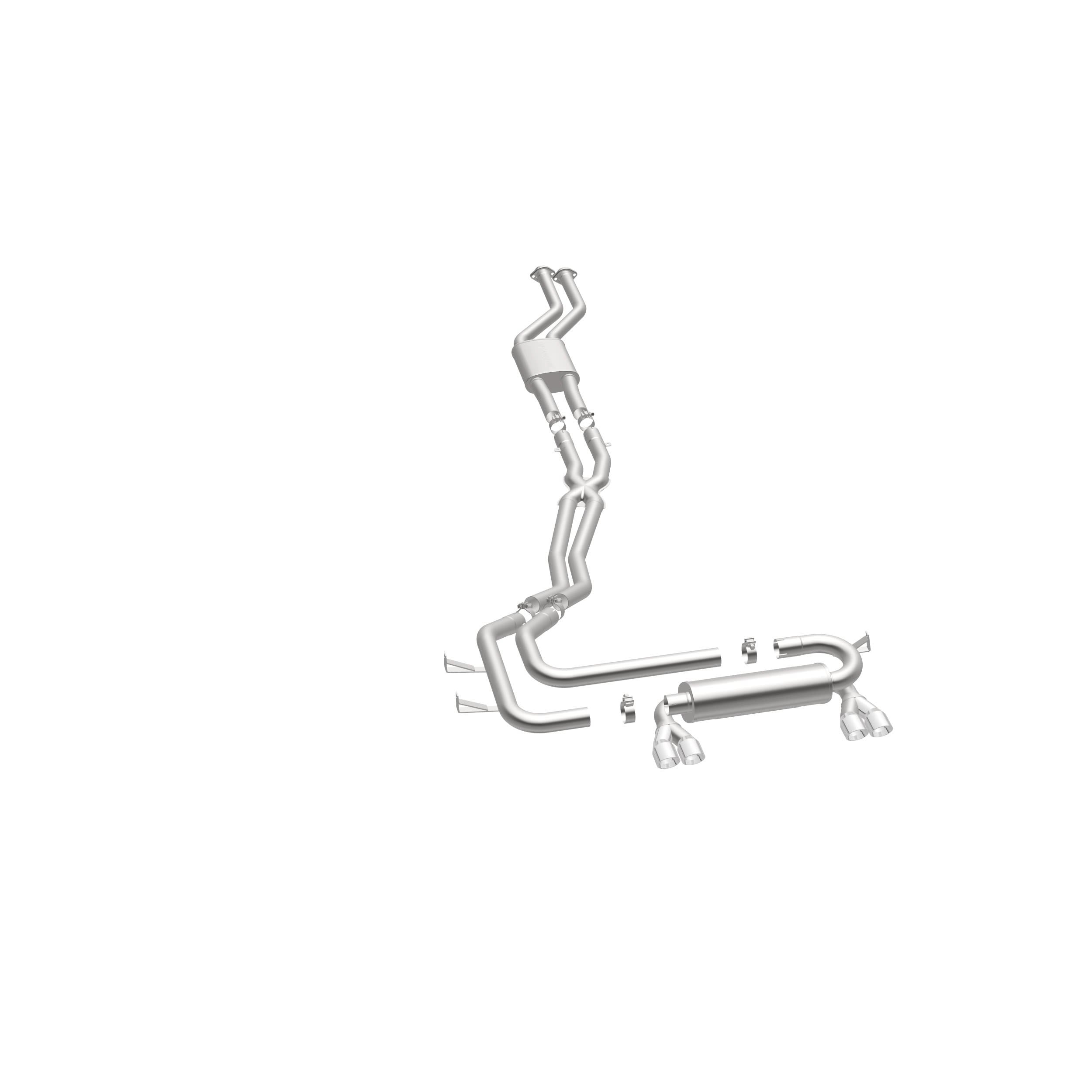

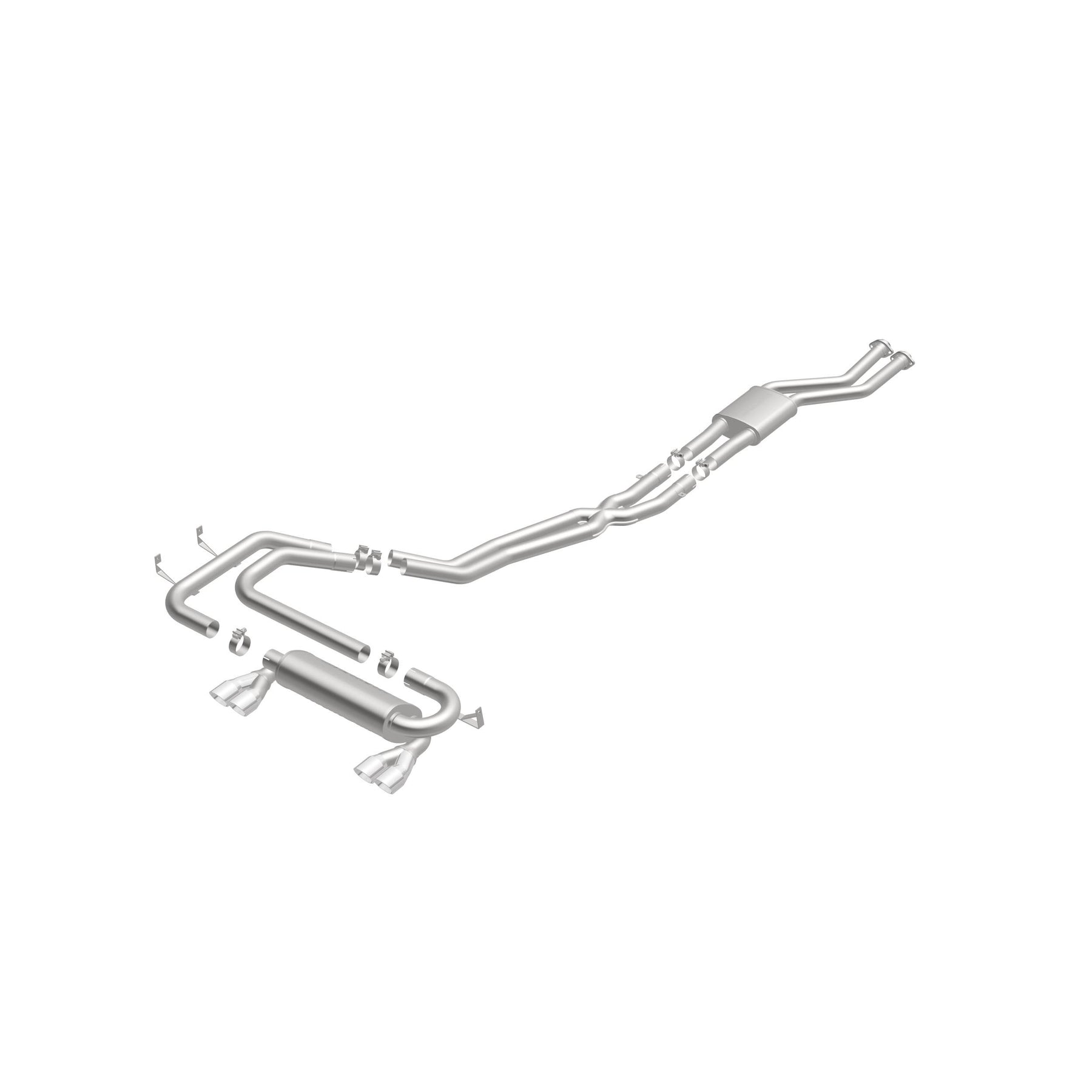

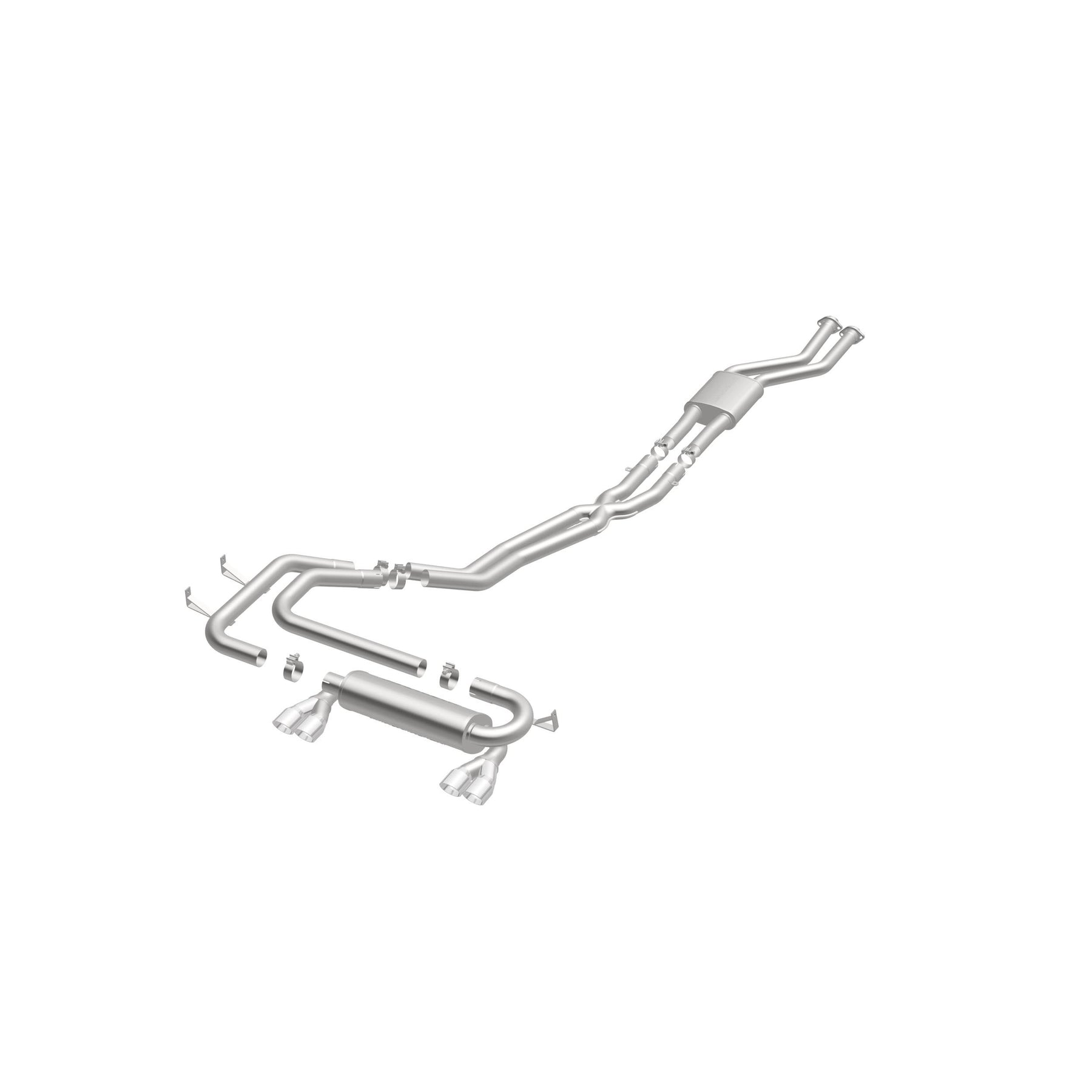

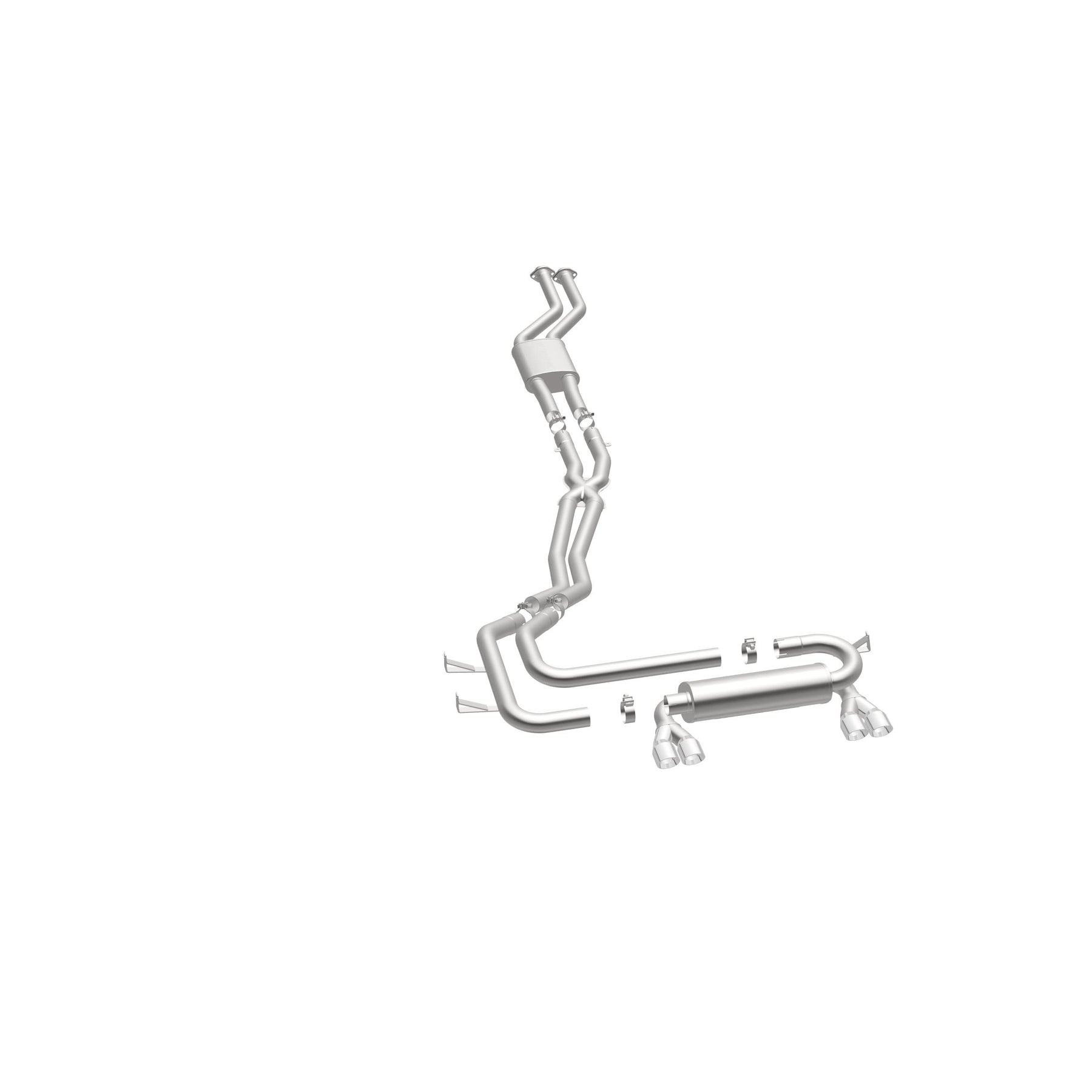

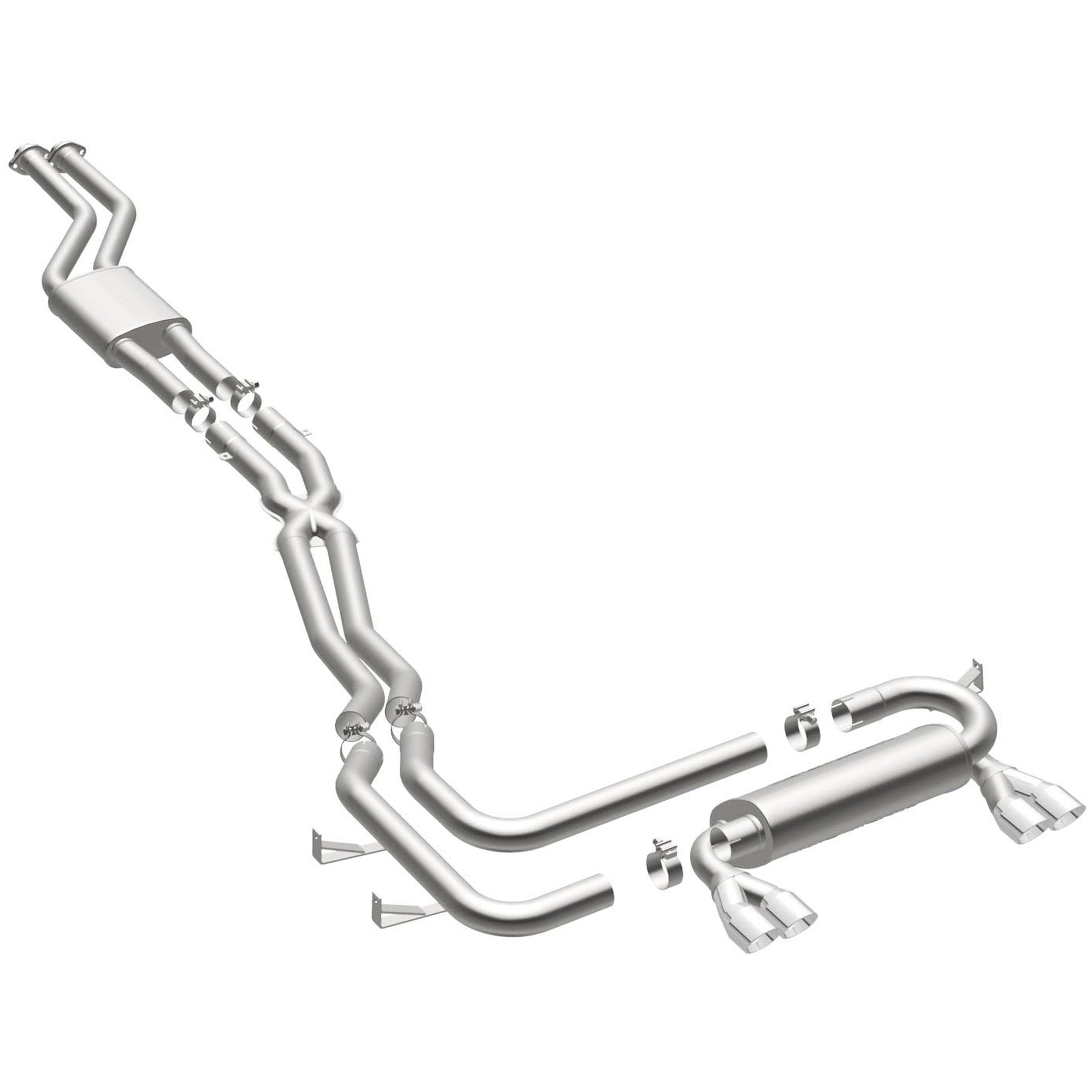

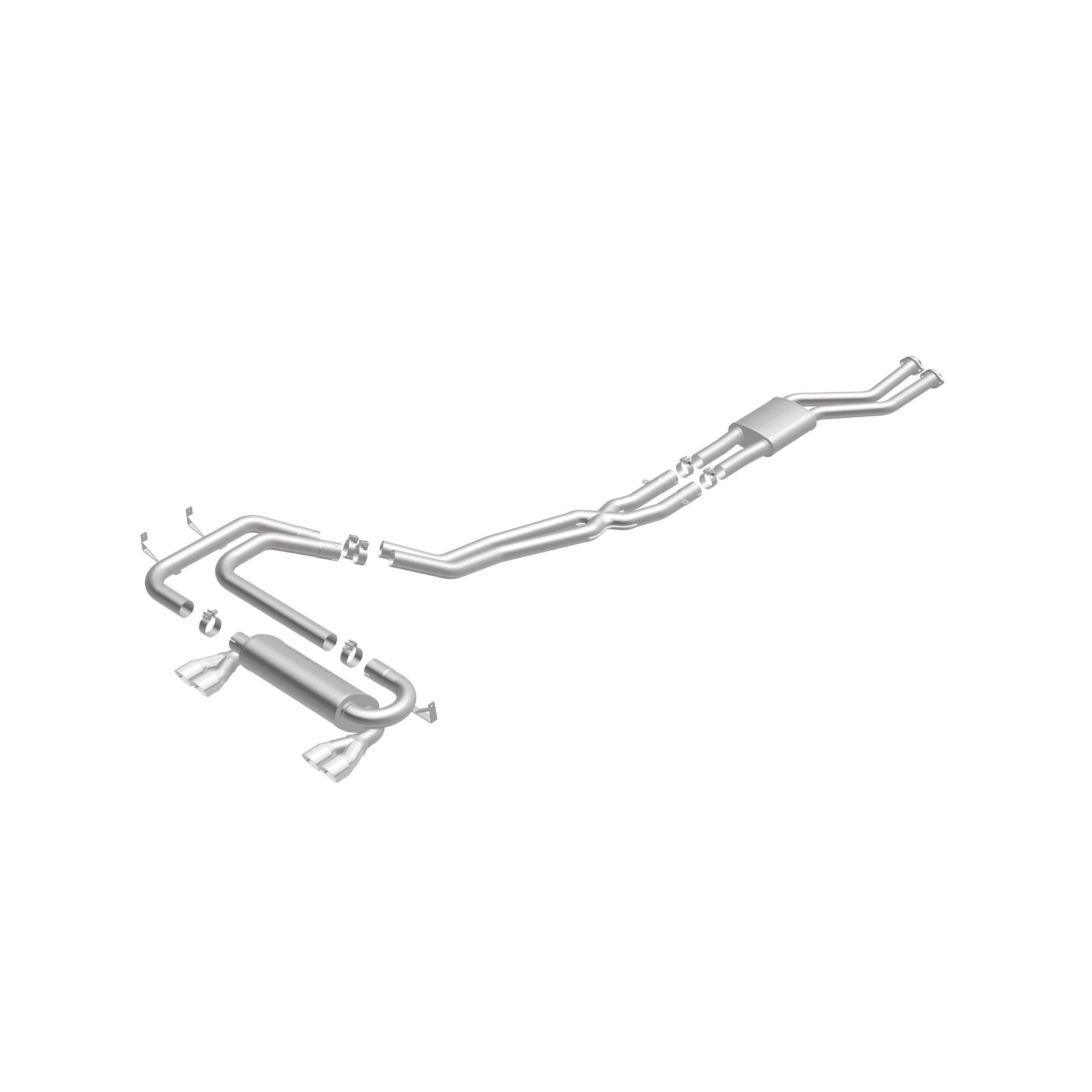

Magnaflow Sport Series Stainless Cat-Back System
The MagnaFlow 2001-2006 BMW M3 Sport Series Cat-Back Performance Exhaust System enhances your 3.2L 2001-2006 BMW M3 with an aggressive character that is sure to help you stand out from the other BMW M3 you encounter on the street. With its 2.25in. diameter fast-flowing mandrel bent main piping that passes through 2 Straight-Through mufflers before ending in a Quad Split Rear exit with 3in. Polished Welded-On Double Wall Angle Cut Folded Edge tips, this dyno-proven BMW M3 exhaust system refuses to be ignored. As such, 16602 is tuned to produce our powerful, resonant signature exhaust note at Aggressive exterior and Moderate interior sound levels, so please check to ensure compliance with local noise regulations. The system's cat-back design replaces all your import's stock exhaust components from the catalytic converter on back. Extensive 3D scanning and CNC precision robotic manufacturing techniques are used to ensure that your exhaust system fits perfectly with just a simple do-it-yourself installation process. The durable, corrosion resistant stainless steel construction of 16602 is backed by MagnaFlow's limited lifetime warranty.
Features & Benefits
- High-performance lightweight design
- Dyno-proven performance
- Racing inspired sound
Specifications
| Clamps Included | Yes |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Diameter | 3 IN |
| Exhaust Tip Edge | Folded Edge |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 8 IN |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 4 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Quad Split Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 2.25 IN |
| Mounting Bracket Included | Yes |
| Muffler (Front) Body Height | 4 IN |
| Muffler (Front) Body Length | 14 IN |
| Muffler (Front) Body Width | 9 IN |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Rear) Body Length | 18 IN |
| Muffler (Rear) Body Width | 8 IN |
| Muffler Body Height Position Front | 4 IN |
| Muffler Body Height Position Rear | 5 IN |
| Muffler Body Length Position Front | 14 IN |
| Muffler Body Length Position Rear | 18 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 9 IN |
| Muffler Body Width Position Rear | 8 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Muffler Type | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | Sport |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Title | MagnaFlow 2001-2006 BMW M3 3.2L Sport Series Cat-Back Performance Exhaust System 16602 |
| Clamping Type | Round Band |
Installation Guide: Download PDF
Specifications
MagnaFlow 16602 β Exhaust System Kit, fits 2001-2006 BMW M3. Key specs: 2.25 in. main piping diameter, sport series.
Warranty: Limited Lifetime Warranty from MagnaFlow
Also known as: UPC 841380018502
| Year | Make | Model | Engine |
|---|---|---|---|
| 2001-2006 | BMW | M3 | 3.2L I6 |
1 application listed.
