MagnaFlow Exhaust Products 16667 - Street Series Polished Cat-Back System
Couldn't load pickup availability

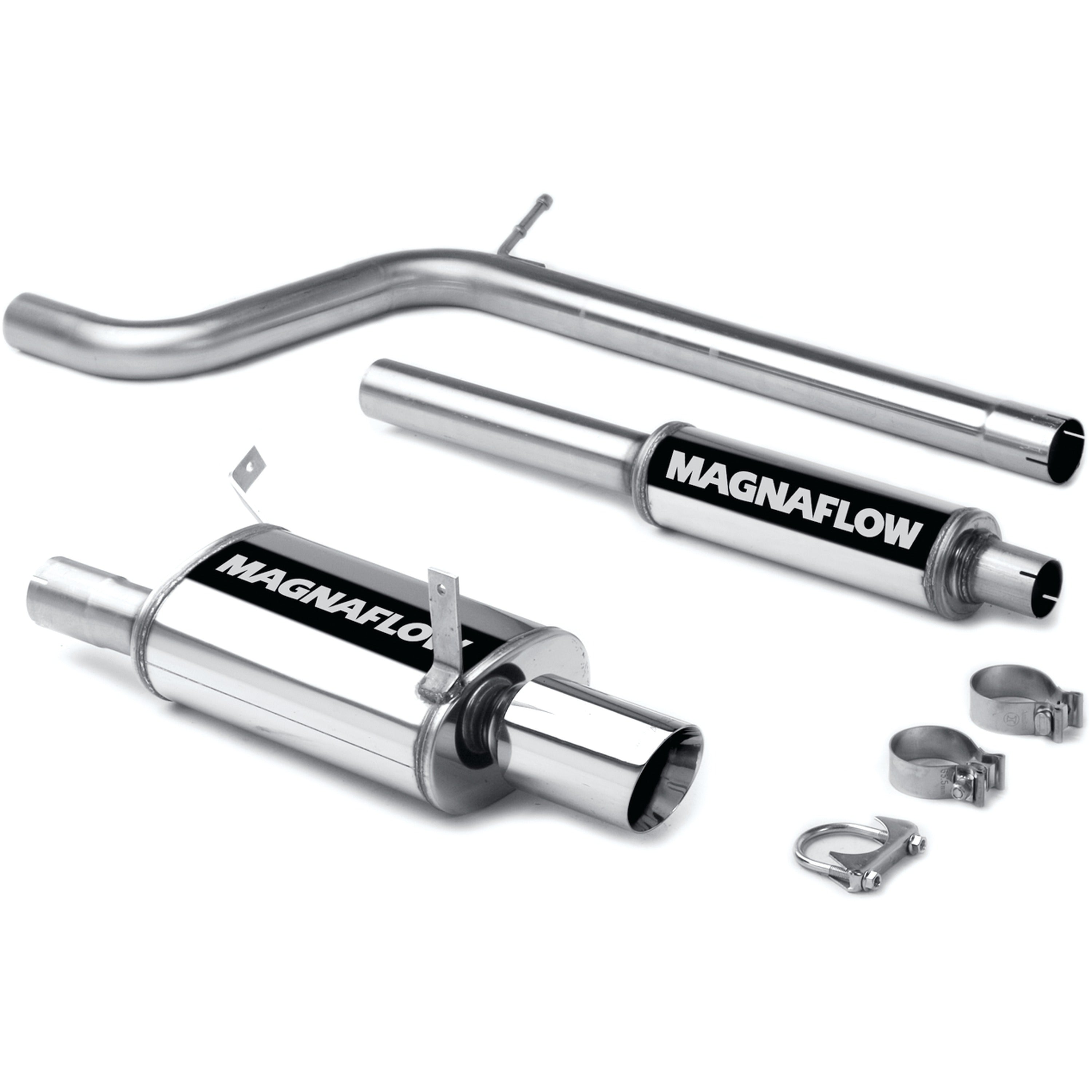

Magnaflow Street Series Stainless Cat-Back System
The MagnaFlow 2006-2009 Mitsubishi Eclipse Street Series Cat-Back Performance Exhaust System brings out the personality of your 2.4L 2006-2009 Mitsubishi Eclipse with our signature resonant, powerful engine tone and dyno-proven performance. Thanks to its fast-flowing, mandrel bent 2.5in. main piping and 2 Straight-Through mufflers ending in a Single Straight Passenger Side Rear exit with 4in. Polished Welded-On Double Wall Angle Cut Folded Edge tips, this Mitsubishi Eclipse exhaust kit has the performance chops to match its sporty sound and appearance. Upgrade your ride to the next level with an exhaust that has the pipes to put other Mitsubishi Eclipse's to shame. With this system your vehicle will be producing Moderate exterior and Mild interior sound levels while leaving other cars and trucks feeling envious at every stoplight. Exhaust kit 16667 features a cat-back layout that replaces your ride's stock exhaust components from near the catalytic converter on back. Extensive 3D scanning during development has resulted in a direct-fit design that you can easily install yourself. 16667 is produced using CNC precision robotic manufacturing techniques and is backed by MagnaFlow's 1-year limited finish warranty and limited lifetime construction warranty.
Features & Benefits
- Durable corrosion-resistant stainless steel construction
- Dyno-proven performance
- CNC precision robotic manufacturing techniques
Specifications
| Catalytic Converter Included | No |
| Exhaust Tip Quantity | 1 |
| Muffler (Front) Body Length | 14 IN |
| Muffler (Rear) Body Length | 14 IN |
| Muffler Body Length Position Front | 14 IN |
| Muffler Body Length Position Rear | 14 IN |
| Muffler Quantity | 2 |
| Main Piping Diameter | 2.5 IN |
| Muffler (Front) Body Height | 4 IN |
| Muffler (Front) Body Width | 4 IN |
| Exhaust Tip Diameter | 4 IN |
| Muffler Body Height Position Front | 4 IN |
| Muffler Body Width Position Front | 4 IN |
| Muffler (Rear) Body Height | 5 IN |
| Muffler Body Height Position Rear | 5 IN |
| Exhaust Tip Length | 7.5 IN |
| Muffler (Rear) Body Width | 8 IN |
| Muffler Body Width Position Rear | 8 IN |
| Exhaust Tip Cut | Angle Cut |
| Muffler Finish | Brushed |
| Type | Cat-Back |
| Inlet Type | Clamp-On |
| Exhaust Tip Wall | Double Wall |
| Exhaust Tip Edge | Folded Edge |
| Title | MagnaFlow 2006-2009 Mitsubishi Eclipse 2.4L Street Series Cat-Back Performance Exhaust System 16667 |
| Gasket Or Seal Included | No |
| Valve Included | No |
| Mounting Bracket Included | No |
| Exhaust Tip Resonated | No |
| Exhaust Tip Intercooled | No |

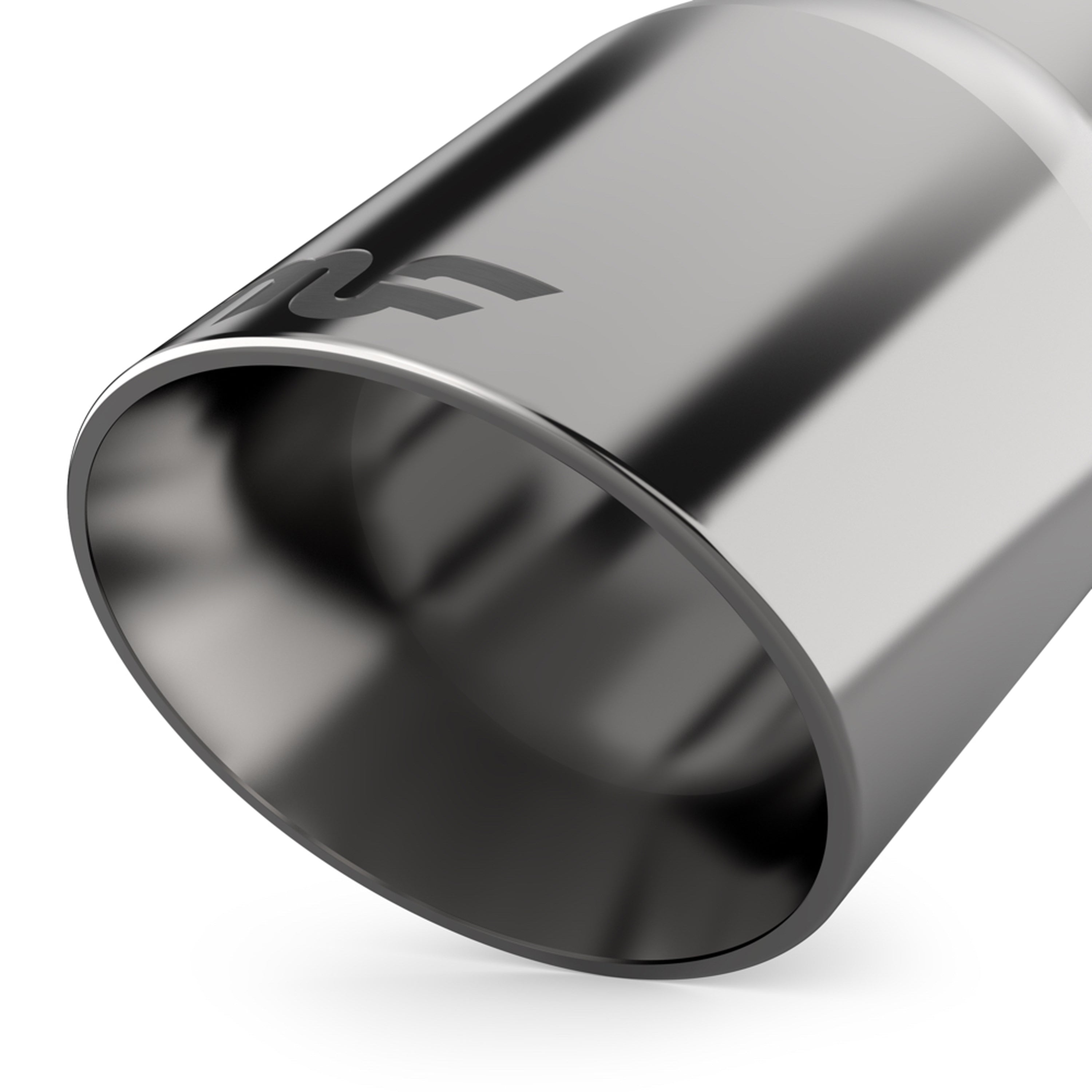

| Exhaust Tip Finish | Polished |
| Exhaust Tip Shape | Round |

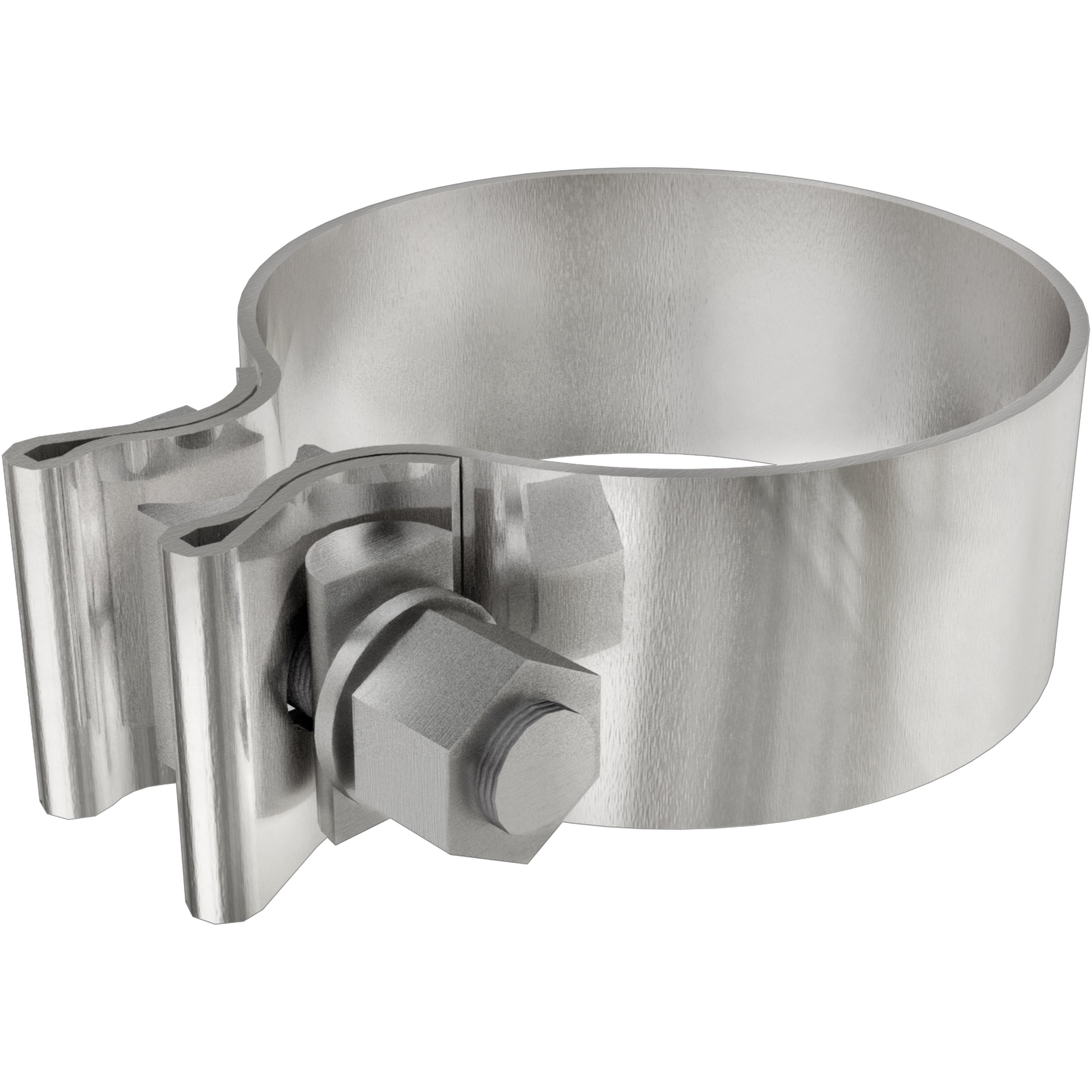

| Clamping Type | Round Band |
| Exit Style | Single Straight Passenger Side Rear |
| Exhaust Tip Material | Stainless Steel |
| Pipe Material | Stainless Steel |
| Muffler Body Material | Stainless Steel |

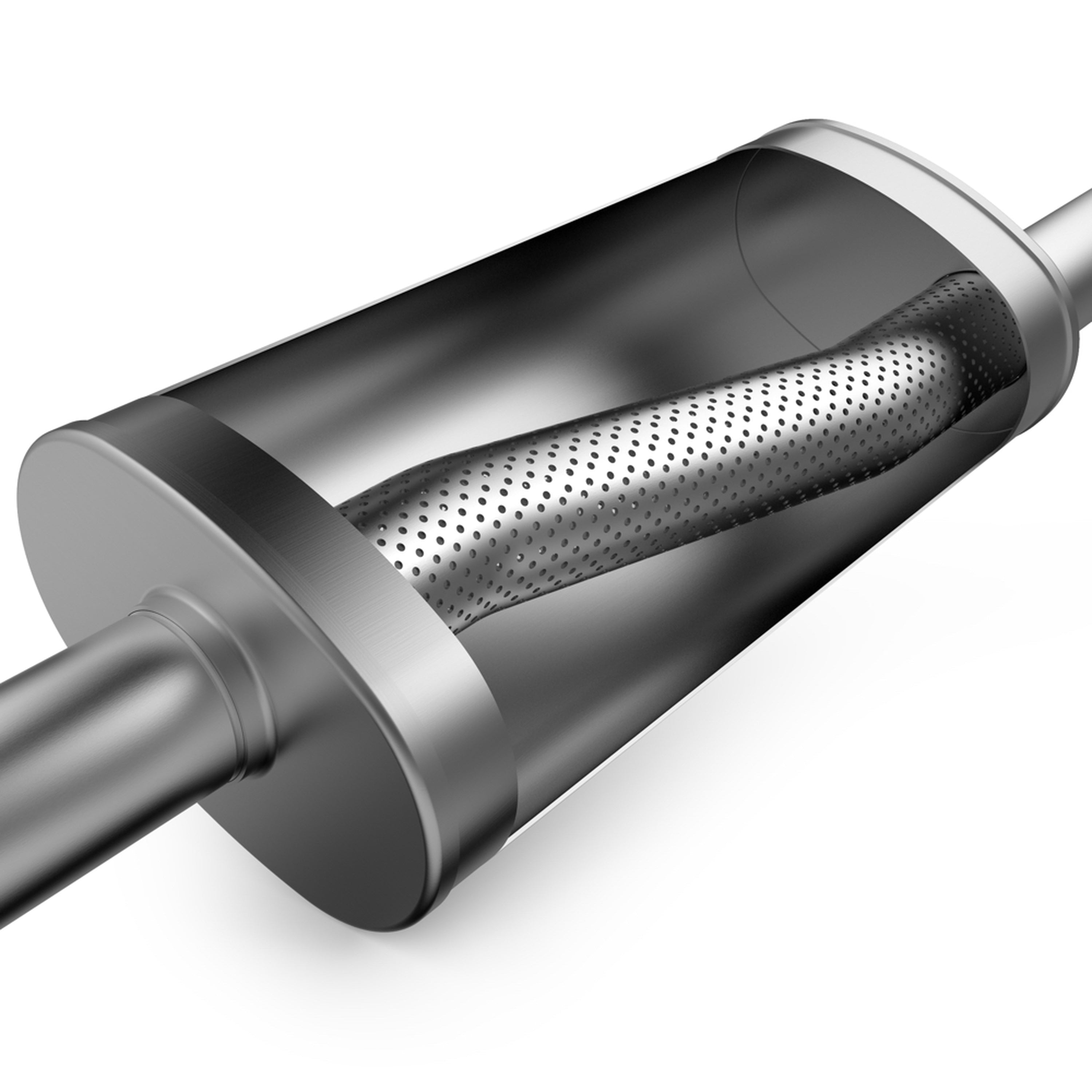

| Muffler Type | Straight-Through |
| Series | Street |
| Clamping Type | U Bolt |
| Exhaust Tip Connection | Welded-On |
| Clamps Included | Yes |
| Hangers Included | Yes |
Installation Guide: Download PDF
