MagnaFlow Exhaust Products 16859 - Touring Series Polished Cat-Back System
Product Availability Request
Fill the form and our team will contact you.
Magnaflow Touring Series Stainless Cat-Back System

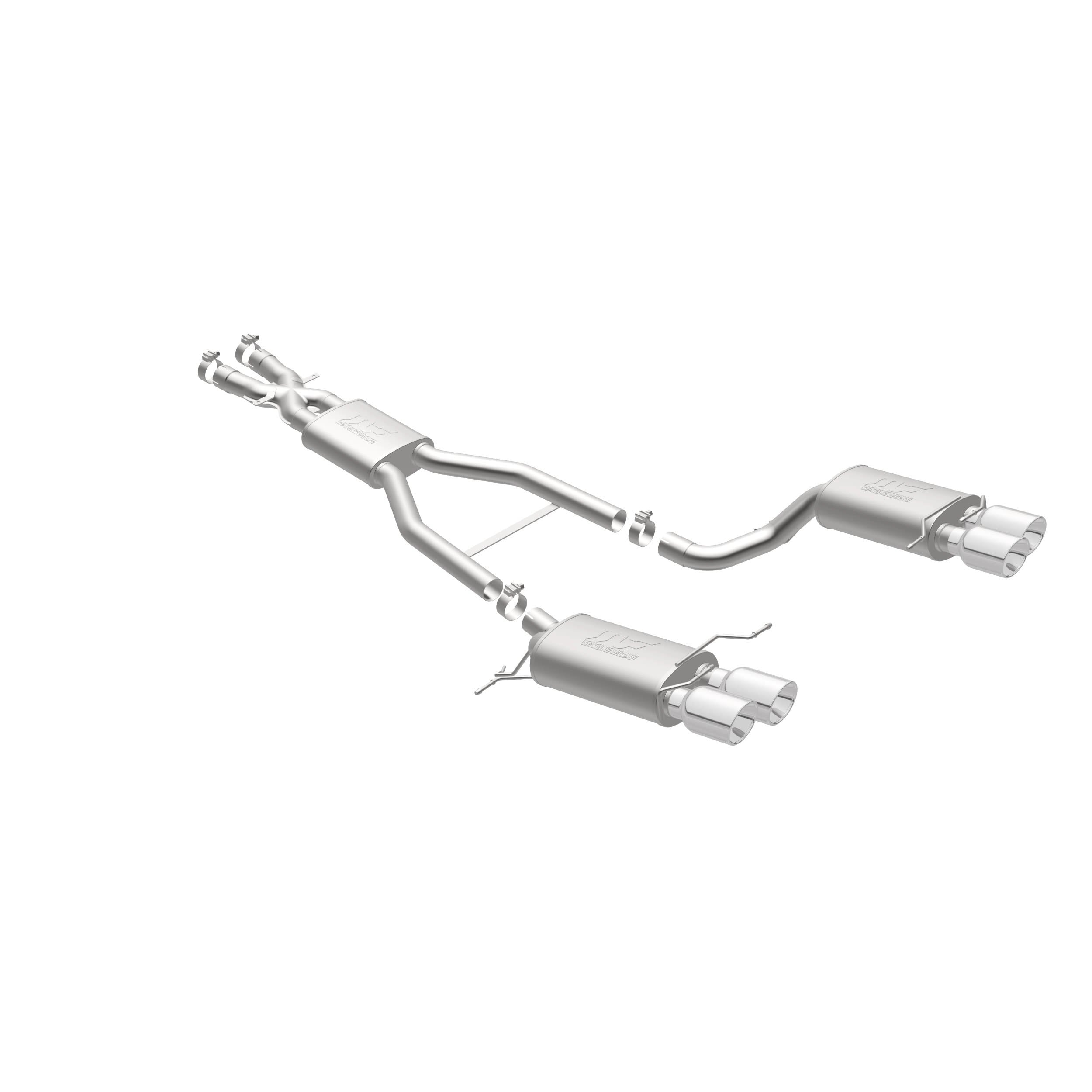

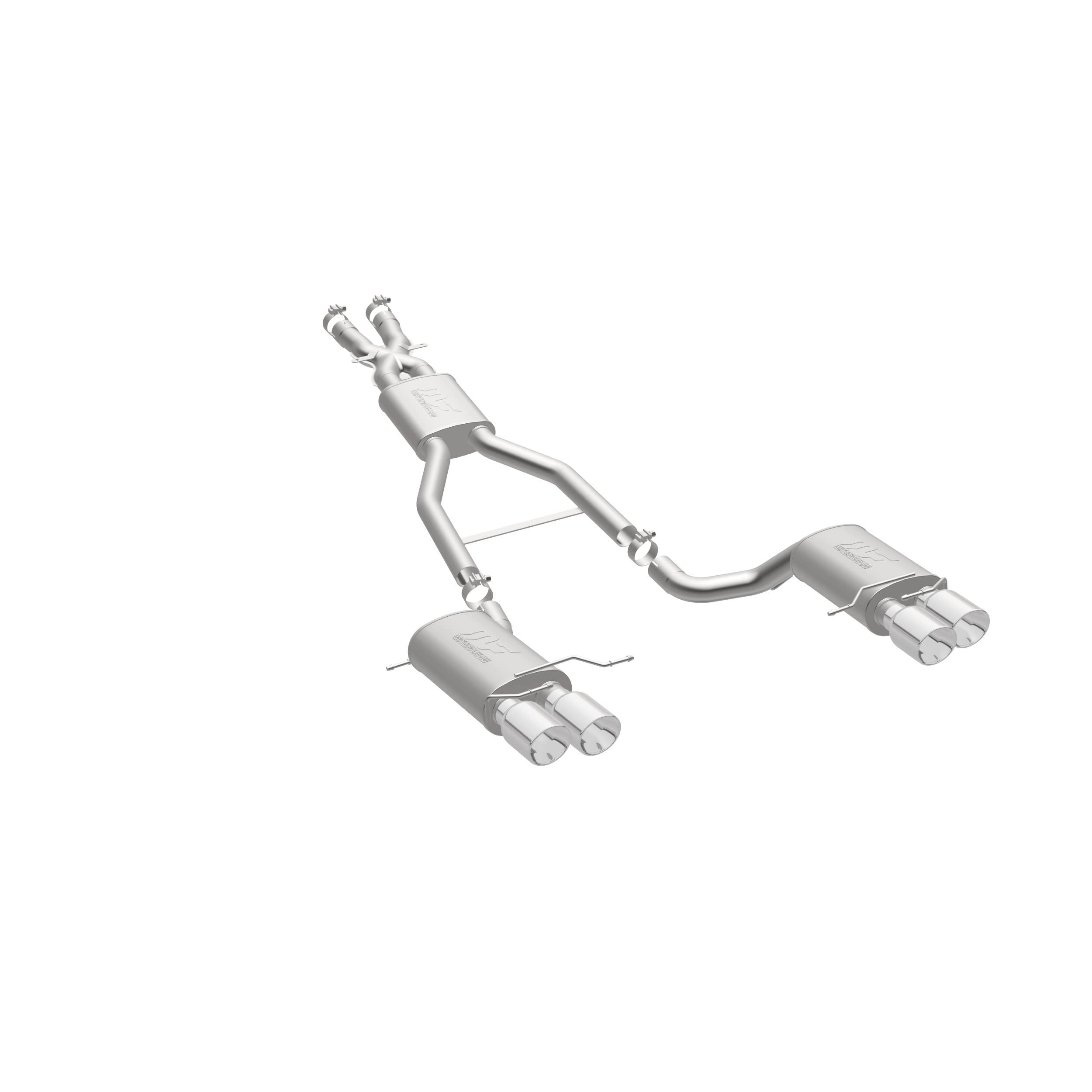

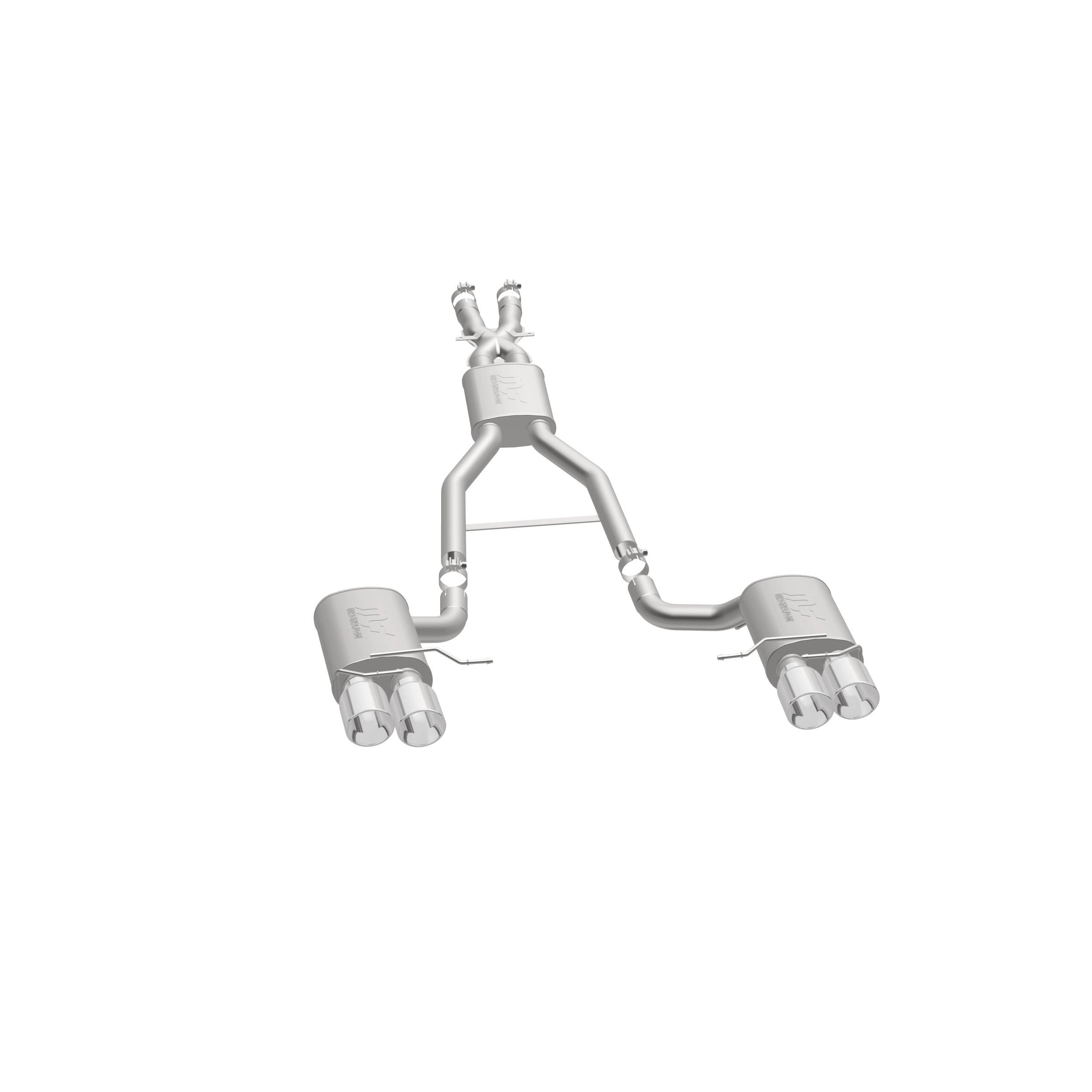

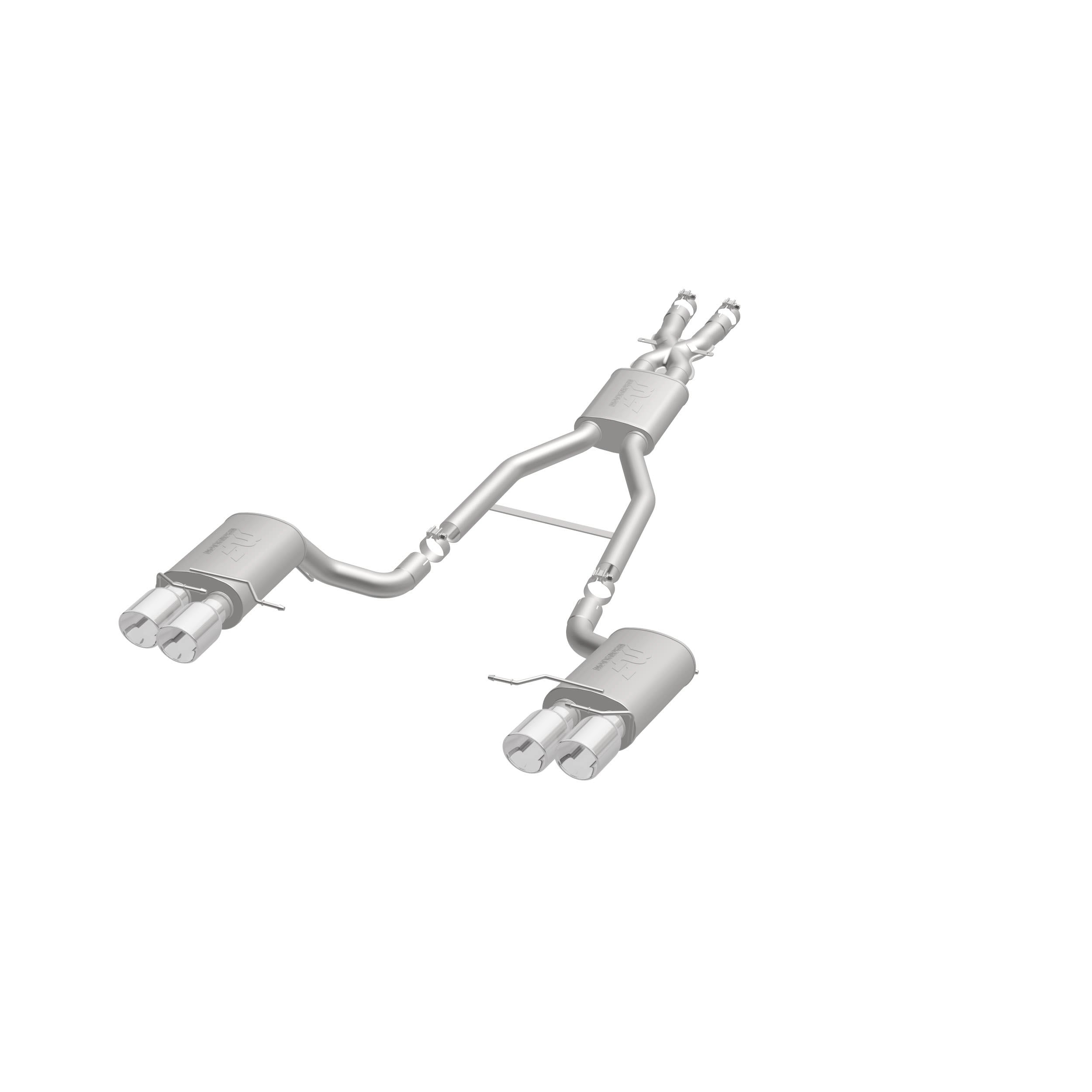

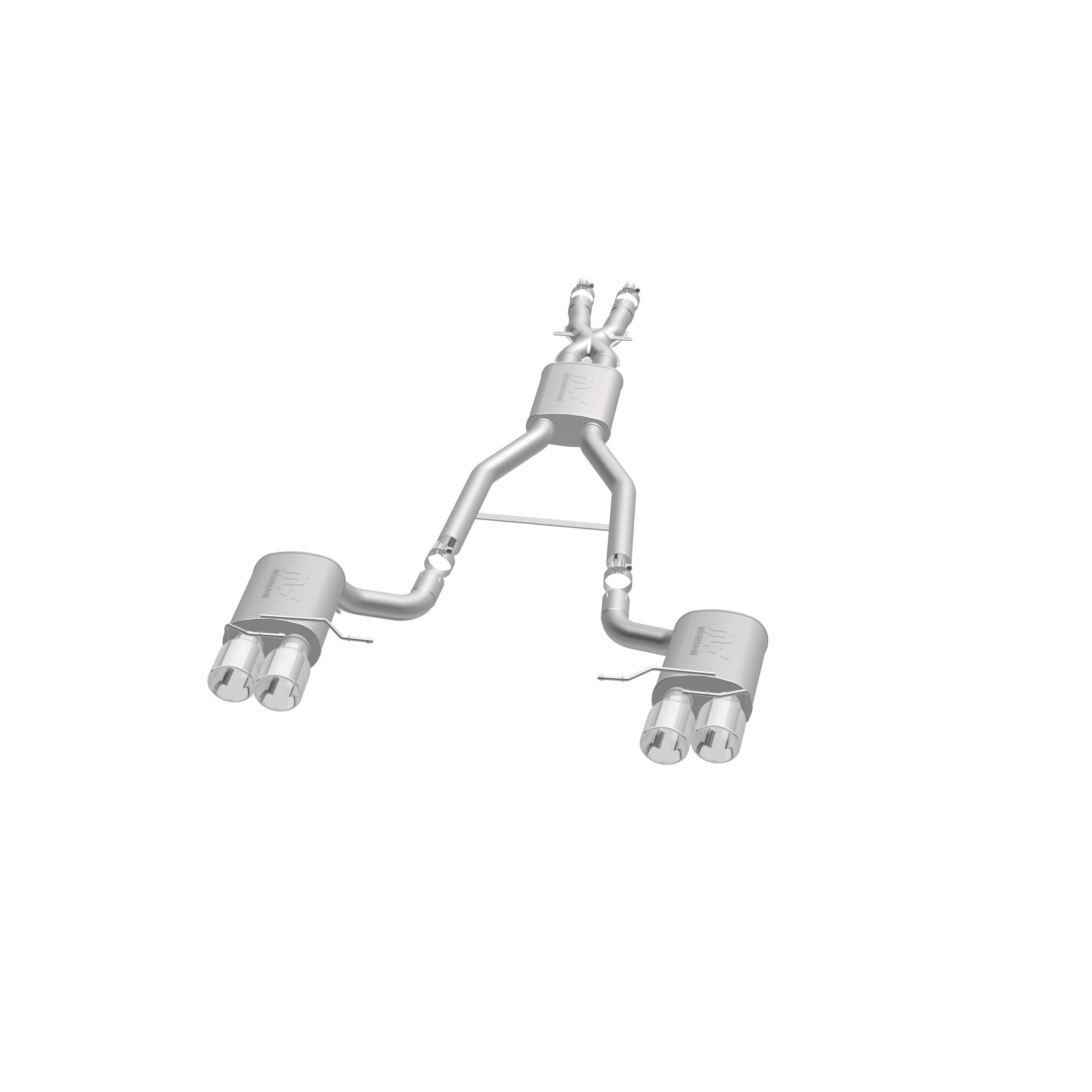

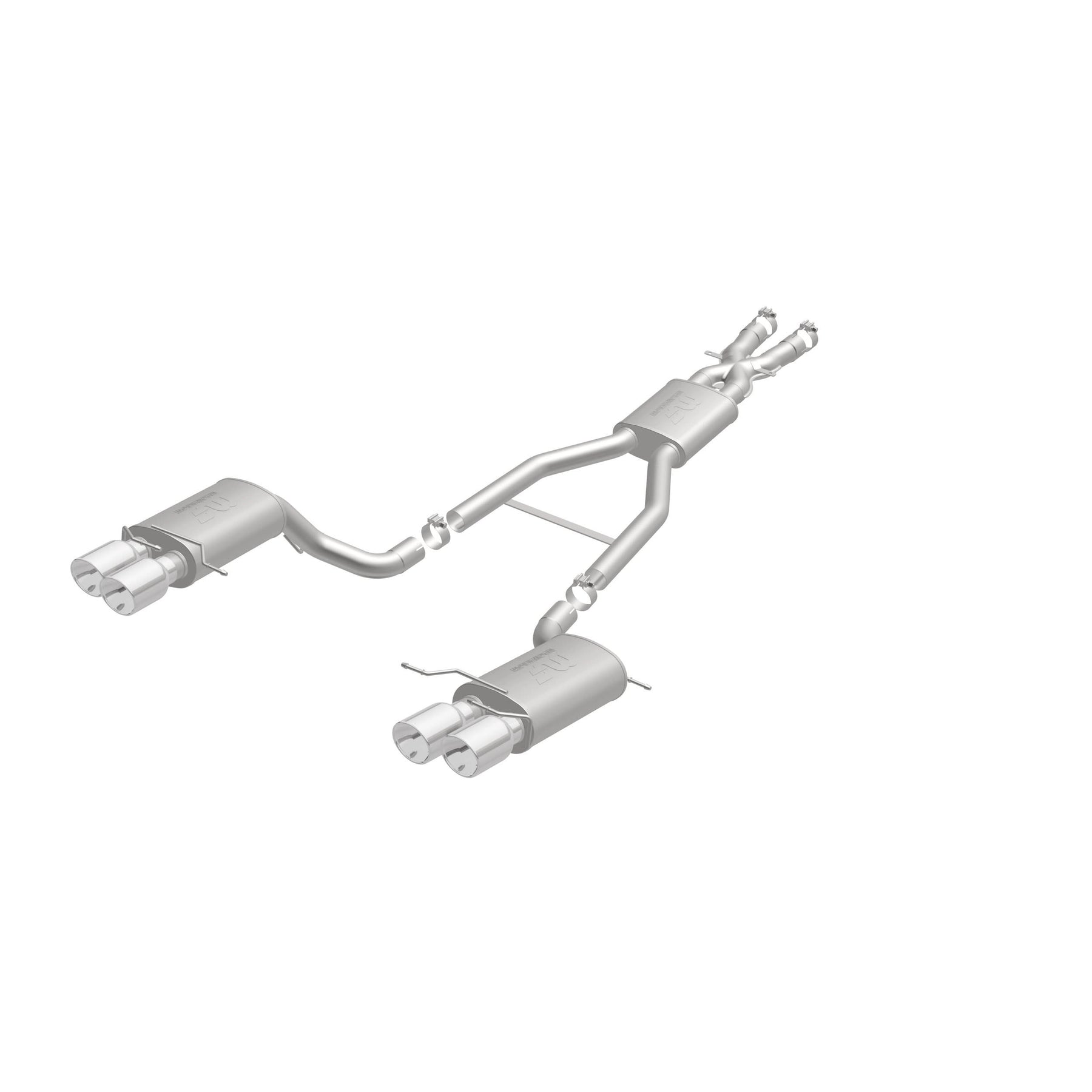

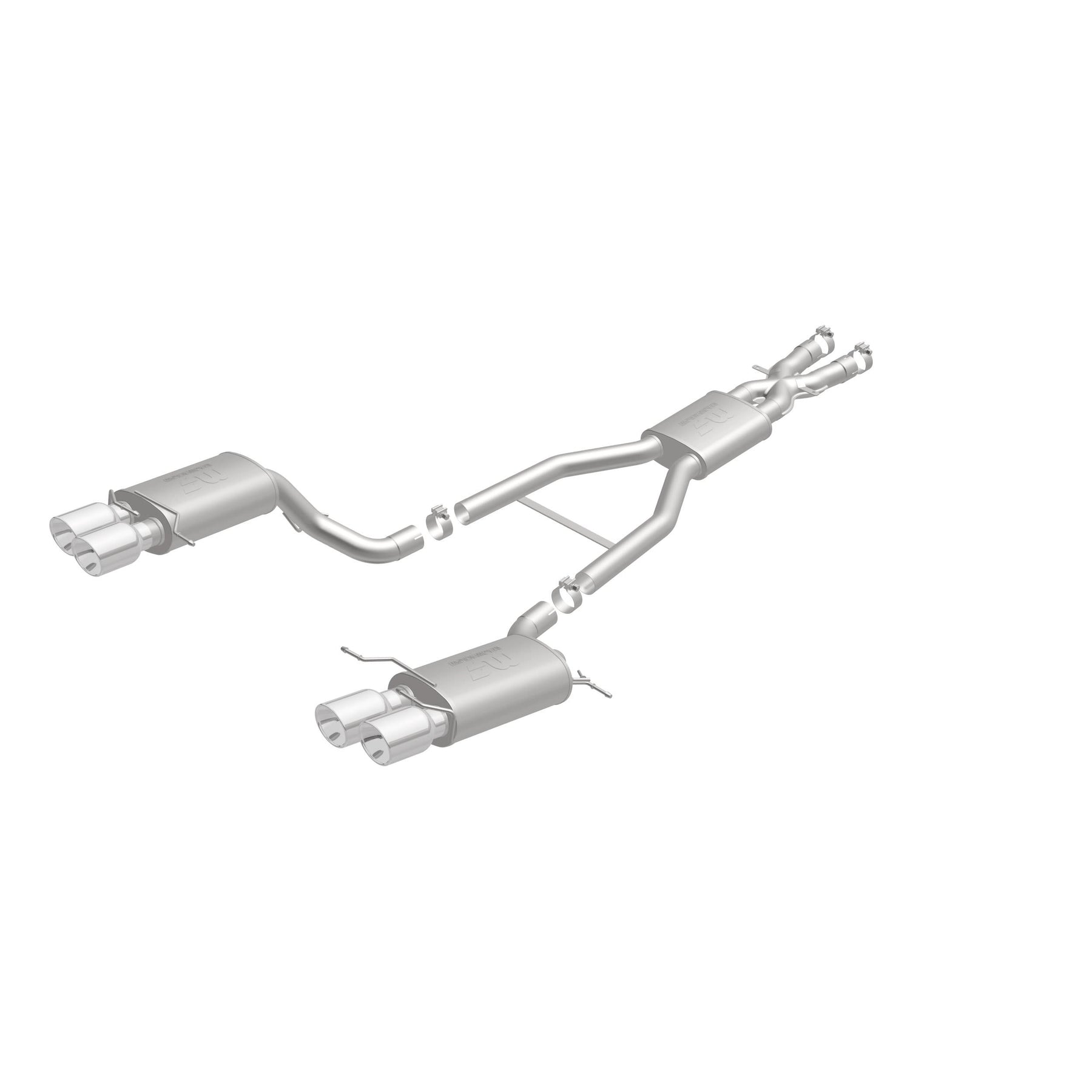

The MagnaFlow 2006-2010 BMW M5 Touring Series Cat-Back Performance Exhaust System is the perfect partner for your 5.0L 2006-2010 BMW M5 to take on a grand tour or a weekend cruise thanks to the powerful, resonant exhaust note and dyno-proven performance it brings to the table. This durable, corrosion resistant stainless steel exhaust kit is engineered to conquer the miles with ease while enhancing your driving experience with Moderate exterior and Mild interior sound levels generated through its fast-flowing, mandrel bent 2.5in. main piping and 3 Straight-Through muffler that terminate in a Quad Split Rear exit with 4in. Polished Welded-On Double Wall Angle Cut Rolled Edge tips. 16859 features a cat-back layout design to replace your import's stock exhaust components from the catalytic converter on back. This BMW M5 exhaust system is compatible with 2006-2010 engines. The use of extensive 3D scans made during the development process has resulted in an easy-to-install, direct-fit design that fits your BMW M5 like a glove. 16859 is produced using CNC precision robotic manufacturing techniques and is backed by MagnaFlow's limited lifetime construction warranty.
Features & Benefits
- 409 Stainless Steel Construction
- Mandrel bent tubing
- Increased Horsepower and Torque
Specifications
| Clamps Included | Yes |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Diameter | 4 IN |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 7.25 IN |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 4 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Quad Split Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 2.5 IN |
| Mounting Bracket Included | Yes |
| Muffler (Front) Body Height | 4 IN |
| Muffler (Front) Body Length | 11 IN |
| Muffler (Front) Body Width | 9 IN |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Rear) Body Length | 14 IN |
| Muffler (Rear) Body Width | 8 IN |
| Muffler Body Height Position Front | 4 IN |
| Muffler Body Height Position Rear | 5 IN |
| Muffler Body Length Position Front | 11 IN |
| Muffler Body Length Position Rear | 14 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 9 IN |
| Muffler Body Width Position Rear | 8 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 3 |
| Muffler Type | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | Touring |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Title | MagnaFlow 2006-2010 BMW M5 5.0L Touring Series Cat-Back Performance Exhaust System 16859 |
| Clamping Type | Round Band |
Installation Guide: Download PDF
Specifications
MagnaFlow 16859 β Exhaust System Kit, fits 2006-2010 BMW M5. Key specs: 2.5 in. main piping diameter, touring series.
Warranty: Limited Lifetime Warranty from MagnaFlow
Also known as: UPC 00841380040992
