MagnaFlow Exhaust Products 19056 - Off Road Pro Series Gas Stainless Cat-Back
Product Availability Request
Fill the form and our team will contact you.
Magnaflow Off Road Pro Series Gas Stainless Cat-Back

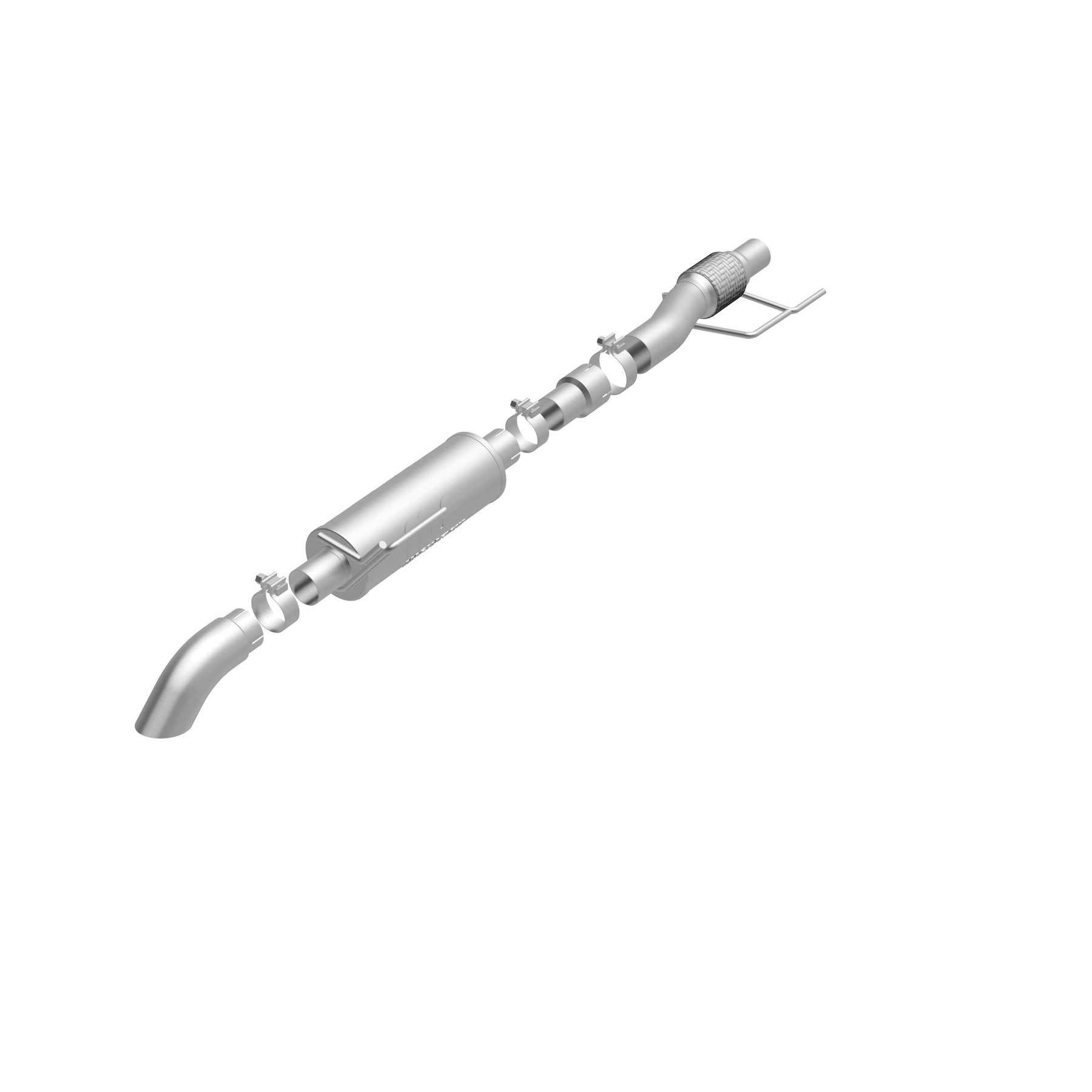

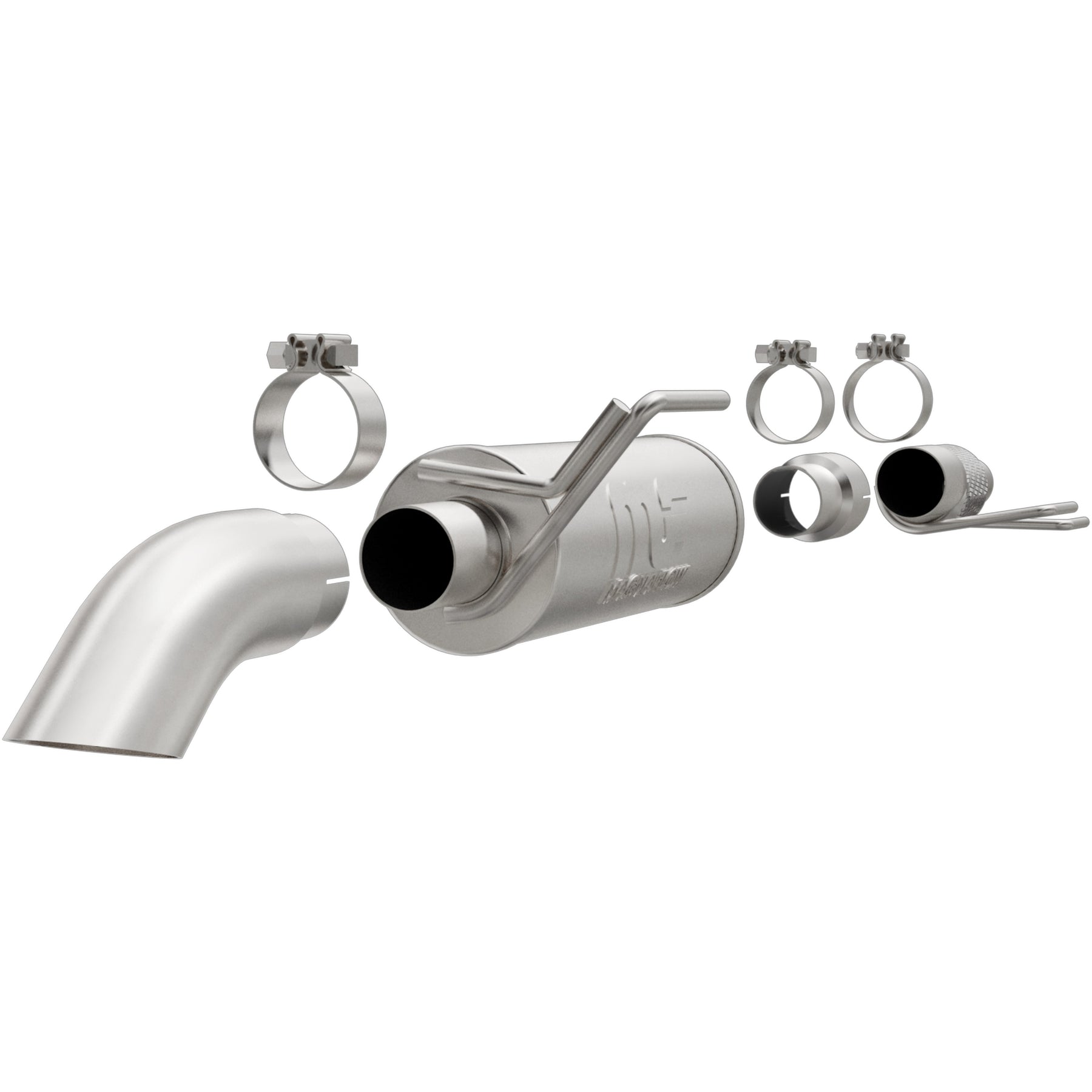

The MagnaFlow 2015-2020 Ford F-150 Off-Road Pro Series Cat-Back Performance Exhaust System brings additional off-roading prowess and our deep signature exhaust note to your 2.7L, 3.5L 2015-2020 Ford F-150 with a weight-optimized, dyno-tested, corrosion resistant and durable stainless steel design engineered to closely hug the undercarriage for improved ground clearance. Exhaust kit 19056 is engineered to produce Very Aggressive exterior and Aggressive interior sound levels. Extensive 3D scanning was used during the development of this Ford F-150 exhaust system to create a direct-fit design, enabling a do-it-yourself installation process. 19056's emissions-legal cat-back design replaces all your truck's exhaust components from the catalytic converter on back with its 3in. diameter mandrel bent main piping that passes through 1 Straight-Through mufflers before ending in a turndown before rear axle exit with 3in. Satin Clamp-On Single Wall Turndown Cut Edge tips. Exhaust system 19056 is produced using advanced CNC precision robotic manufacturing techniques and backed by MagnaFlow's limited lifetime warranty.
Features & Benefits
- Available for gas or diesel trucks and SUV's
- 100% Stainless Steel
- High flow straight through design
Specifications
| Clamps Included | Yes |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Turndown |
| Exhaust Tip Diameter | 3 IN |
| Exhaust Tip Edge | Cut Edge |
| Exhaust Tip Finish | Satin |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 9.125 IN |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 1 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 3 IN |
| Mounting Bracket Included | No |
| Muffler Body Height | 5 IN |
| Muffler Body Length | 14 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width | 5 IN |
| Muffler Finish | Satin |
| Muffler Quantity | 1 |
| Muffler Type | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | Off Road Pro |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Title | MagnaFlow 2015-2020 Ford F-150 3.5L | 2015-2020 Ford F-150 2.7L Off Road Pro Series Cat-Back Performance Exhaust System 19056 |
| Clamping Type | Round Band |
| Exit Style | Turn Down In Front Of Rear Tire |
Installation Guide: Download PDF
