MagnaFlow Exhaust Products 19535 - xMOD Series Carbon Fiber Tips Cat-Back System
Couldn't load pickup availability

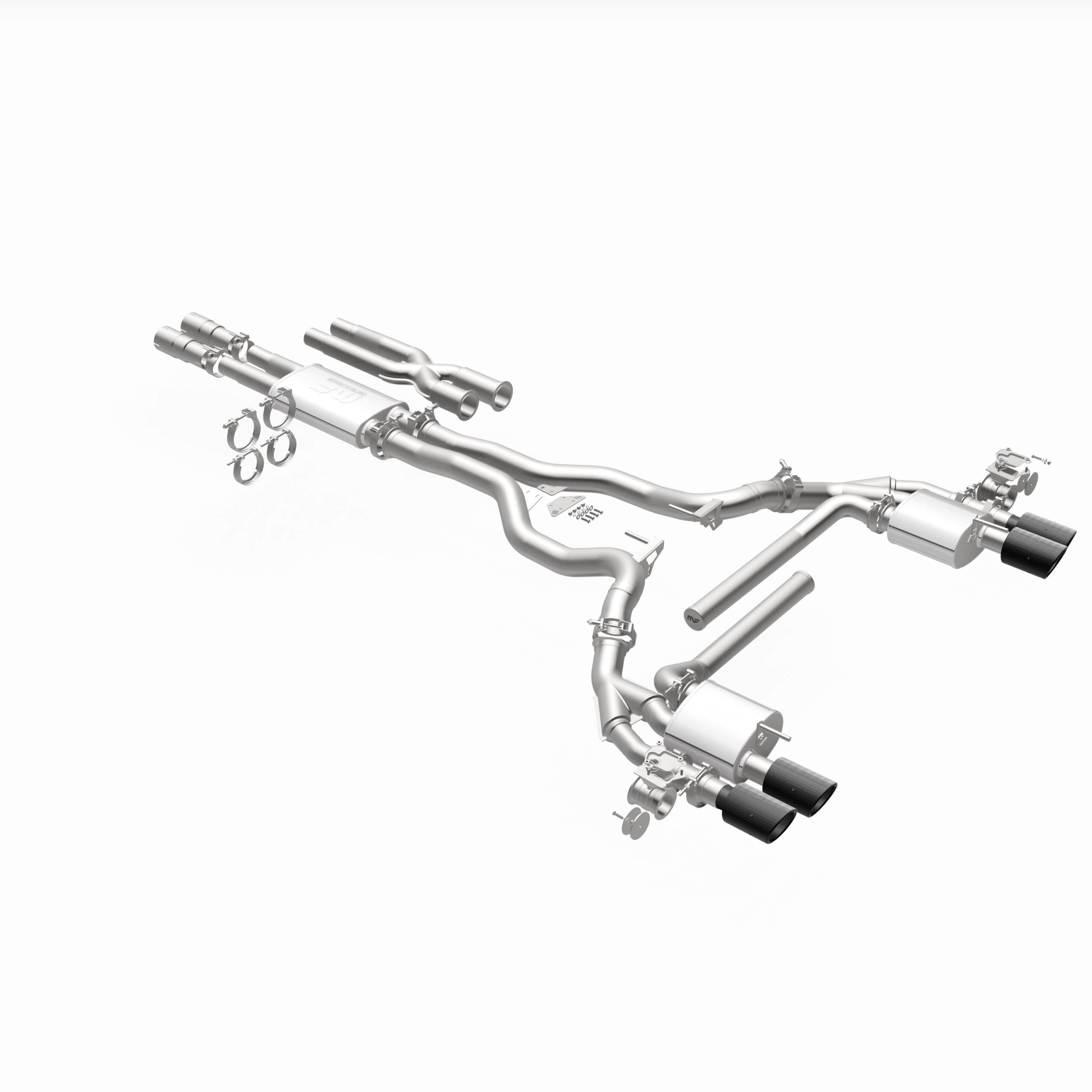

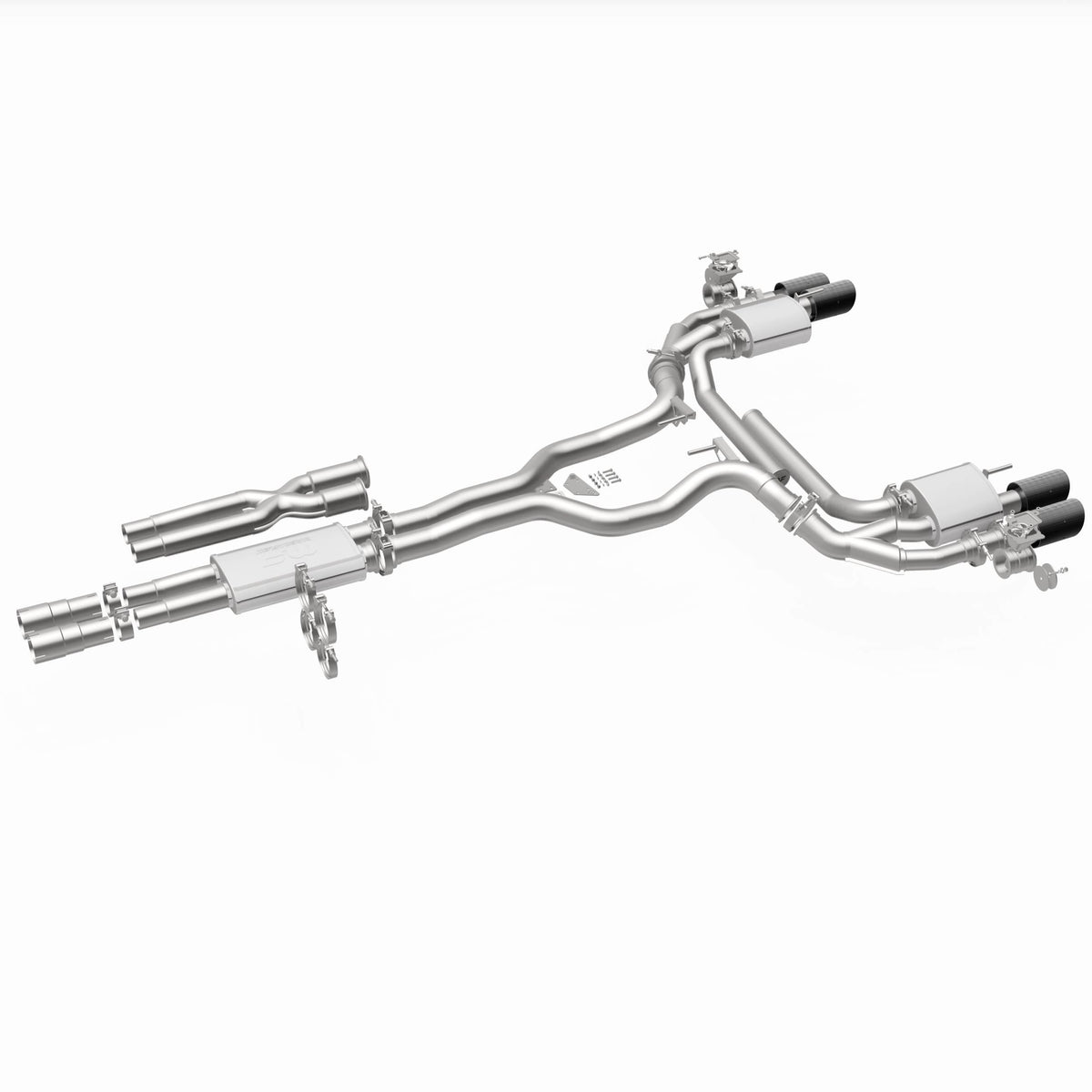

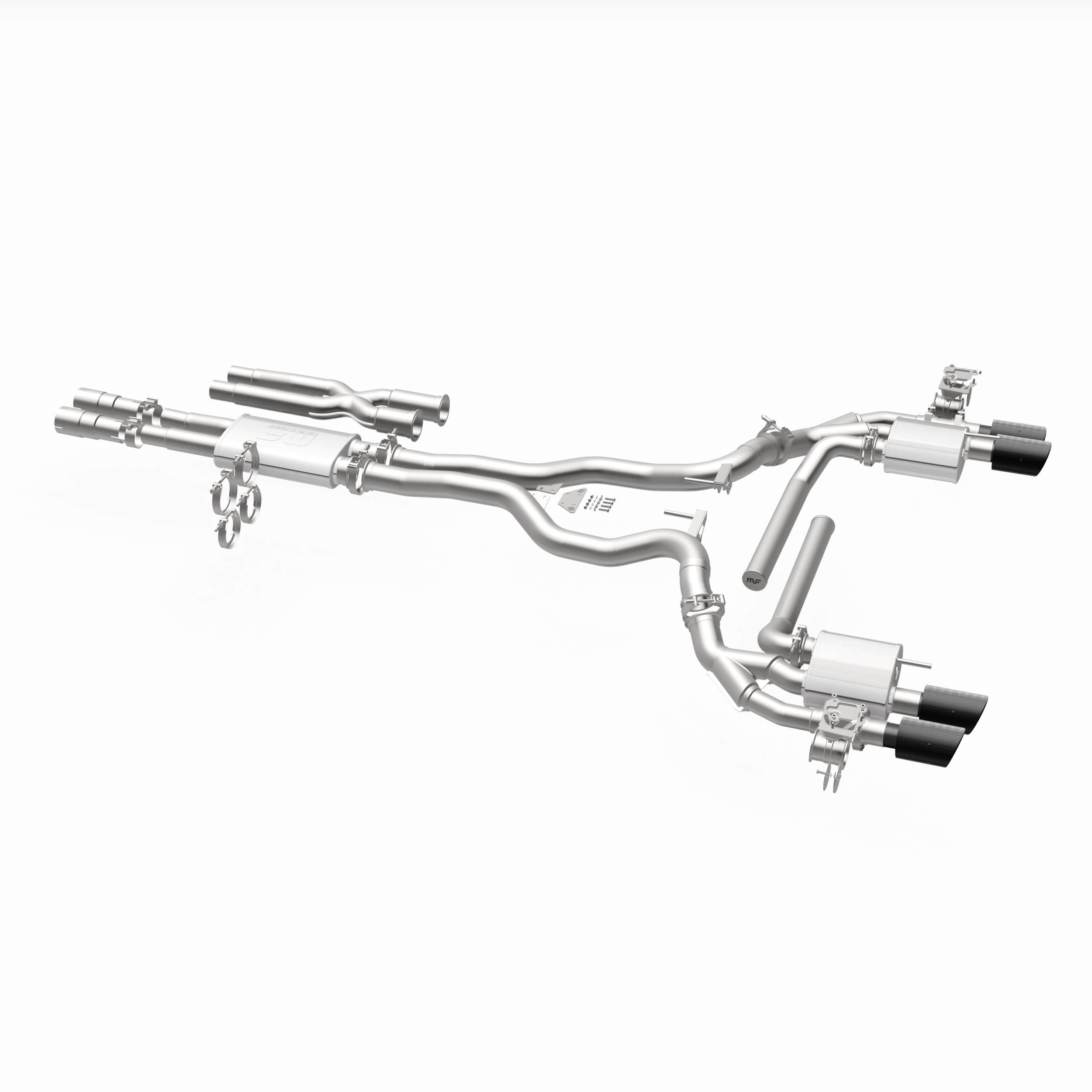

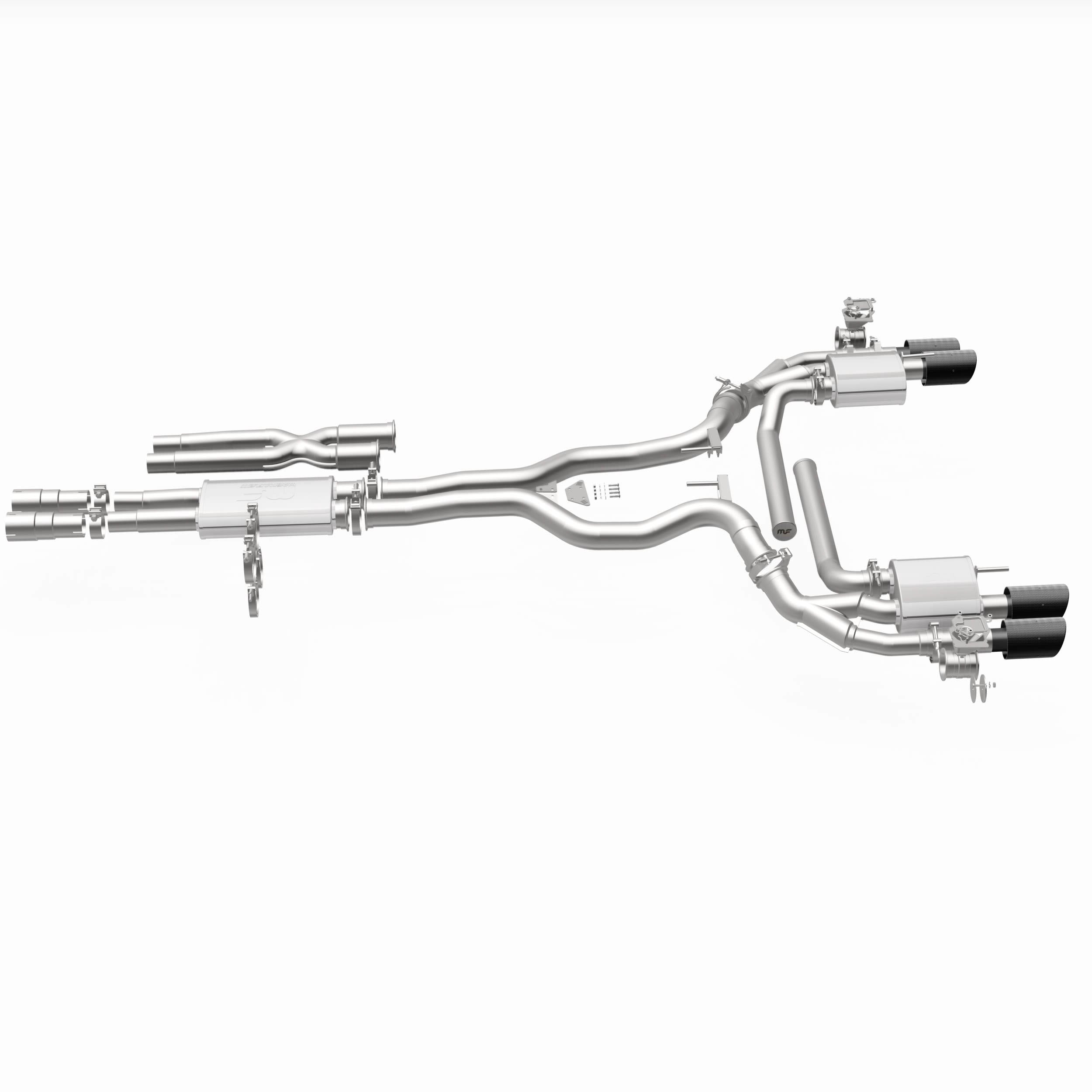

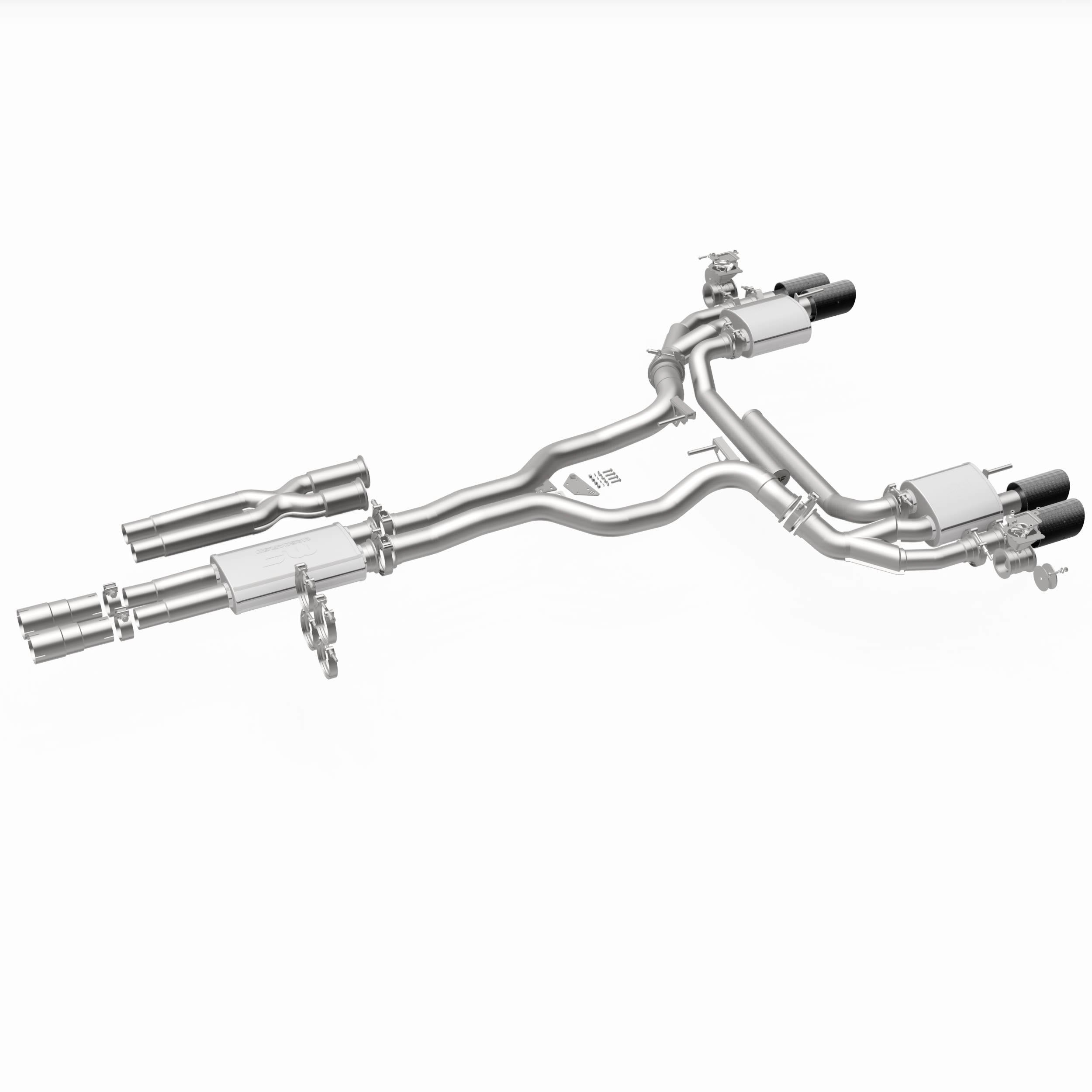

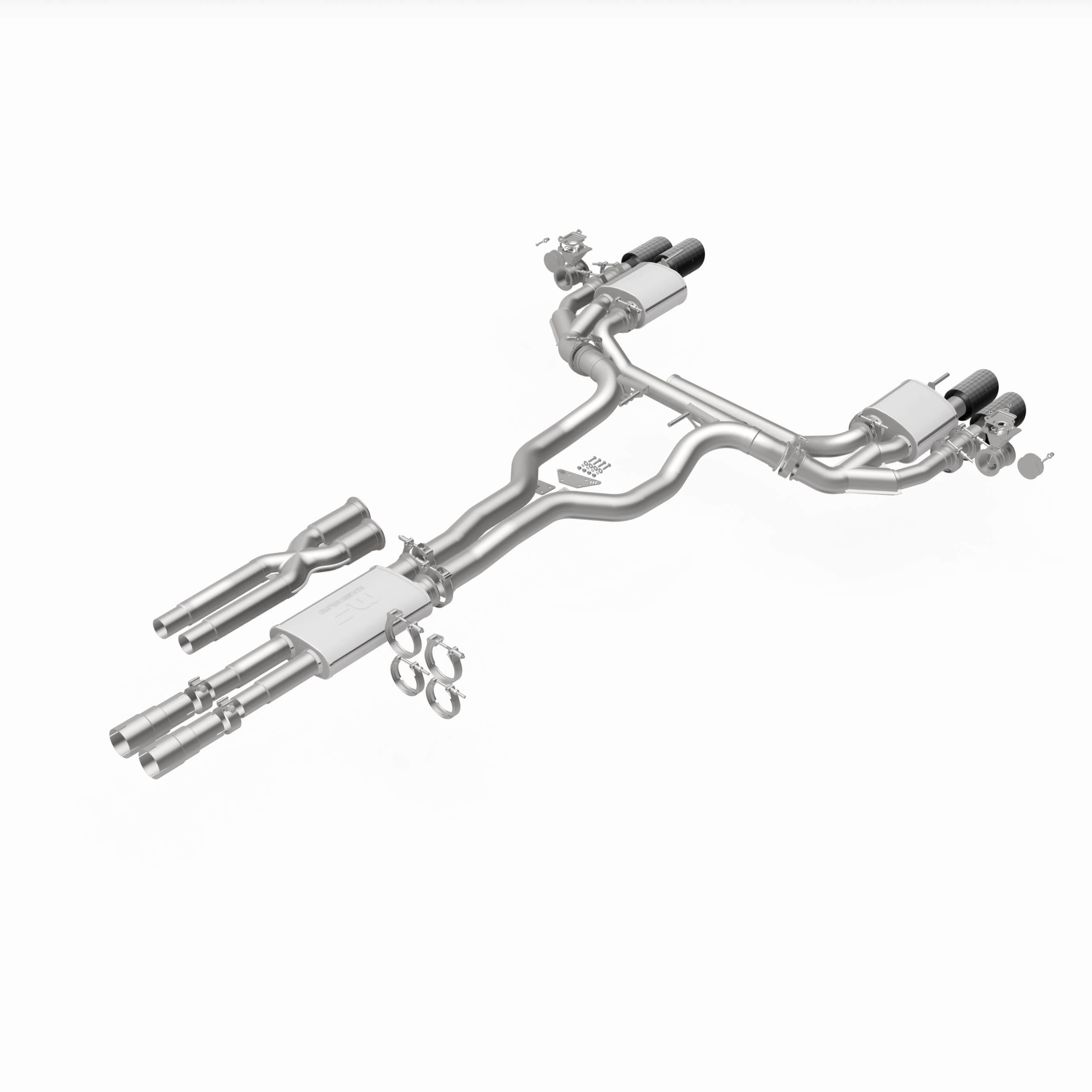

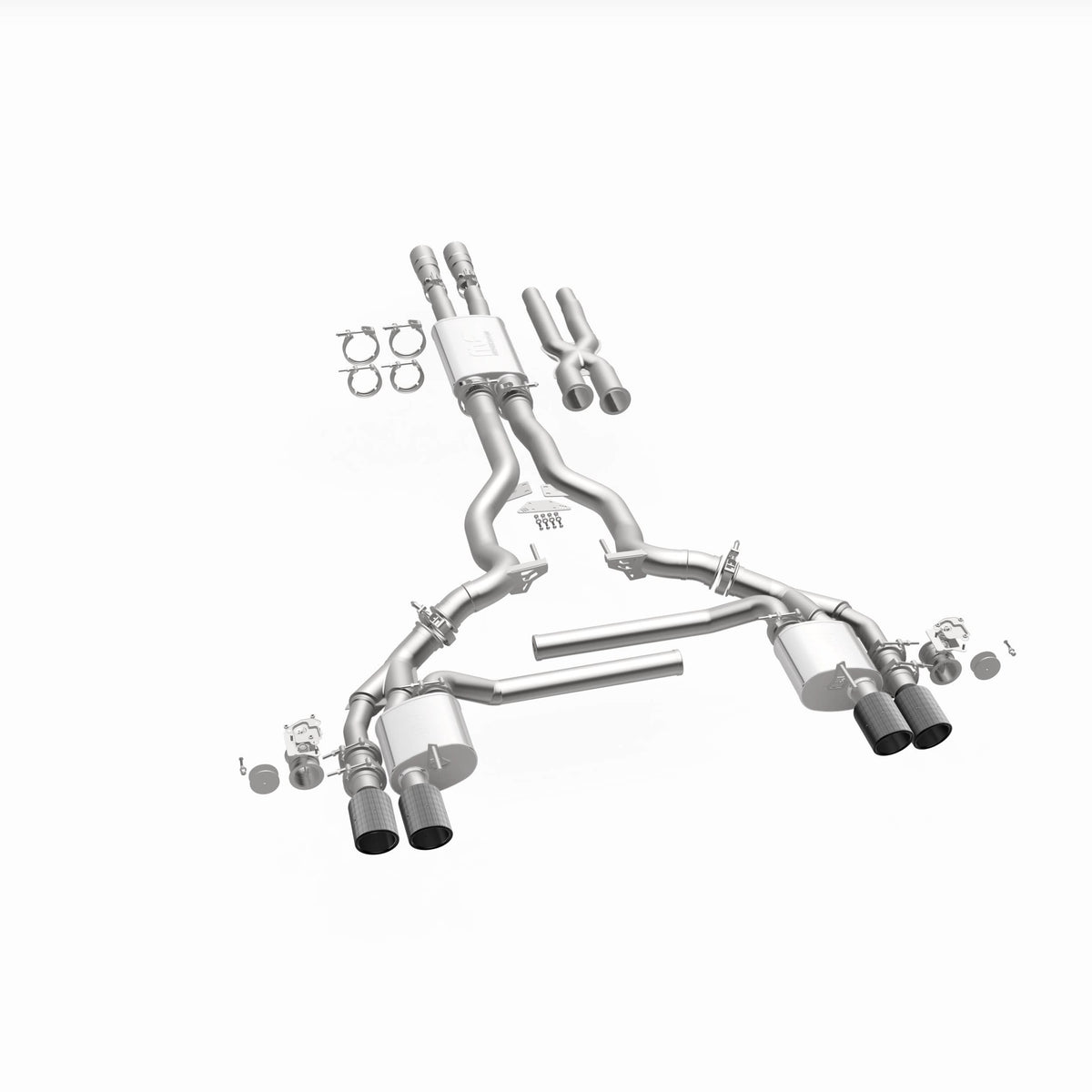

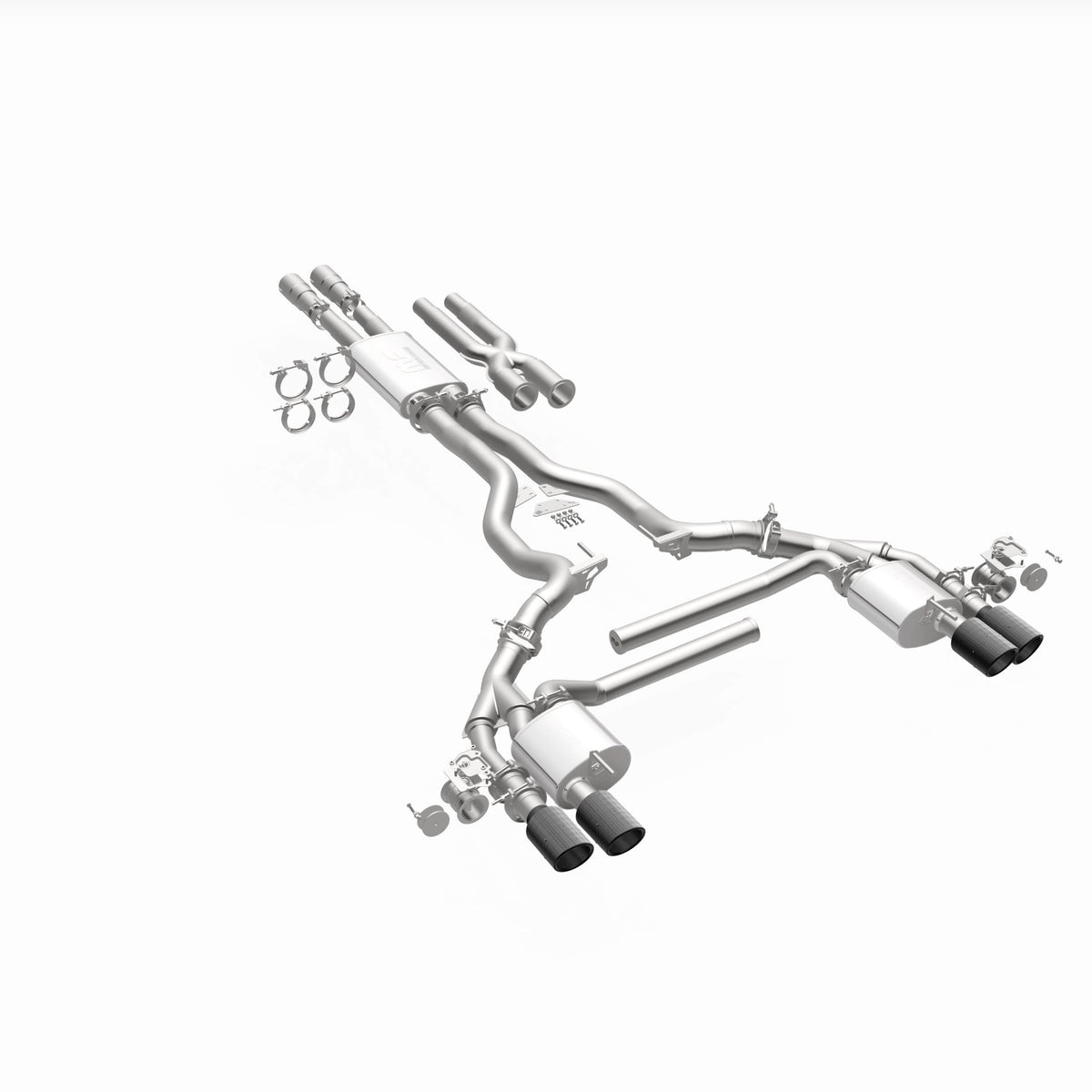

Magnaflow xMOD Series Carbon Fiber Tips Cat-Back System
Configure your Mustang GT Coupe for the sound you want, when you want it! MagnaFlow's premium performance exhaust offering, the xMOD Series, provides an unrivaled exhaust experience! The revolutionary MagnaFlow Ford Mustang xMOD Series Cat-Back Performance Exhaust System 19535 offers a completely modular exhaust system with all the benefits a MagnaFlow premium exhaust is known for: lifetime warrantied stainless-steel construction, dyno-proven performance featuring straight-through mufflers and fast-flowing mandrel bent pipes. xMOD Muffler Modules for the Mustang offer MagnaFlow's proven straight-through Tru-X core design with a 4" x 9” oval by 14" long muffler, and now feature race bred v-band clamps for quick installation and removal. Easily switch from the deep, aggressive signature MagnaFlow exhaust note to the wild straight-pipe race car sound offered by the xMOD xTreme Delete Tru-X. xMOD xTreme Delete Tru-X for the Mustang comes equipped with the same race bred v-bands which allow removal of the Tru-X core muffler modules for that unmatched xMOD xTreme sound experience. PLEASE NOTE: While xMOD systems are 100% emissions legal, the use of xTreme Deletes combined with xTreme Bypass is recommended for track use only. Check local noise regulations for street legality. In addition to the xMOD variable sound and flow modules, this system incorporates MagnaFlow’s latest exhaust tuning advancement called No Drone Technology (NDT). MagnaFlow’s NDT, along with careful muffler design and placement, utilizes 1/4 wave passive noise cancellation to remove unwanted drone that can occur when creating a maximum performance, high flow exhaust system. xMOD systems retain the original equipment exhaust valve functionality. The NDT resonators are also attached with v-bands to offer the ability to remove or tune them if you have made substantial modifications to your powertrain.
Features & Benefits
- xTreme Delete Modules for a straight-pipe setup
- Configurable sound from mild to wild
- No-Drone-Technology allows for a quiet cabin
Specifications
| Catalytic Converter Included | No |
| Muffler (Front) Body Length | 14 IN |
| Muffler Body Length Position Front | 14 IN |
| Muffler (Rear Inner) Body Height | 2.5 IN |
| Muffler (Rear Inner) Body Width | 2.5 IN |
| Muffler Body Height Position Rear Inside | 2.5 IN |
| Muffler Body Width Position Rear Inside | 2.5 IN |
| Muffler (Rear Inner) Body Length | 26.625 IN |
| Muffler Body Length Position Rear Inside | 26.625 IN |
| Main Piping Diameter | 3 IN |
| Muffler (Center) Body Height | 4 IN |
| Exhaust Tip Quantity | 4 |
| Exhaust Tip Diameter | 4 IN |
| Muffler Body Height Position Center | 4 IN |
| Muffler (Rear Outer) Body Height | 5 IN |
| Muffler Quantity | 5 |
| Muffler Body Height Position Rear Outside | 5 IN |
| Exhaust Tip Length | 7.75 IN |
| Muffler (Rear Outer) Body Length | 8 IN |
| Muffler (Rear Outer) Body Width | 8 IN |
| Muffler Body Length Position Rear Outside | 8 IN |
| Muffler Body Width Position Rear Outside | 8 IN |
| Muffler (Front) Body Width | 9 IN |
| Muffler Body Width Position Front | 9 IN |
| Valve Type | Actuated |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Finish | Carbon Fiber |
| Exhaust Tip Material | Carbon Fiber |
| Type | Cat-Back |
| Inlet Type | Clamp-On |
| Exhaust Tip Wall | Double Wall |
| Title | MagnaFlow 2018-2023 Ford Mustang 5.0L xMOD Series Cat-Back Performance Exhaust System 19535 |
| Mounting Bracket Included | No |
| Exhaust Tip Resonated | No |
| Exhaust Tip Intercooled | No |
| Muffler Finish | Polished |
| Exit Style | Quad Split Rear |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Shape | Round |
| Pipe Material | Stainless Steel |
| Muffler Body Material | Stainless Steel |
| Muffler (Front) Type | Straight-Through |
| Muffler (Rear Outer) Type | Straight-Through |
| Muffler Type Position Front | Straight-Through |
| Muffler Type Position Rear Outside | Straight-Through |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler (Rear Inner) Type | Tuned Chamber |
| Muffler Type Position Rear Inside | Tuned Chamber |
| Exhaust Tip Connection | Welded-On |
| Series | xMod |
| Clamps Included | Yes |
| Gasket Or Seal Included | Yes |
| Hangers Included | Yes |
| Valve Included | Yes |
| Clamping Type | Round Band |
| Clamping Type | V Band |
Installation Guide: Download PDF
