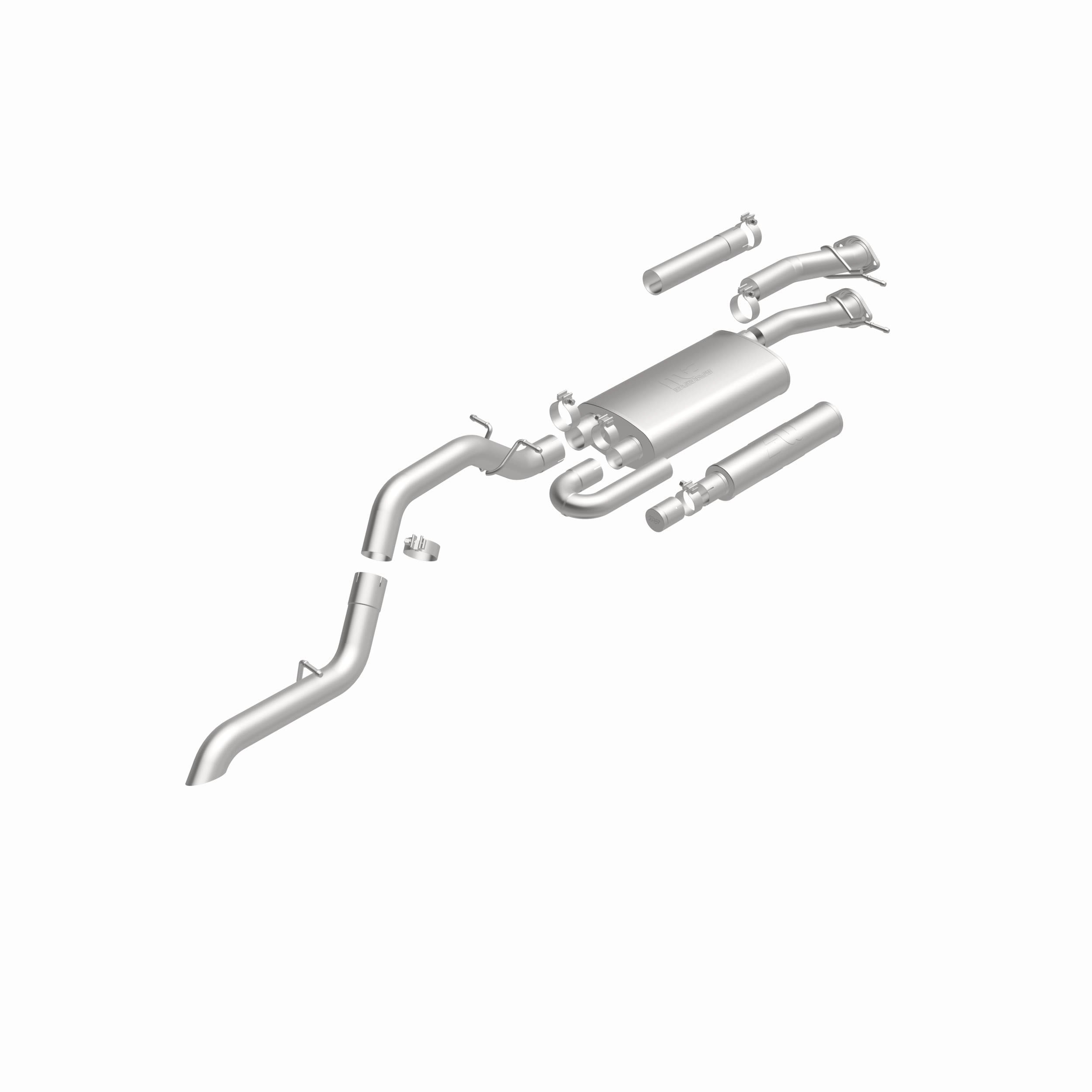

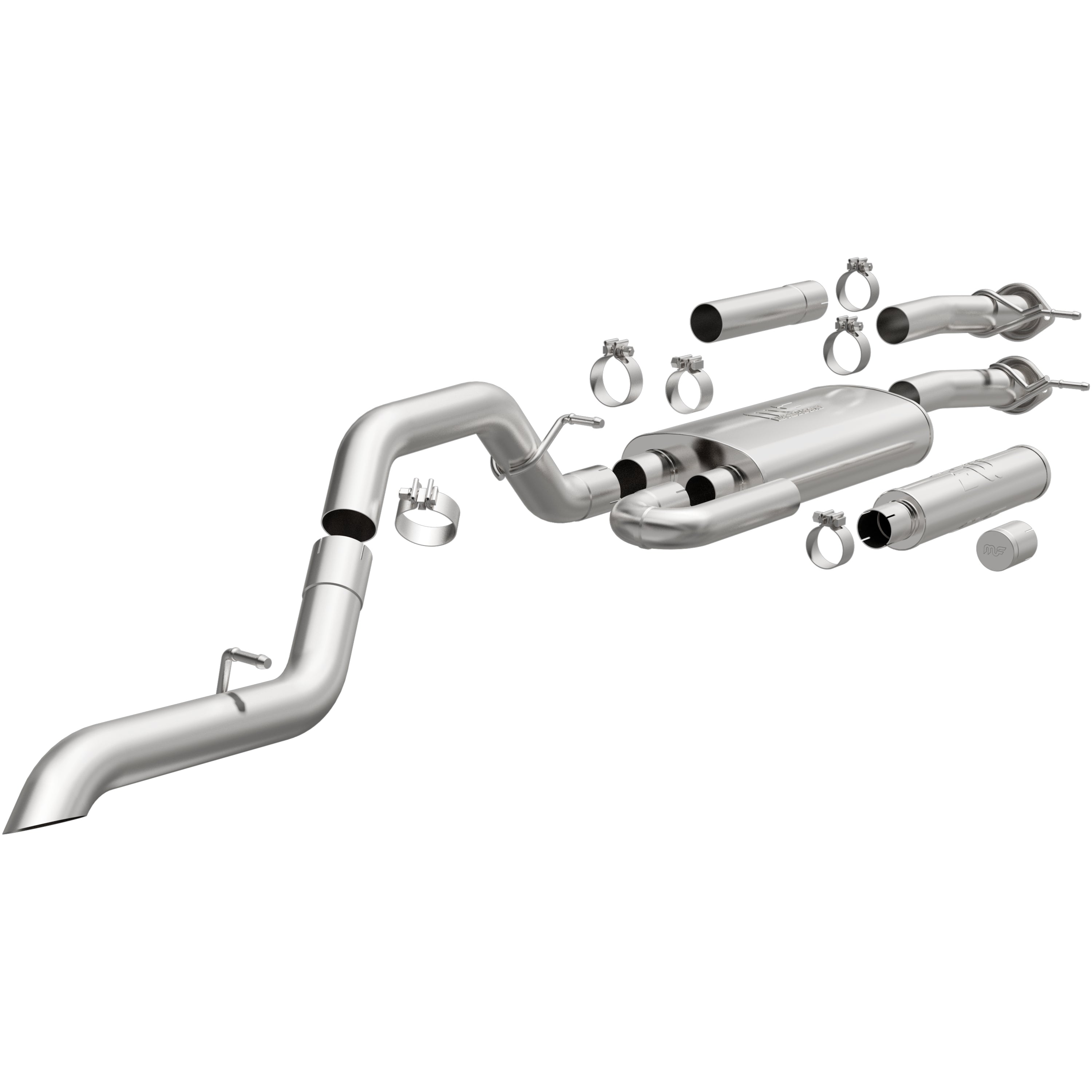

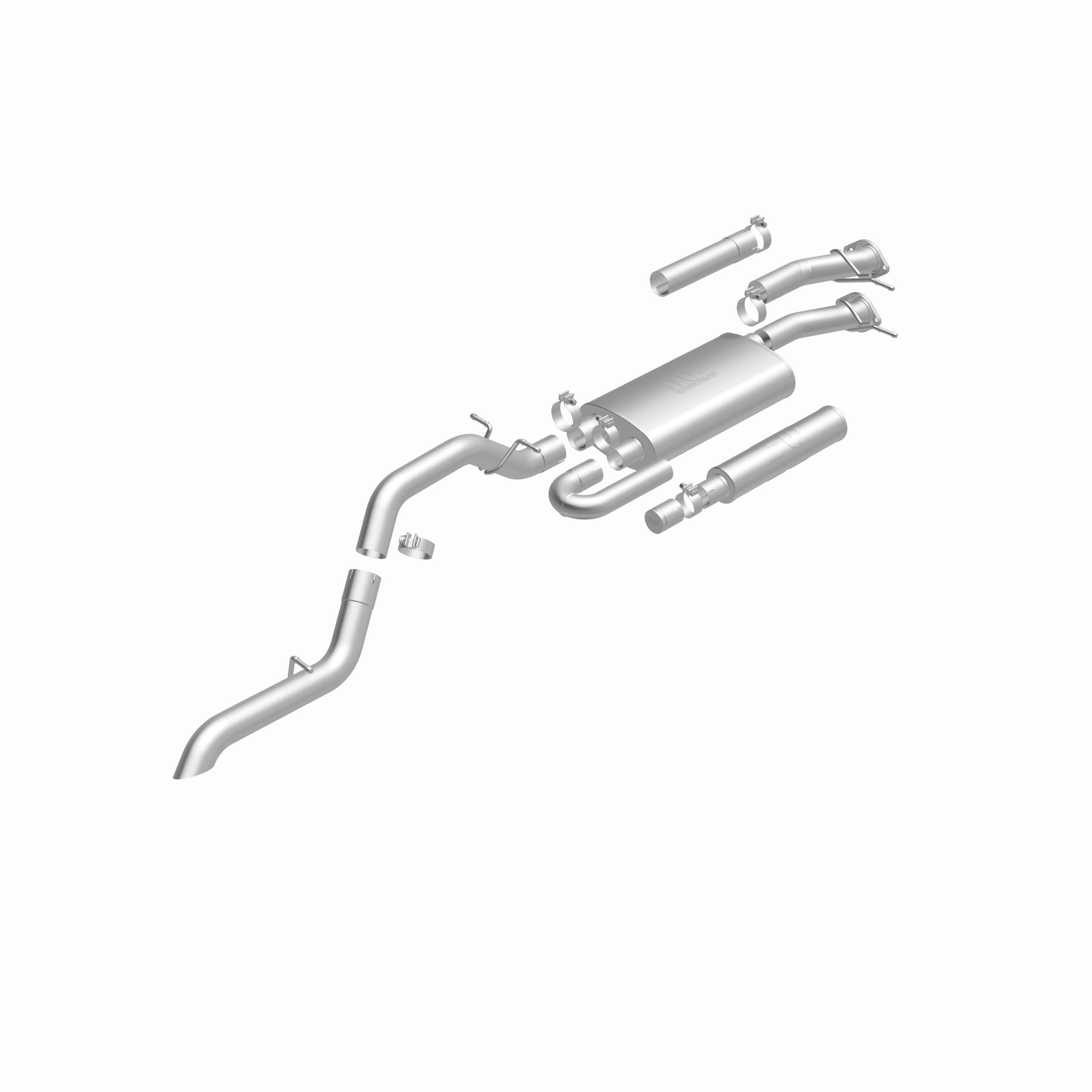

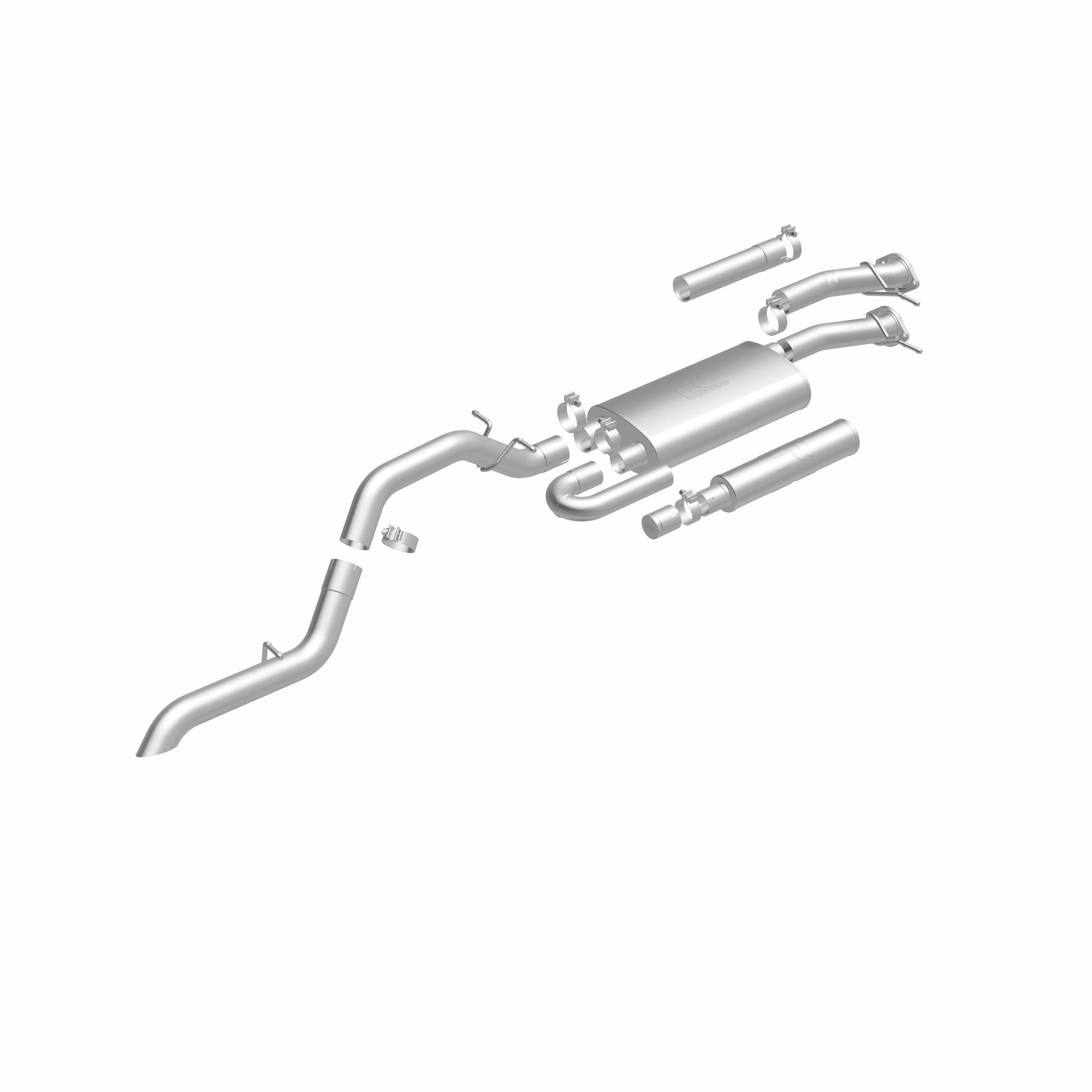

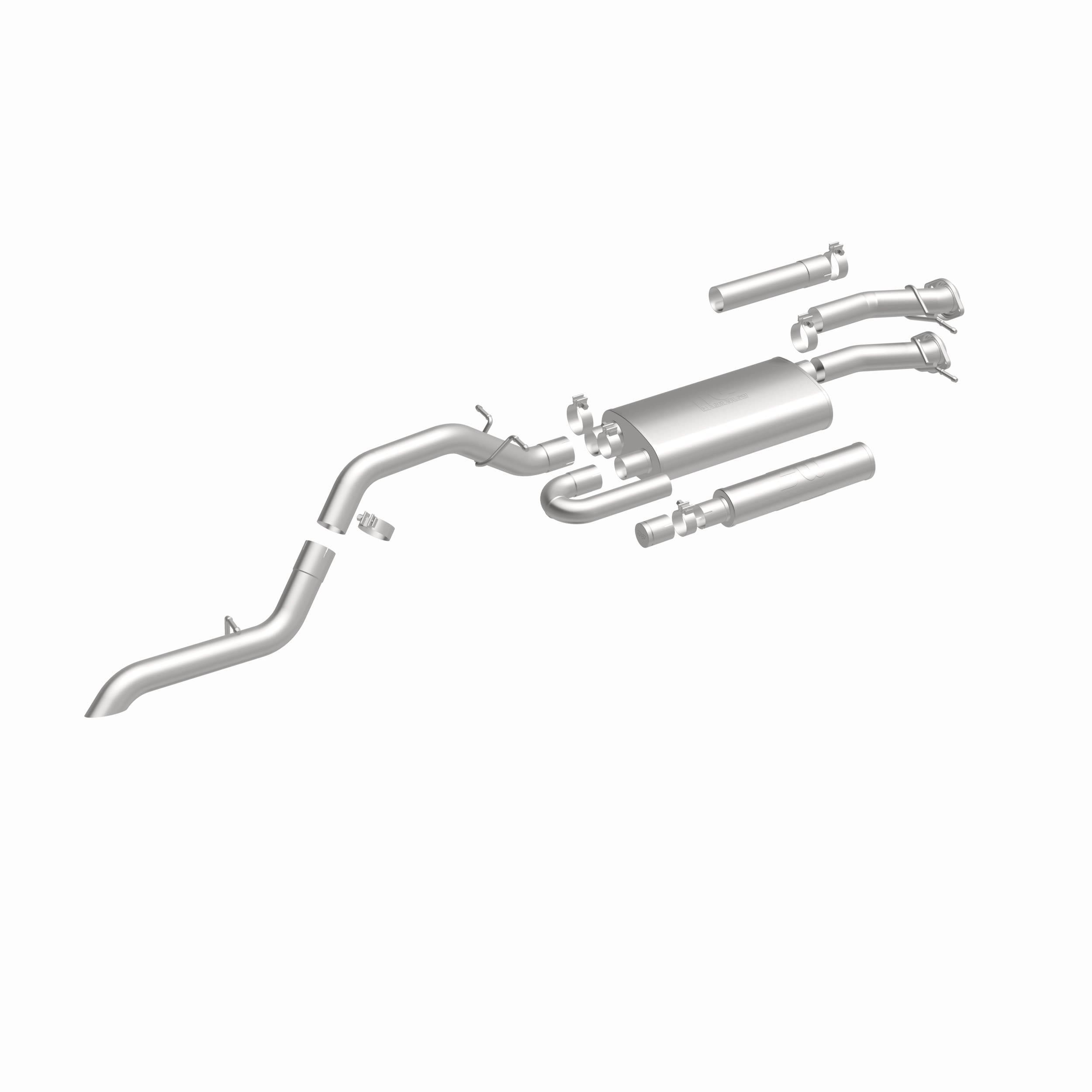

MagnaFlow Exhaust Products 19569 - Overland Series Cat-Back System
Couldn't load pickup availability
Magnaflow Overland Series Stainless Cat-Back System
The MagnaFlow® Chevrolet Colorado / GMC Canyon Overland Series™ Cat-Back Performance Exhaust System #19569 is engineered to augment your overland-ready Chevrolet Colorado 2015-2022 or GMC Canyon 2015-2022 with MagnaFlow®’s famous deep exhaust tone and dyno-proven performance. The weight of MagnaFlow® exhaust kit #19569 has been optimized to improve your rig’s utility, while its mandrel bent 3” main piping and single straight-through muffler are designed to sit much closer to the underside of your truck. Combined with a no-tip, high clearance, passenger-side rear exit, MagnaFlow® #19569 greatly improves the capability of your Colorado or Canyon with enhanced ground clearance and superior departure angles. #19569 utilizes one of MagnaFlow®’s No Drone Technology (NDT) resonators in order to cancel out the natural droning frequencies of your truck and keep the interior quiet on long drives. This Overland Series™ exhaust system was designed to be compatible with the most common bolt-on aftermarket modifications. The use of CNC precision robotic manufacturing enables the system to fit your rig perfectly, allowing for hassle-free bolt-on installation. The entirely stainless-steel construction of MagnaFlow® #19569 is covered by MagnaFlow®’s limited lifetime construction warranty.
Features & Benefits
- No-Drone-Technology allows for a quiet cabin
- High clearance exit
- Dyno proven performance
Specifications
| Muffler (Right) Body Width | 4 IN |
| Muffler (Right) Type | Tuned Chamber |
| Muffler Body Height Position Left | 5 IN |
| Muffler Body Height Position Right | 4 IN |
| Muffler Body Length Position Left | 22 IN |
| Muffler Body Length Position Right | 18 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Left | 11 IN |
| Muffler Body Width Position Right | 4 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler Type Position Left | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | Overland |
| Type | Cat-Back |
| Valve Included | No |
| Clamps Included | Yes |
| Exhaust Tip Quantity | 0 |
| Exit Style | Single Passenger Side Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 3 IN |
| Mounting Bracket Included | No |
| Muffler (Left) Body Height | 5 IN |
| Muffler (Left) Body Length | 22 IN |
| Muffler (Left) Body Width | 11 IN |
| Muffler (Left) Type | Straight-Through |
| Muffler (Right) Body Height | 4 IN |
| Muffler (Right) Body Length | 18 IN |
| Catalytic Converter Included | No |
| Clamping Type | Round Band |
| Title | MagnaFlow® 2015-2022 Chevrolet Colorado 3.6L | 2015-2022 GMC Canyon 3.6L Overland Series™ Cat-Back Performance Exhaust System 19569 |
Installation Guide: Download PDF
