MagnaFlow Exhaust Products 19593 - xMOD Series Carbon Fiber Tips Cat-Back System
Couldn't load pickup availability
Magnaflow xMOD Series Carbon Fiber Tips Cat-Back System

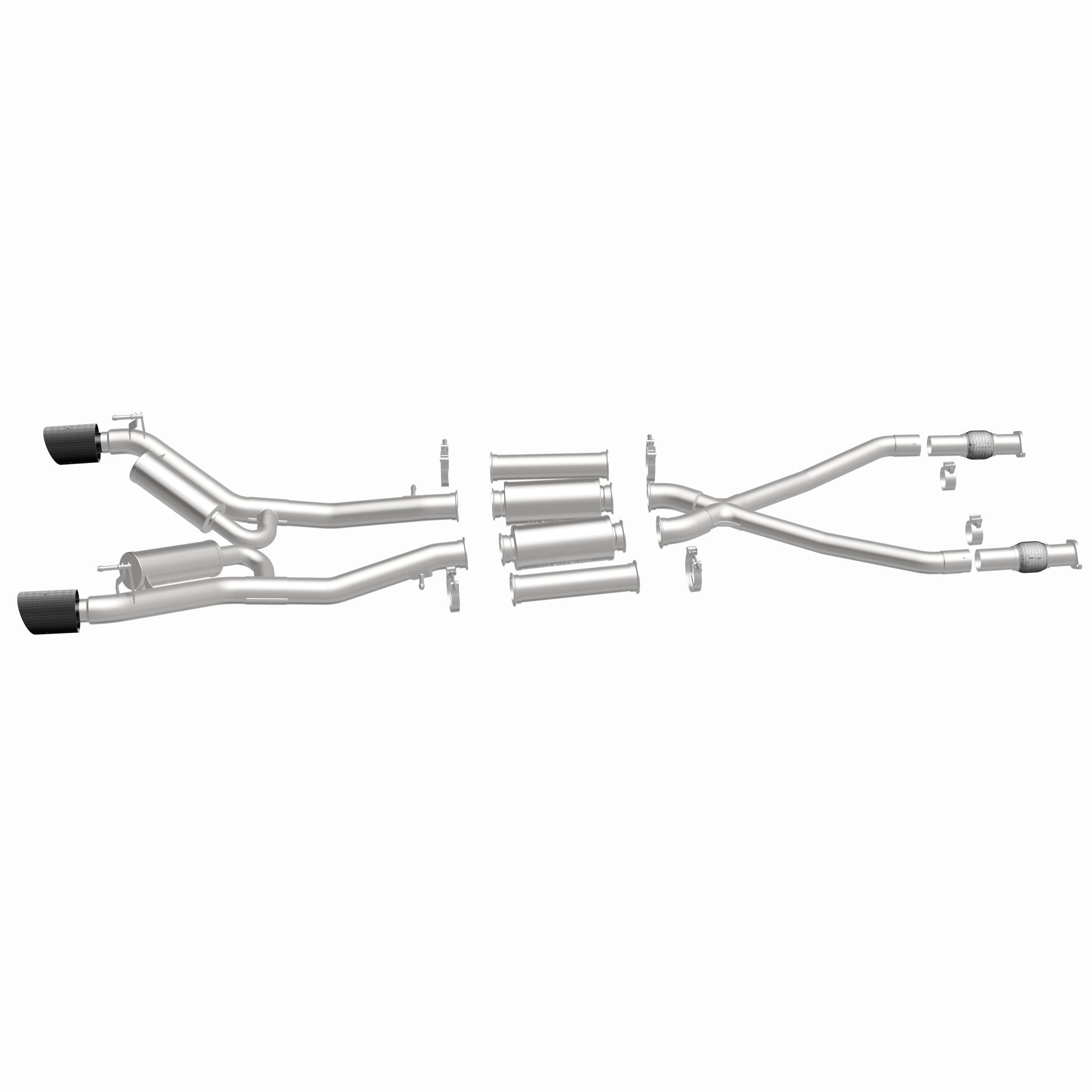

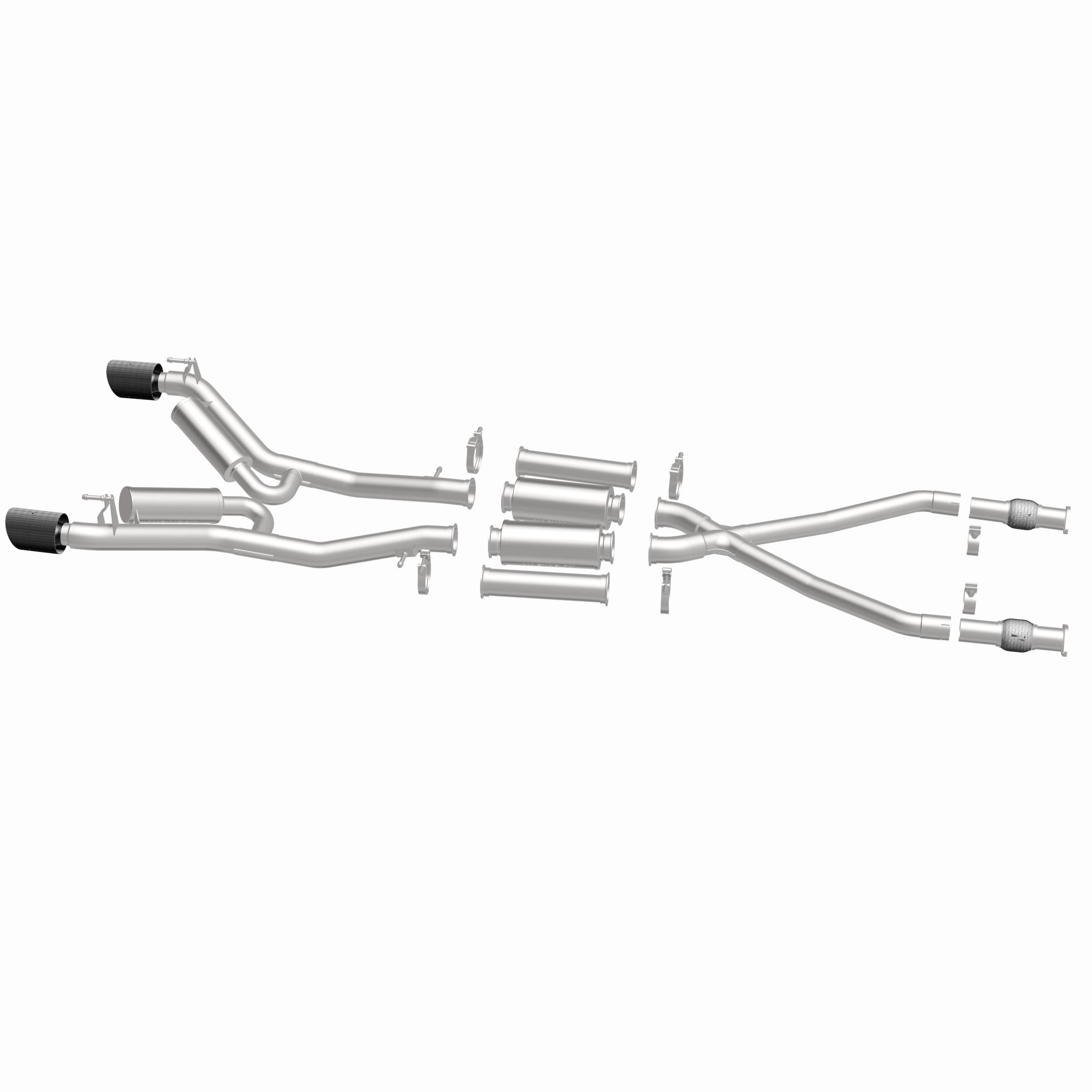

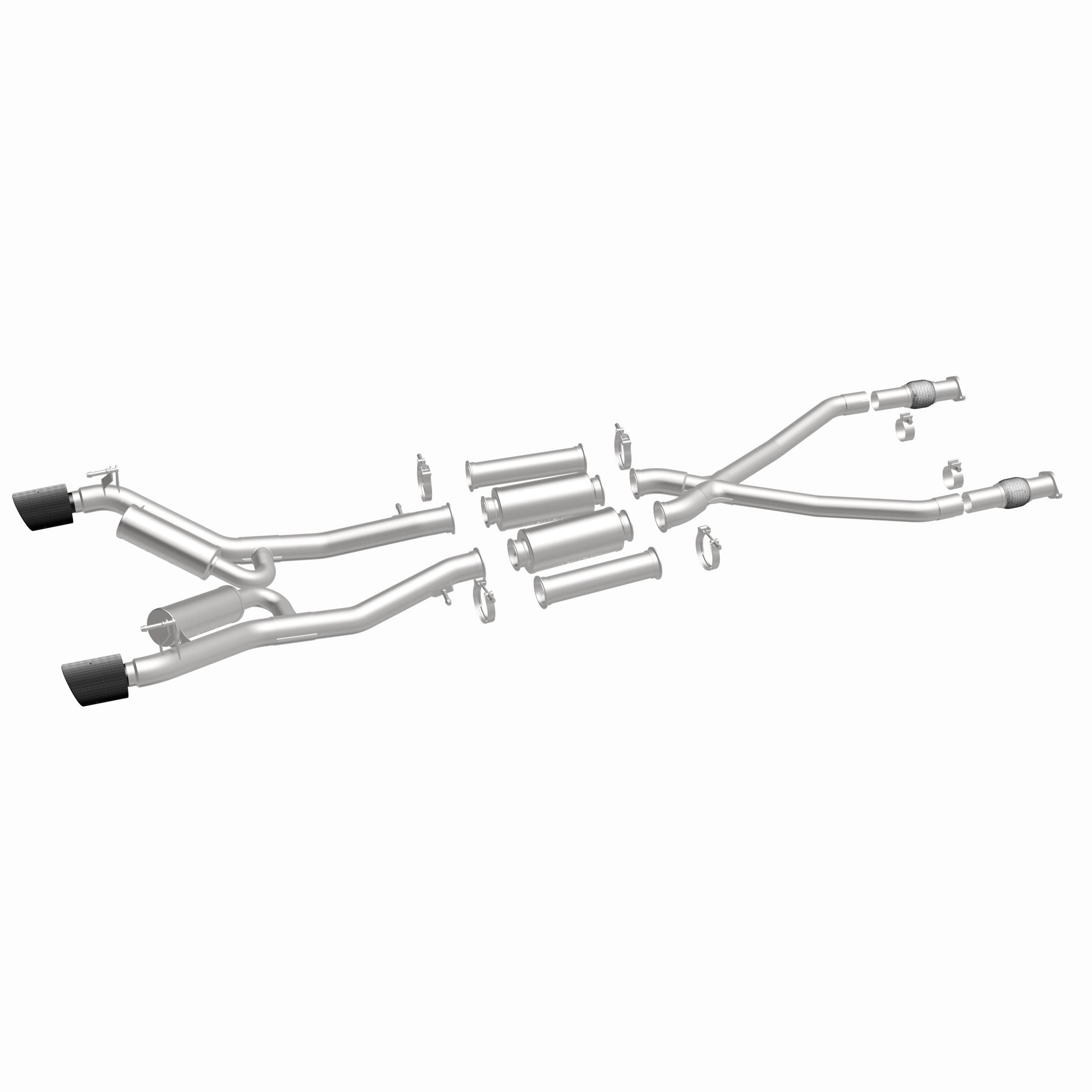

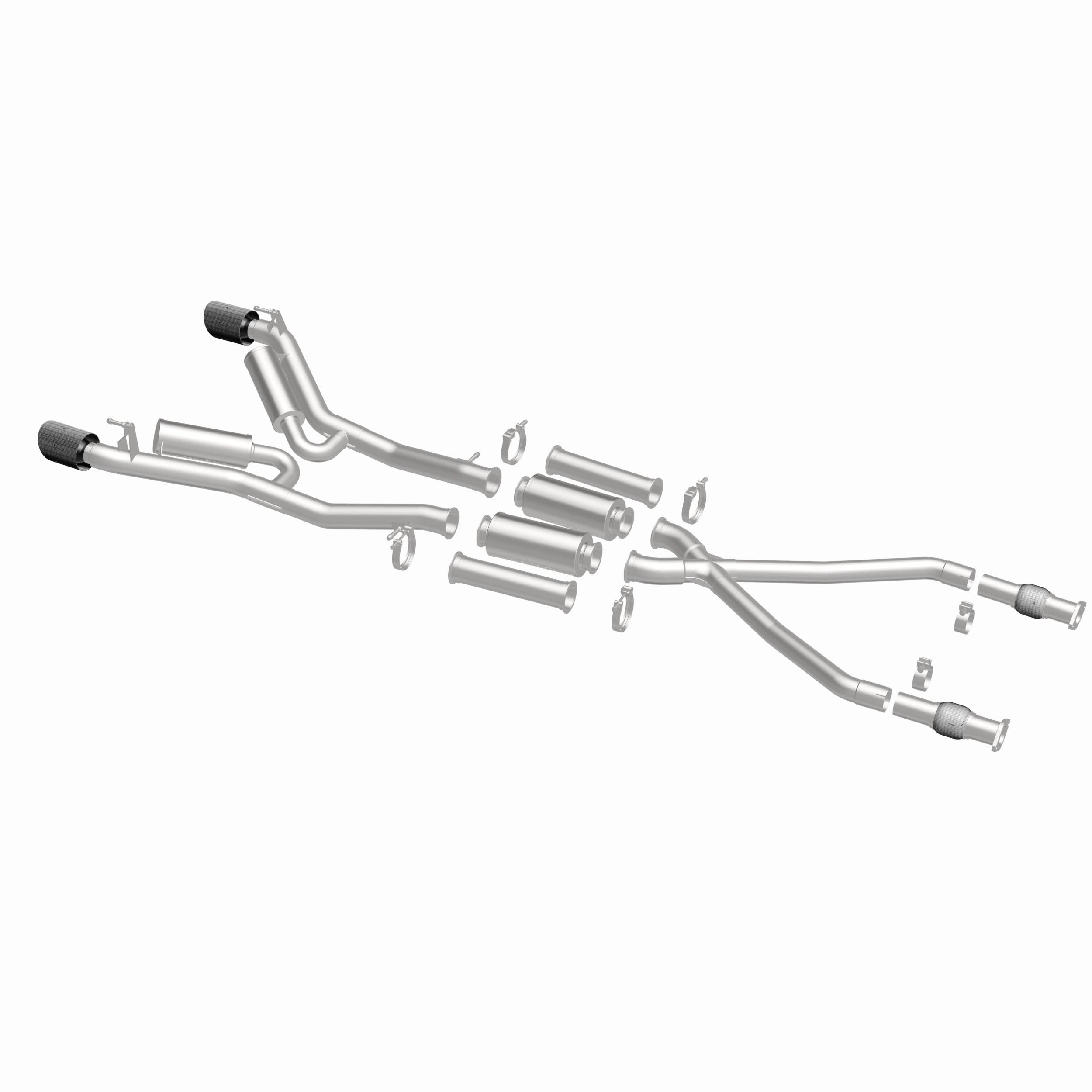

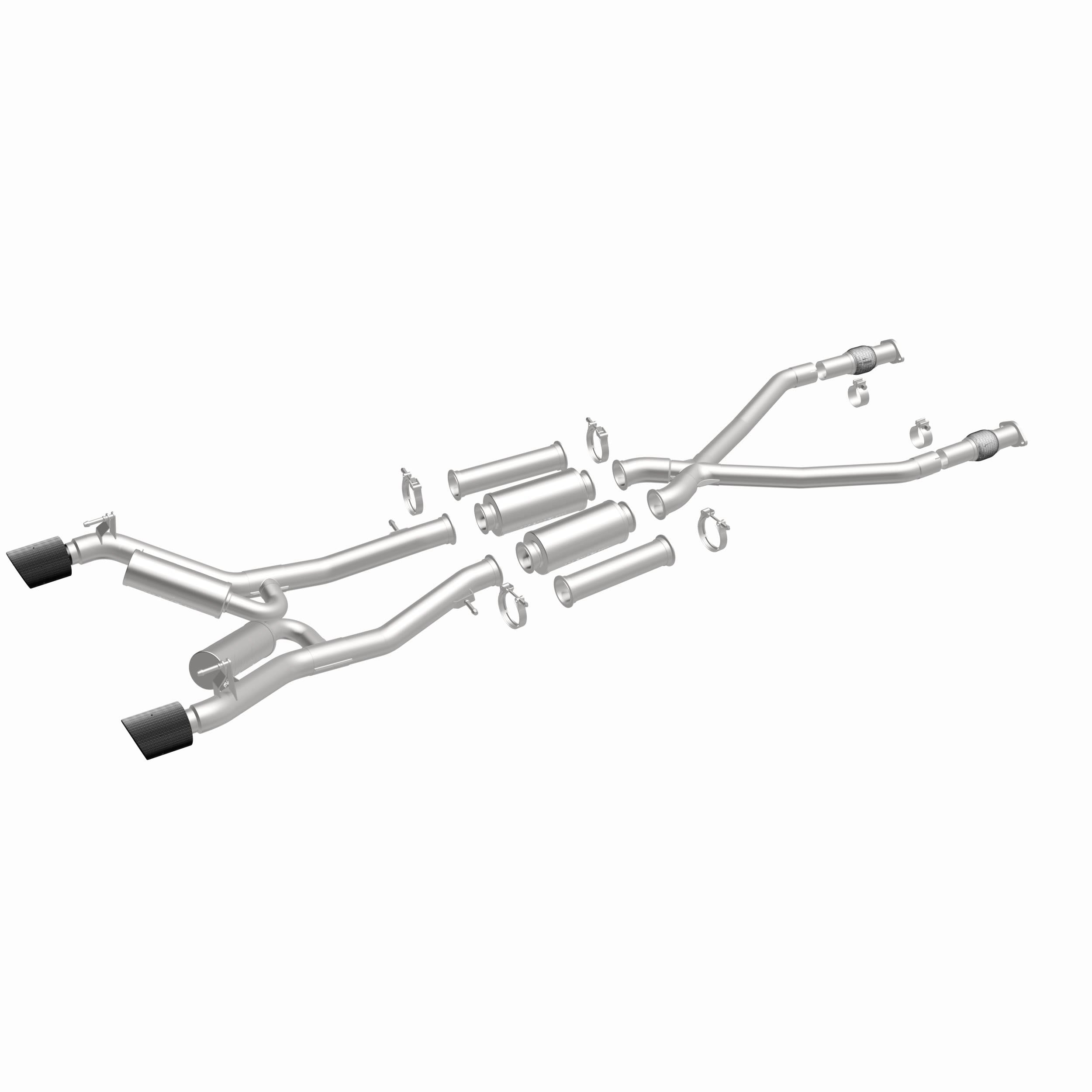

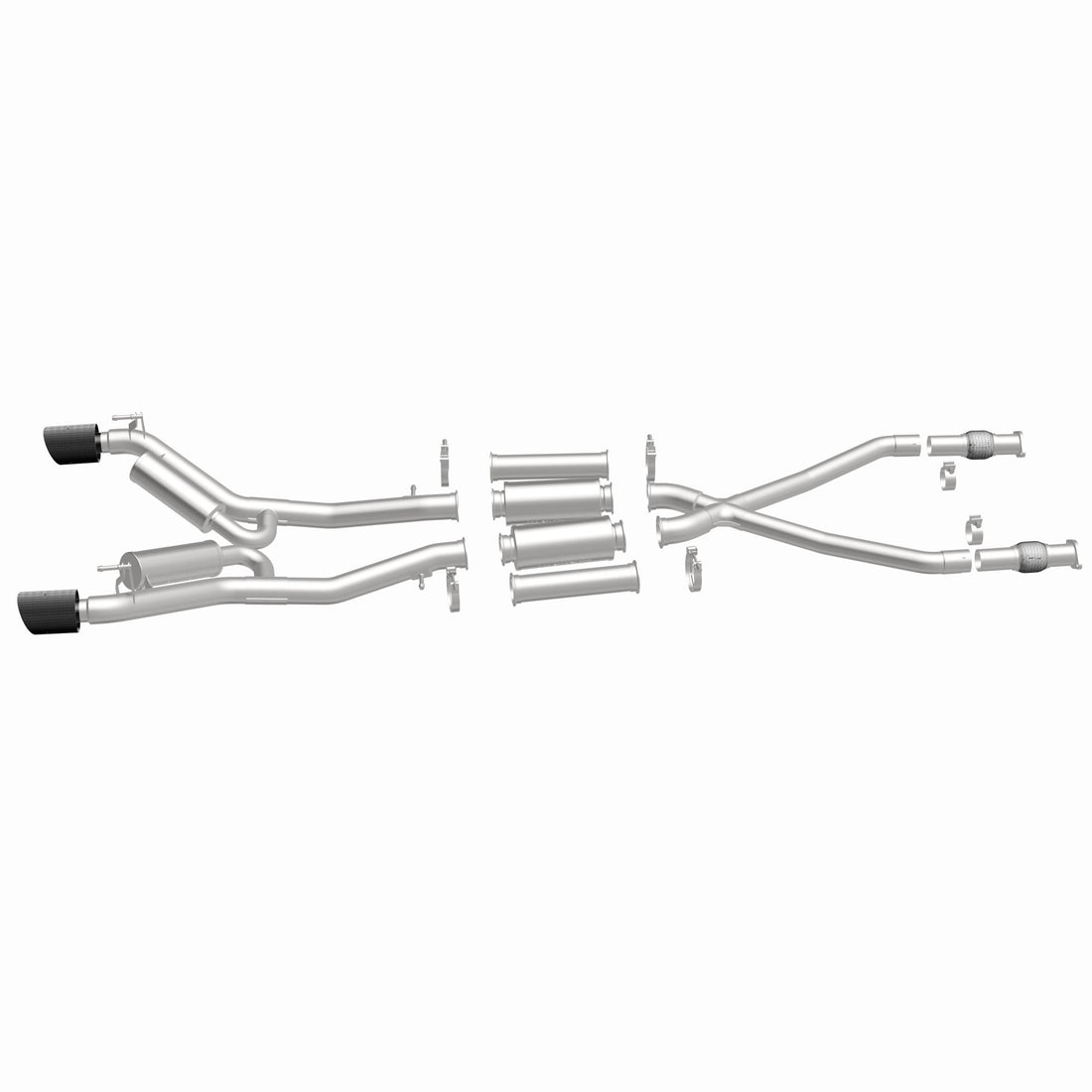

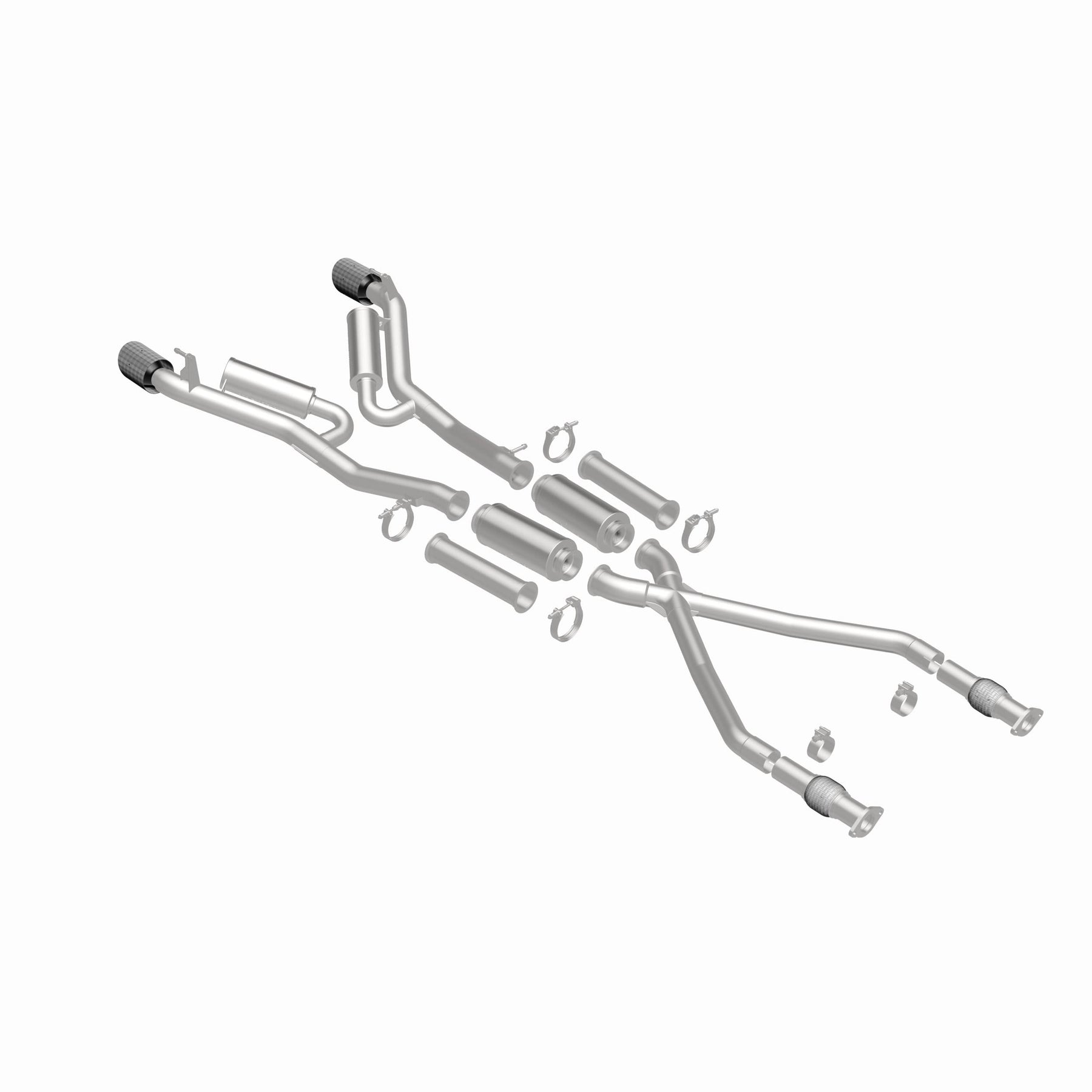

The MagnaFlow Nissan Z xMOD Series Cat-Back Performance Exhaust System #19593 represents the ultimate modular performance upgrade for your 2023-2024 Nissan Z equipped with the 3.0L engine option. This innovative exhaust kit represents the pinnacle of MagnaFlow’s technology and engineering prowess, including the integration of premium features such as No Drone Technology (NDT). NDT offers the purest performance sound possible thanks to its ability to mitigate the unwanted droning noises that can otherwise occur at cruising speeds. #19593 also enhances the power of your modern sports car with dyno-proven performance gains. Each of these performance exhaust systems replaces all OEM exhaust components from near the catalytic converter on back and features 3” mandrel bent main tubing that passes through two 11” round polished straight-through mufflers and two 11” NDT reflection chambers before terminating in a dual split rear exit with 4.5” double-wall angle cut rolled edge dry carbon fiber tips. The entire system is secured using quick-release, racing-bred V-band clamps and the mufflers are modules that can be swapped out for the included 3” diameter xTreme Delete straight pipe modules for an unrestricted, maximized exhaust sound. We recommend reserving this configuration for track use only. Remember to obey local noise laws. This Nissan Z performance exhaust system was built using advanced CNC precision robotic manufacturing techniques and is made of durable, corrosion resistant stainless steel, all back by MagnaFlow’s limited lifetime warranty.
Features & Benefits
- No-Drone-Technology allows for a quiet cabin
- xTreme Delete Modules for a straight-pipe setup
- Configurable sound from mild to wild
Specifications
| Catalytic Converter Included | No |
| Muffler (Front) Body Length | 11 IN |
| Muffler (Rear) Body Length | 11 IN |
| Muffler Body Length Position Front | 11 IN |
| Muffler Body Length Position Rear | 11 IN |
| Exhaust Tip Quantity | 2 |
| Main Piping Diameter | 3 IN |
| Muffler (Rear) Body Height | 4 IN |
| Muffler (Rear) Body Width | 4 IN |
| Muffler Quantity | 4 |
| Muffler Body Height Position Rear | 4 IN |
| Muffler Body Width Position Rear | 4 IN |
| Exhaust Tip Diameter | 4.5 IN |
| Muffler (Front) Body Height | 5 IN |
| Muffler (Front) Body Width | 5 IN |
| Muffler Body Height Position Front | 5 IN |
| Muffler Body Width Position Front | 5 IN |
| Exhaust Tip Length | 7.5 IN |
| Exhaust Tip Cut | Angle Cut |
| Inlet Type | Bolt-On |
| Exhaust Tip Finish | Carbon Fiber |
| Exhaust Tip Material | Carbon Fiber |
| Type | Cat-Back |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Split Rear |
| Title | MagnaFlow 2023-2025 Nissan Z 3.0L xMOD Series Cat-Back Performance Exhaust System 19593 |
| Gasket Or Seal Included | No |
| Valve Included | No |
| Mounting Bracket Included | No |
| Exhaust Tip Resonated | No |
| Exhaust Tip Intercooled | No |
| Muffler Finish | Polished |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Shape | Round |
| Pipe Material | Stainless Steel |
| Muffler Body Material | Stainless Steel |
| Muffler (Front) Type | Straight-Through |
| Muffler Type Position Front | Straight-Through |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler (Rear) Type | Tuned Chamber |
| Exhaust Tip Connection | Welded-On |
| Series | xMod |
| Clamps Included | Yes |
| Hangers Included | Yes |
| Clamping Type | Round Band |
| Clamping Type | V Band |
Installation Guide: Download PDF
