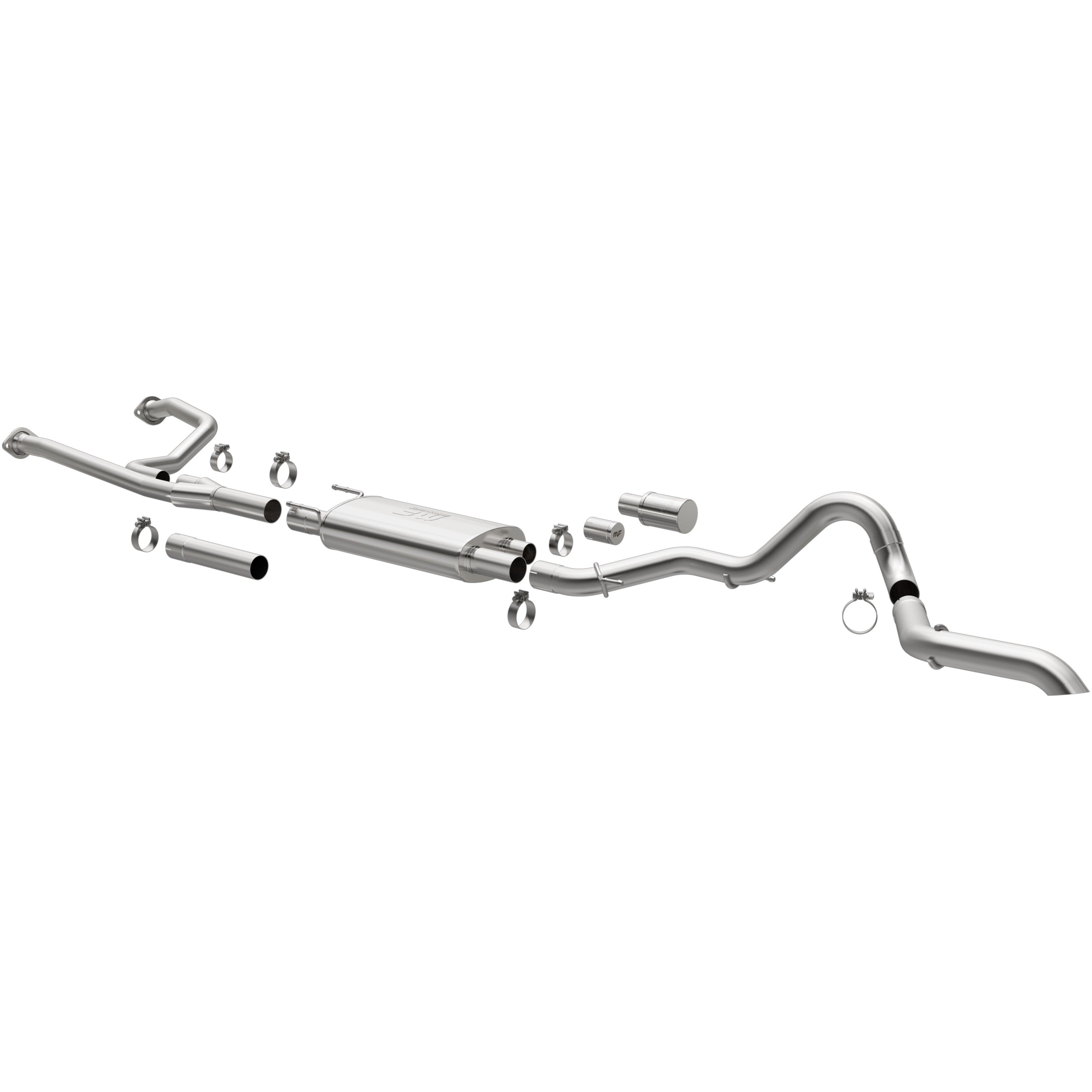

MagnaFlow Exhaust Products 19604 - Overland Series Cat-Back System
Couldn't load pickup availability
Magnaflow Overland Series Stainless Cat-Back System

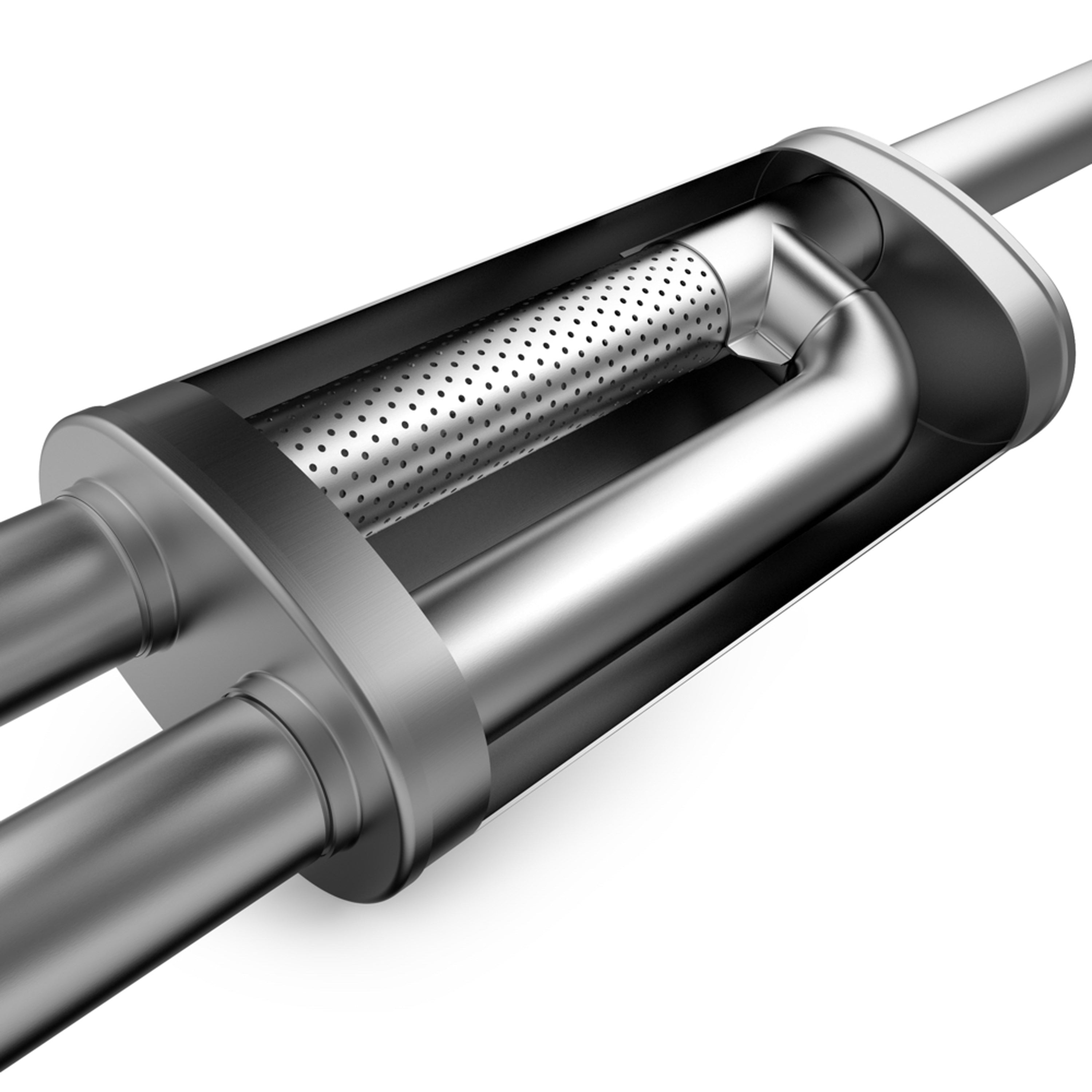

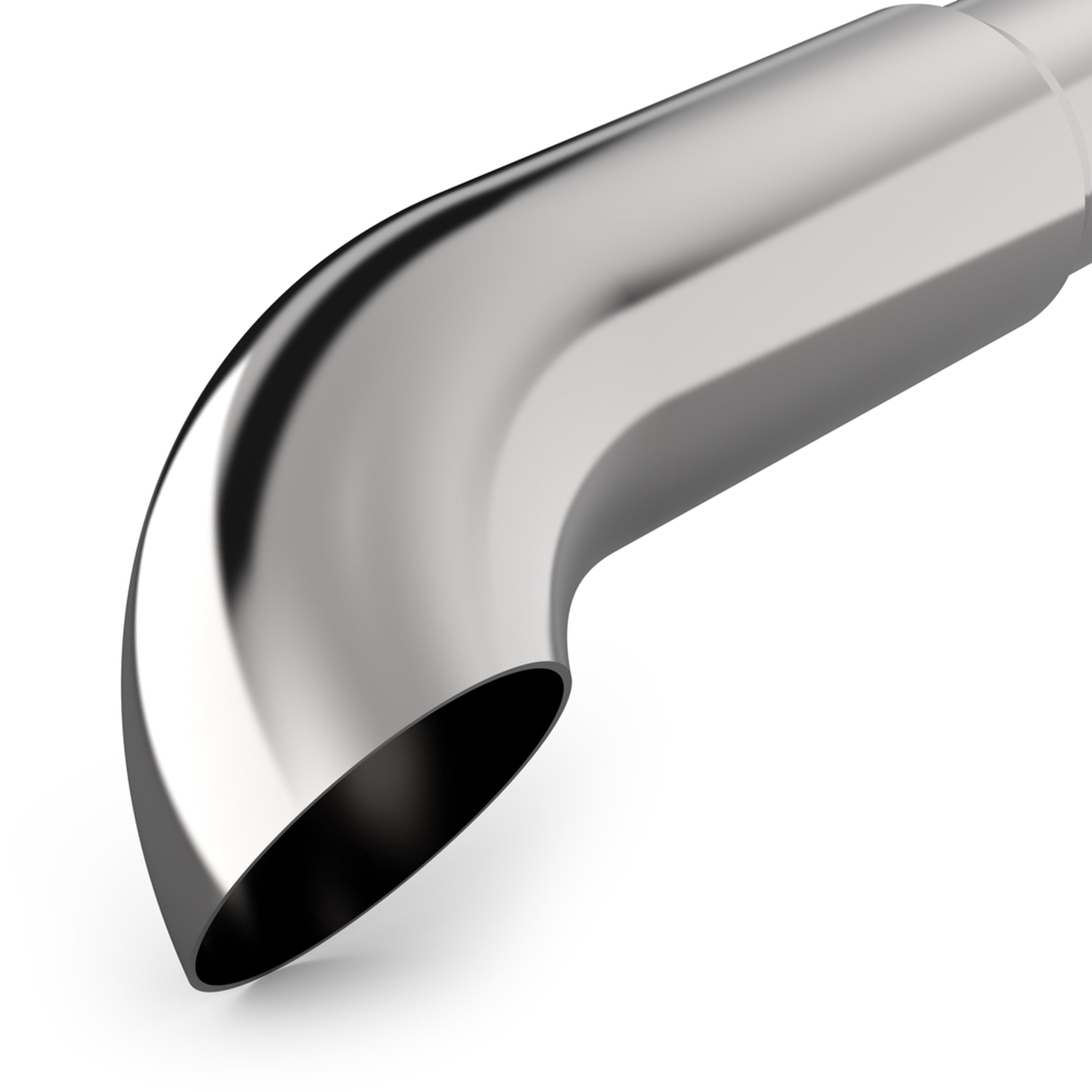

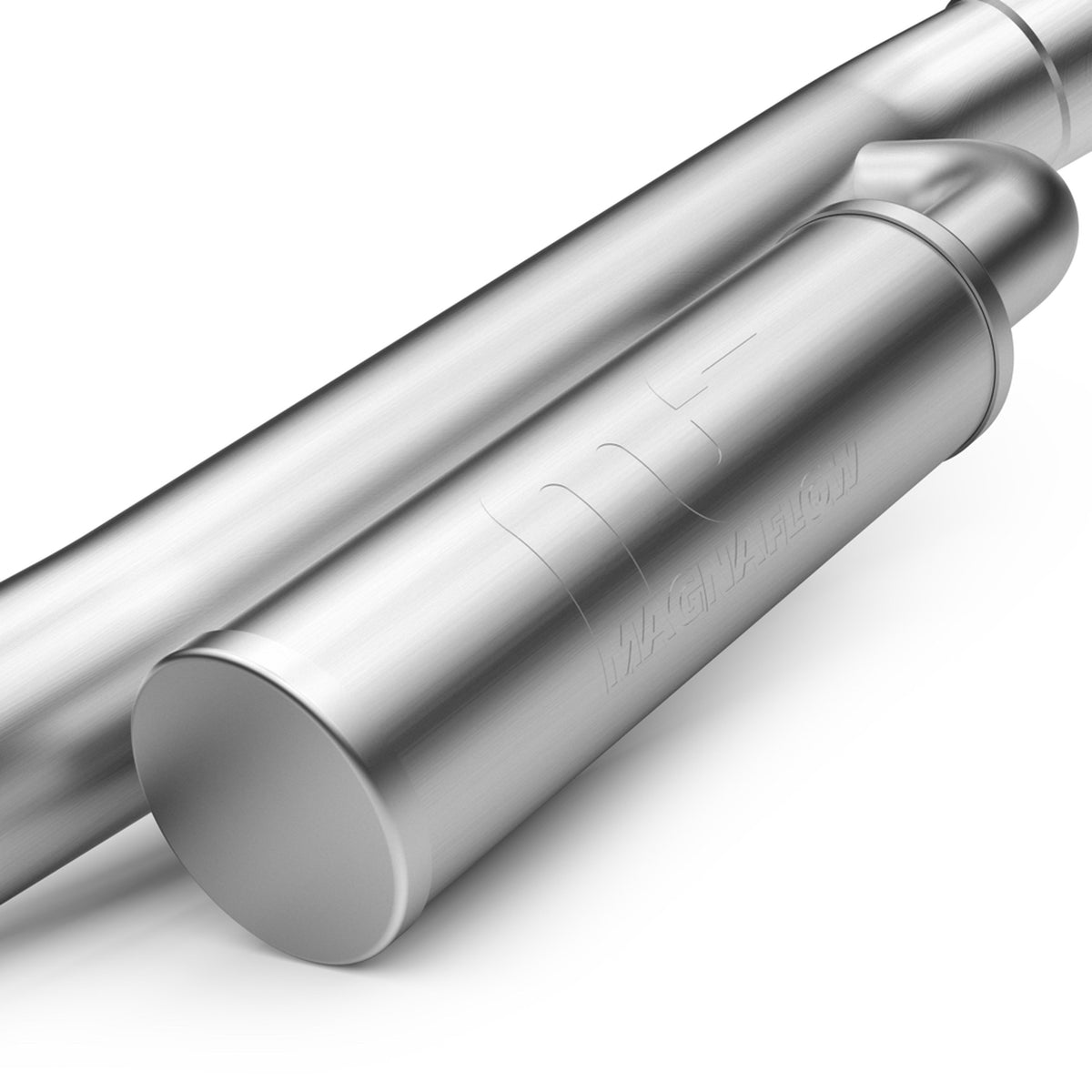

The MagnaFlow® Toyota Tundra Overland Series™ performance exhaust system #19604 is built to withstand anything that Mother Nature throws at it thanks to the elevated ground clearance and superior departure angles it offers compared to your truck’s existing exhaust system. #19604 makes this all possible thanks to its single tipless, high tuck tailpipe that exits the rear driver’s side. The system’s cat-back design replaces all of your truck’s stock exhaust components from near the catalytic converter on back. Our innovative NDT (No Drone Technology) resonators are engineered to keep droning noises in check using quarter-wave passive noise cancellation, improving your situational awareness while out on the trail and facilitating a more comfortable ride when cruising the highway. Exhaust kit #19604 is compatible with all 2022-2024 Toyota Tundra crew cab and extended cab/standard bed configurations equipped with the 3.5L V6 engine option. #19604 features 3” diameter, mandrel bent main tubing that flows through a fast-flowing, straight through 5”x11”x22” offset/offset same-side muffler with internal branch pipe, all with a premium brushed finish. This Toyota Tundra performance exhaust system is made of durable, corrosion resistant stainless steel and produced using advanced, CNC precision robotic manufacturing techniques, all backed by MagnaFlow®’s limited lifetime warranty.
Features & Benefits
- High clearance exit
- No-Drone-Technology allows for a quiet cabin
- Dyno proven performance
Specifications
| Exhaust Tip Quantity | 0 |
| Muffler (Front) Body Width | 11 IN |
| Muffler (Front) Body Length | 22 IN |
| Main Piping Diameter | 3 IN |
| Muffler (Rear) Body Height | 4 IN |
| Muffler (Rear) Body Width | 4 IN |
| Muffler (Center) Body Height | 5 IN |
| Muffler (Rear) Body Length | 6 IN |
| Inlet Type | Bolt-On |
| Gasket Or Seal Included | No |
| Mounting Bracket Included | No |
| Exit Style | Single Straight Driver Side Rear |
| Muffler (Front) Type | Straight-Through |
| Muffler (Rear) Type | Tuned Chamber |
| Clamps Included | Yes |
| Hangers Included | Yes |
| Muffler Body Height Position Center | 5 IN |
| Muffler Body Height Position Rear | 4 IN |
| Muffler Body Length Position Front | 22 IN |
| Muffler Body Length Position Rear | 6 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 11 IN |
| Muffler Body Width Position Rear | 4 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler Type Position Front | Straight-Through |
| Muffler Type Position Rear | Tuned Chamber |
| Pipe Material | Stainless Steel |
| Series | Overland |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |

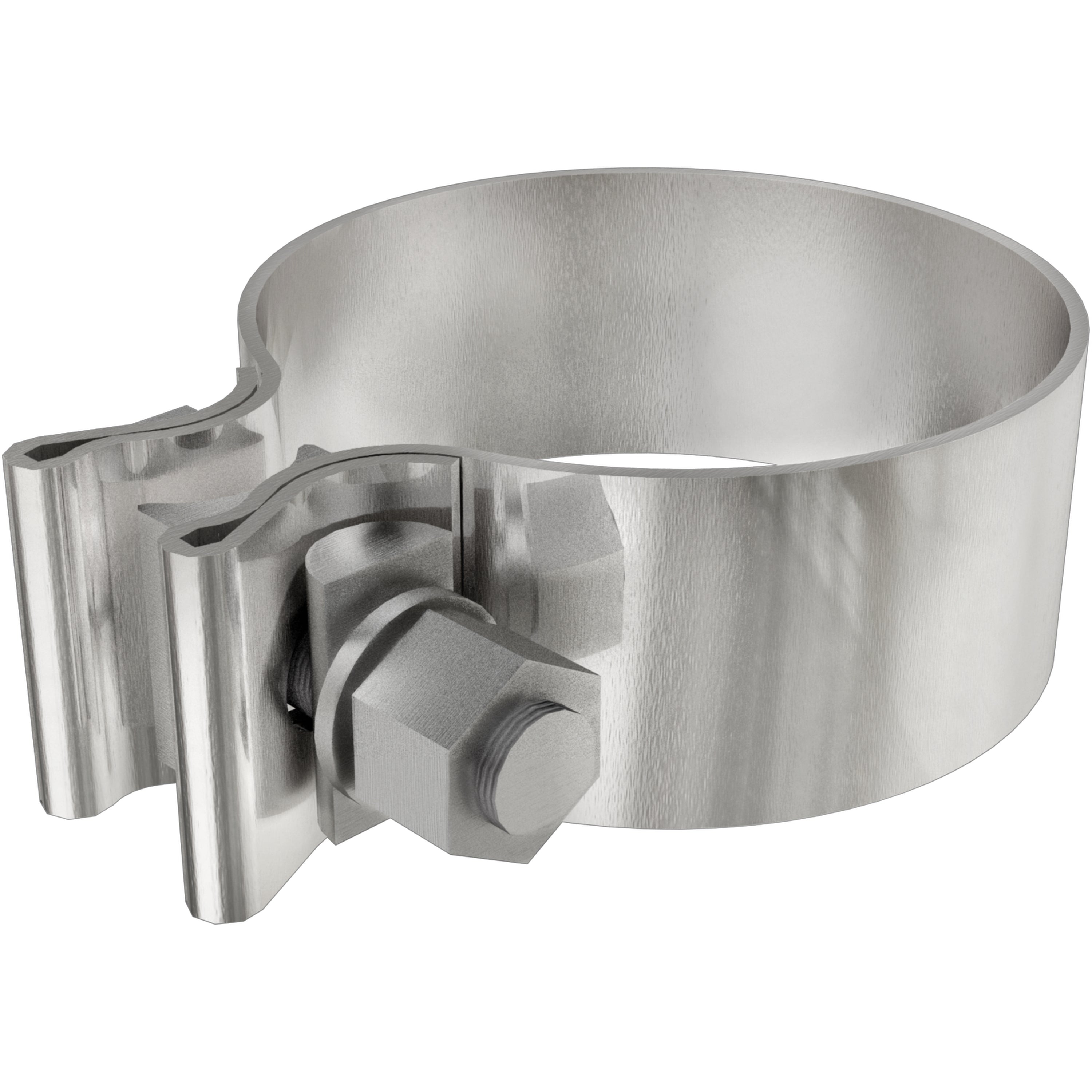

| Clamping Type | Round Band |
| Title | MagnaFlow® 2022-2025 Toyota Tundra 3.4L Overland Series™ Cat-Back Performance Exhaust System 19604 |
Installation Guide: Download PDF
