MagnaFlow Exhaust Products 19619 - Overland Series Cat-Back System
Couldn't load pickup availability
MagnaFlow Overland Series Cat-Back System

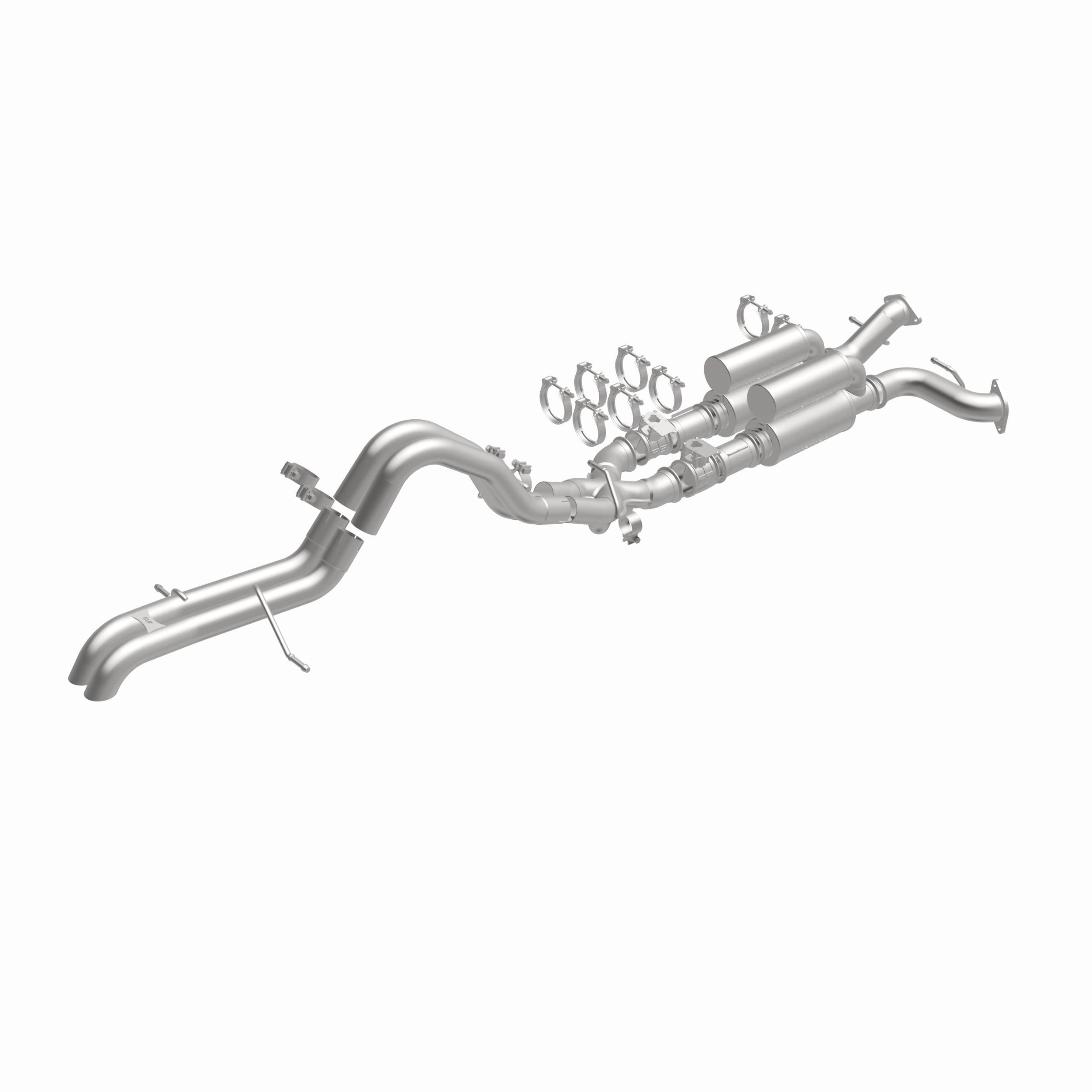

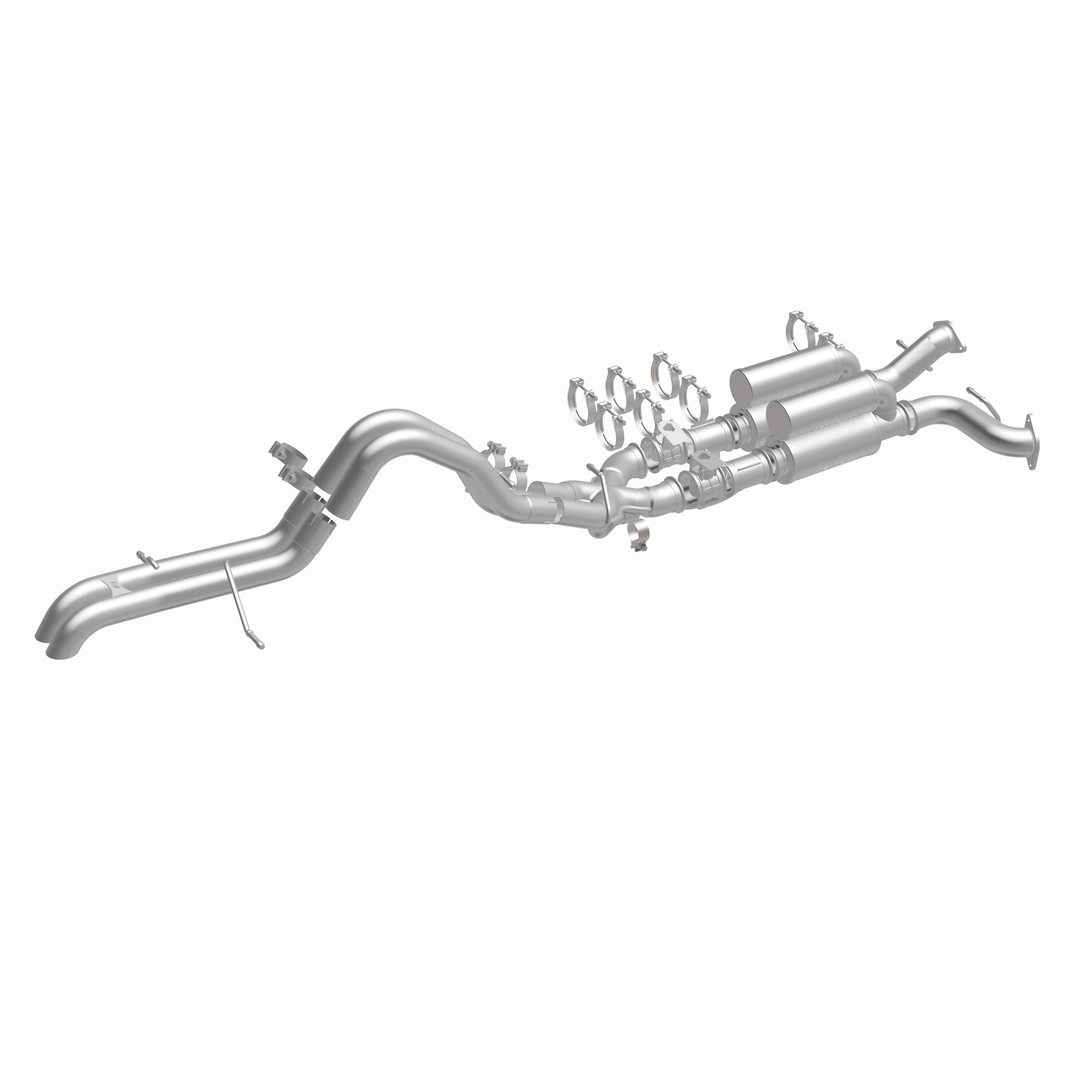

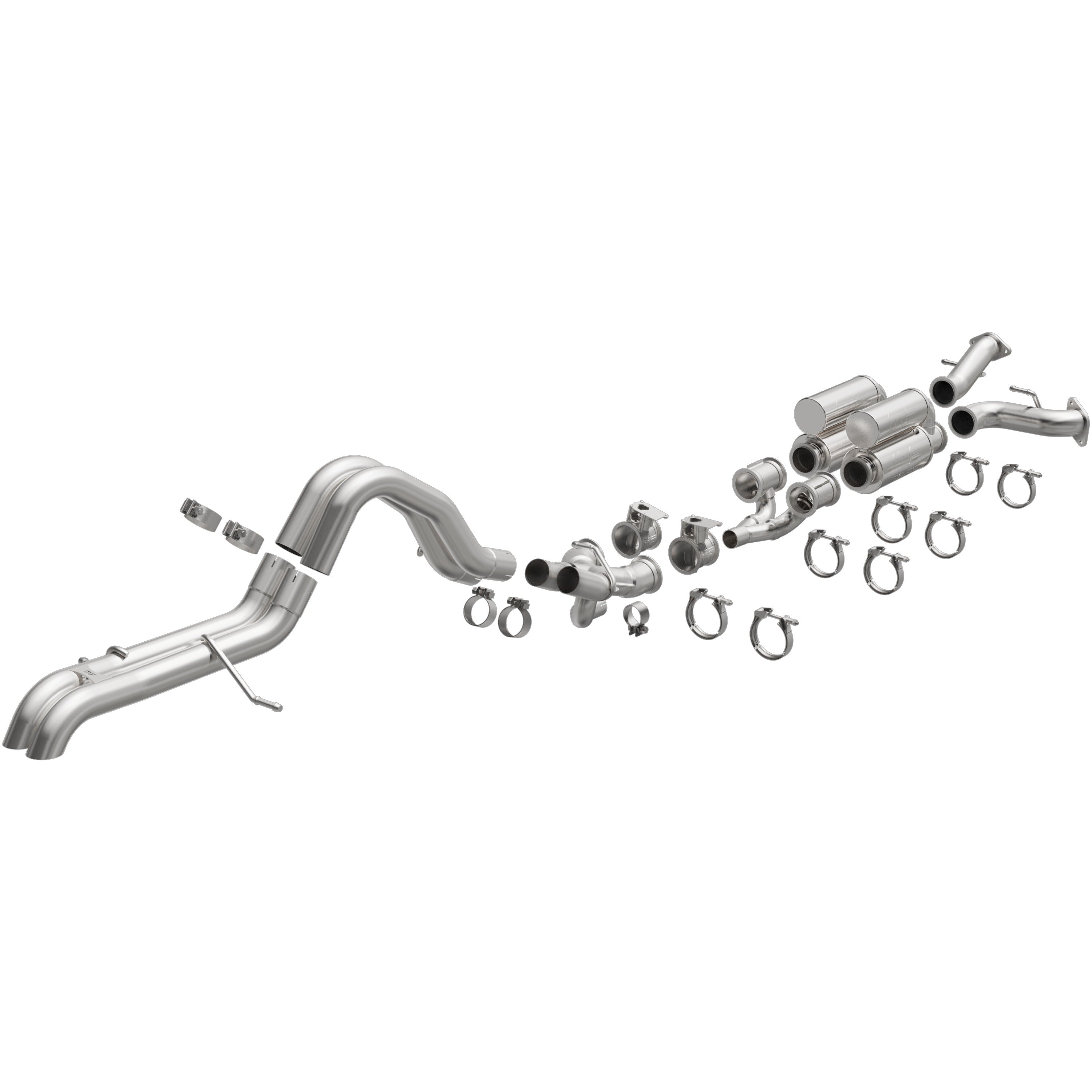

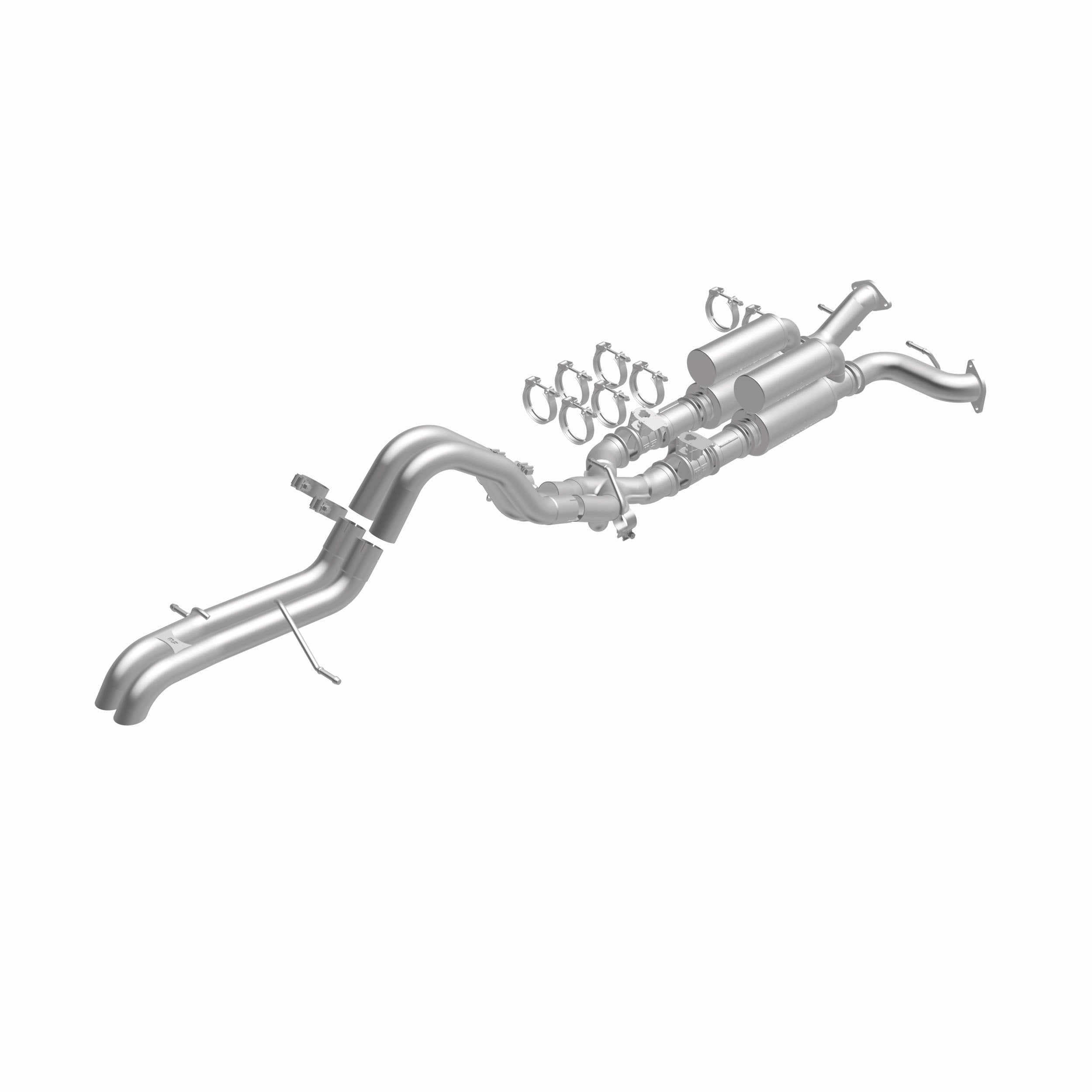

The MagnaFlow® Ford Bronco Raptor Overland Series™ Cat-Back Performance Exhaust System #19619 brings all the technology, dyno-proven performance and configurable sound your truck needs to be crowned the ultimate Raptor. This exhaust kit is compatible with every 2022-2026 Ford Bronco Raptor running a 3.0L engine and features an easy-to-install direct-fit design that replaces your truck’s OEM exhaust system from near the catalytic converter on back. #19619 features high clearance tucked 3” diameter mandrel bent main piping that passes through two 11” round body straight-through mufflers and NDT (No Drone Technology) resonators, effectively mitigating any droning noises that may otherwise occur when cruising at highway speeds. The tucked design also considerably improves both ground clearance and departure angles. This Ford Bronco Raptor performance exhaust system terminates in a dual same-side driver-side rear exit and includes integrated, functional active exhaust valves cast in durable 304 stainless steel. Exhaust kit #19619 is secured using racing-bred quick-release V-band clamps. #19619 is made of durable stainless steel and produced using advanced 3D scanning technology and CNC precision robotic manufacturing techniques, all backed by MagnaFlow®’s limited lifetime warranty.
Features & Benefits
- High clearance exit
- No-Drone-Technology allows for a quiet cabin
- Dyno proven performance
Specifications
| Catalytic Converter Included | No |
| Exhaust Tip Quantity | 0 |
| Muffler (Bottom) Body Length | 11 IN |
| Muffler (Top) Body Length | 11 IN |
| Muffler Body Length Position Bottom | 11 IN |
| Muffler Body Length Position Top | 11 IN |
| Main Piping Diameter | 3 IN |
| Muffler (Top) Body Height | 4 IN |
| Muffler (Top) Body Width | 4 IN |
| Muffler Quantity | 4 |
| Muffler Body Height Position Top | 4 IN |
| Muffler Body Width Position Top | 4 IN |
| Muffler (Bottom) Body Height | 5 IN |
| Muffler (Bottom) Body Width | 5 IN |
| Muffler Body Height Position Bottom | 5 IN |
| Muffler Body Width Position Bottom | 5 IN |
| Valve Type | Actuated |
| Inlet Type | Bolt-On;Clamp-On |
| Muffler Finish | Brushed |
| Type | Cat-Back |
| Exit Style | Dual Straight Driver Side Rear |
| Gasket Or Seal Included | No |
| Mounting Bracket Included | No |
| Series | Overland |
| Pipe Material | Stainless Steel |
| Muffler Body Material | Stainless Steel |
| Muffler (Bottom) Type | Straight-Through |
| Muffler Type Position Bottom | Straight-Through |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler (Top) Type | Tuned Chamber |
| Clamps Included | Yes |
| Hangers Included | Yes |
| Valve Included | Yes |
| Title | MagnaFlow® 2022-2026 Ford Bronco Raptor 3.0L Overland Series™ Cat-Back Performance Exhaust System 19619 |
| Clamping Type | Round Band |
| Clamping Type | V Band |
Installation Guide: Download PDF
