MagnaFlow Exhaust Products 19646 - xMOD Series Black Chrome Tips Cat-Back System
Couldn't load pickup availability

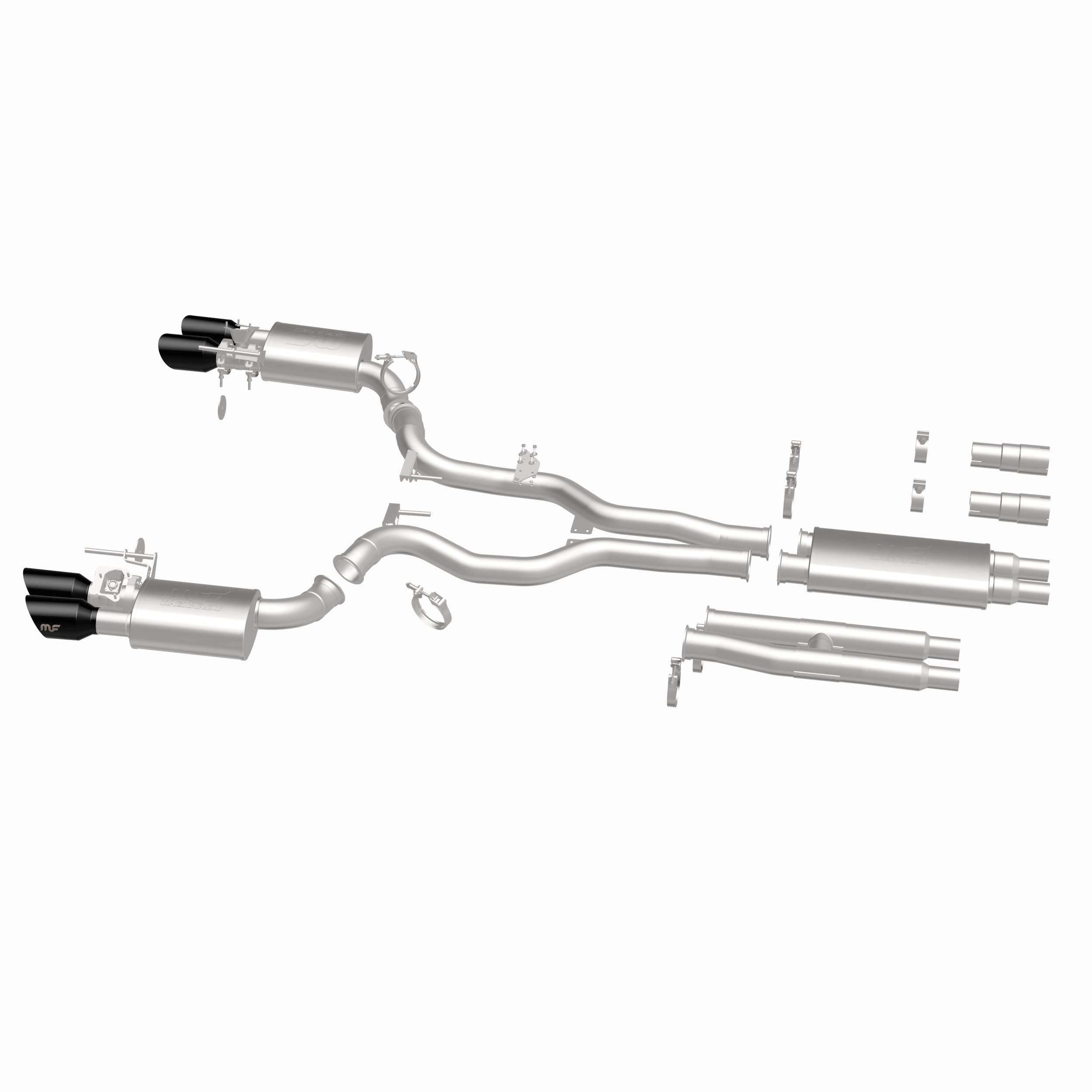

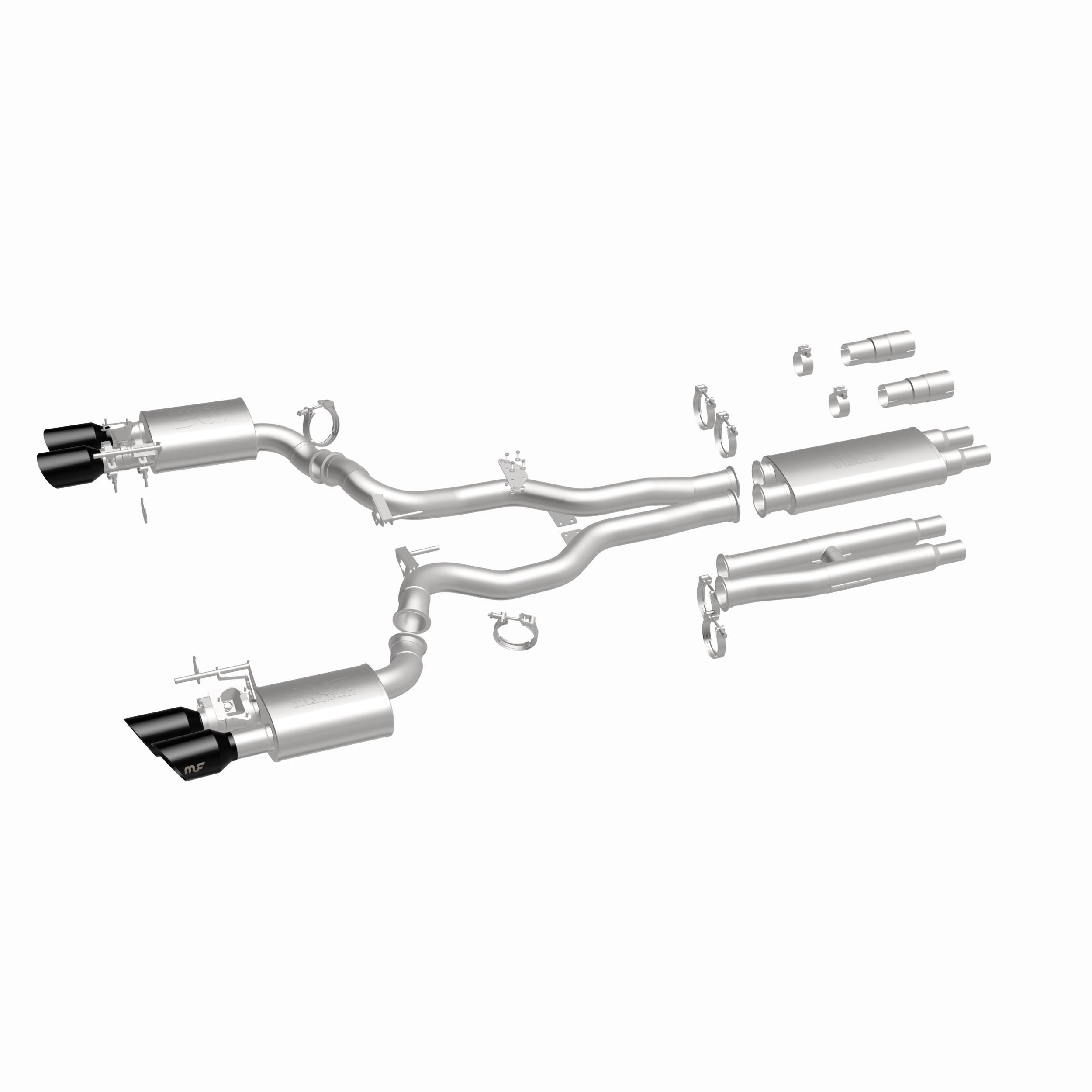

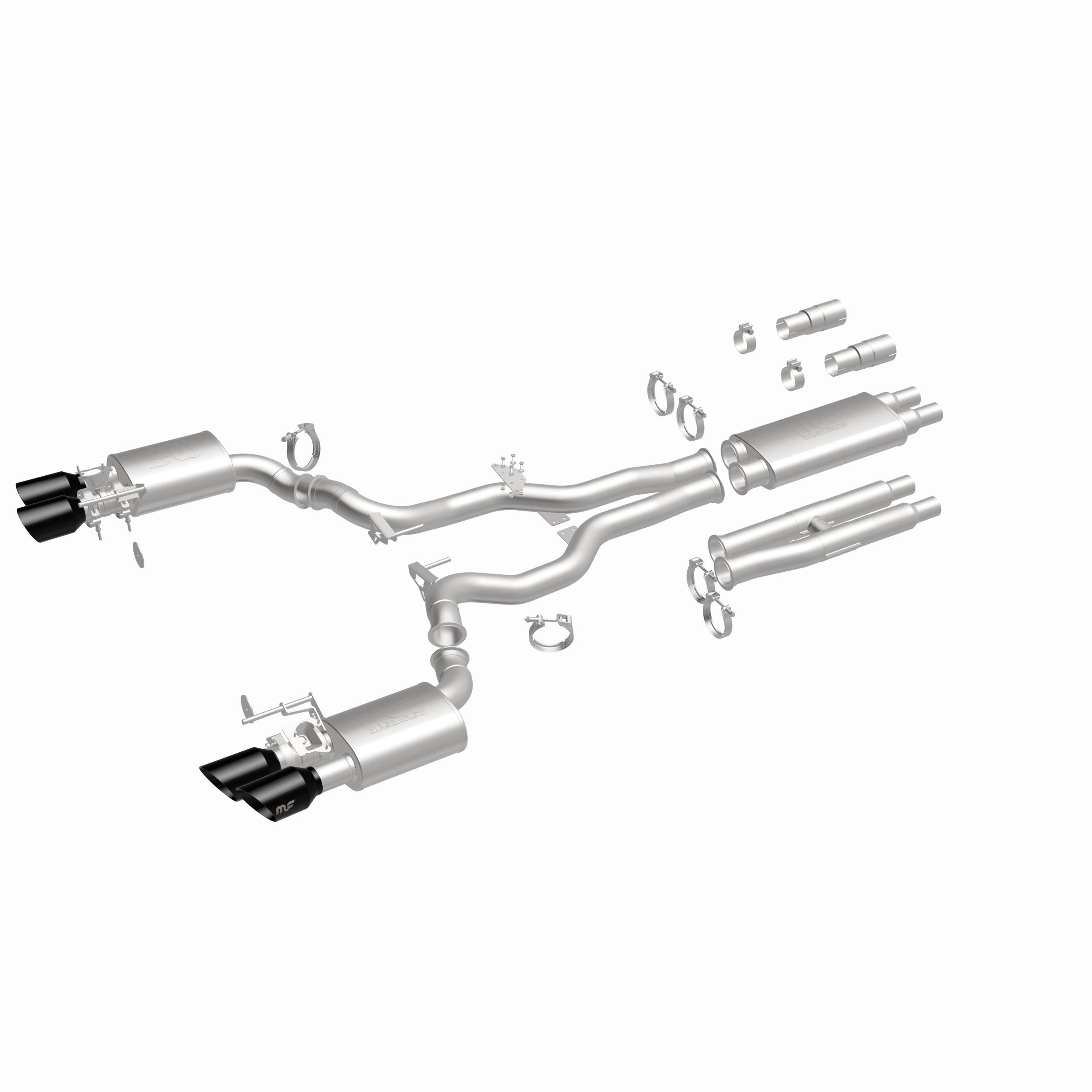

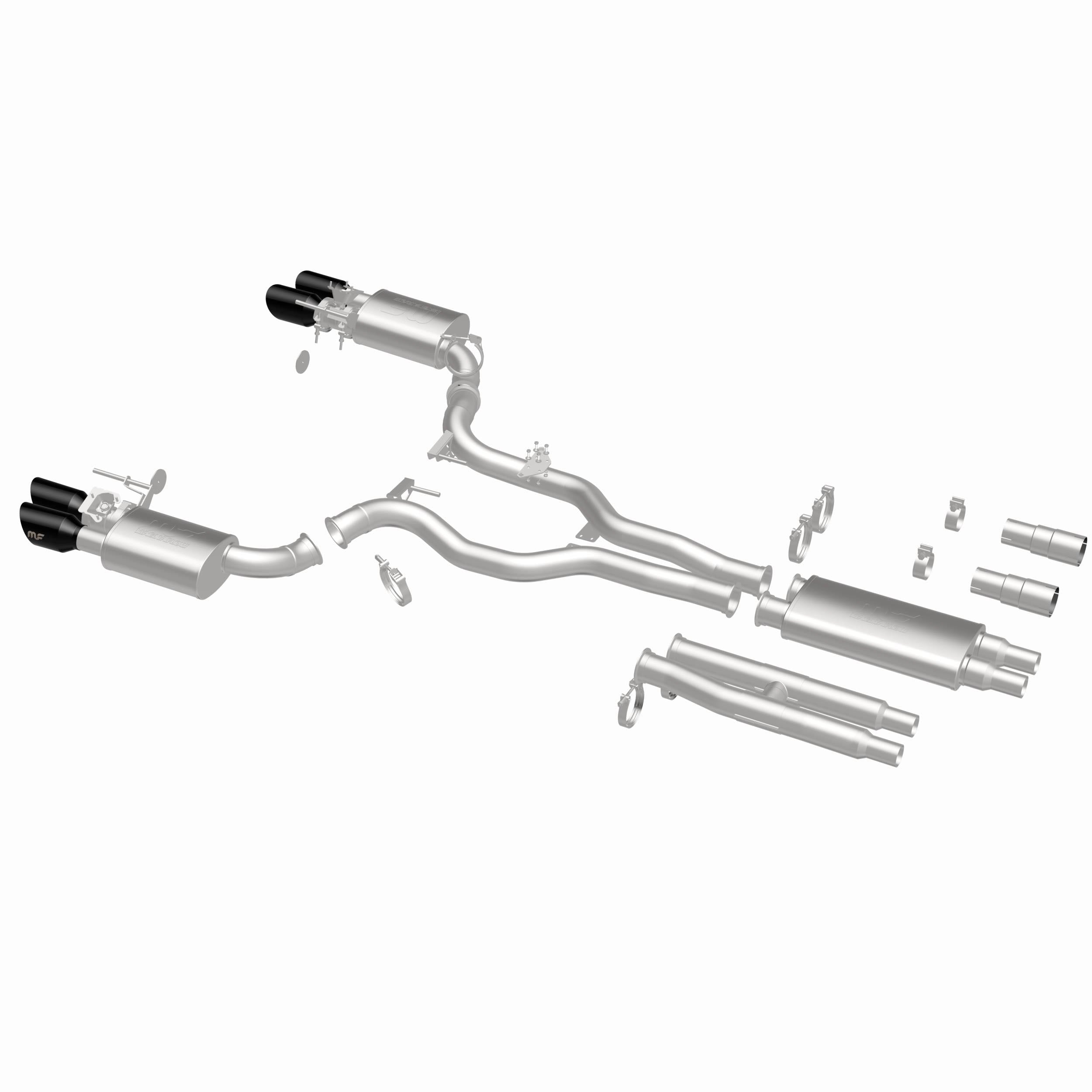

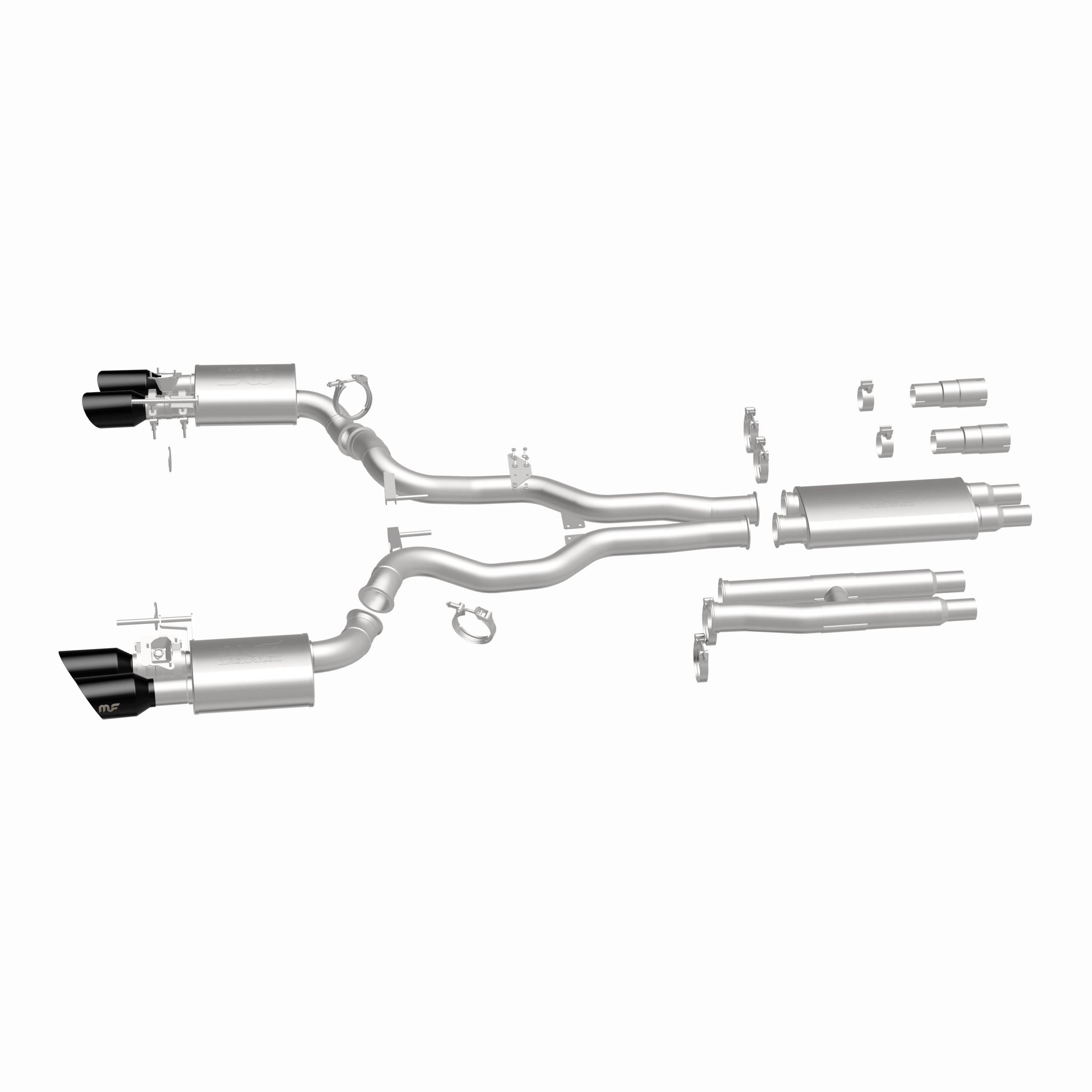

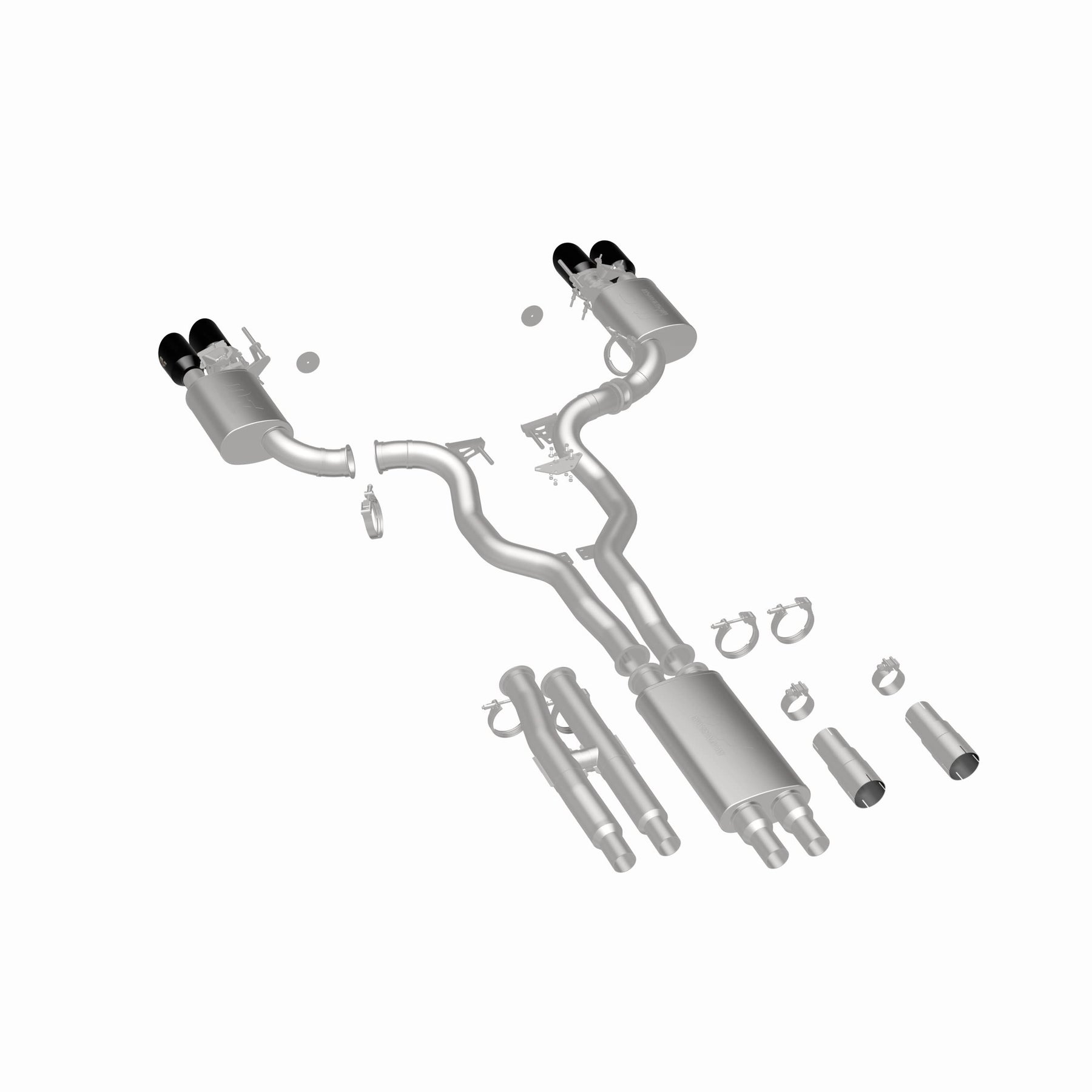

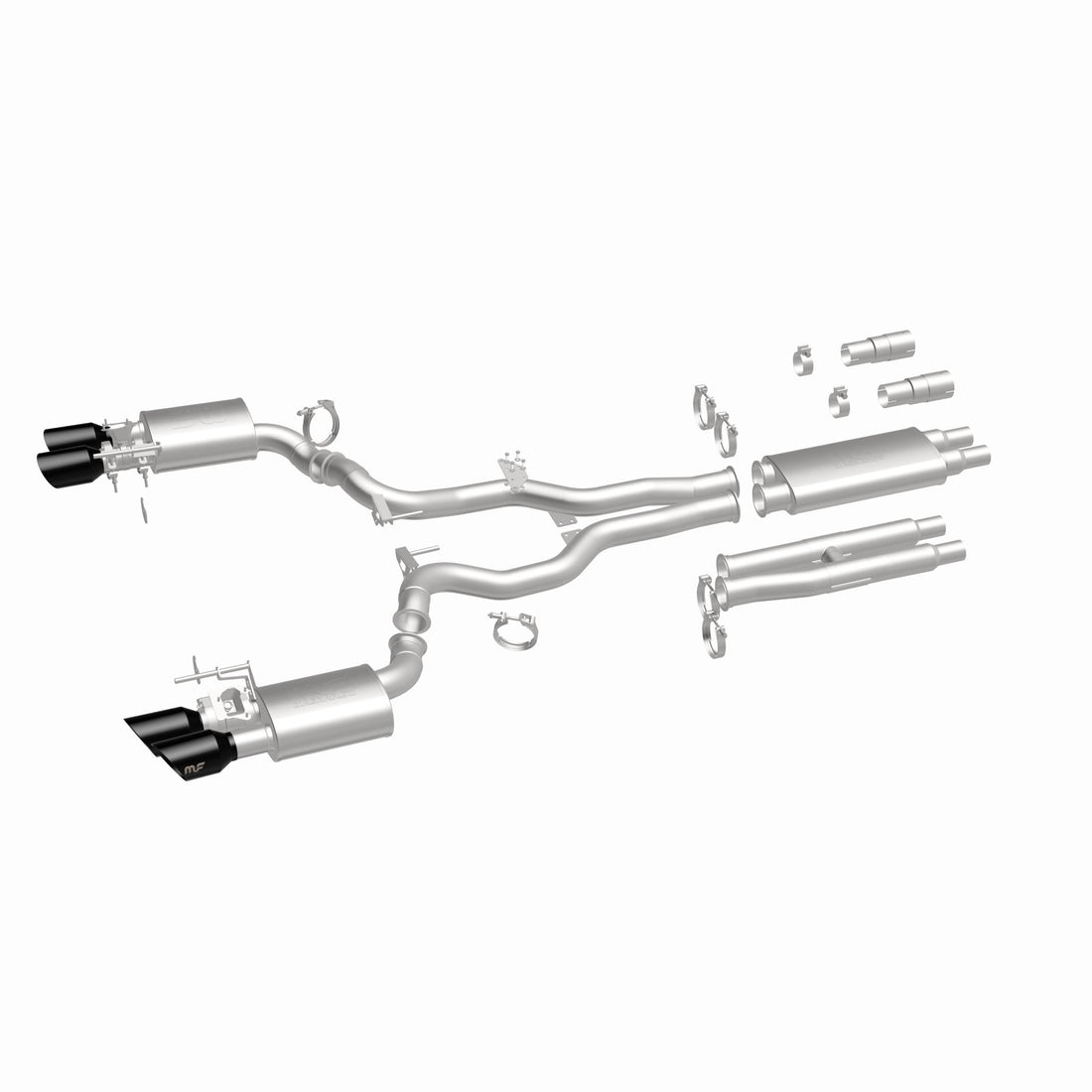

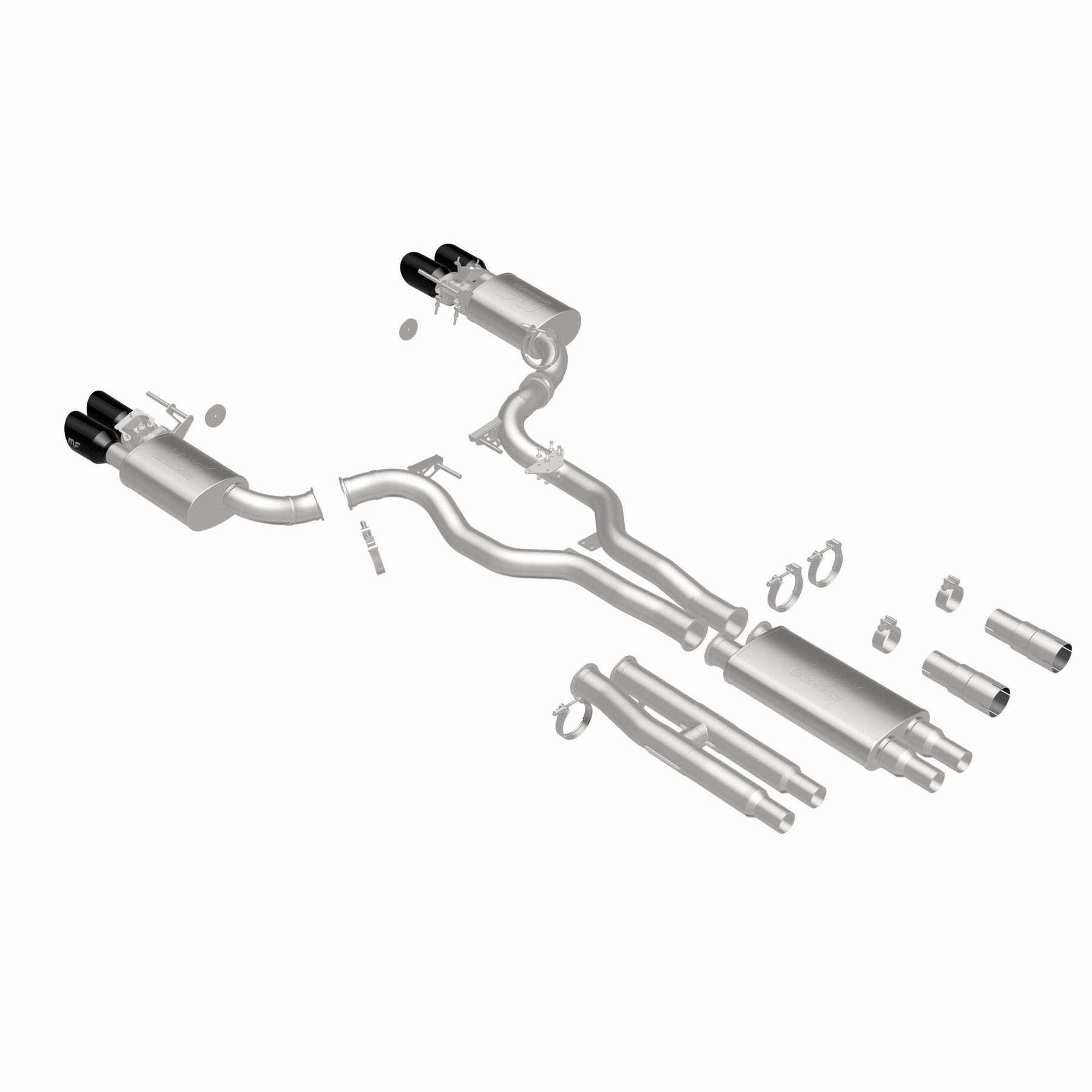

MagnaFlow xMOD Series Black Chrome Tips Cat-Back System
Configure your 2024-2026 Mustang GT for the sound you want, when you want it! MagnaFlow's premium performance exhaust offering, the xMOD Series, provides an unrivaled exhaust experience! The MagnaFlow 2024-2026 Ford Mustang GT xMOD Series Cat-Back Performance Exhaust System 19646 offers a completely modular exhaust system with all the benefits a MagnaFlow premium exhaust is known for: limited lifetime warrantied stainless-steel construction, all-new dyno-proven performance chambered mufflers and fast-flowing mandrel bent pipes. xMOD Muffler Module features a straight-through H core design resonator, and race bred v-band clamps for quick installation and removal. Easily switch from the deep, aggressive signature MagnaFlow exhaust note to the wild straight-pipe race car sound offered by the xMOD xTreme Delete H-Pipe. xMOD xTreme Delete H-Pipe for the Mustang comes equipped with the same race bred v-bands which allow removal of the muffler module for that unmatched xMOD xTreme sound experience. Please check to ensure compliance with local noise regulations.
Features & Benefits
- xTreme Delete Modules for a straight-pipe setup
- No-Drone-Technology allows for a quiet cabin
- Configurable sound from mild to wild
Specifications
| Catalytic Converter Included | No |
| Muffler (Rear) Body Length | 11 IN |
| Muffler Body Length Position Rear | 11 IN |
| Muffler (Front) Body Length | 18 IN |
| Muffler Body Length Position Front | 18 IN |
| Exhaust Tip Quantity | 2 |
| Muffler Quantity | 3 |
| Main Piping Diameter | 3 IN |
| Muffler (Front) Body Height | 4 IN |
| Exhaust Tip Diameter | 4 IN |
| Muffler Body Height Position Front | 4 IN |
| Muffler (Rear) Body Height | 5 IN |
| Muffler Body Height Position Rear | 5 IN |
| Exhaust Tip Length | 7 IN |
| Muffler (Rear) Body Width | 8 IN |
| Muffler Body Width Position Rear | 8 IN |
| Muffler (Front) Body Width | 9 IN |
| Valve Type | Actuated |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Finish | Black Chrome |
| Muffler Finish | Brushed |
| Type | Cat-Back |
| Muffler Type | Chambered |
| Inlet Type | Clamp-On |
| Exhaust Tip Wall | Double Wall |
| Exhaust Tip Edge | Folded Edge |
| Gasket Or Seal Included | No |
| Mounting Bracket Included | No |
| Exhaust Tip Resonated | No |
| Exhaust Tip Intercooled | No |
| Exit Style | Quad Split Rear |
| Exhaust Tip Shape | Round |
| Exhaust Tip Material | Stainless Steel |
| Pipe Material | Stainless Steel |
| Exhaust Tip Connection | Welded-On |
| Series | xMod |
| Clamps Included | Yes |
| Hangers Included | Yes |
| Valve Included | Yes |
| Title | MagnaFlow 2024-2026 Ford Mustang 5.0L xMOD Series Cat-Back Performance Exhaust System 19646 |
| Clamping Type | Round Band |
| Clamping Type | V Band |
Installation Guide: Download PDF
