MagnaFlow Overland Series Cat-Back System

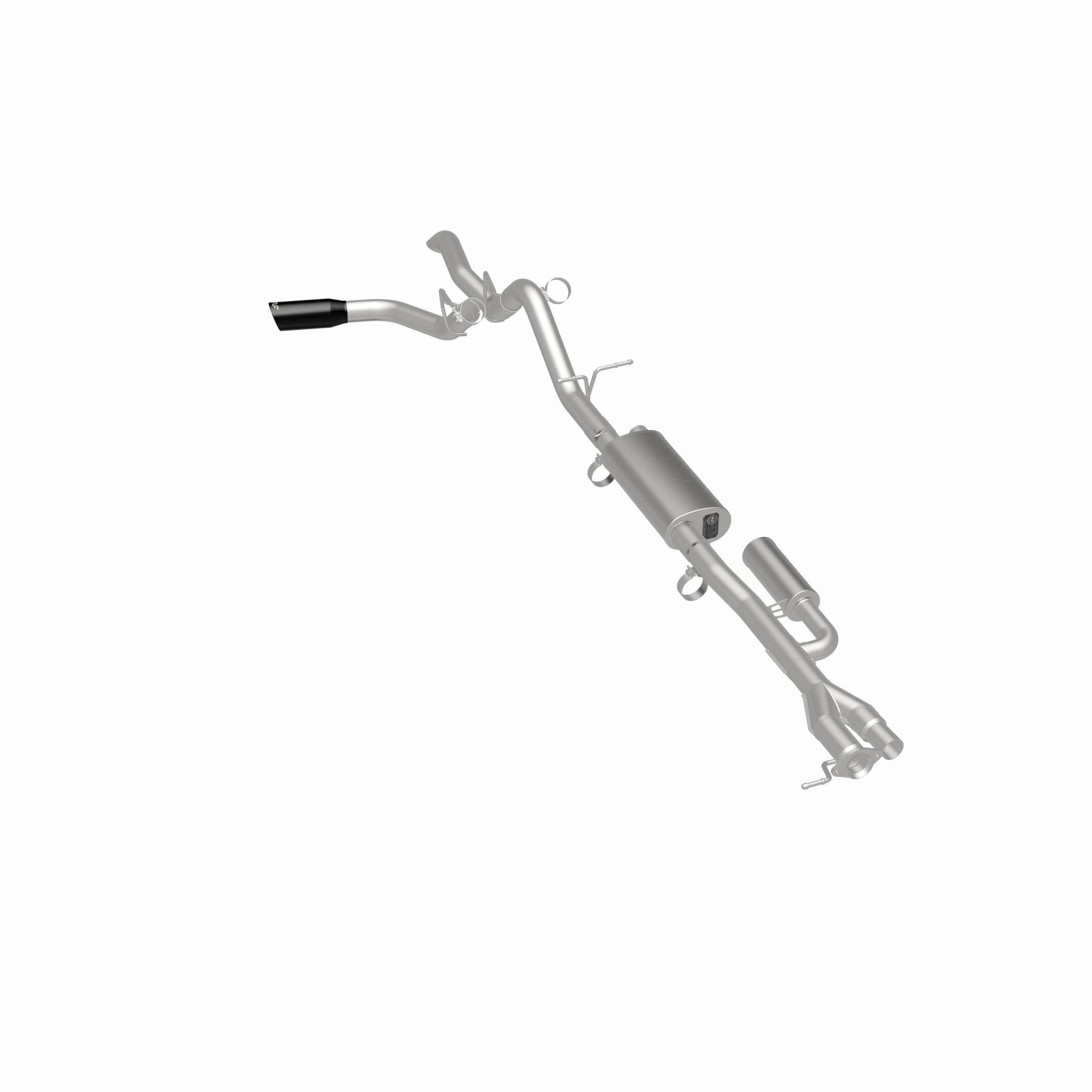

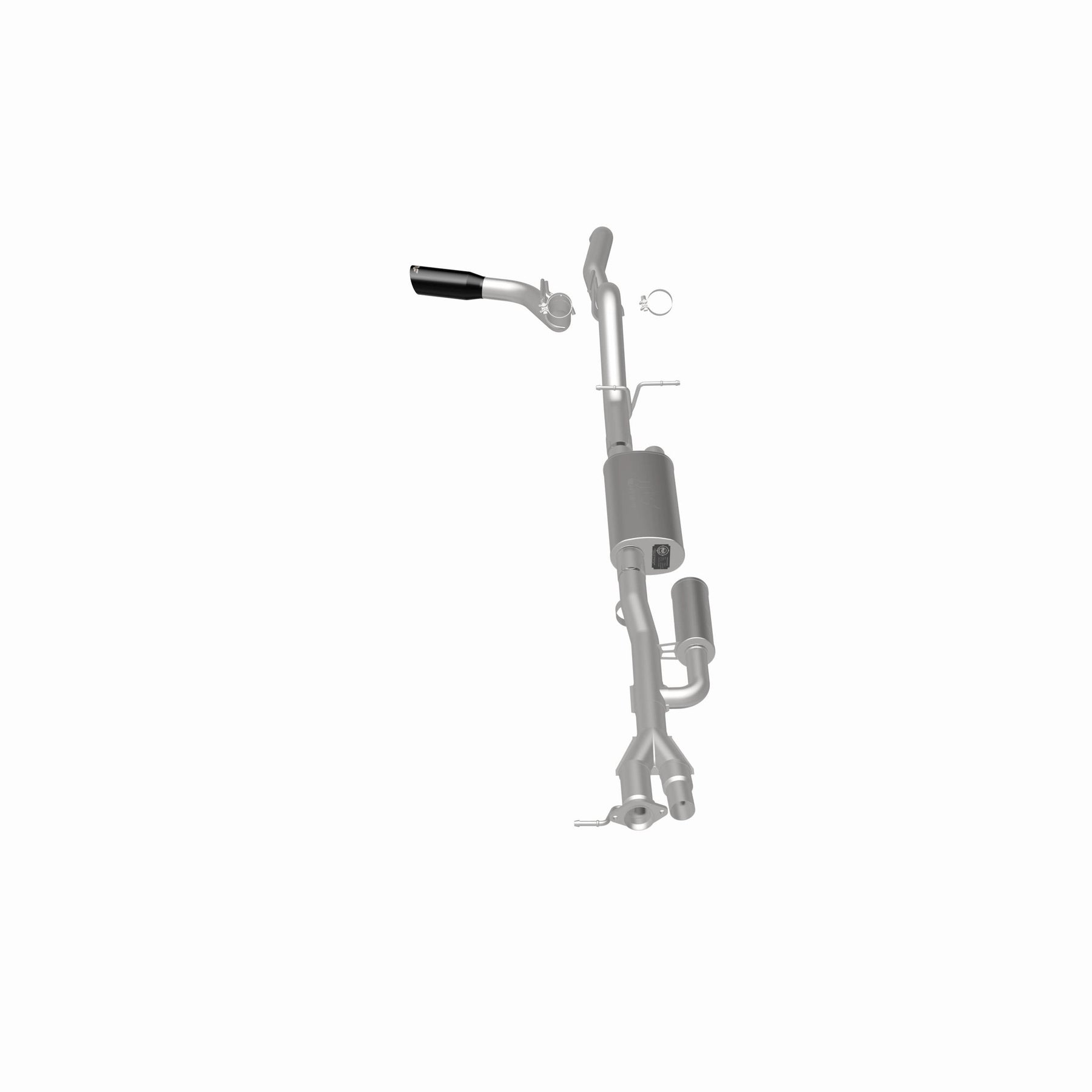

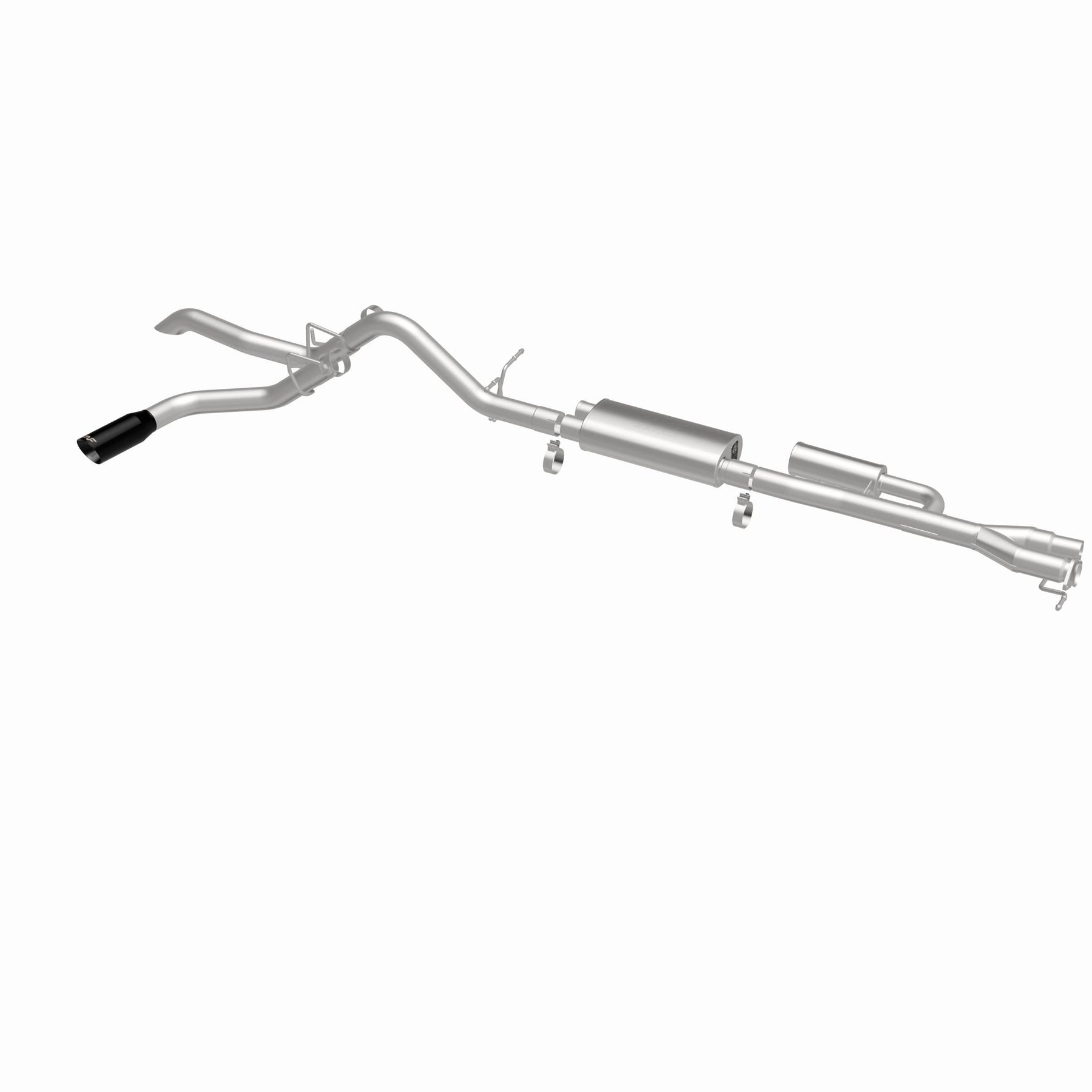

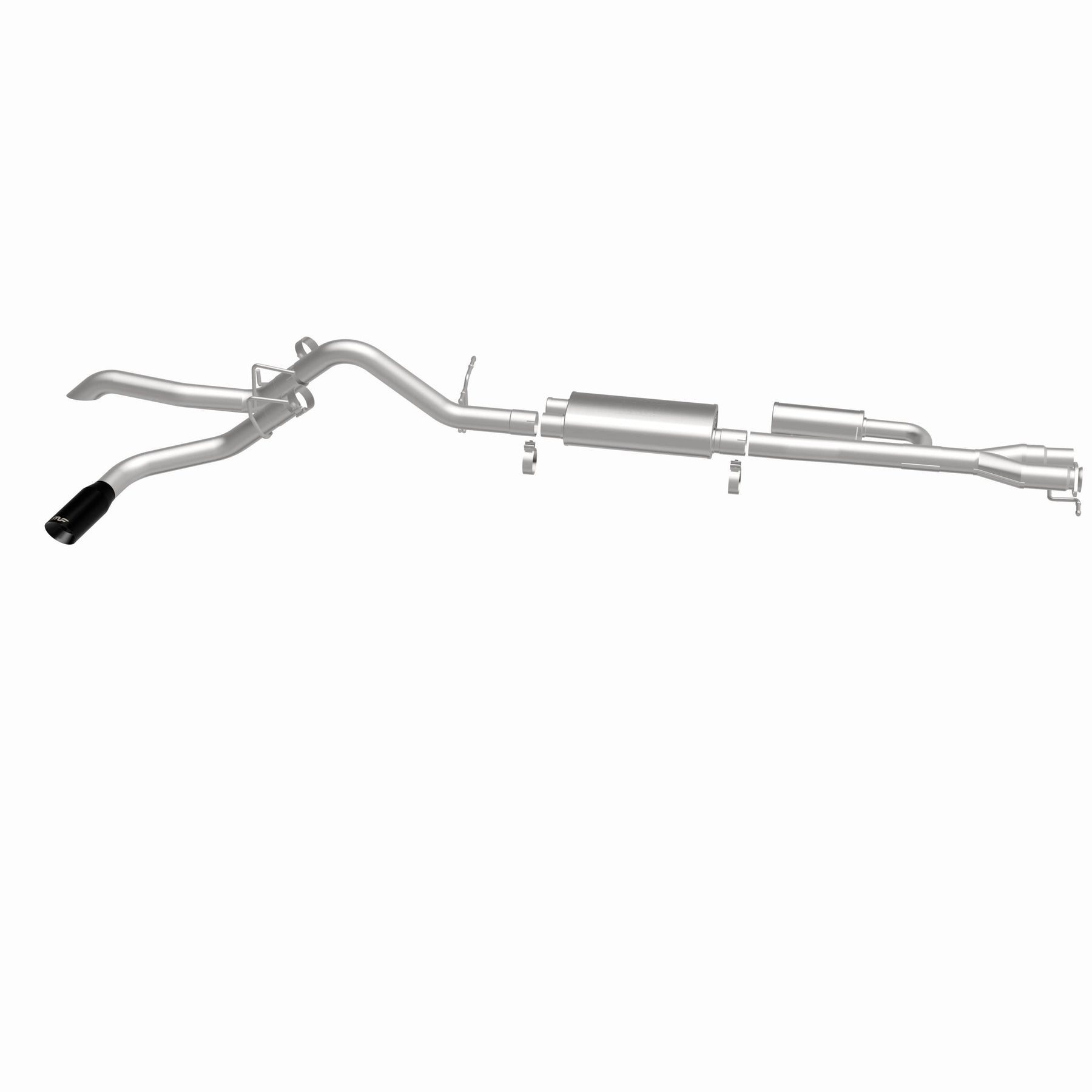

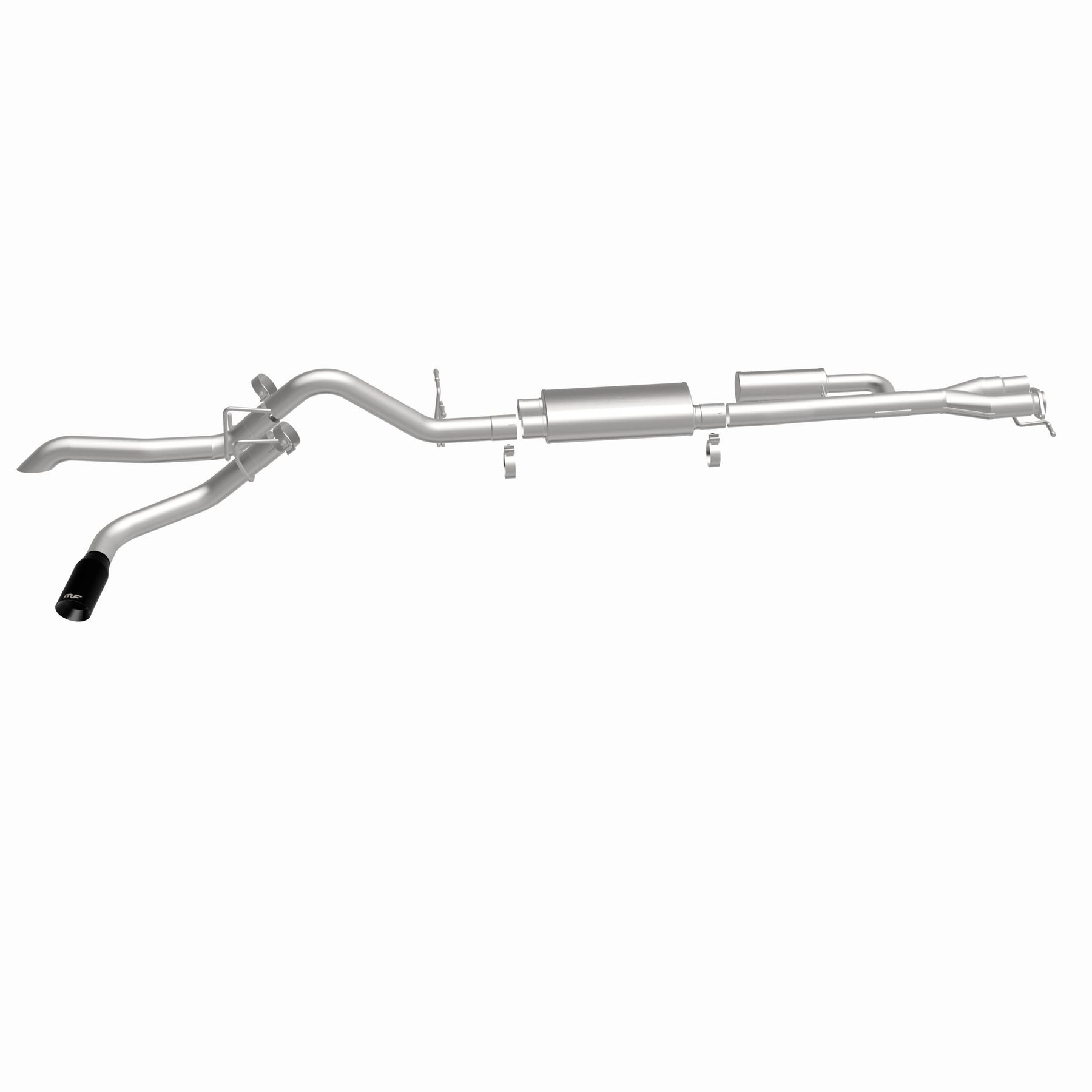

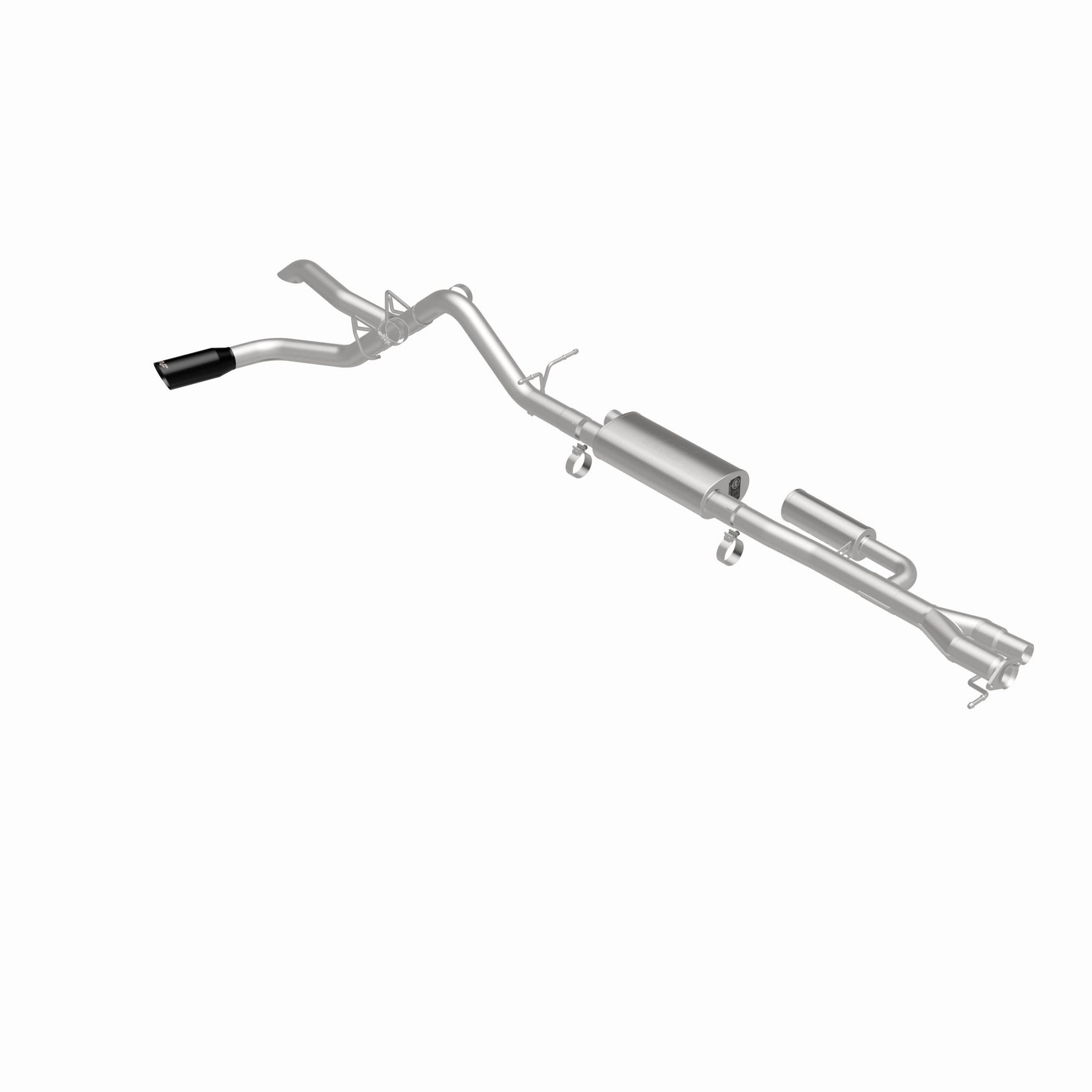

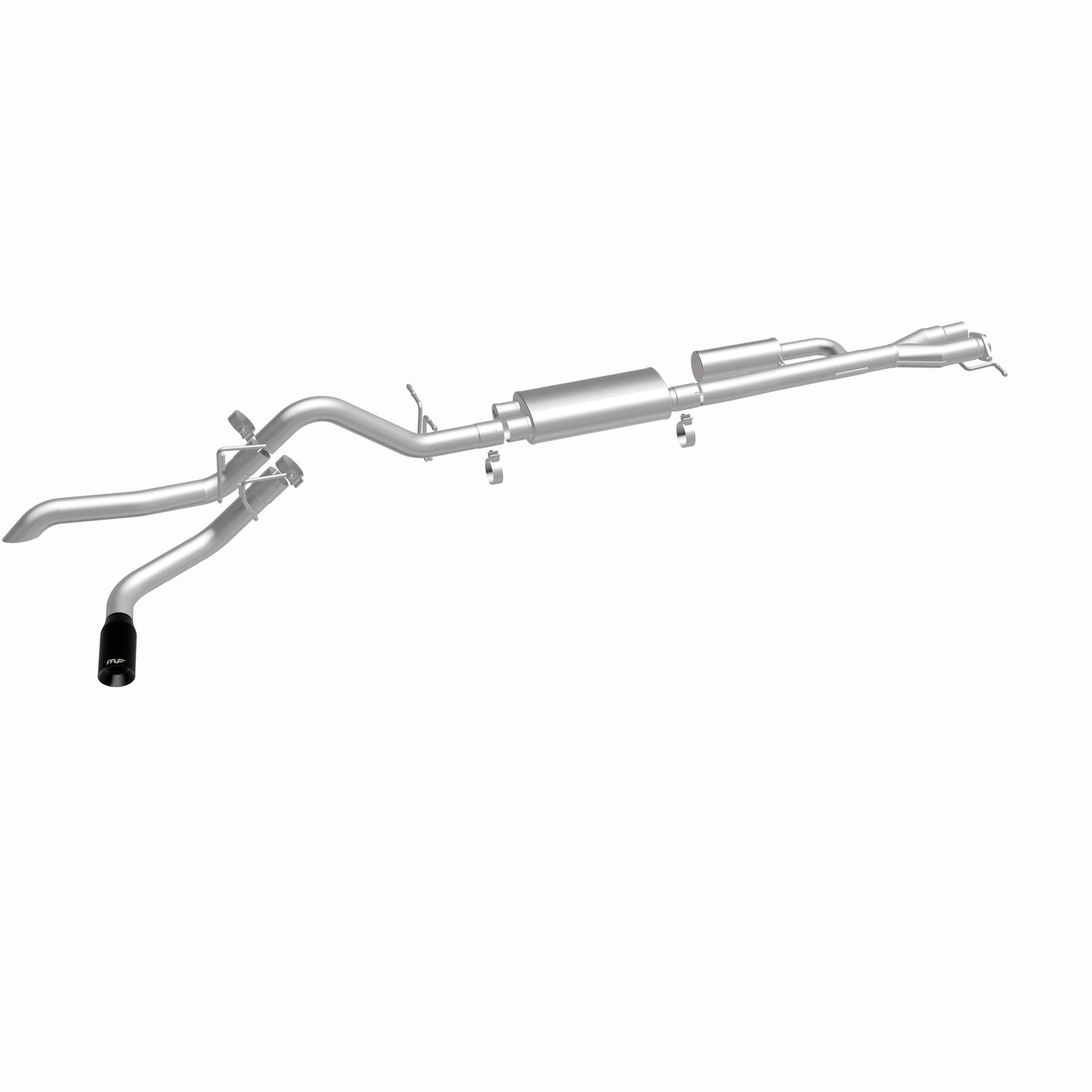

The MagnaFlow® Ford Ranger Overland Series™ Cat-Back Performance Exhaust System #19663 is engineered for off-road function and built to explore further. This exhaust system is designed for the Ford Ranger equipped with the V6 2.7L engine option. The high clearance exhaust design of this kit is intended to keep your truck clear of any challenging terrain or obstacles you may come across. #19663 3” diameter mandrel bent main piping passes through a No Drone Technology (NDT) chamber and an all-new specifically tuned performance oval muffler before exiting in a high-clearance single passenger side rear exit style. Also included is a clamp-on tailpipe sub-assembly with a single passenger side rear exit and black chrome 4” tip giving you a finished look when cruising around town. MagnaFlow® NDT utilizes passive quarter-wave noise cancellation to minimize the unwanted droning noises that can otherwise occur at highway cruising speeds. Exhaust kit #19663 utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from the catalytic converter on back. This Ford Ranger cat-back performance exhaust system is made of durable, corrosion resistant stainless steel and produced using advanced CNC precision robotic manufacturing techniques, all backed by MagnaFlow®’s limited lifetime warranty.
Features
- High clearance exit
- Dyno proven performance
- No-Drone-Technology allows for a quiet cabin
Specifications
| Muffler (Front) Body Length | 11 IN |
| Muffler (Rear) Type | Straight-Through |
| Muffler Body Material | Stainless Steel |
| Muffler (Front) Body Width | 4 IN |
| Muffler (Front) Type | Chambered |
| Muffler (Rear) Body Height | 5 IN |
| Mounting Bracket Included | No |
| Muffler (Front) Body Height | 4 IN |
| Muffler (Rear) Body Length | 18 IN |
| Muffler (Rear) Body Width | 8 IN |
| Clamps Included | Yes |
| Exhaust Tip Quantity | 1 |
| Exit Style | Multiple Exit Options |
| Hangers Included | Yes |
| Inlet Type | Bolt-On;Clamp-On |
| Muffler Type | Straight-Through;Tuned Chamber |
| Pipe Material | Stainless Steel |
| Prop 65 Y/N | No |
| Series | Overland |
| Type | Cat-Back |
| Catalytic Converter Included | No |
| Clamping Type | Round Band |
Note: Need further assistance? Call 1-800-990-0905.
Short Description: Cat-Back
Invoice Description: Exhaust System
Definition: Exhaust System Kit
Installation Guide: Download PDF
Specifications
MagnaFlow 19663 — Exhaust System Kit, fits 2024-2026 Ford Ranger. Key specs: overland series.
Warranty: Limited Lifetime Warranty from MagnaFlow
Also known as: UPC 888563205595
| Year | Make | Model | Engine |
|---|---|---|---|
| 2024-2026 | Ford | Ranger | 2.7L V6 |
1 application listed.
