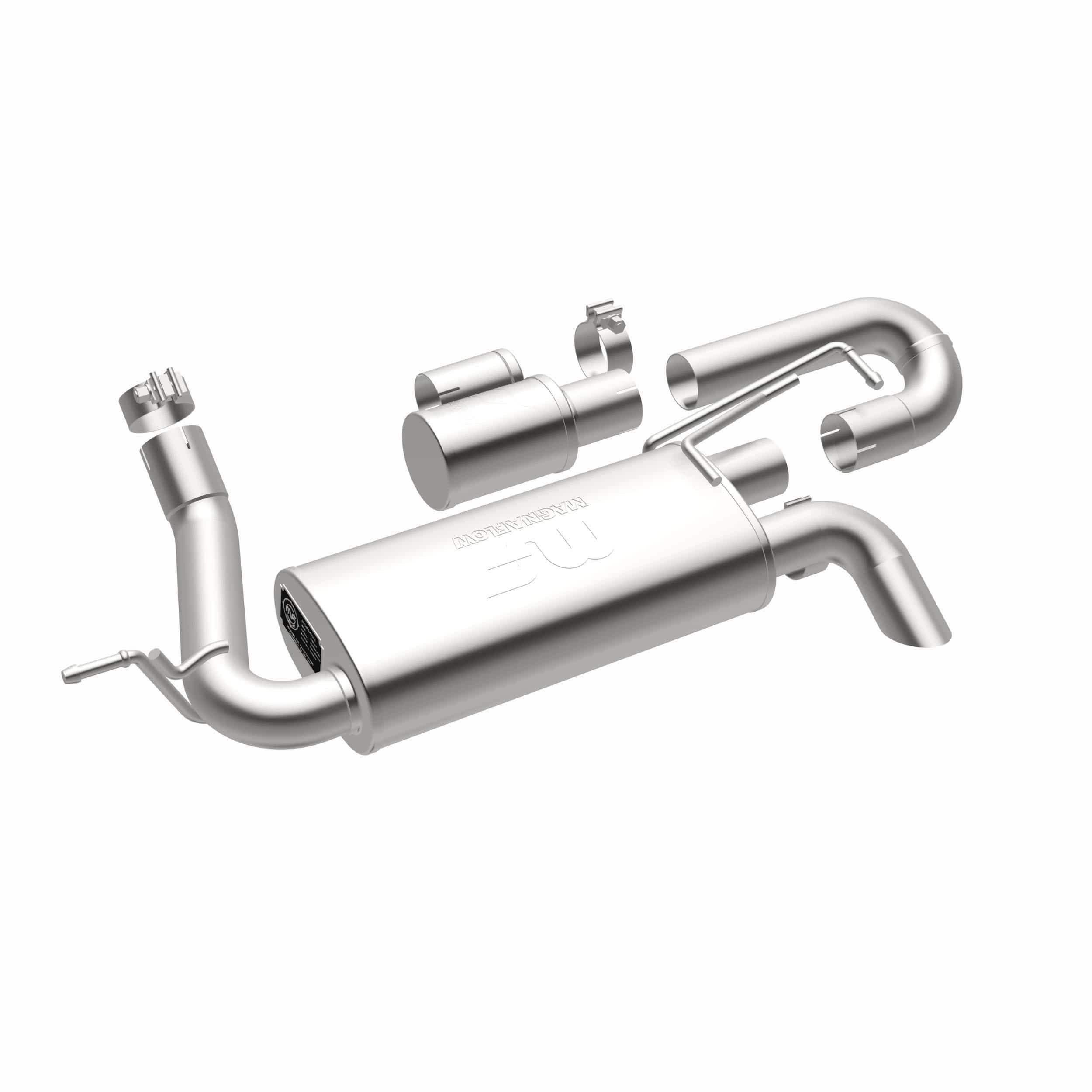

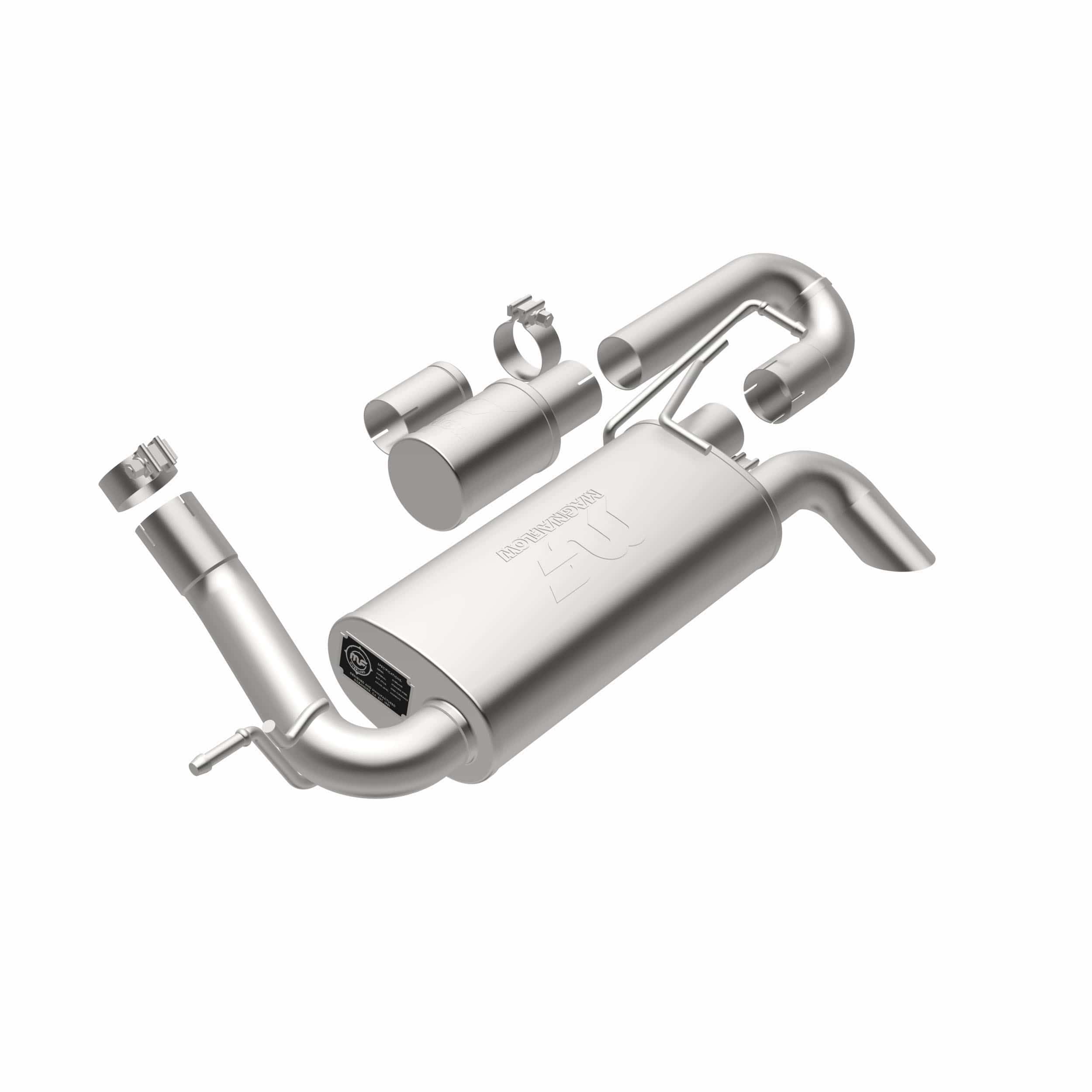

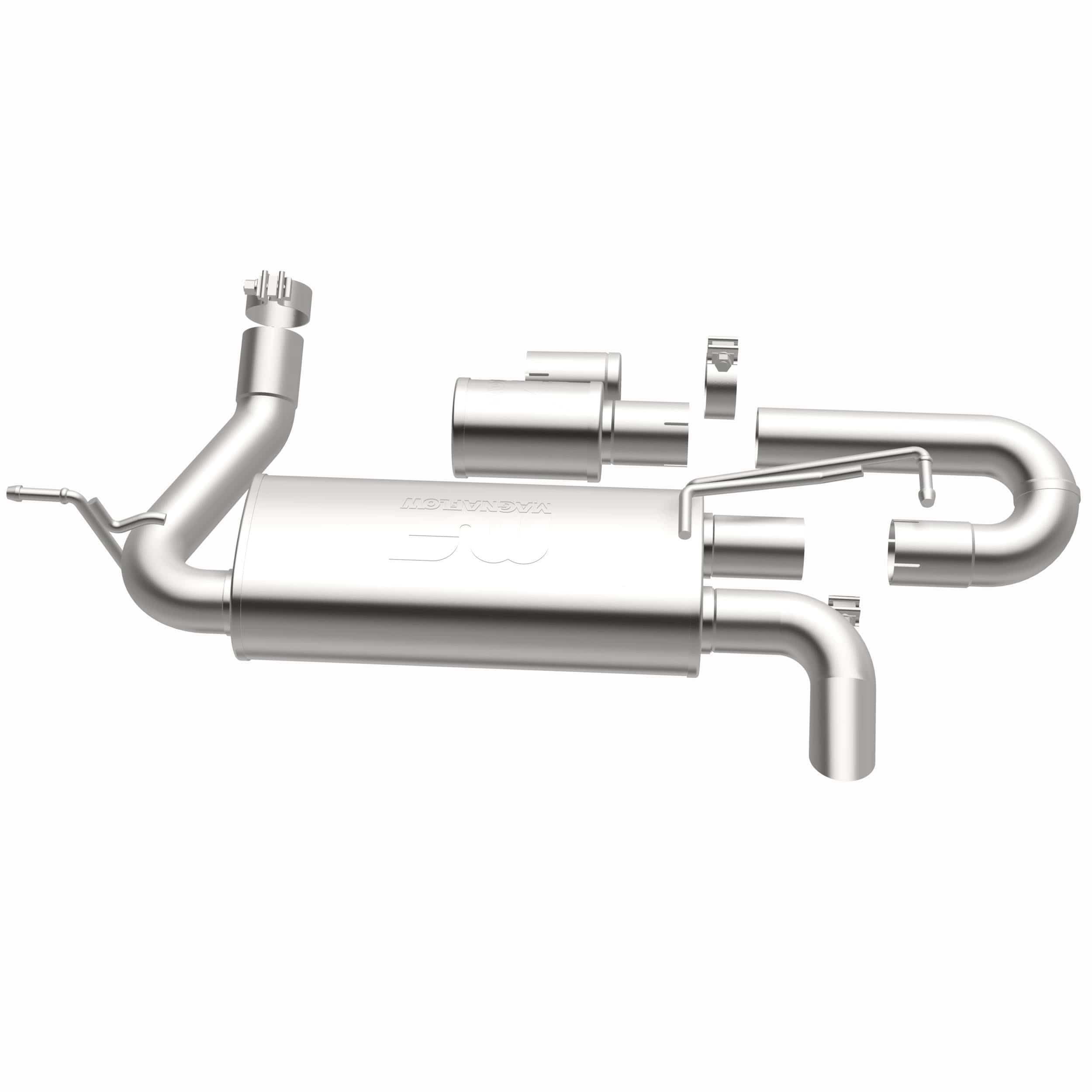

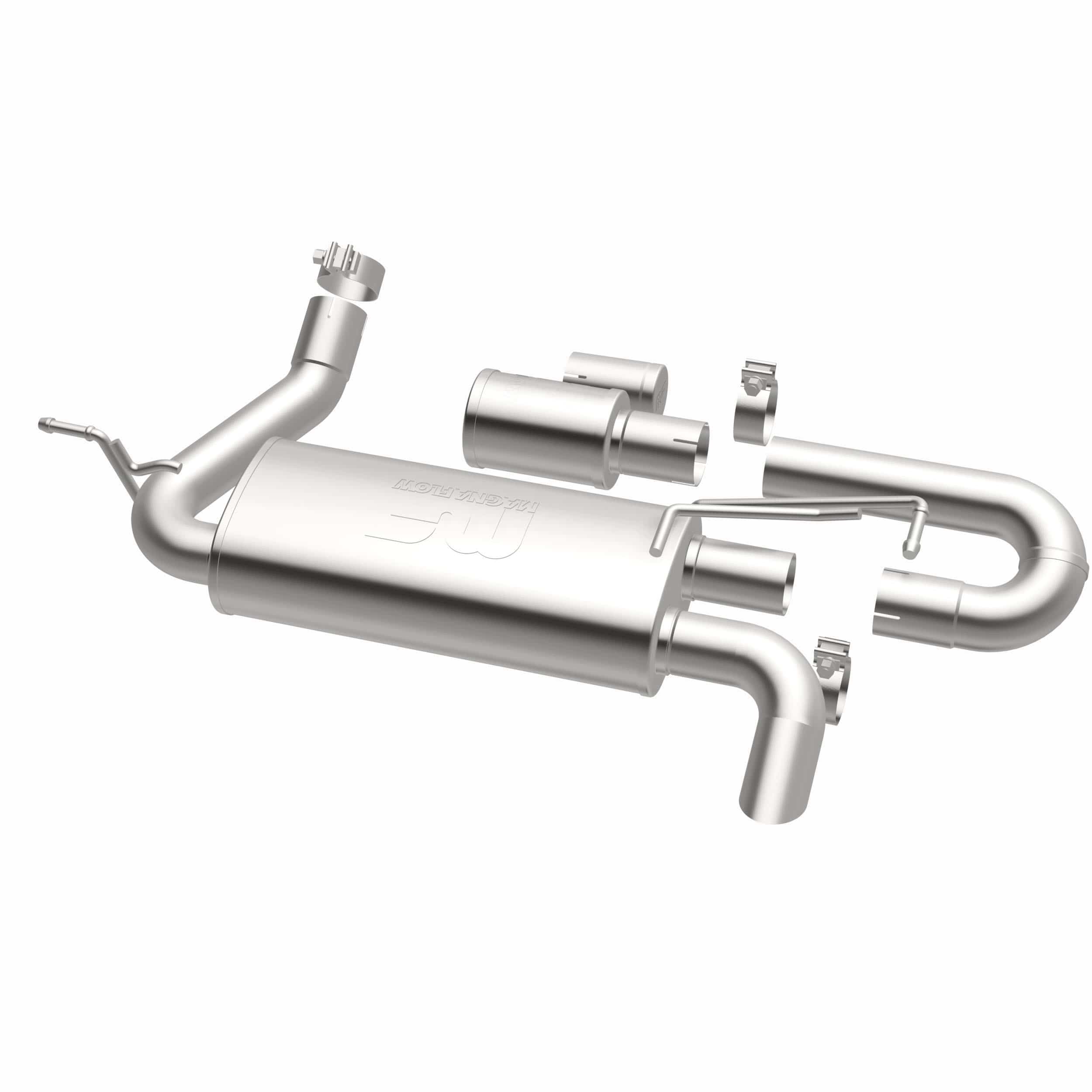

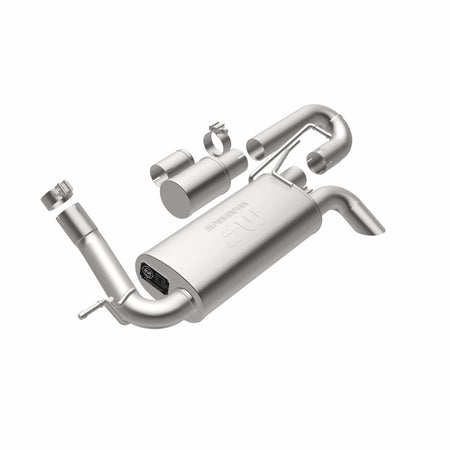

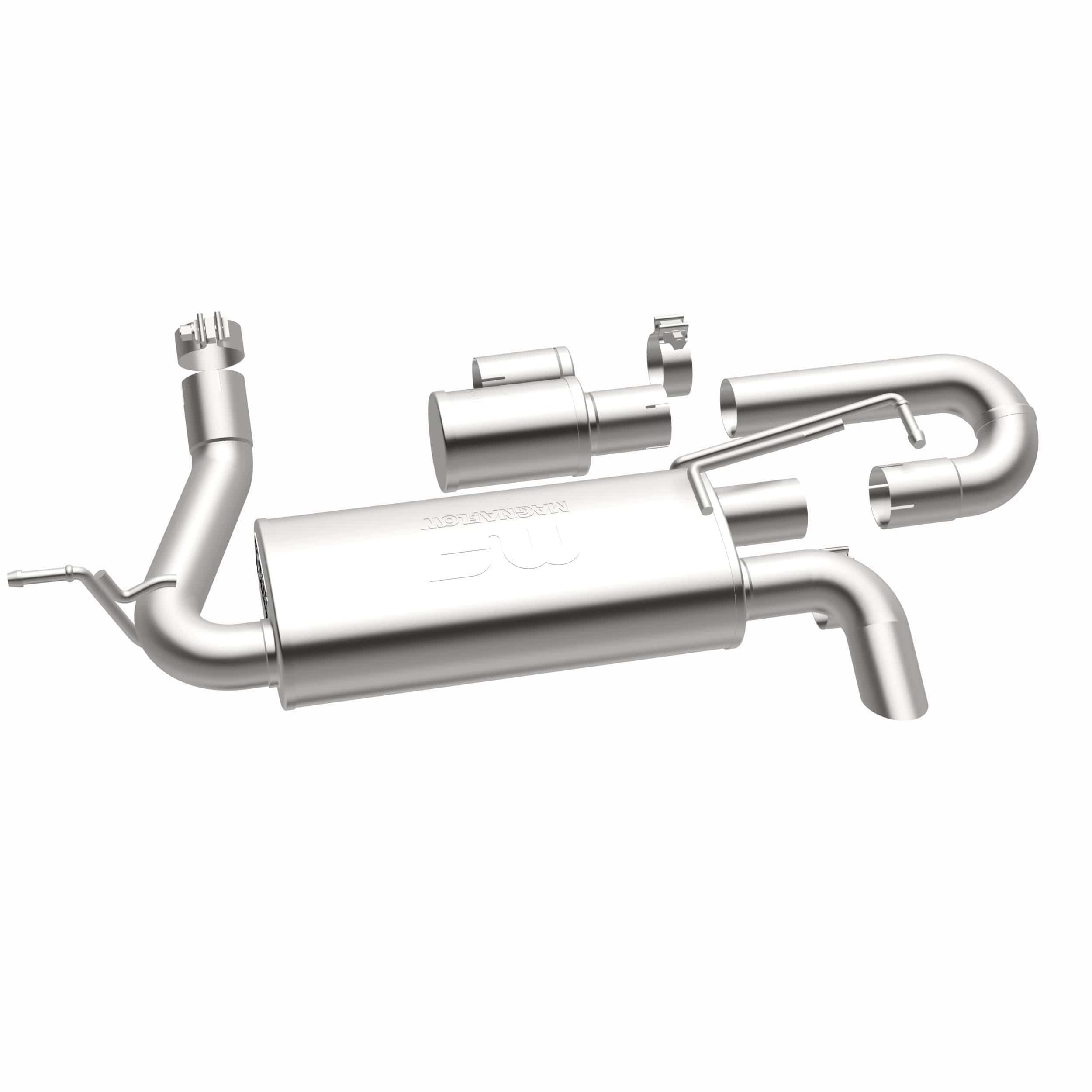

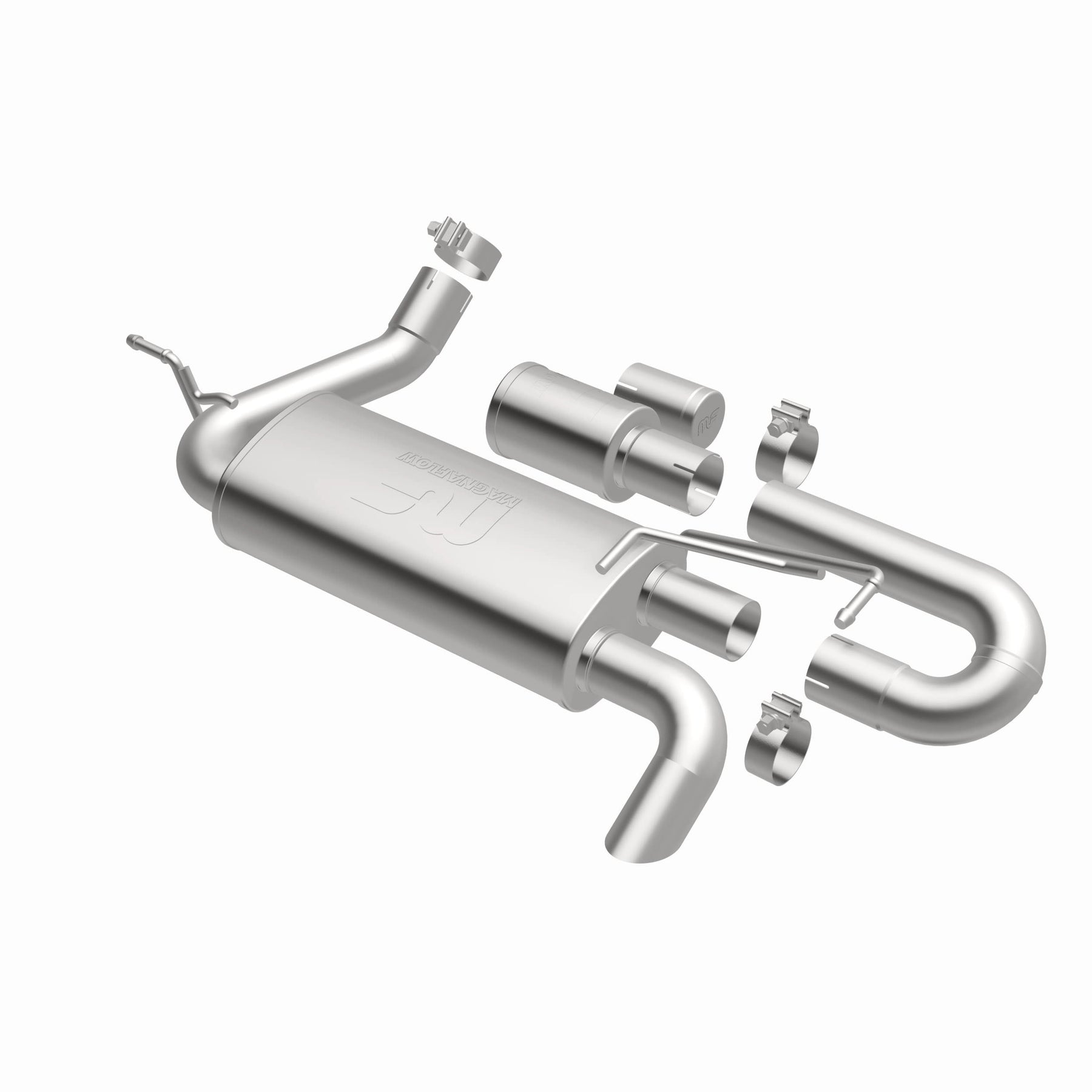

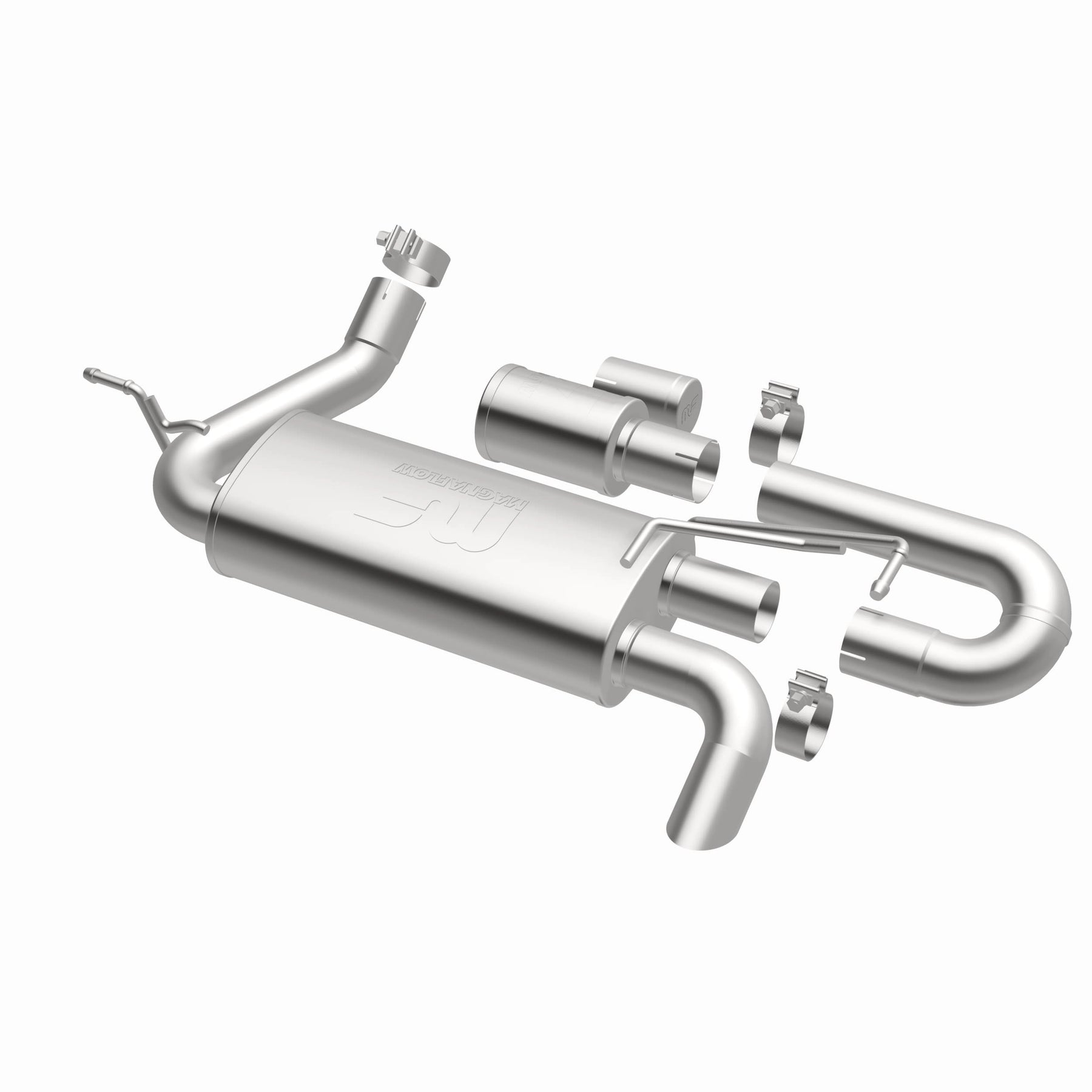

MagnaFlow Exhaust Products 19668 - Overland Series Axle Back System
Couldn't load pickup availability
Magnaflow Overland Series Stainless Axle-Back System
The MagnaFlow® Jeep Wrangler JK Overland Series™ Axle-Back Performance Exhaust System #19668 is engineered for off-road function and built to explore further. This Jeep Wrangler exhaust system is designed for the 2007-2018 Jeep Wrangler equipped with the V6 3.6L or 3.8L engine option. The high clearance exhaust design of this kit is designed to keep clear of any challenging terrain or obstacles you may come across. #19668 2.5” diameter mandrel bent main piping passes through an 18” straight-through oval muffler and No Drone Technology (NDT) tuned chamber before exiting in a high-clearance tucked tailpipe to the rear of the passenger side. MagnaFlow® NDT utilizes passive quarter-wave noise cancellation to minimize the unwanted droning noises that can otherwise occur at highway cruising speeds. The entire Jeep exhaust kit can be tailored to your preferred exhaust tone by changing out which module is attached to the integrated muffler’s accessory port. The included pipe cap, J-pipe and NDT modules can be combined in various ways to mitigate a wide range of droning frequencies, so which exhaust sound profile you choose to go with is up to your driving style. Looking to minimize overall drone? Simply connect the NDT module. Prefer a more traditional rendition of that famous MagnaFlow® exhaust tone? All you need to do is cover the accessory port with the included pipe cap. Exhaust kit #19668 utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from near the rear axle on back. This performance exhaust system is made of durable stainless steel backed by MagnaFlow®’s limited lifetime warranty.
Features & Benefits
- No-Drone-Technology allows for a quiet cabin
- High clearance exit
- Dyno proven performance
Specifications
| Clamps Included | Yes |
| Exhaust Tip Quantity | 0 |
| Exit Style | Single Straight Passenger Side Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 2.5 IN |
| Mounting Bracket Included | No |
| Muffler (Front) Body Height | 4 IN |
| Muffler (Front) Body Length | 14 IN |
| Muffler (Front) Body Width | 4 IN |
| Muffler (Front) Type | Tuned Chamber |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Rear) Body Length | 18 IN |
| Muffler (Rear) Body Width | 8 IN |
| Muffler (Rear) Type | Straight-Through |
| Muffler Body Height Position Front | 4 IN |
| Muffler Body Height Position Rear | 5 IN |
| Muffler Body Length Position Front | 14 IN |
| Muffler Body Length Position Rear | 18 IN |
| Muffler Body Width Position Front | 4 IN |
| Muffler Body Width Position Rear | 8 IN |
| Muffler Finish | Brushed |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler Type Position Front | Tuned Chamber |
| Muffler Type Position Rear | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | Overland |
| Valve Included | No |
| Catalytic Converter Included | No |
| Type | Axle Back |
| Clamping Type | Round Band |
| Title | MagnaFlow® Overland Series™ Axle Back Performance Exhaust System 19668 |
Installation Guide: Download PDF
