MagnaFlow Exhaust Products 19676 - Overland Series Black Chrome Cat-Back System
Couldn't load pickup availability
Magnaflow Overland Series Black Chrome Cat-Back System

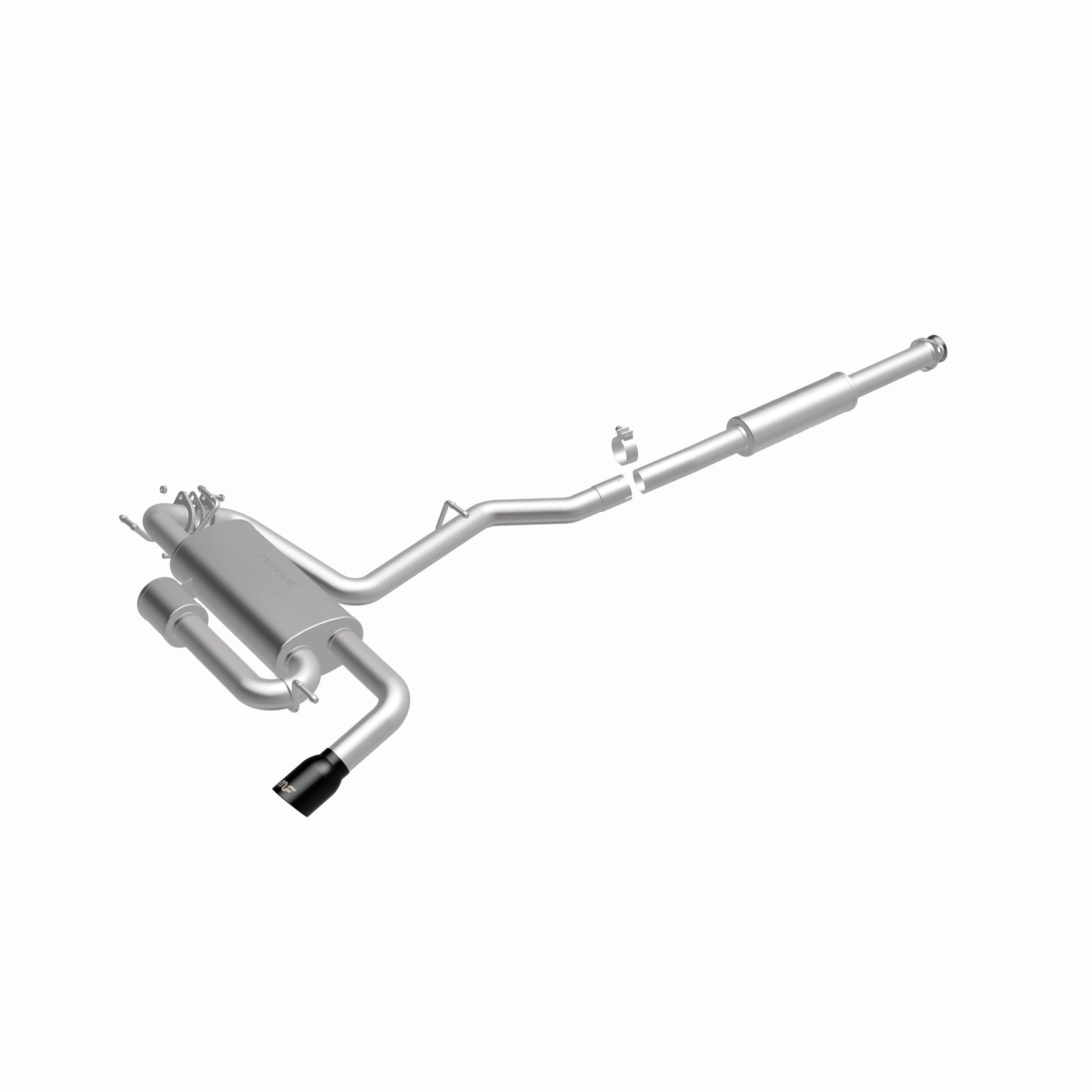

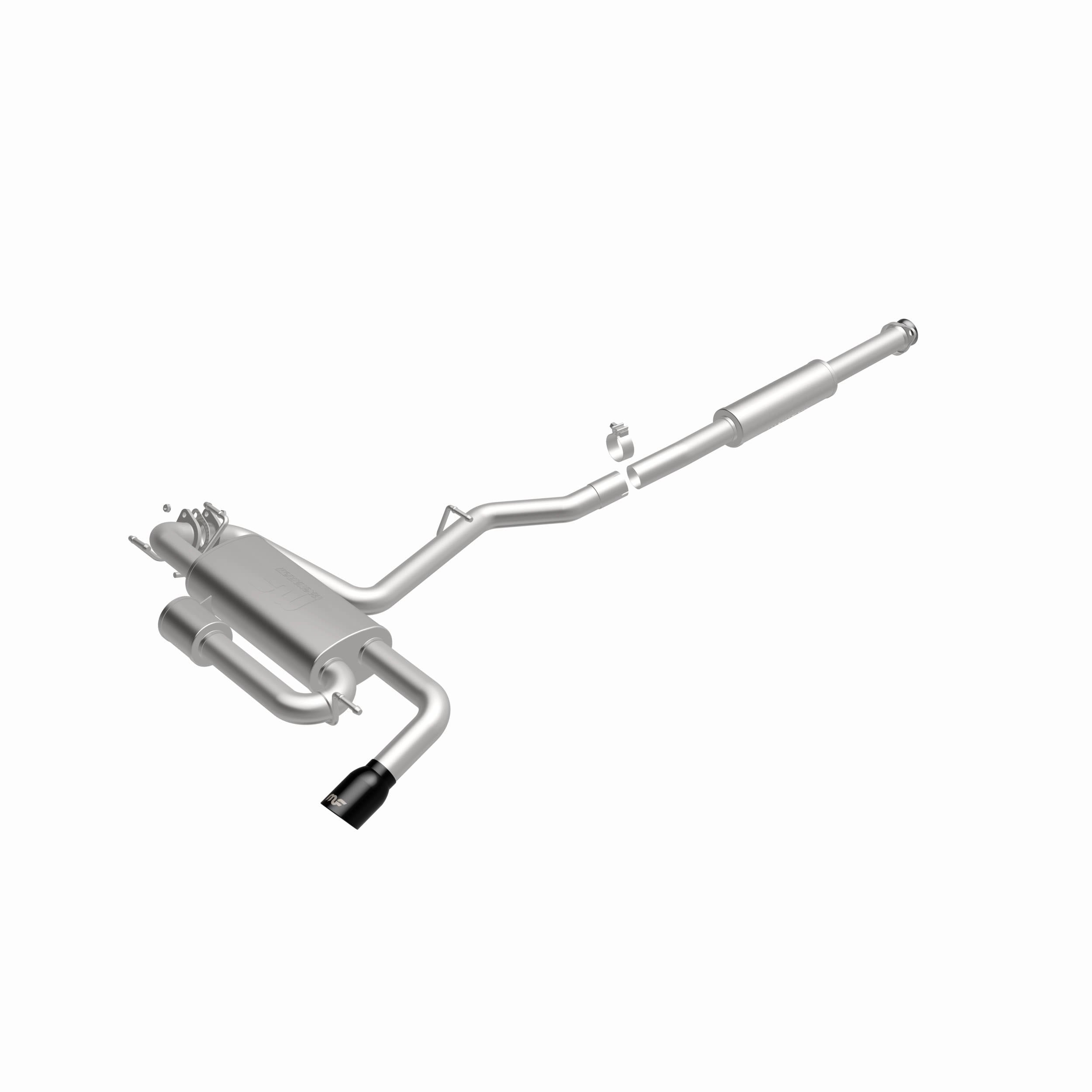

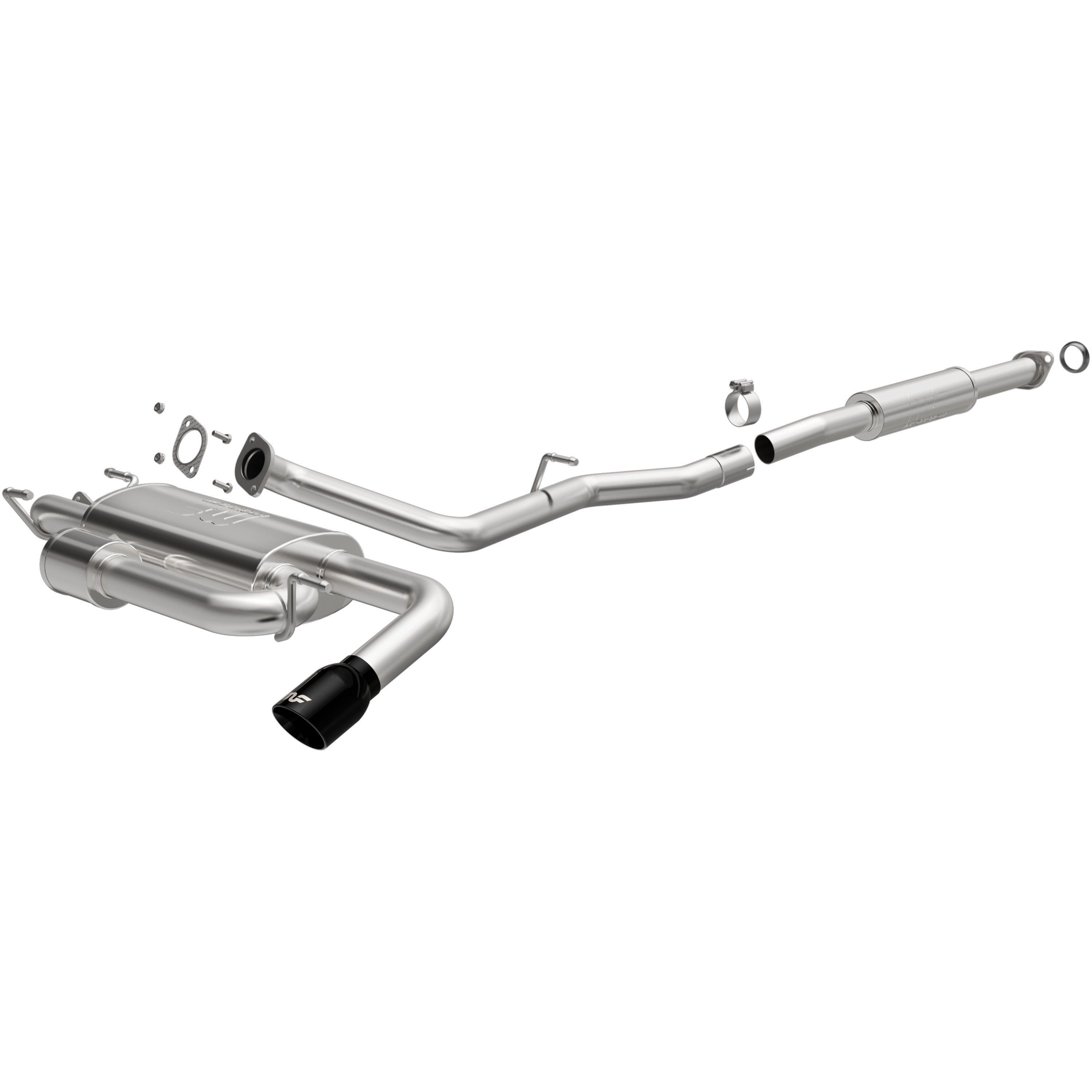

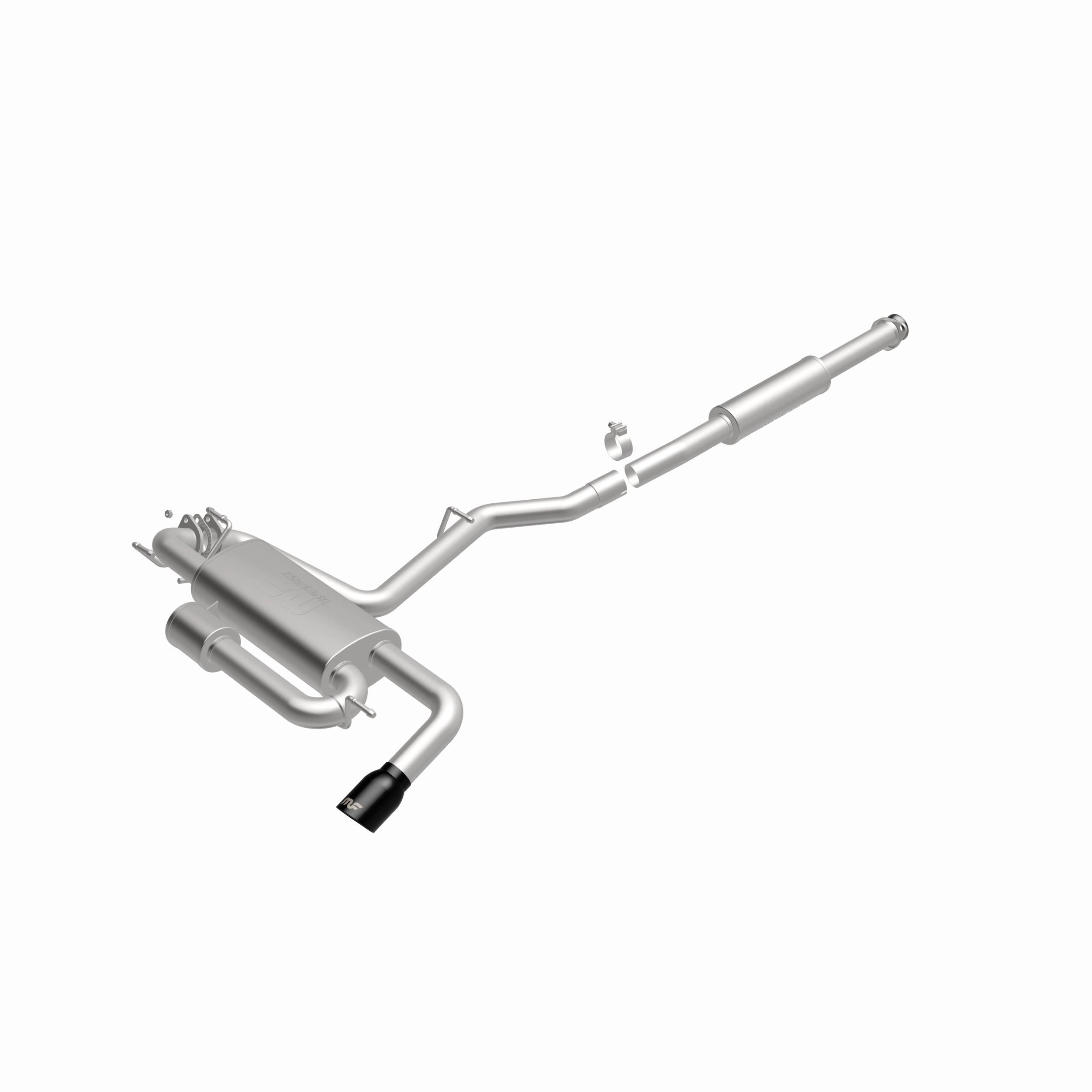

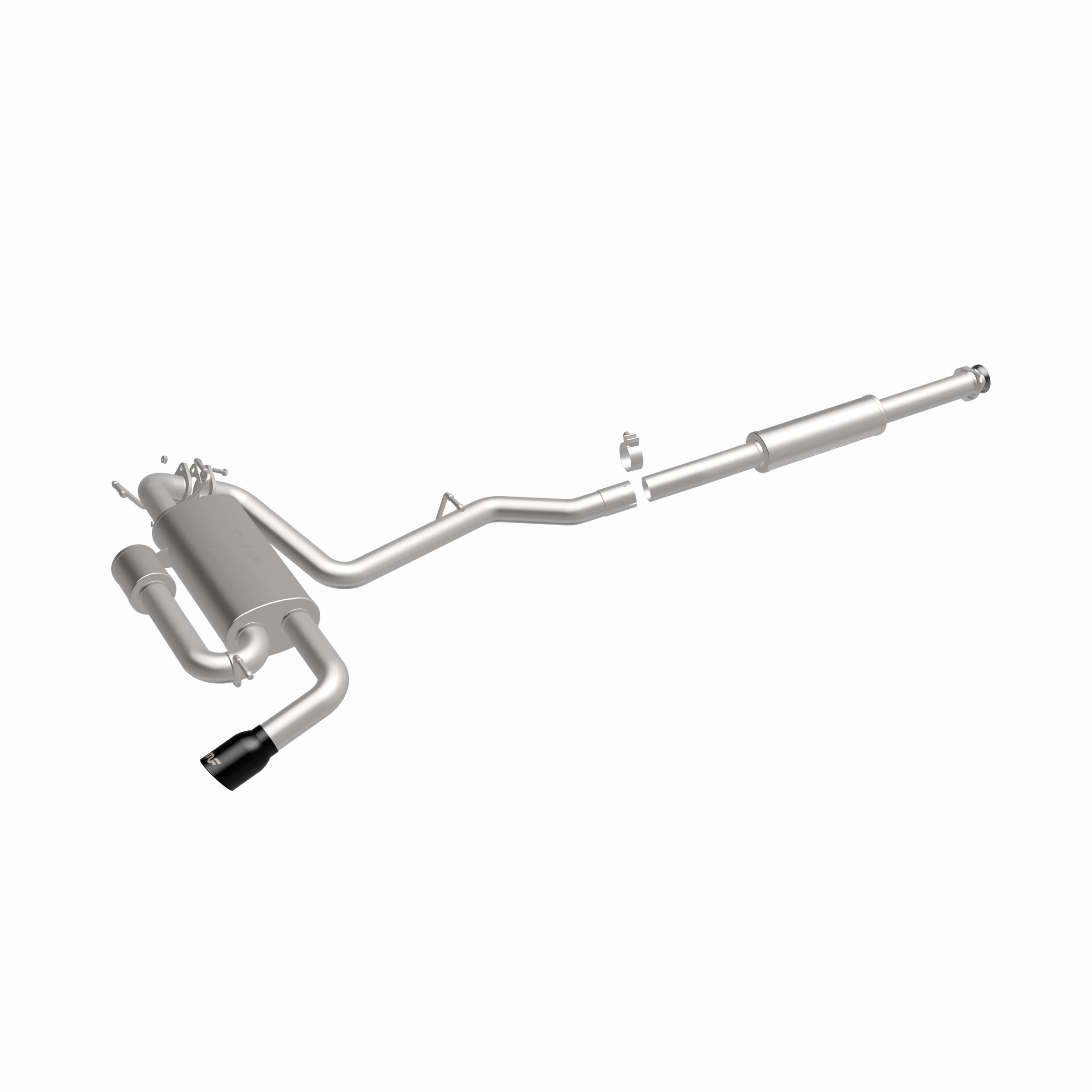

The MagnaFlow® Subaru Crosstrek Overland Series™ Cat-Back Performance Exhaust System #19676 empowers your 2018-2023 Subaru Crosstrek overland rig, equipped with the 2.0L/2.5L H4 engine, with MagnaFlow®’s deep signature exhaust note and dyno-proven performance. #19676 features 2.5” diameter mandrel bent main piping that passes through an 18” offset-offset oval muffler with uniquely-integrated No Drone Technology (NDT) tuned chamber before exiting in a high-clearance single passenger side rear exit with a 3.5” black chrome tip. MagnaFlow® NDT utilizes Helmholtz resonance noise cancellation to minimize unwanted droning noises at cruising speeds when you’re en route to your destination, creating mild interior and moderate exterior sound levels The high clearance black chrome tip, etched with the MagnaFlow® logo, is designed to keep your car clear of any challenging terrain or obstacles you may come across, so you can look and sound good when you’re out exploring. Exhaust kit #19676 utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from the catalytic converter on back. This Subaru Crosstrek cat-back performance exhaust system is made of durable, corrosion resistant stainless steel and produced using advanced CNC precision robotic manufacturing techniques, all backed by MagnaFlow®’s limited lifetime warranty.
Features & Benefits
- High clearance exit
- Dyno proven performance
- No-Drone-Technology allows for a quiet cabin
Specifications
| Clamps Included | Yes |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Diameter | 3.5 IN |
| Exhaust Tip Edge | Folded Edge |
| Exhaust Tip Finish | Black Chrome |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 5.5 IN |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 1 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Single Passenger Side Rear |
| Gasket Or Seal Included | Yes |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 2.5 IN |
| Mounting Bracket Included | No |
| Muffler (Center) Body Height | 5 IN |
| Muffler (Center) Body Length | 18 IN |
| Muffler (Center) Body Width | 8 IN |
| Muffler (Center) Type | Straight-Through |
| Muffler (Front) Body Diameter | 4 IN |
| Muffler (Front) Body Height | 4 IN |
| Muffler (Front) Body Length | 14 IN |
| Muffler (Front) Body Width | 4 IN |
| Muffler (Front) Type | Straight-Through |
| Muffler (Rear) Body Diameter | 4 IN |
| Muffler (Rear) Body Height | 4 IN |
| Muffler (Rear) Body Length | 5 IN |
| Muffler (Rear) Body Width | 4 IN |
| Muffler (Rear) Type | Tuned Chamber |
| Muffler Body Material | Stainless Steel |
| Muffler Finish | Brushed |
| Muffler Quantity | 3 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Pipe Material | Stainless Steel |
| Series | Overland |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Clamping Type | Round Band |
| Title | MagnaFlow® 2018-2023 Subaru Crosstrek 2.0L | 2021-2023 Subaru Crosstrek 2.5L Overland Series™ Cat-Back Performance Exhaust System 19676 |
Installation Guide: Download PDF
