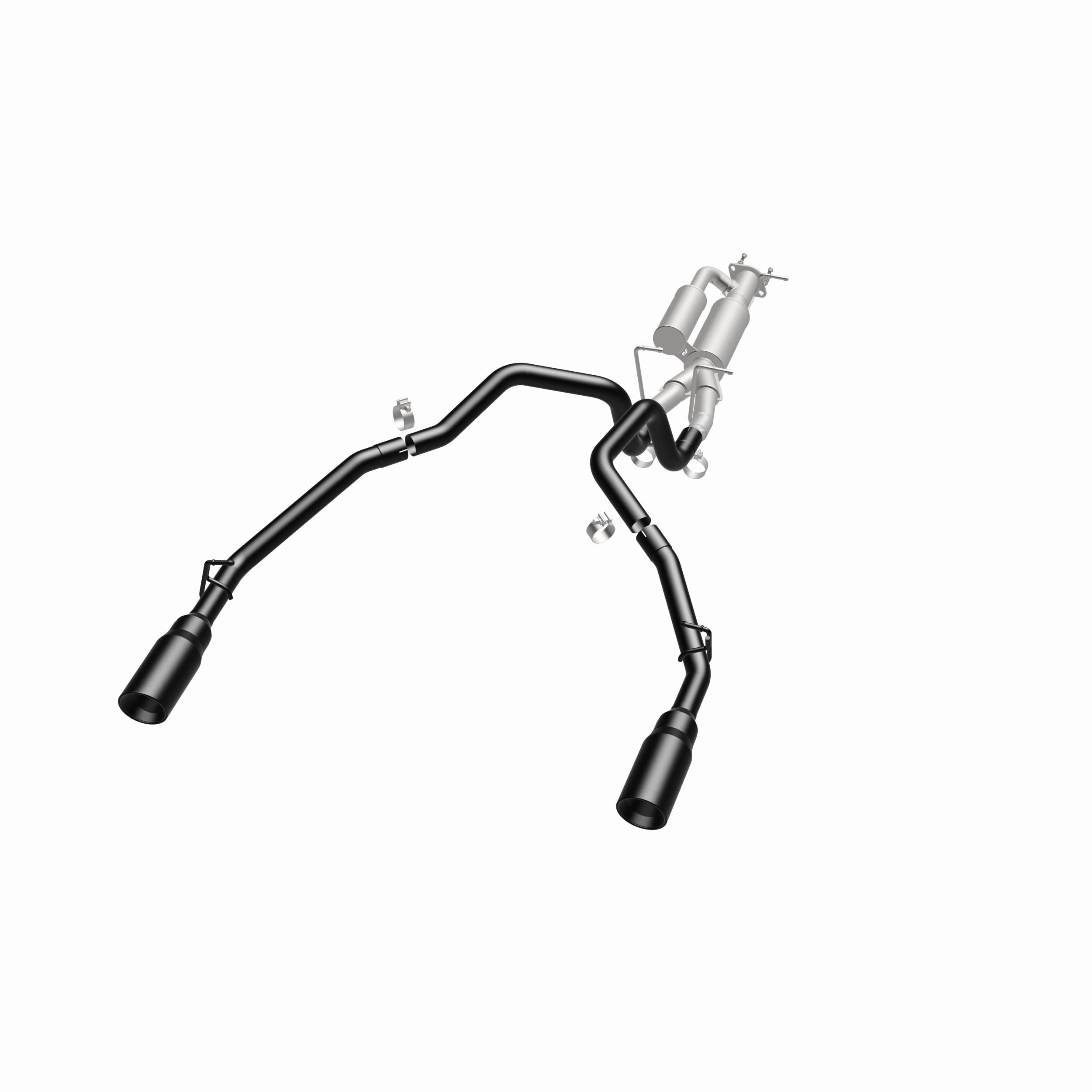

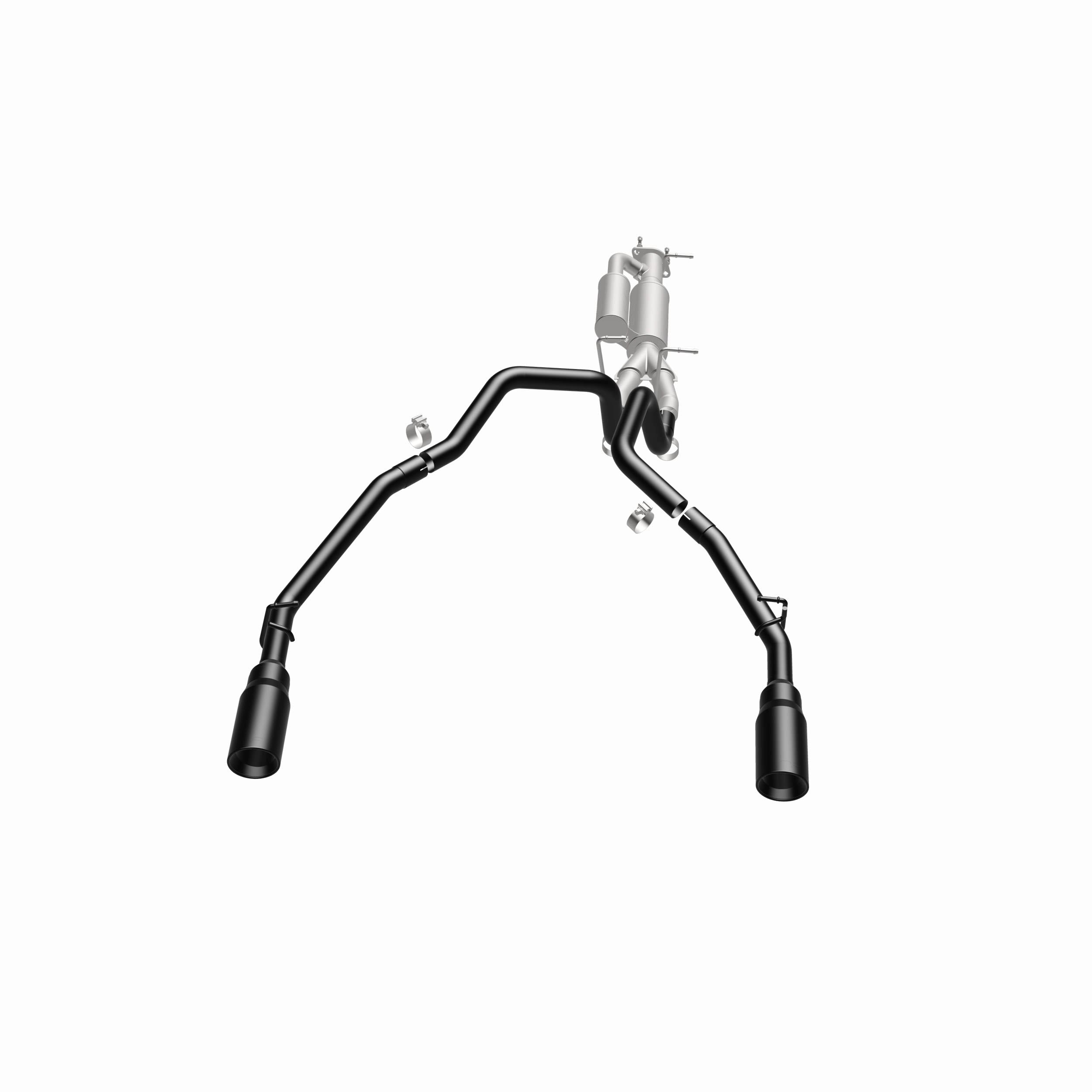

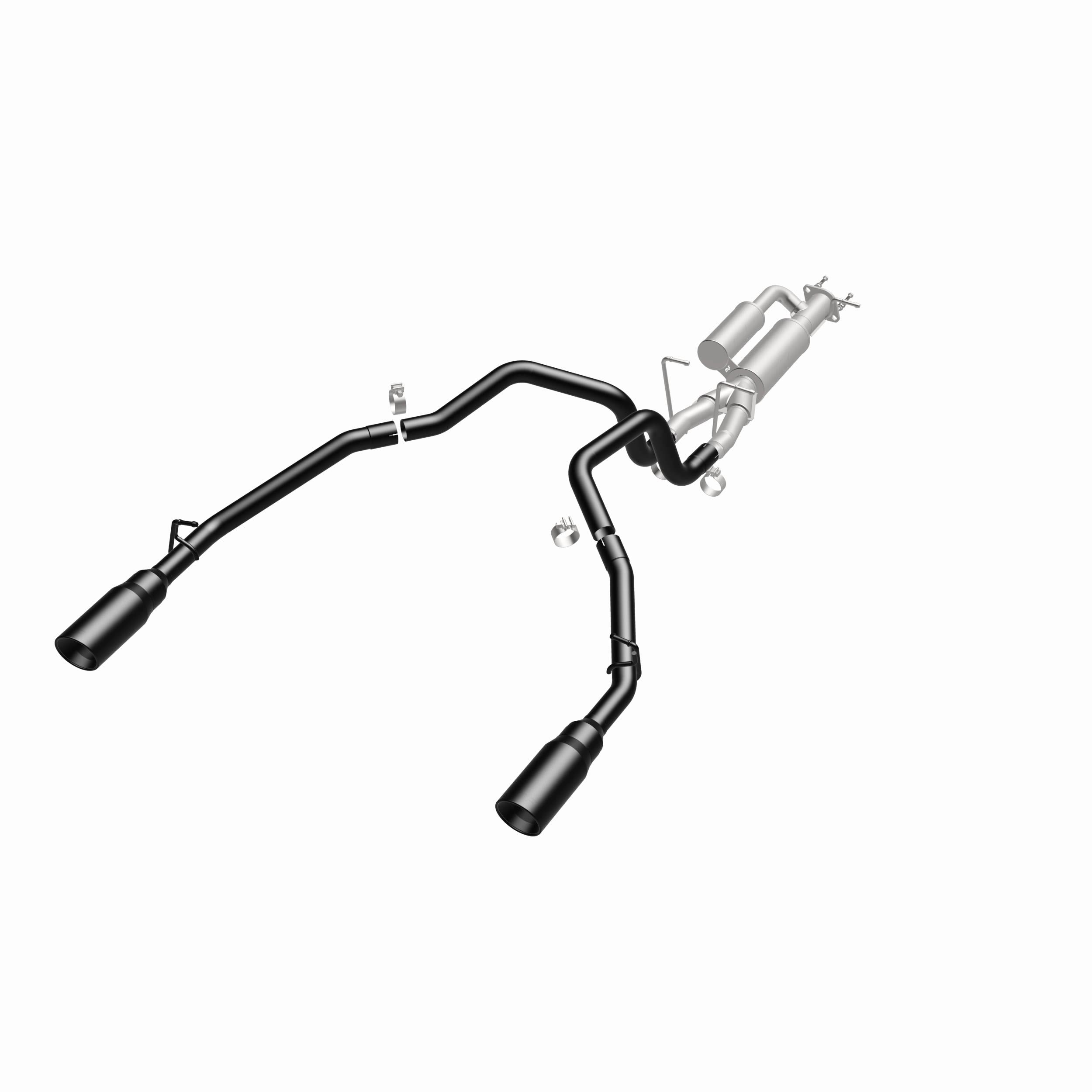

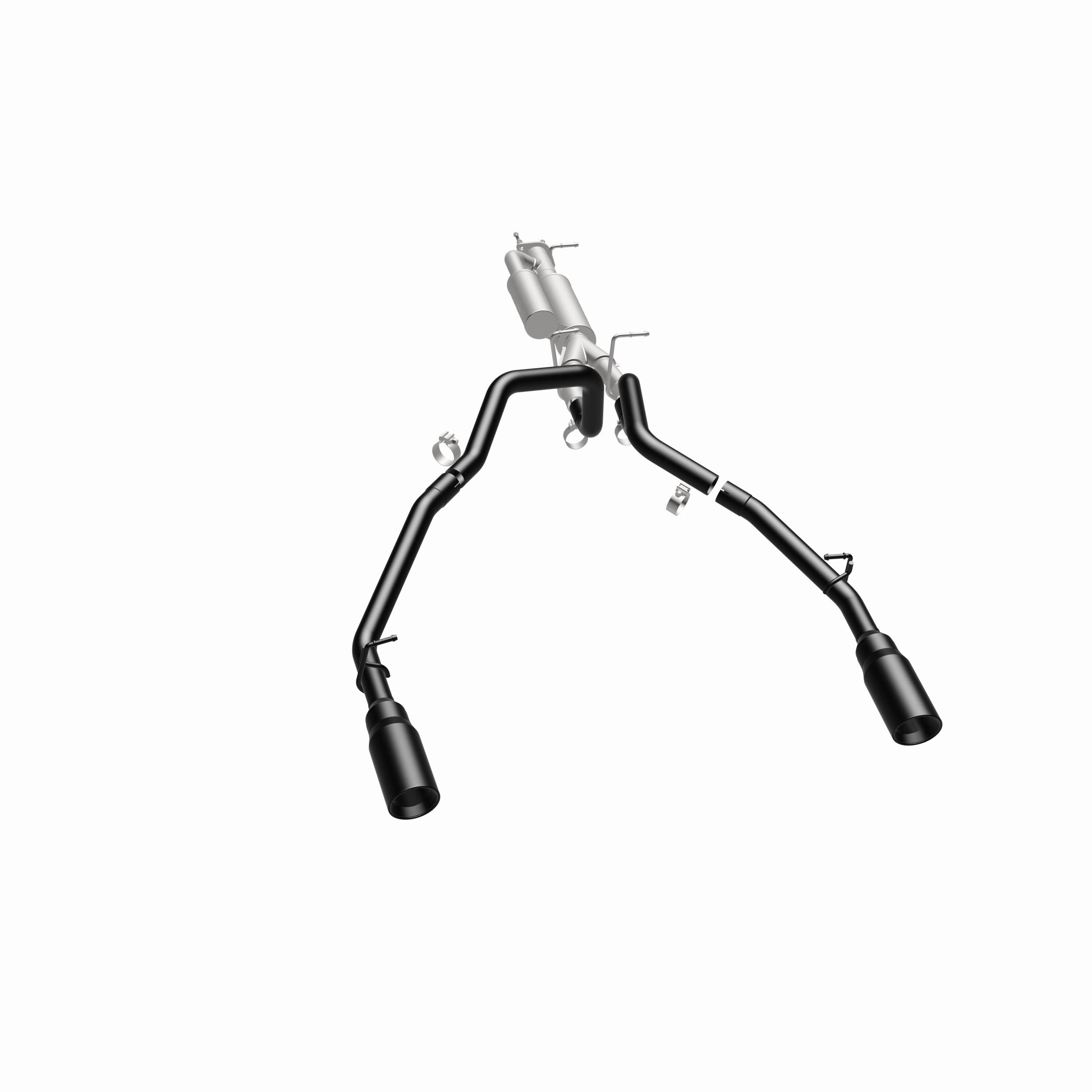

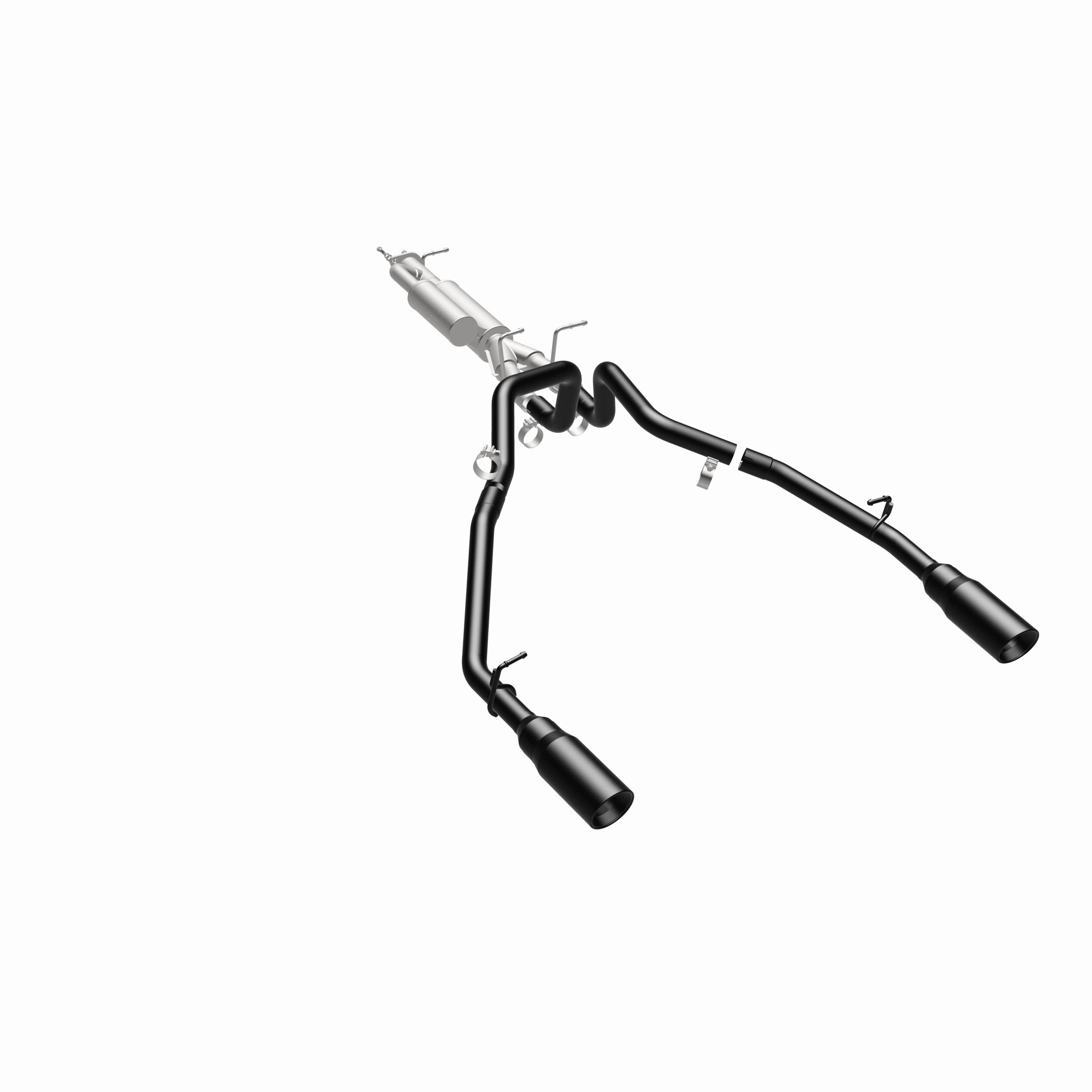

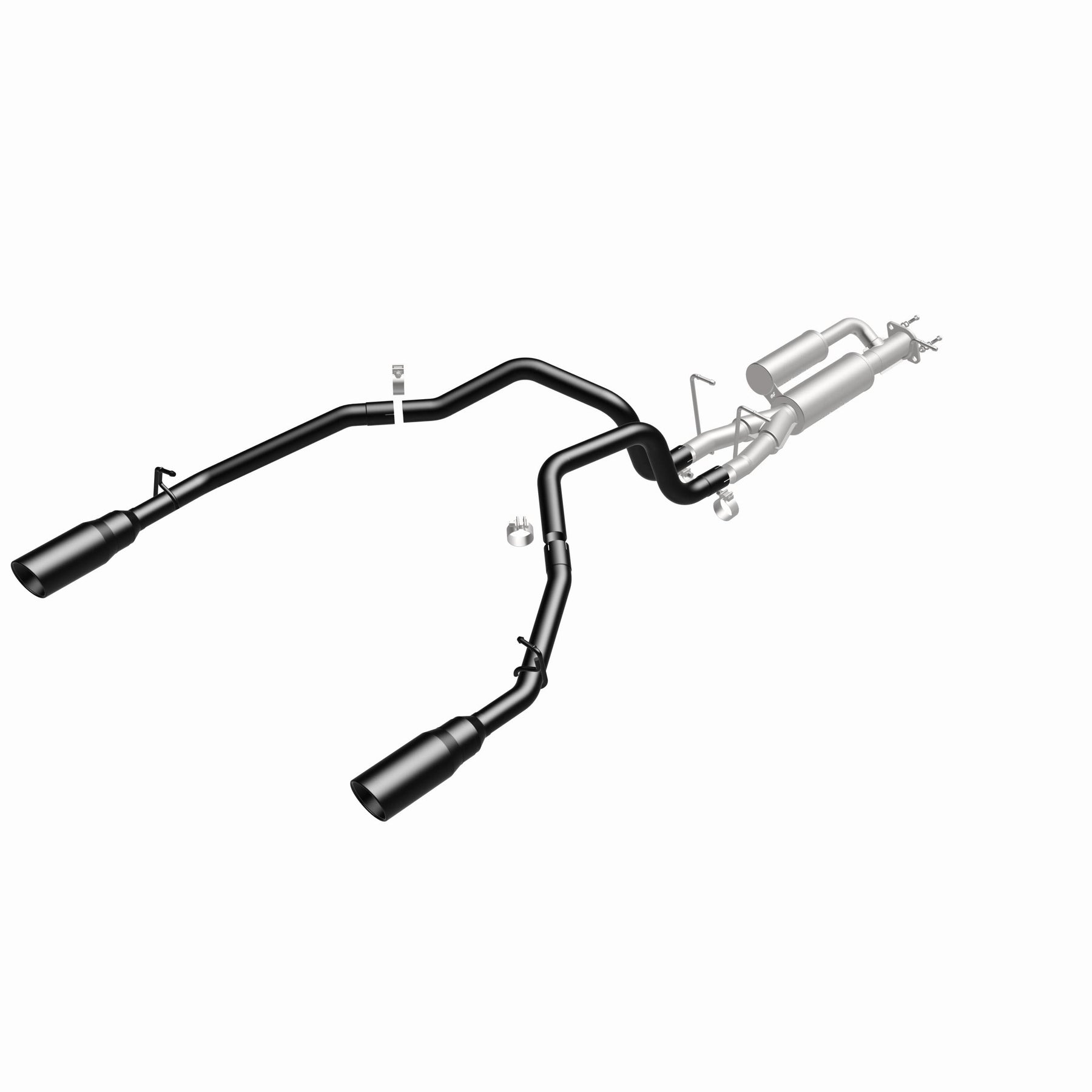

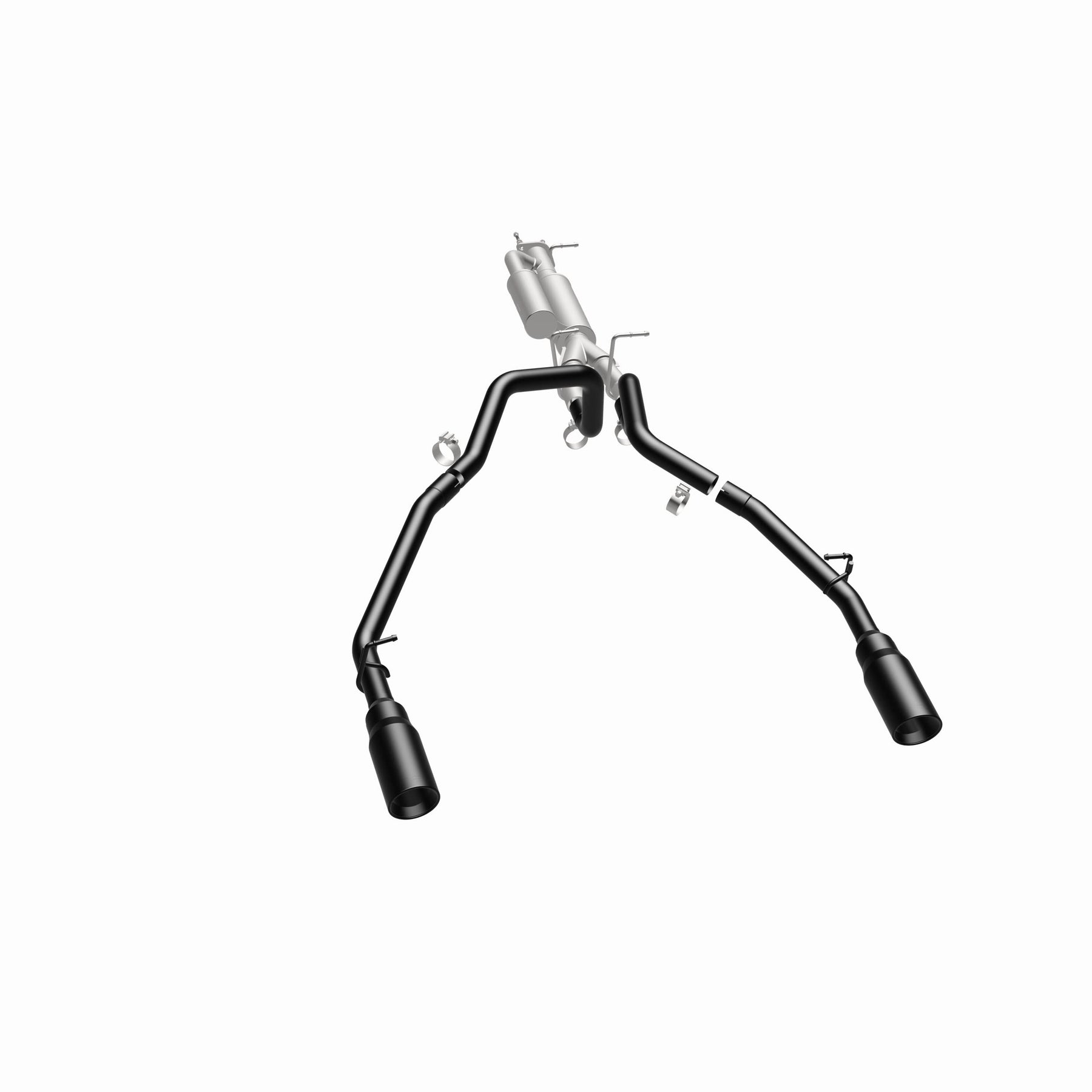

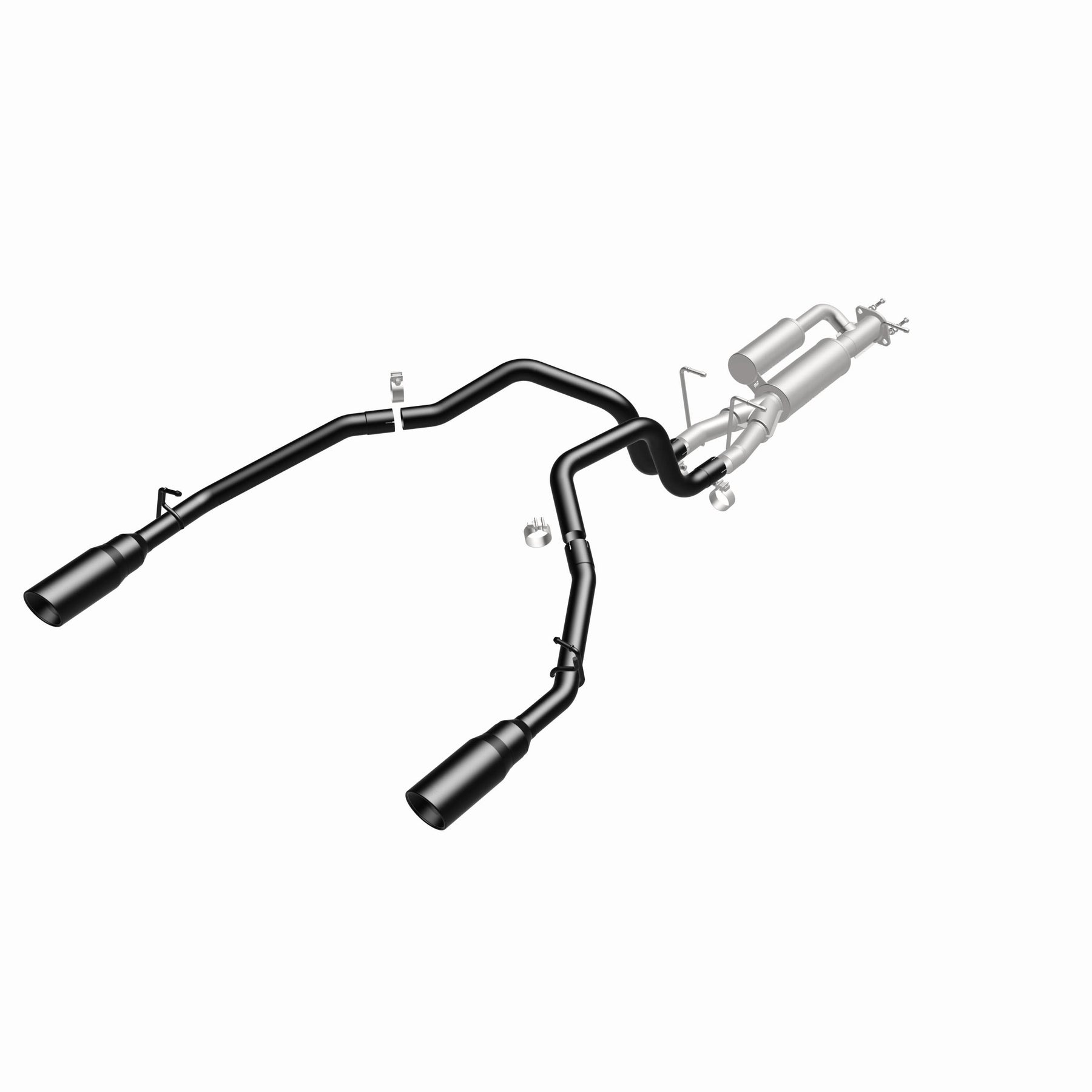

Magnaflow SPEQ Series Black Coated Cat-Back System
The MagnaFlow 2025 RAM 1500 I6-3.0L SPEQ Series Cat-Back Performance Exhaust System 19685 brings out the personality of your Truck with our signature resonant, powerful exhaust tone and dyno-proven performance. #19685 2.5” diameter mandrel bent main piping passes through a No Drone Technology (NDT) chamber and an all-new specifically tuned performance round muffler before exiting in a dual split rear exit with 5” black coated tips. This full-size truck exhaust kit is the perfect equalizer between sound and performance. Upgrade your truck to the next level with an exhaust that has the pipes to put other trucks to shame. With this system your truck will be producing moderate exterior and mild interior sound levels while leaving other trucks feeling envious at every stoplight. Exhaust kit 19685 features a cat-back exhaust layout that replaces your trucks stock exhaust components from near the catalytic converter on back. Extensive 3D scanning during development has resulted in a direct-fit design that you can easily install yourself. 19685 is produced using CNC precision robotic manufacturing techniques and is backed by MagnaFlow's 1-year limited finish warranty and limited lifetime construction warranty.
Features & Benefits
- Increased Horsepower and Torque
- 100% Stainless Steel
- No-Drone-Technology allows for a quiet cabin
Specifications
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Split Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 2.5 IN |
| Mounting Bracket Included | No |
| Muffler (Left) Body Height | 4 IN |
| Muffler (Left) Body Length | 11 IN |
| Muffler (Left) Body Width | 4 IN |
| Muffler (Left) Type | Tuned Chamber |
| Muffler (Right) Body Height | 5 IN |
| Muffler (Right) Body Length | 14 IN |
| Muffler (Right) Body Width | 5 IN |
| Muffler (Right) Type | Straight-Through |
| Muffler Body Material | Stainless Steel |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Pipe Material | Stainless Steel |
| Series | SPEQ |
| Type | Cat-Back |
| Valve Included | No |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Diameter | 5 IN |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Finish | Black Coated |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 15.75 IN |
| Catalytic Converter Included | No |
| Title | MagnaFlow 2025 Ram 1500 3.0L SPEQ Series Cat-Back Performance Exhaust System 19685 |
| Clamping Type | Round Band |
Installation Guide: Download PDF
Specifications
MagnaFlow 19685 — Exhaust System Kit, fits 2025-2026 Ram 1500. Key specs: 2.5 in. main piping diameter, speq series.
Warranty: Limited Lifetime Warranty from MagnaFlow
Also known as: UPC 888563201191
