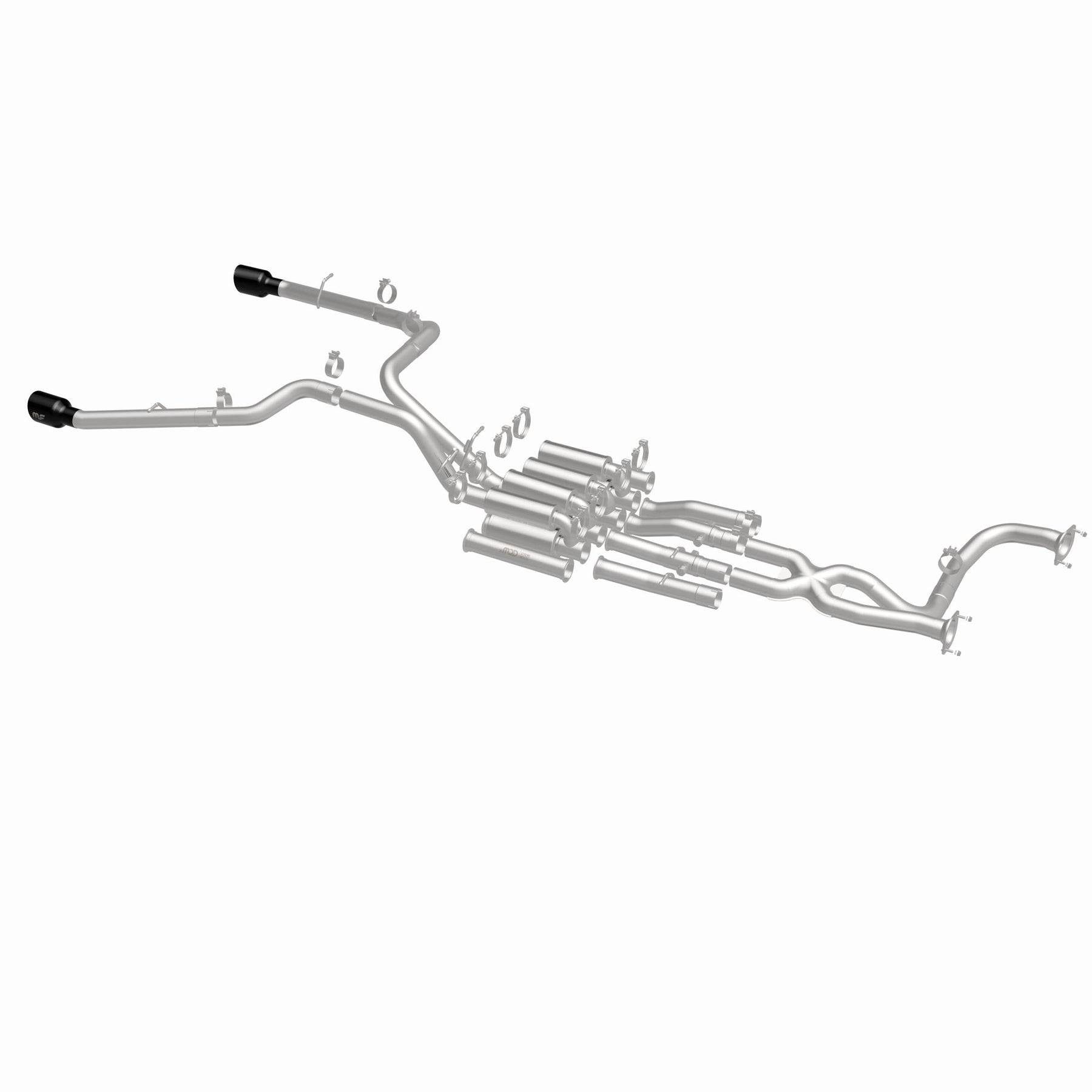

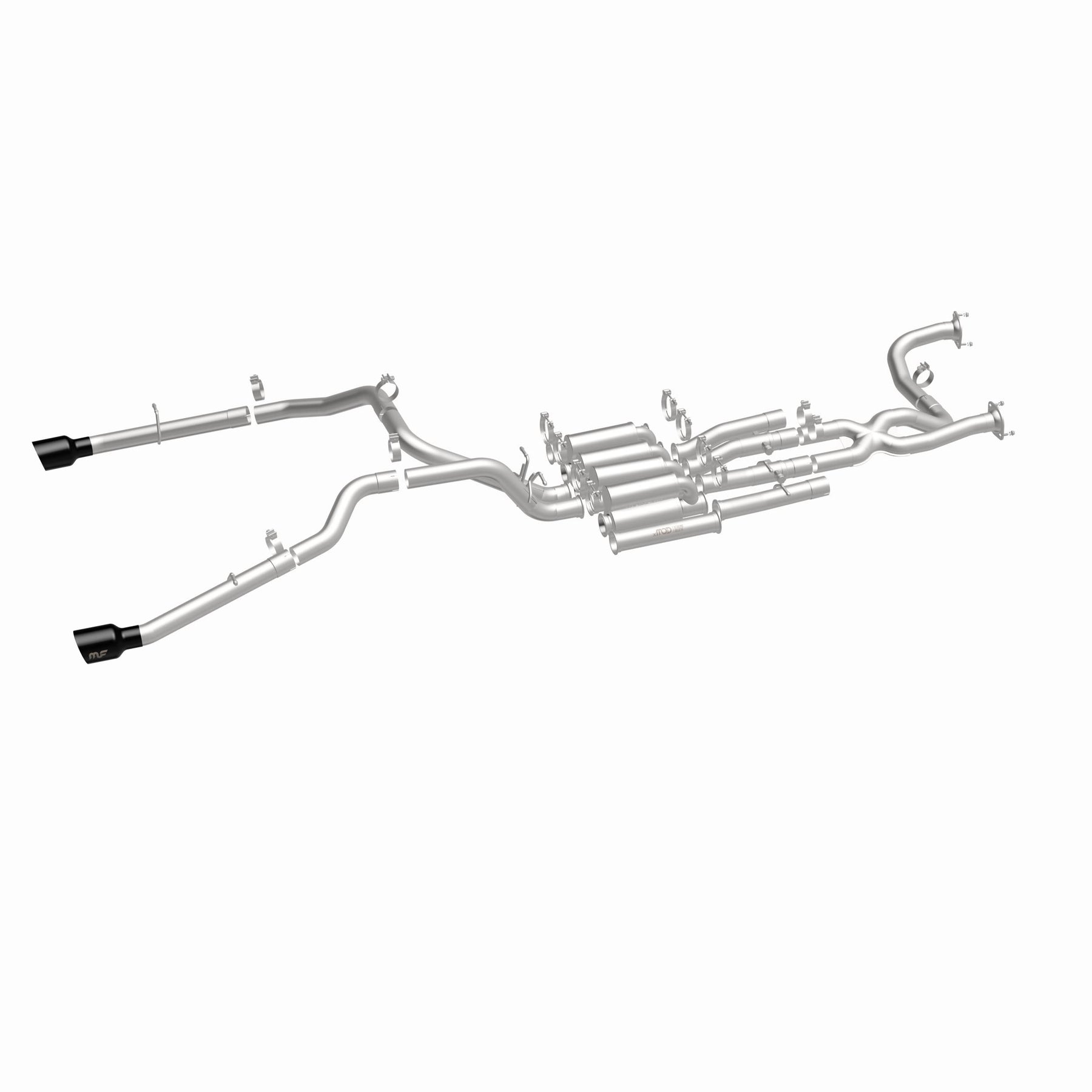

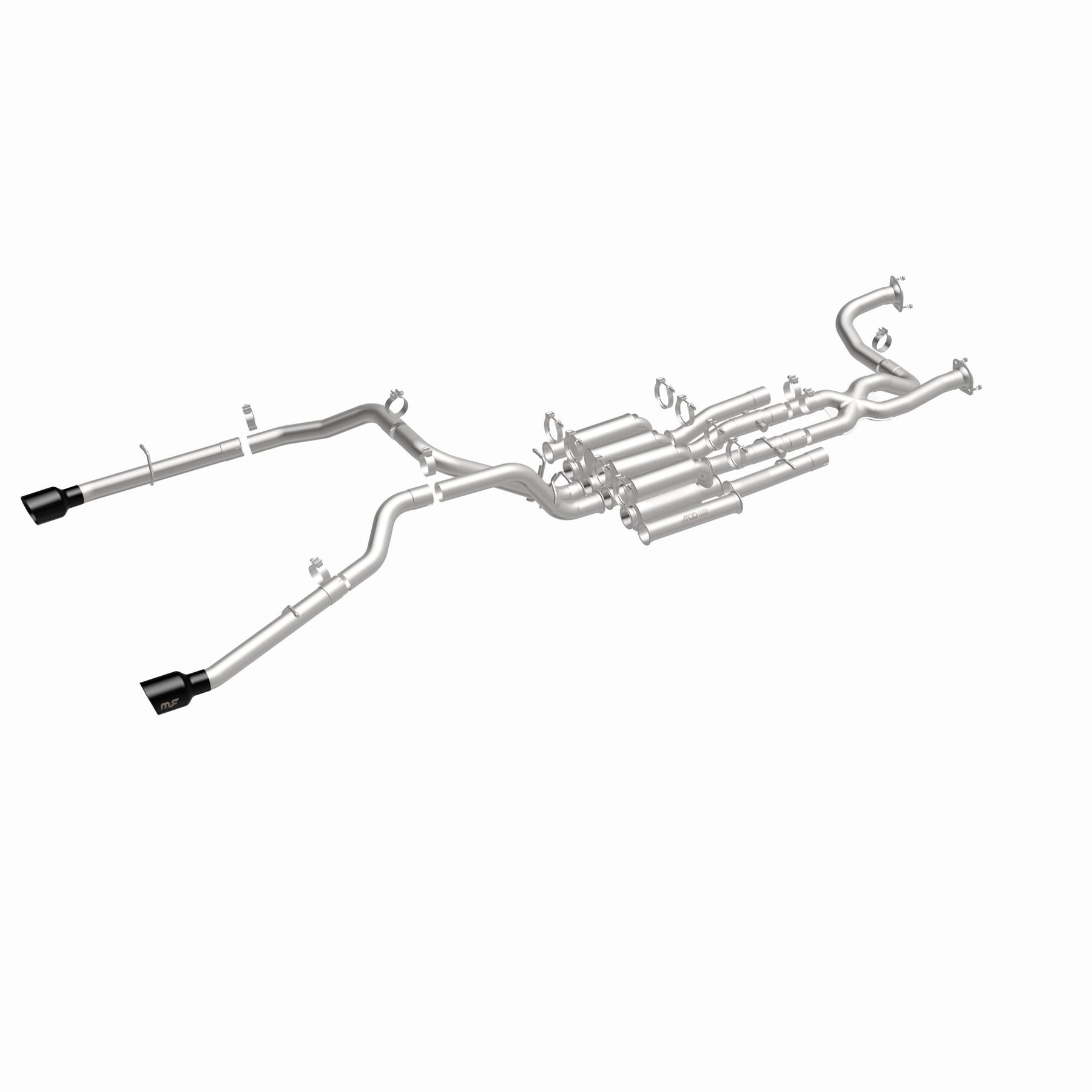

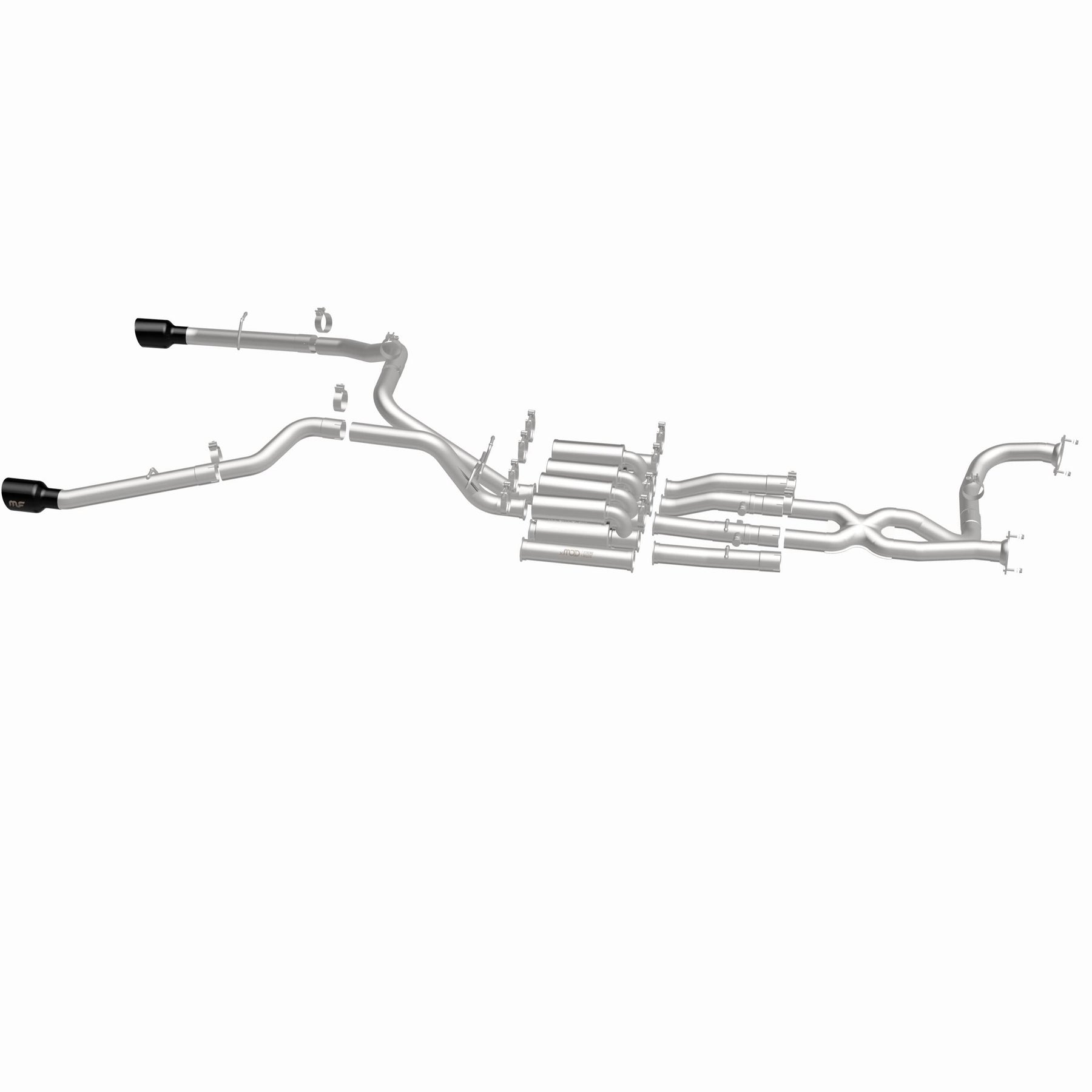

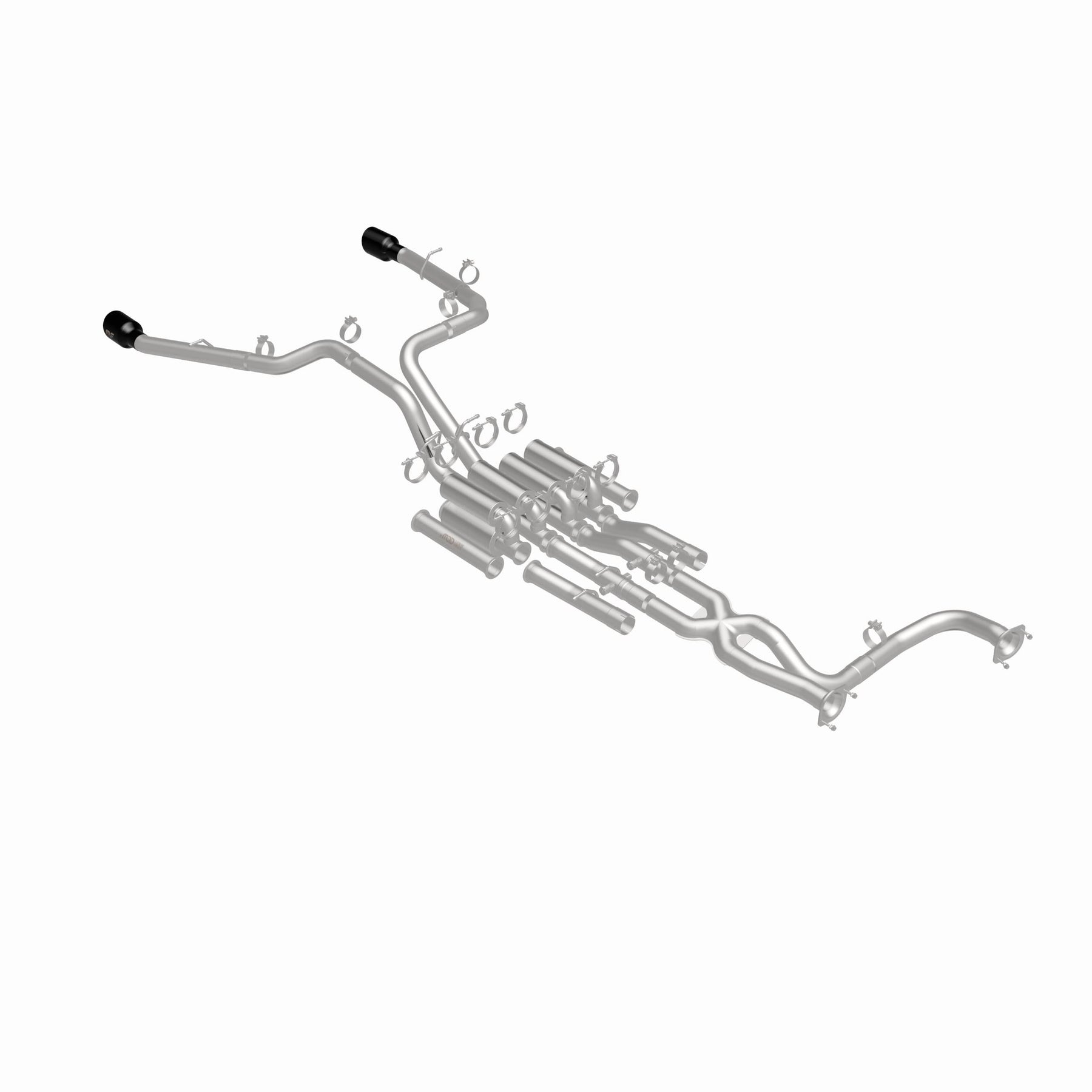

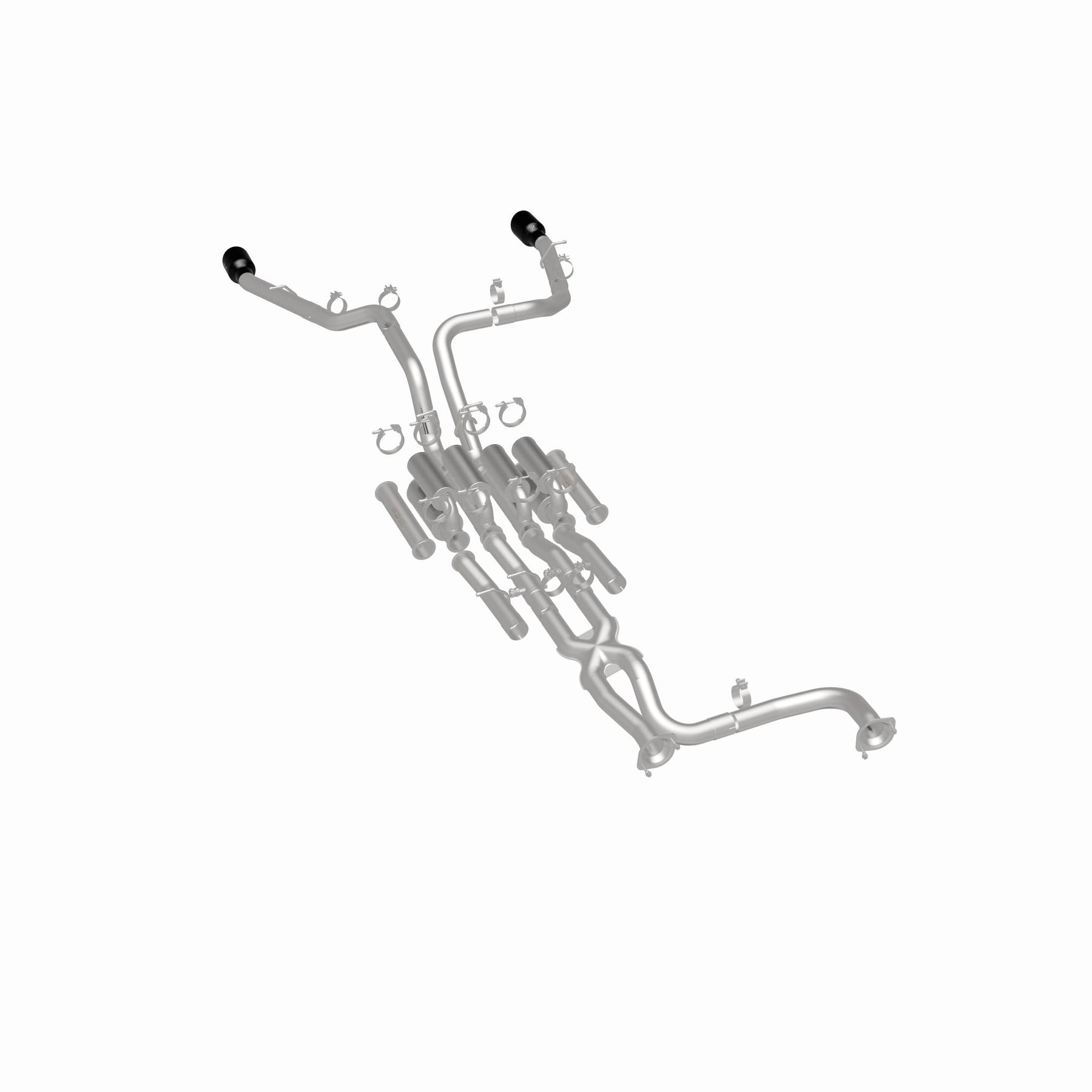

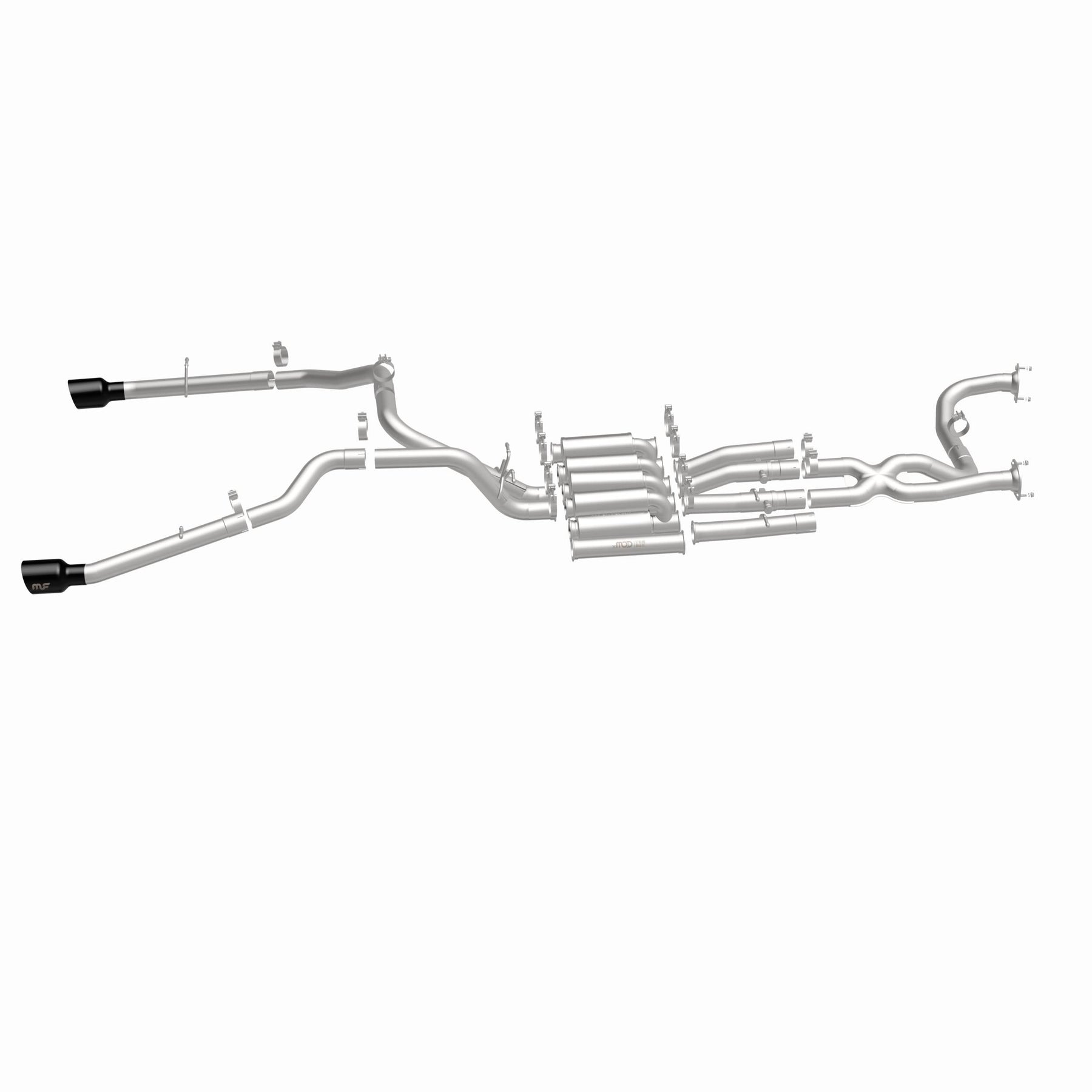

MagnaFlow Exhaust Products 19691 Exhaust System Kit
Magnaflow xMOD Series Black Chrome Tips Cat-Back System
The MagnaFlow Ram RHO xMOD Cat-Back Performance Exhaust System #19691 provides your already powerful Ram 1500 RHO with the versatile, configurable exhaust sound that the xMOD Series is known for. Each #19691 exhaust kit utilizes MagnaFlow’s No Drone Technology (NDT) to keep unwanted noises under control at lower RPMs while delivering MagnaFlow’s deep, signature exhaust tone in any configuration. The best example of NDT can be found in the exhaust kit’s swappable SPEQ module, which utilizes ¼-wave passive noise cancellation to allow for relaxed highway driving while enabling the pipes to really open up and roar under acceleration. Two more interchangeable xMOD modules are included in this exhaust kit, namely the xTreme Deletes (RACE) and Muffler Module (STREET). The former enables a straight pipe, unmuffled and shouty exhaust sound, while the latter provides a deep and powerful, yet more tame tone thanks to MagnaFlow’s tried-and-true straight-through muffler design. Each of these modules has been engineered to deliver dyno-proven performance and can be easily swapped in and out at your whim thanks to the use of racing-bred v-band clamps. Also included are two mid-pipe configurations, a standard OE valve replacement and a valve delete version. This Ram 1500 RHO exhaust system features mandrel bent 3” tubing that flows to a dual exit configuration featuring black chrome 5” tips. The entire kit is produced using CNC precision robotic manufacturing and features durable, 100% stainless steel construction backed by MagnaFlow’s limited lifetime warranty. Check to ensure compliance with local noise regulations.
Features
- Configurable sound from mild to wild
- No-Drone-Technology allows for a quiet cabin
- xTreme Delete Modules for a straight-pipe setup
Specifications
| Catalytic Converter Included | No |
| Main Piping Diameter | 3 IN |
| Exhaust Tip Diameter | 5 IN |
| Exhaust Tip Length | 9 IN |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Finish | Black Chrome |
| Inlet Type | Bolt-On |
| Type | Cat-Back |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Split Rear |
| Exhaust Tip Edge | Folded |
| Gasket Or Seal Included | No |
| Valve Included | No |
| Mounting Bracket Included | No |
| Exhaust Tip Resonated | No |
| Exhaust Tip Intercooled | No |
| Prop 65 Y/N | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Material | Stainless Steel |
| Pipe Material | Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Exhaust Tip Connection | Welded-On |
| Series | xMod |
| Clamps Included | Yes |
| Hangers Included | Yes |
| Clamping Type | Round Band |
| Clamping Type | V Band |
| Muffler (Bottom) Body Height | 5 IN |
| Muffler (Bottom) Body Length | 11 IN |
| Muffler (Bottom) Body Width | 5 IN |
| Muffler (Top) Body Height | 4 IN |
| Muffler (Top) Body Length | 11 IN |
| Muffler (Top) Body Width | 4 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Finish | Brushed |
| Muffler Quantity | 4 |
Note: Need further assistance? Call 1-800-990-0905.
Short Description: Cat-Back
Invoice Description: Exhaust System
Definition: Exhaust System Kit
Installation Guide: Download PDF
