MagnaFlow Overland Series Black Chrome Cat-Back System

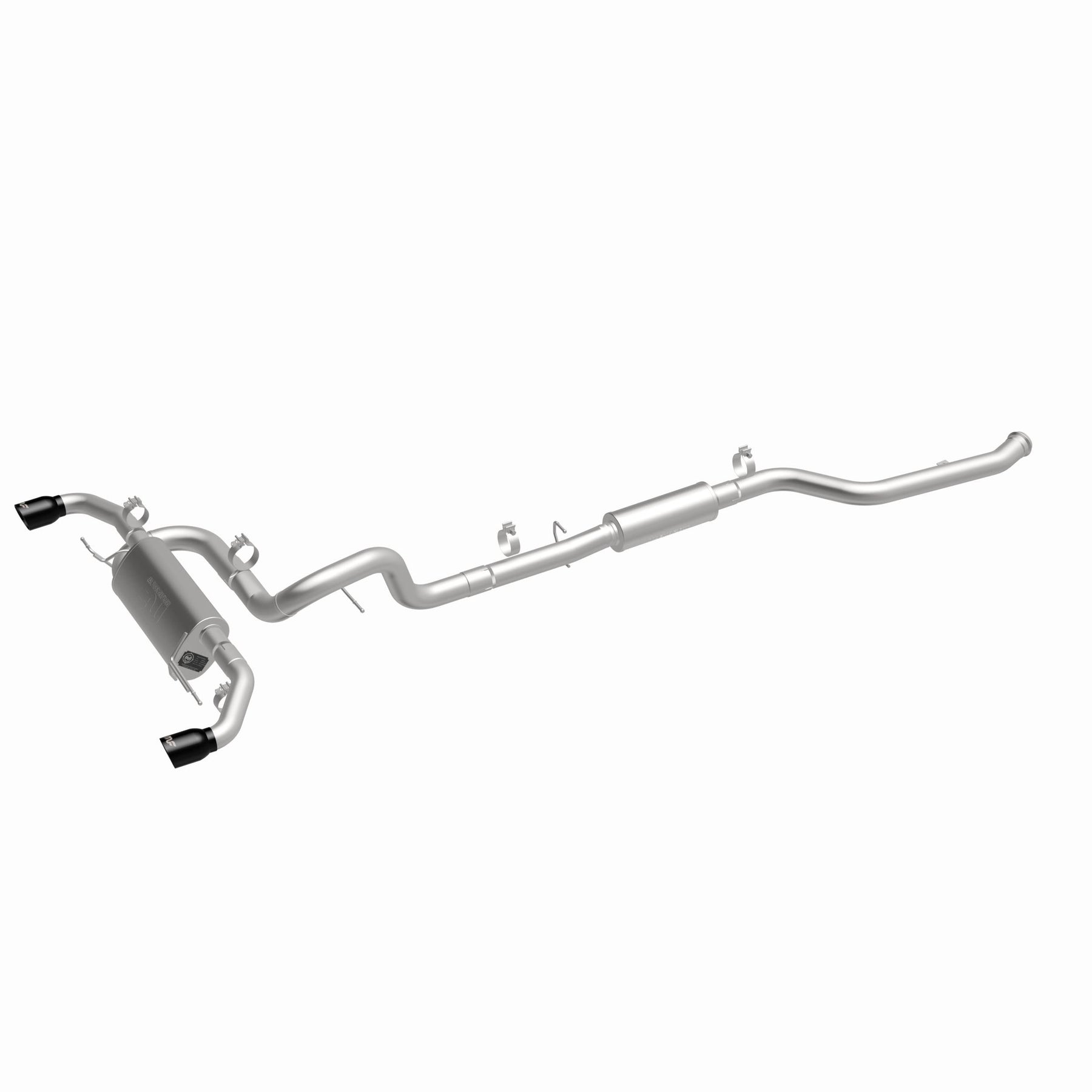

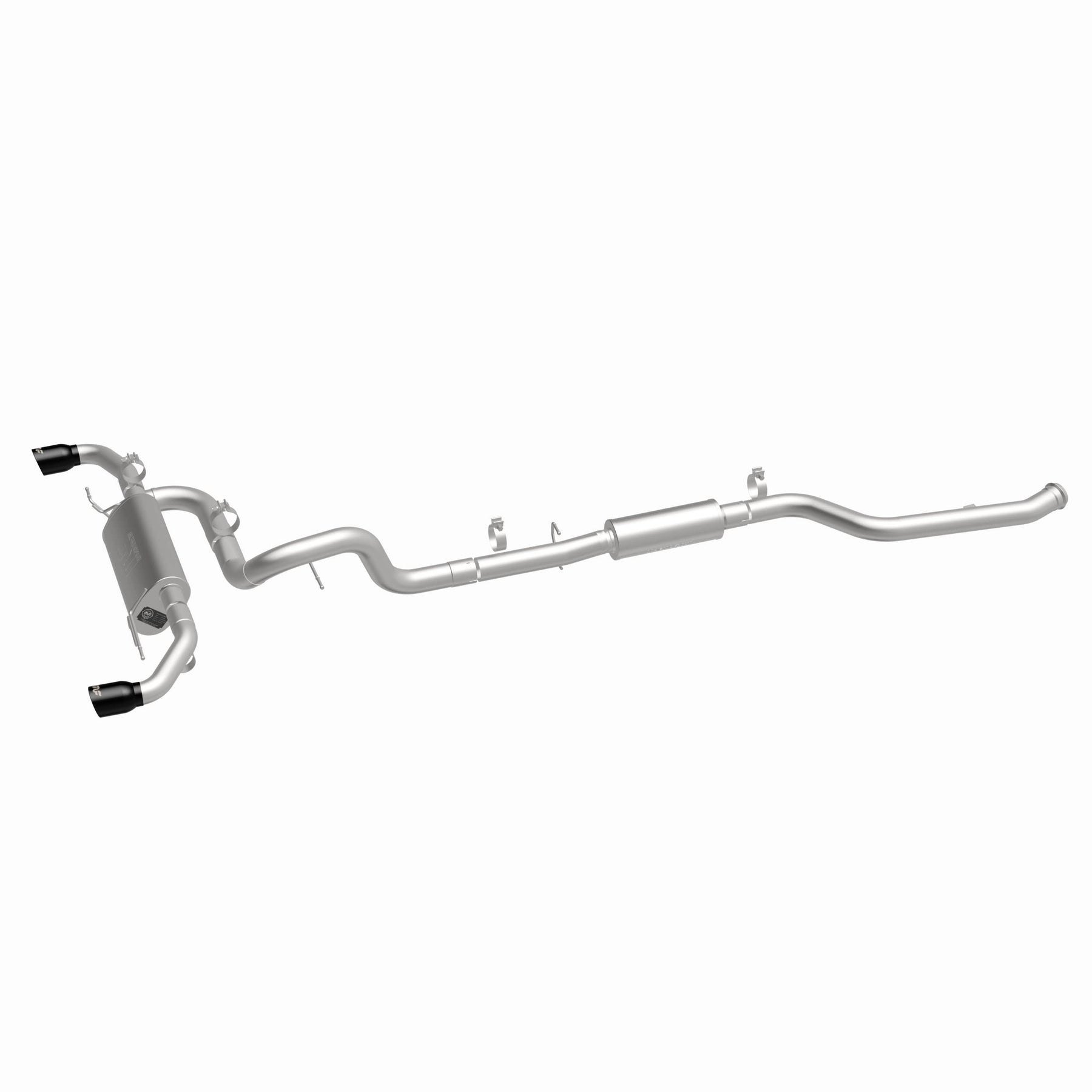

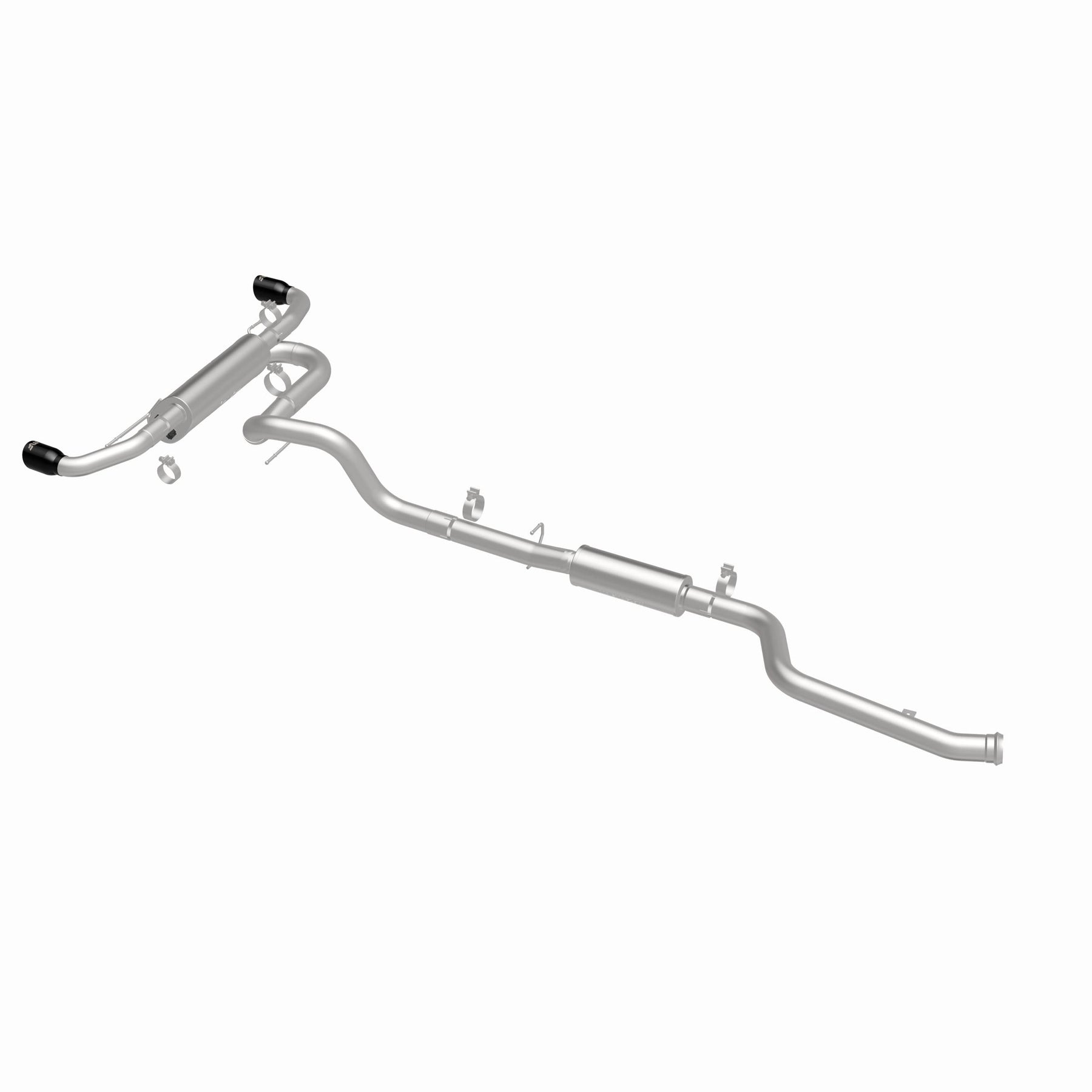

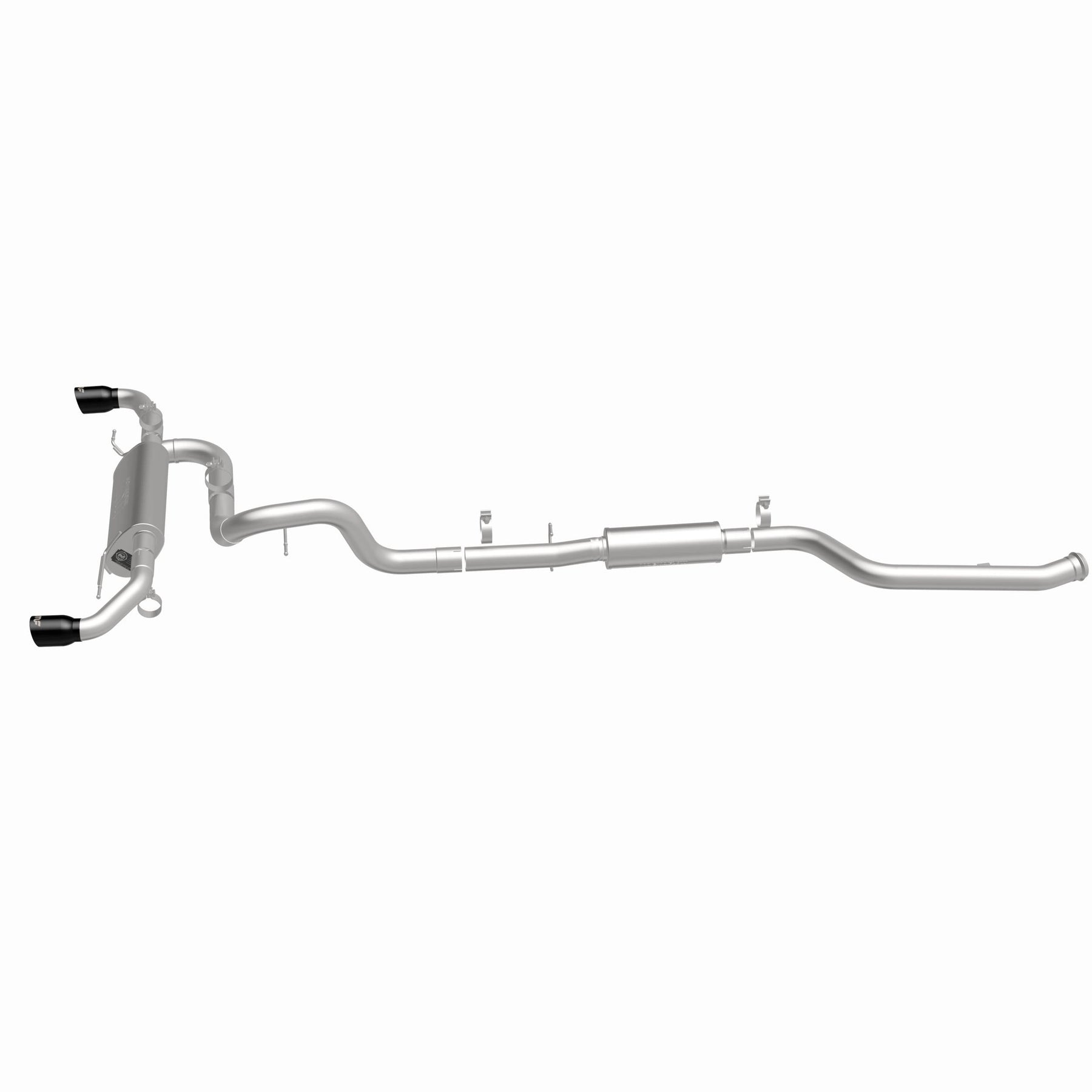

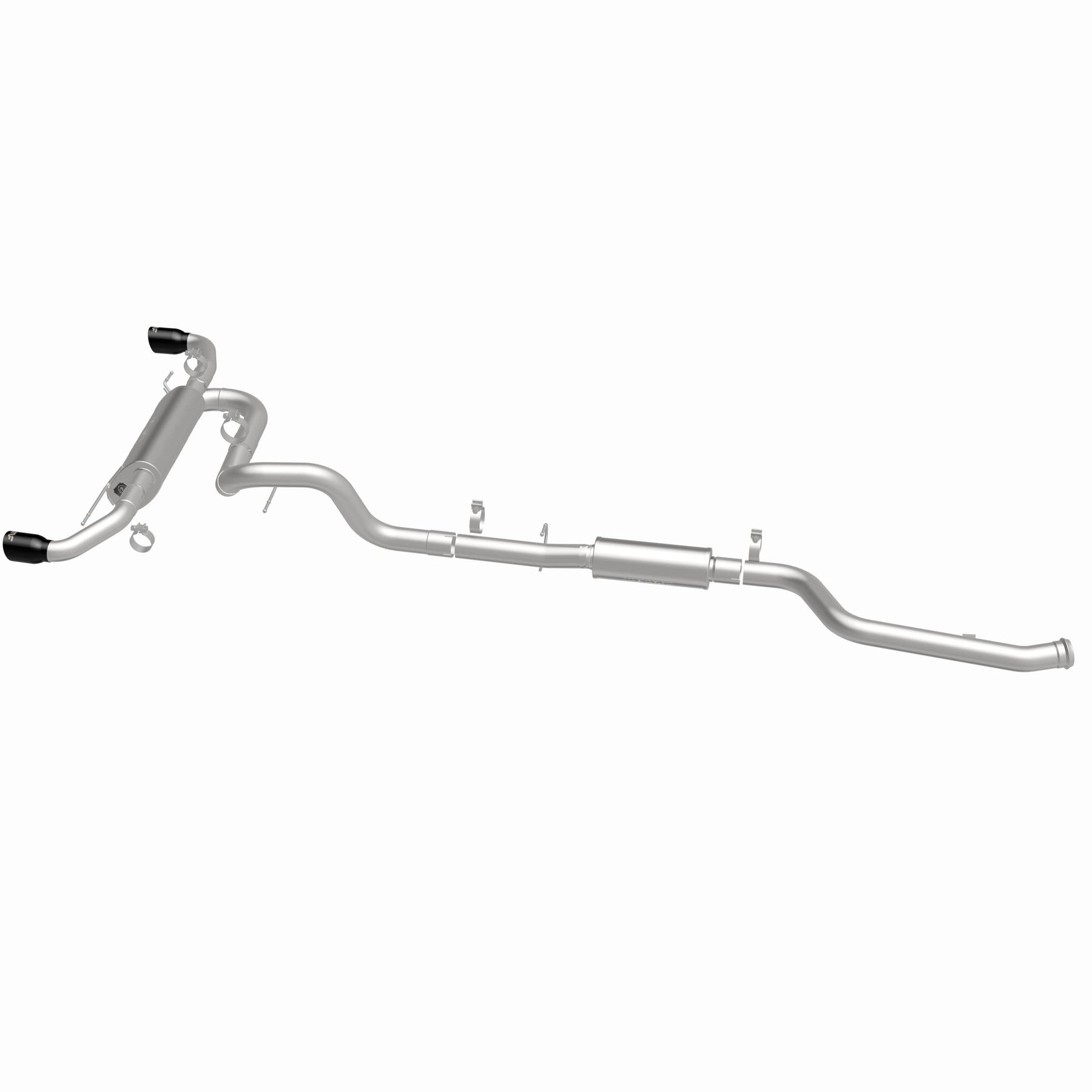

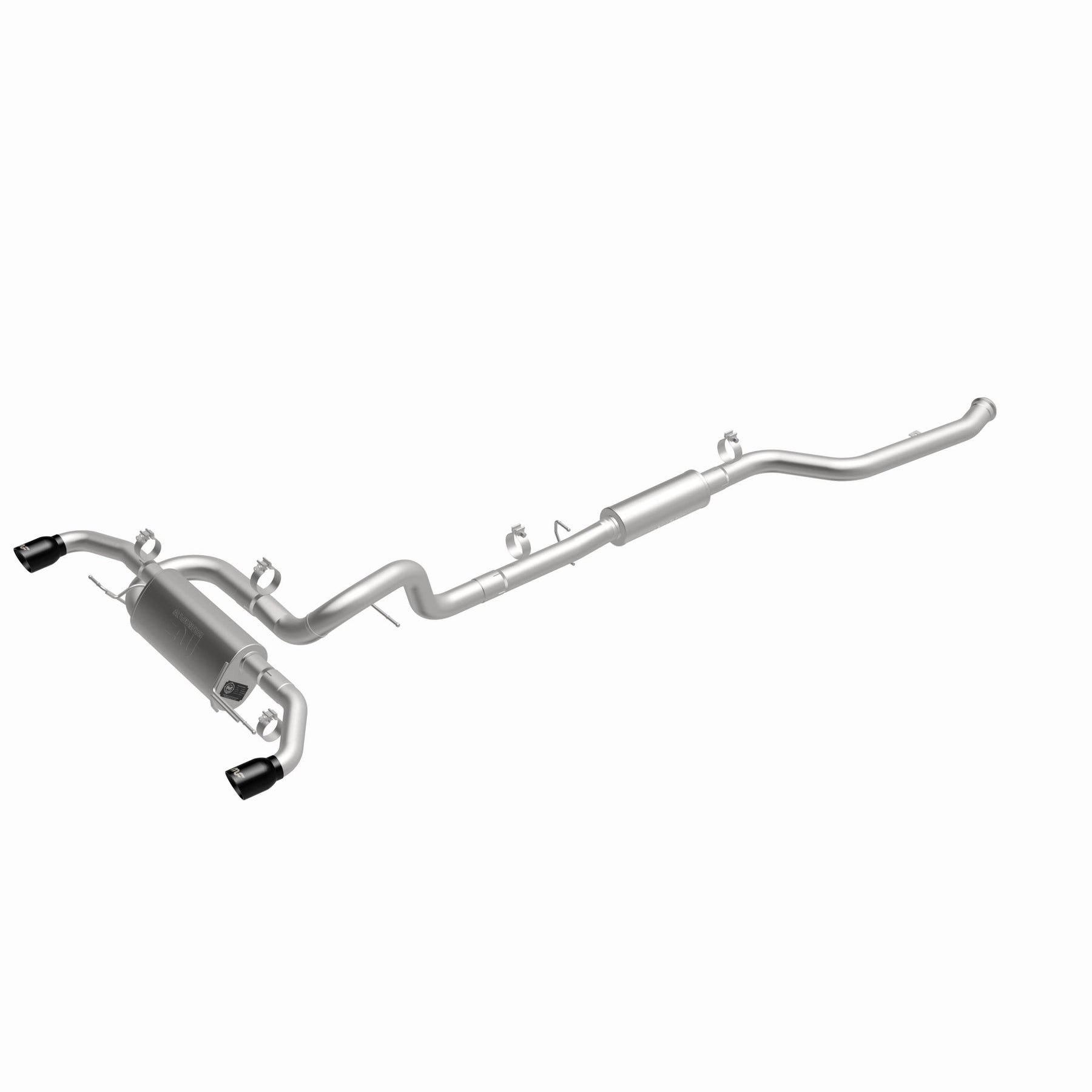

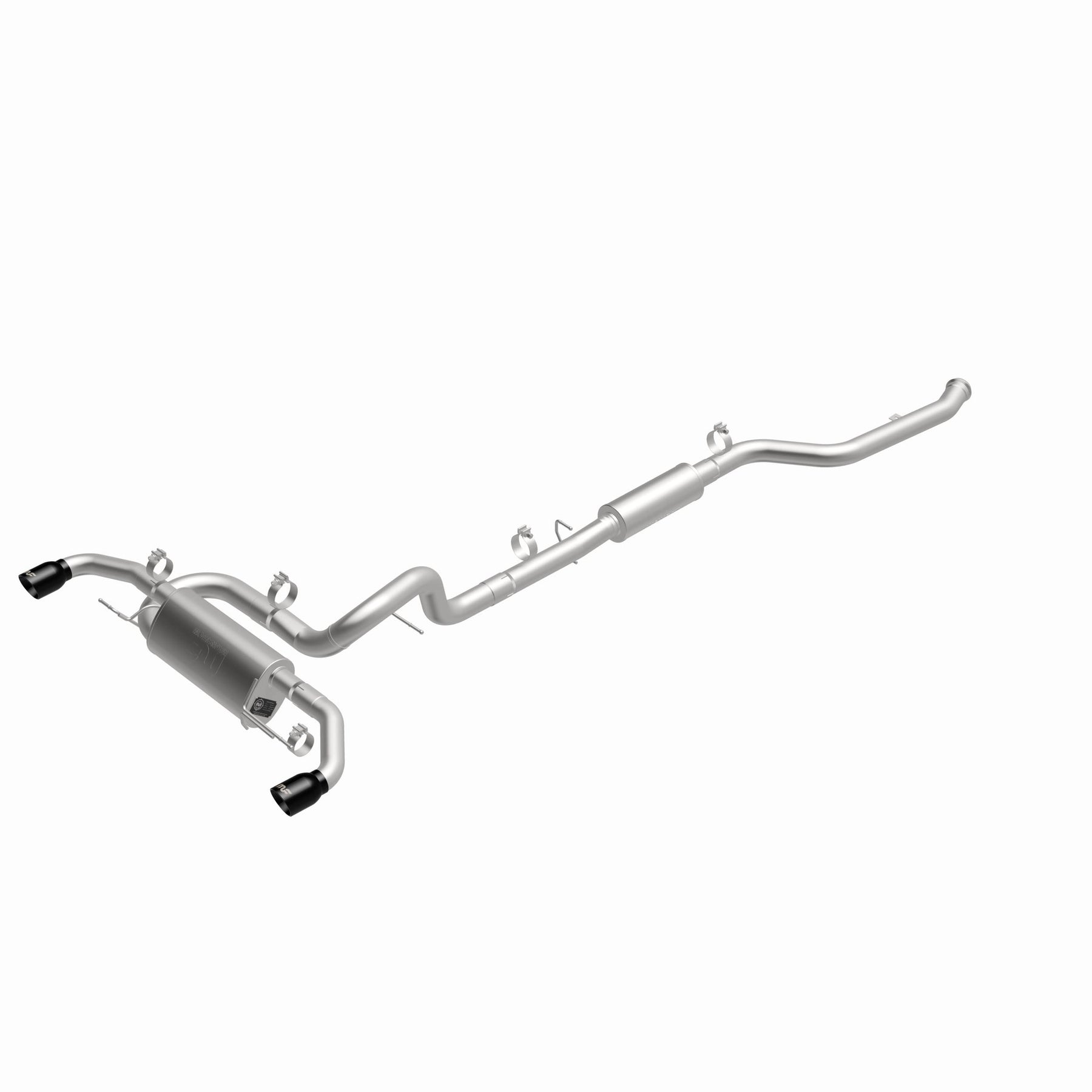

The MagnaFlow® INEOS Grenadier SUV Overland Series™ Cat-Back Performance Exhaust System #19702 is engineered for off-road function and built to explore further. This performance exhaust system is designed for the Ineos Grenadier SUV equipped with the L6 3.0L engine. The high clearance exhaust design of this kit is intended to keep your vehicle clear of any challenging terrain or obstacles you may come across. #19702 3” diameter mandrel bent main piping passes through a straight-through resonator and a specifically tuned performance oval muffler with No Drone Technology (NDT) before exiting in a dual high-clearance rear exit with black chrome tips. MagnaFlow® NDT utilizes passive quarter-wave noise cancellation to minimize the unwanted droning noises that can otherwise occur at highway cruising speeds. Exhaust kit #19702 utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from the catalytic converter on back. This INEOS Grenadier cat-back performance exhaust system is made of durable, corrosion resistant stainless steel and produced using advanced CNC precision robotic manufacturing techniques, all backed by MagnaFlow®’s limited lifetime warranty.
Features
- High clearance exit
- Dyno proven performance
- No-Drone-Technology allows for a quiet cabin
Specifications
| Clamps Included | Yes |
| Exhaust Tip Connection | Welded On |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Diameter | 3.5 IN |
| Exhaust Tip Edge | Folded |
| Exhaust Tip Finish | Black Chrome |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 5.5 IN |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Split Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 3 IN |
| Mounting Bracket Included | Yes |
| Muffler Type | Straight-Through |
| Pipe Material | Stainless Steel |
| Prop 65 Y/N | No |
| Series | Overland |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Muffler (Front) Body Height | 5 IN |
| Muffler (Front) Body Length | 14 IN |
| Muffler (Front) Body Width | 5 IN |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Rear) Body Length | 18 IN |
| Muffler (Rear) Body Width | 8 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Clamping Type | Round Band |
Note: Need further assistance? Call 1-800-990-0905.
Short Description: Cat-Back
Invoice Description: Exhaust System
Definition: Exhaust System Kit
Installation Guide: Download PDF
Specifications
MagnaFlow 19702 — Exhaust System Kit, fits 2024-2026 INEOS Grenadier. Key specs: 3 in. main piping diameter, overland series.
Warranty: Limited Lifetime Warranty from MagnaFlow
Also known as: UPC 888563206882
| Year | Make | Model | Engine |
|---|---|---|---|
| 2024-2026 | INEOS | Grenadier | 3.0L I6 |
1 application listed.
