MagnaFlow Overland Series Cat-Back System

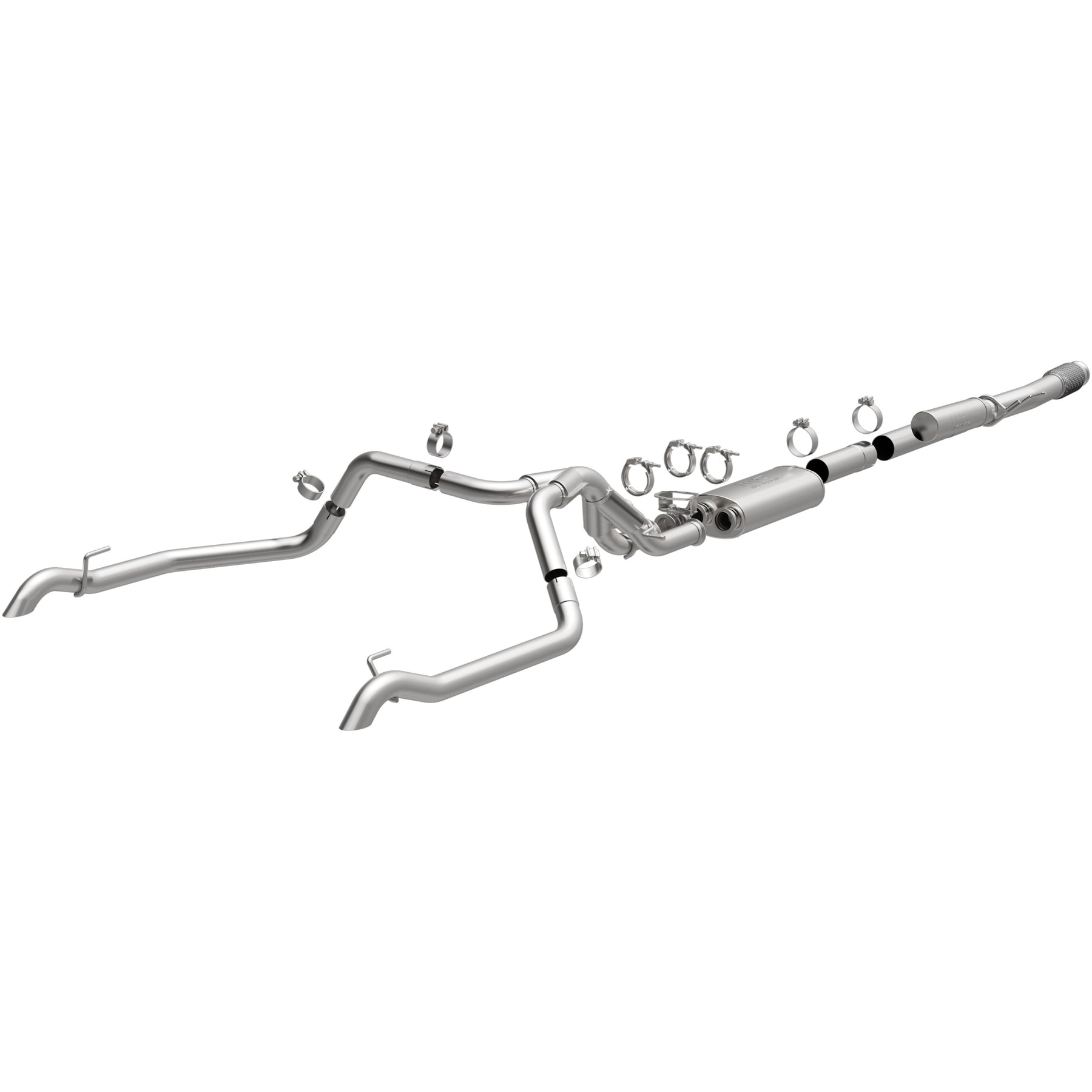

The MagnaFlow® Chevrolet Silverado 1500 ZR2 Overland Series™ Cat-Back Performance Exhaust System #19703 brings all the technology, dyno-proven performance and configurable sound your truck needs to be crowned the ultimate Silverado. This exhaust kit is compatible with the Chevrolet Silverado 1500 ZR2 running a 6.2L engine and features an easy-to-install direct-fit design that replaces your truck’s OEM exhaust system from near the catalytic converter on back. #19703 features high clearance tucked 3.5” diameter mandrel bent main piping that passes through an NDT (No Drone Technology) resonator and an 18” oval body performance muffler, effectively mitigating any droning noises that may otherwise occur when cruising at highway speeds. The tucked design also considerably improves both ground clearance and departure angles. This Silverado 1500 ZR2 performance exhaust system terminates in a dual split rear exit and includes integrated, functional active exhaust valves cast in durable 304 stainless steel. Exhaust kit #19703 is secured using racing-bred quick-release V-band clamps. #19703 is made of durable stainless steel and produced using advanced 3D scanning technology and CNC precision robotic manufacturing techniques, all backed by MagnaFlow®’s limited lifetime warranty.
Features
- High clearance exit
- Dyno proven performance
- No-Drone-Technology allows for a quiet cabin
Specifications
| Muffler (Front) Body Length | 14 IN |
| Muffler (Rear) Body Length | 18 IN |
| Muffler Quantity | 2 |
| Main Piping Diameter | 3.5 IN |
| Muffler (Front) Body Height | 4 IN |
| Muffler (Front) Body Width | 4 IN |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Rear) Body Width | 8 IN |
| Valve Type | Actuated |
| Muffler Finish | Brushed |
| Type | Cat-Back |
| Inlet Type | Clamp-On |
| Exit Style | Dual Split Rear |
| Gasket Or Seal Included | No |
| Mounting Bracket Included | No |
| Prop 65 Y/N | No |
| Pipe Material | Stainless Steel |
| Muffler Body Material | Stainless Steel |
| Muffler (Rear) Type | Straight-Through |
| Muffler Type | Straight-Through |
| Muffler (Front) Type | Tuned Chamber |
| Muffler Type | Tuned Chamber |
| Clamps Included | Yes |
| Hangers Included | Yes |
| Valve Included | Yes |
| Exhaust Tip Quantity | 0 |
| Clamping Type | Round Band |
| Clamping Type | V Band |
| Catalytic Converter Included | No |
| Series | Overland™ |
Note: Need further assistance? Call 1-800-990-0905.
Short Description: Cat-Back
Invoice Description: Exhaust System
Definition: Exhaust System Kit
Installation Guide: Download PDF
Specifications
MagnaFlow 19703 — Exhaust System Kit, fits 2024-2026 Chevrolet Silverado 1500 & GMC Sierra 1500. Key specs: 3.5 in. main piping diameter, overland™ series.
Warranty: 5-Year Warranty from MagnaFlow
Also known as: UPC 888563206615
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2024-2026 | Chevrolet | Silverado 1500 | ZR2 | 6.2L V8 |
| 2024-2026 | GMC | Sierra 1500 | AT4X | 6.2L V8 |
2 applications listed.
