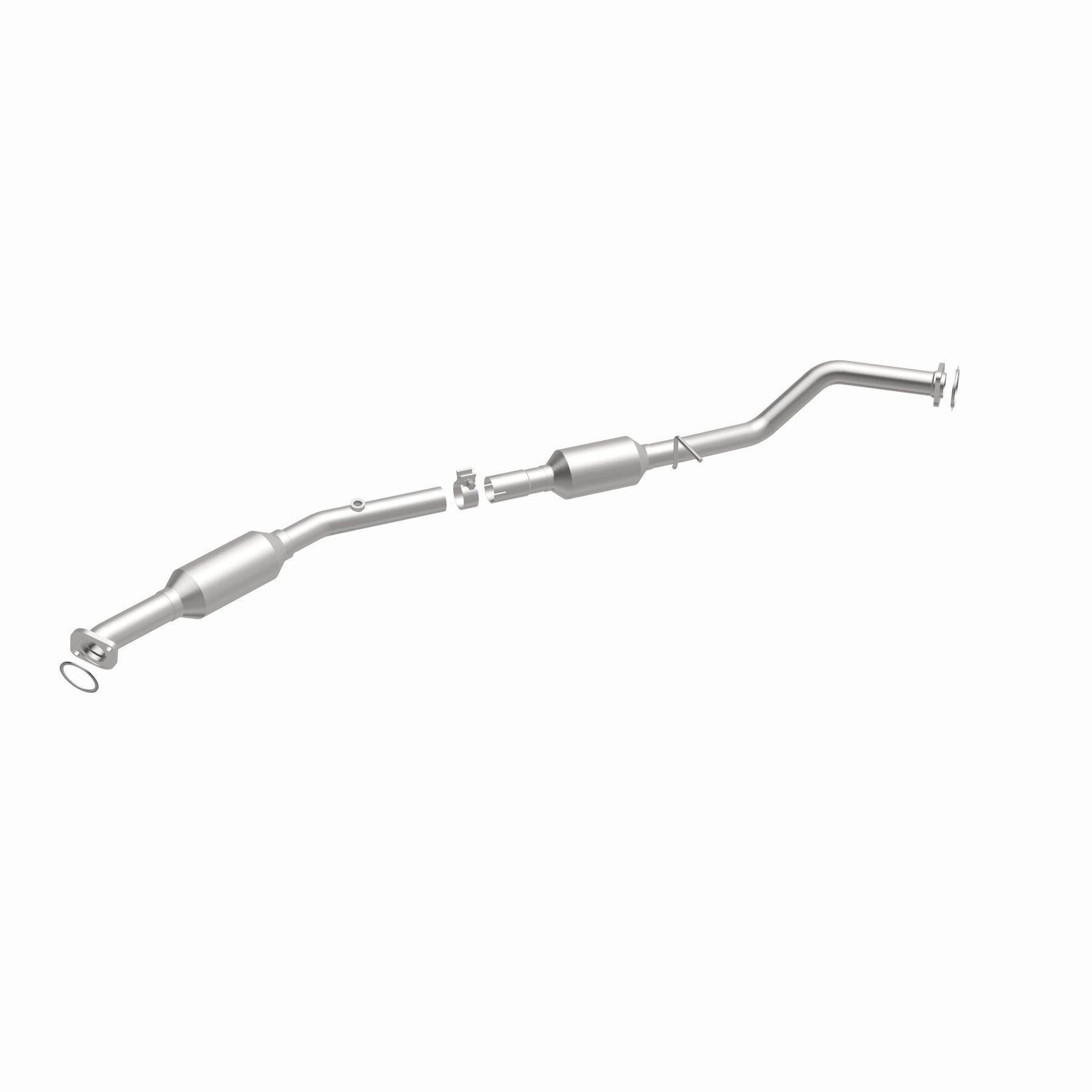

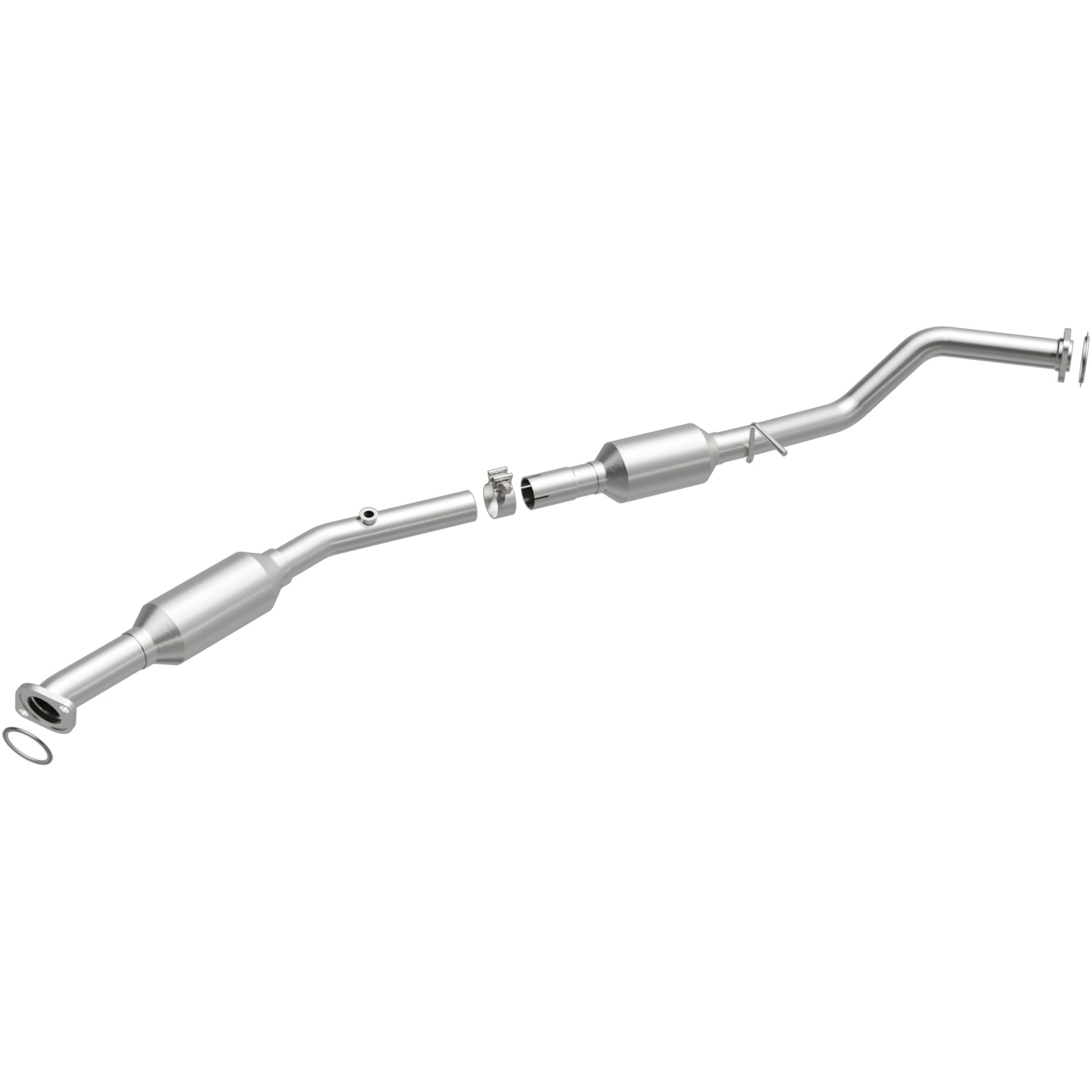

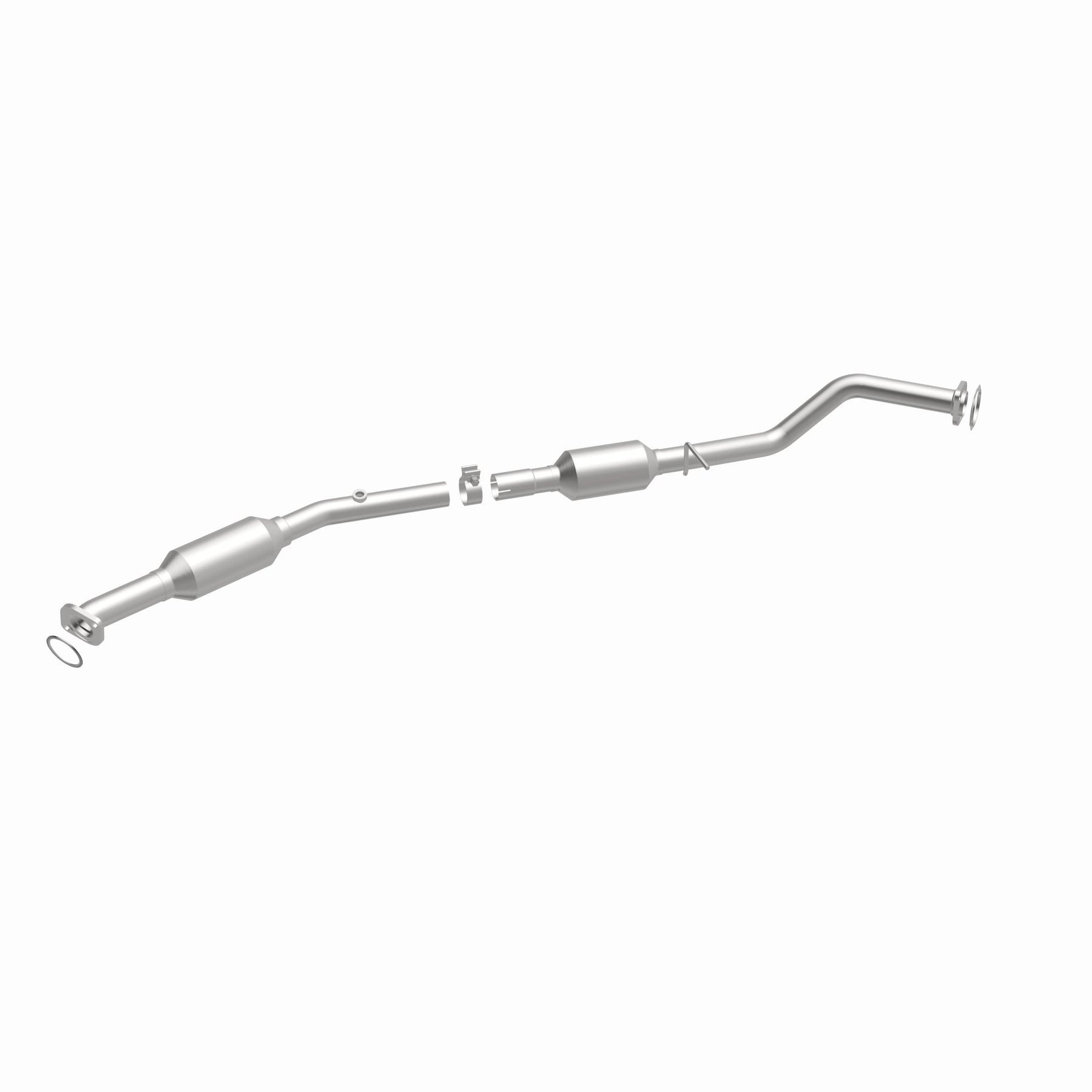

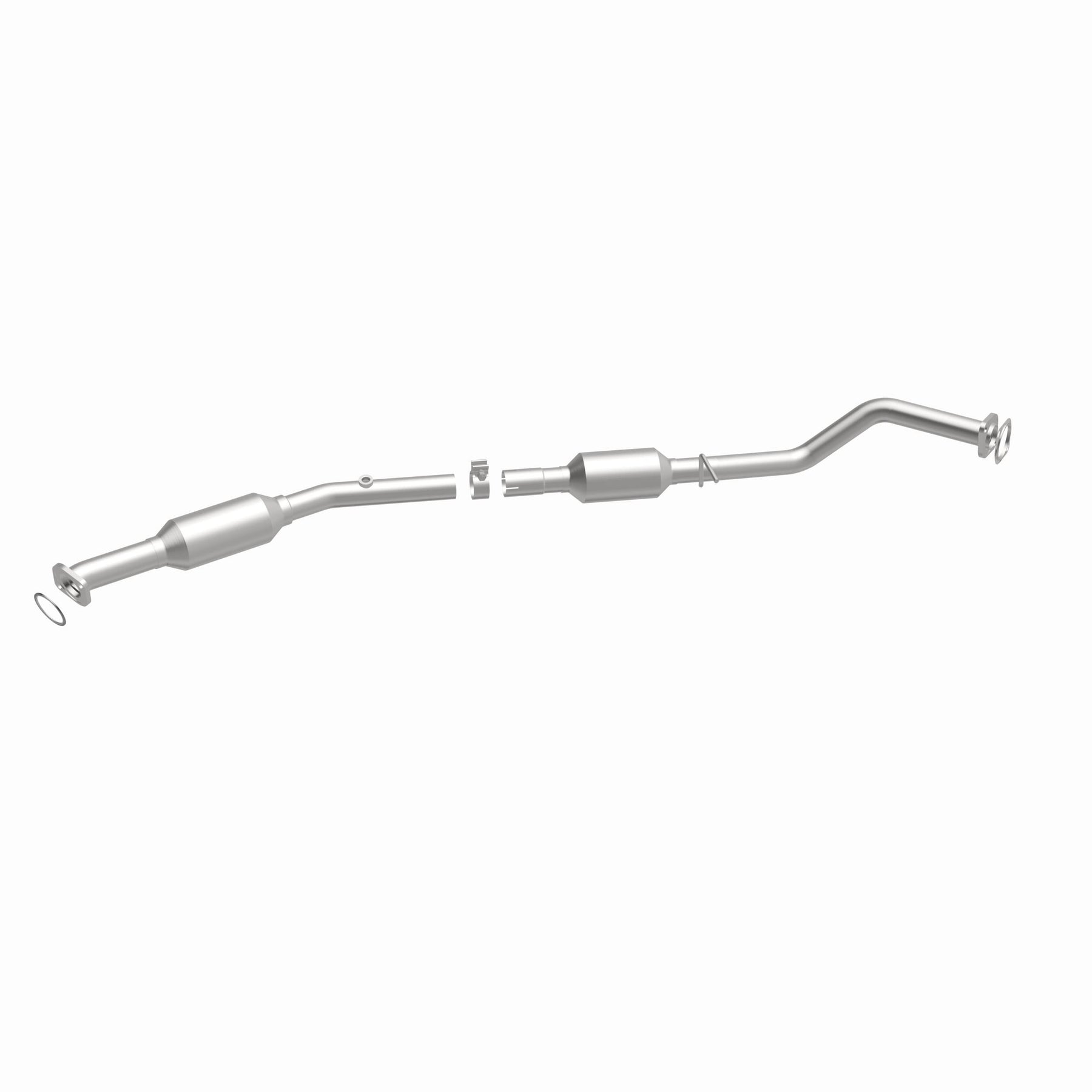

MagnaFlow Exhaust Products 21-286 - OEM Grade Direct-Fit Catalytic Converter
Product Availability Request
Fill the form and our team will contact you.
Magnaflow OEM Grade Direct-Fit Catalytic Converter
Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 21-286. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Catalytic Converter is designed to fit the 1999-2005 Mazda Miata 1.8L. MagnaFlow 21-286 includes (1) Torca Clamp, (1) Flange Gasket, (1) Flat Ring Gasket and interchanges with OE parts BP6F-20-55XA, BP6F-20-55XB, BP6F-20-55XC. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.
Features & Benefits
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- High strength 16 gauge 409 stainless steel tubing for exceptional corrosion resistance and maximum service life
- Simplifies installation with essential gaskets and hardware being included in the box
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Durable 308 stainless steel MIG welds
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
Specifications
| Body Material | Stainless Steel |
| Body Shape | Round |
| Body Type | Spun |
| Body Width | 4 IN |
| California Air Resources Board (CARB) Certified | No |
| CARB Executive Order Number | Not Applicable |
| Clamps Included | Yes |
| Grade Type | Regular |
| Hangers Included | Yes |
| Heat Shield Attached | No |
| Inlet Gasket Included | Yes |
| Inlet Inside Diameter | 2.25 IN |
| Inlet Mounting Hardware Included | No |
| Inlet Quantity | 1 |
| Air Tube Adaptable | No |
| Air Tube Count | 0 |
| Body Height | 4 IN |
| Body Length Position Front | 11.25 IN |
| Body Length Position Rear | 9.375 IN |
| Outlet Quantity | 1 |
| Sensor Port Count | 1 |
| Outlet Inside Diameter | 2 IN |
| Overall Length | 69 IN |
| Substrate Material | Ceramic |
| Title | MagnaFlow 1999-2005 Mazda Miata 1.8L OEM Grade Federal / EPA Compliant Direct-Fit Catalytic Converter 21-286 |
| Outlet Mounting Hardware Included | No |
| New York Certified | No |
| Series | OEM Grade |
| Oxygen Sensor Location | Post Converter |
| Finish | Stainless |
| Material | Stainless Steel |
| Tube Material | Stainless Steel |
| Outlet Gasket Included | Yes |
| Inlet Type | Flange |
| Outlet Type | Flange |
| Universal Or Specific Fit | Specific |
Shipping Information
Free shipping is available for eligible orders.
Shipping: For USA - Up to 50lbs.
Orders are processed during normal business days. Delivery dates may vary by carrier and destination.
