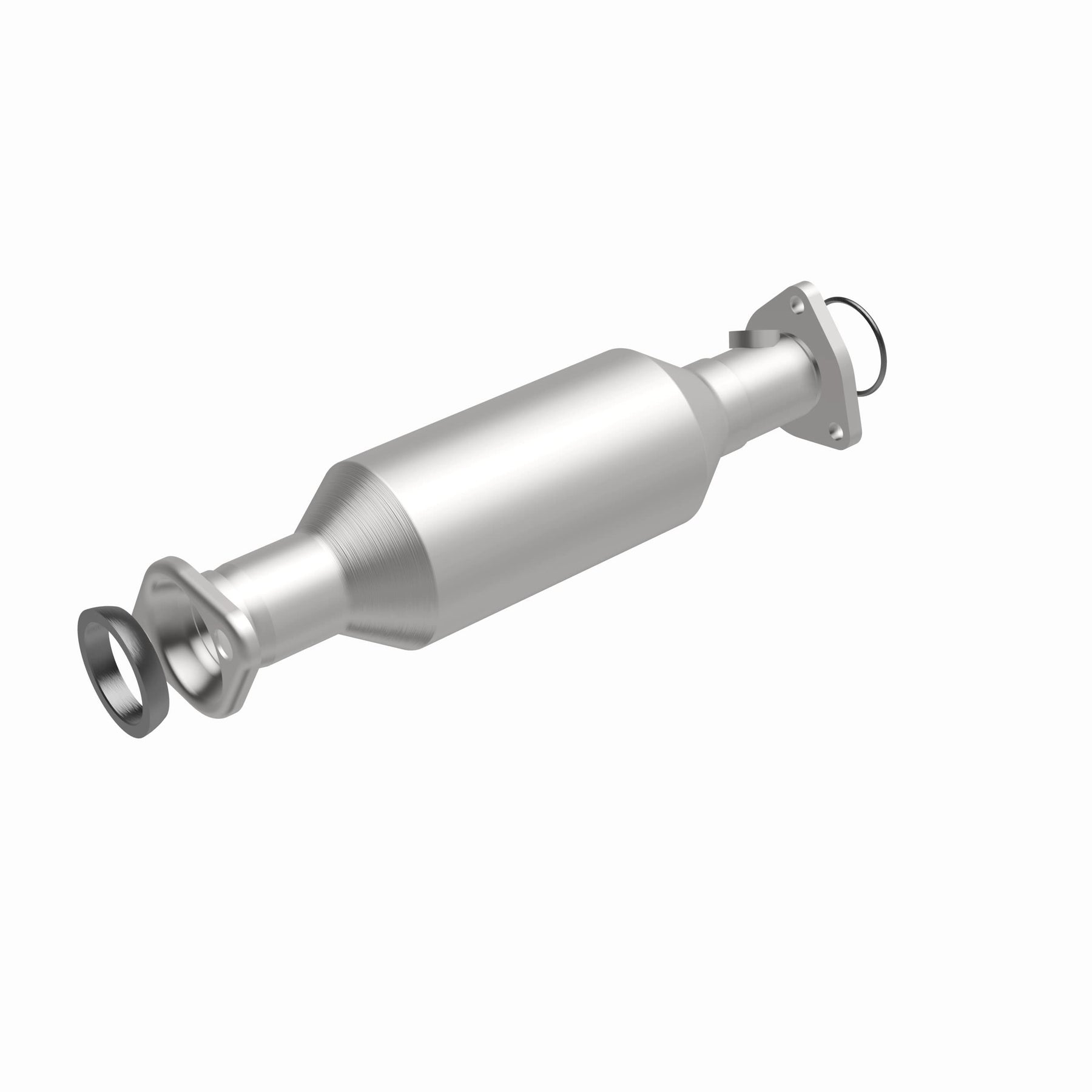

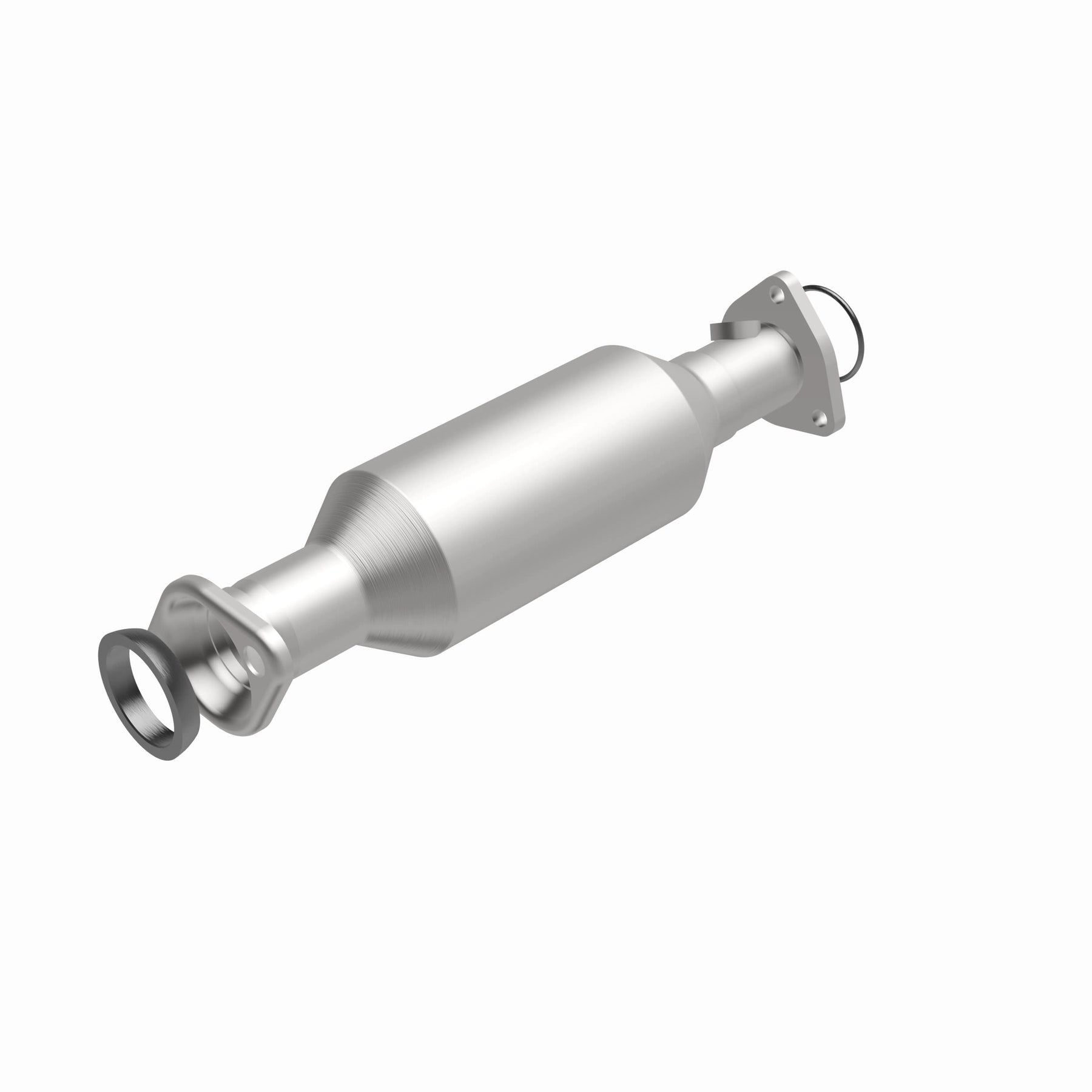

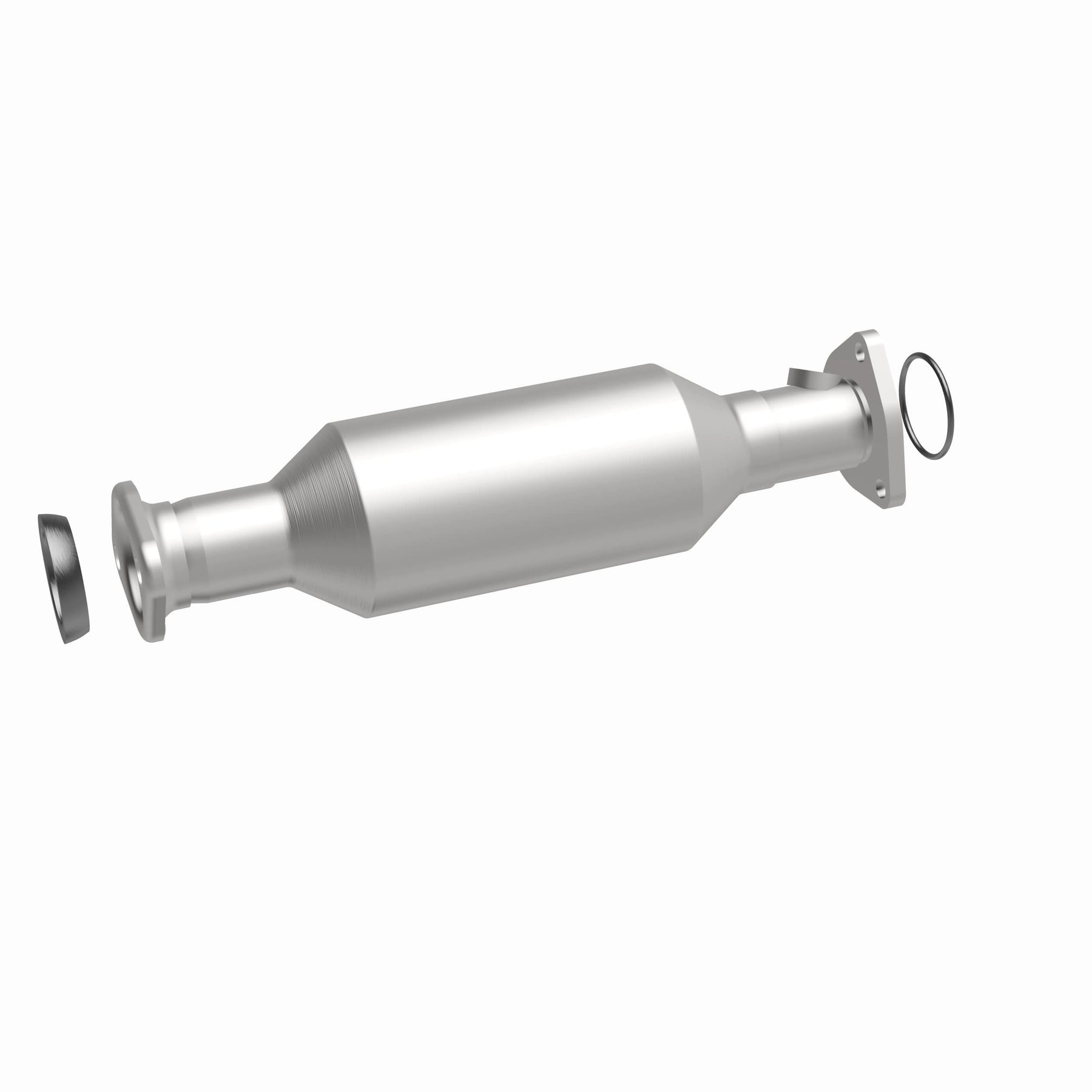

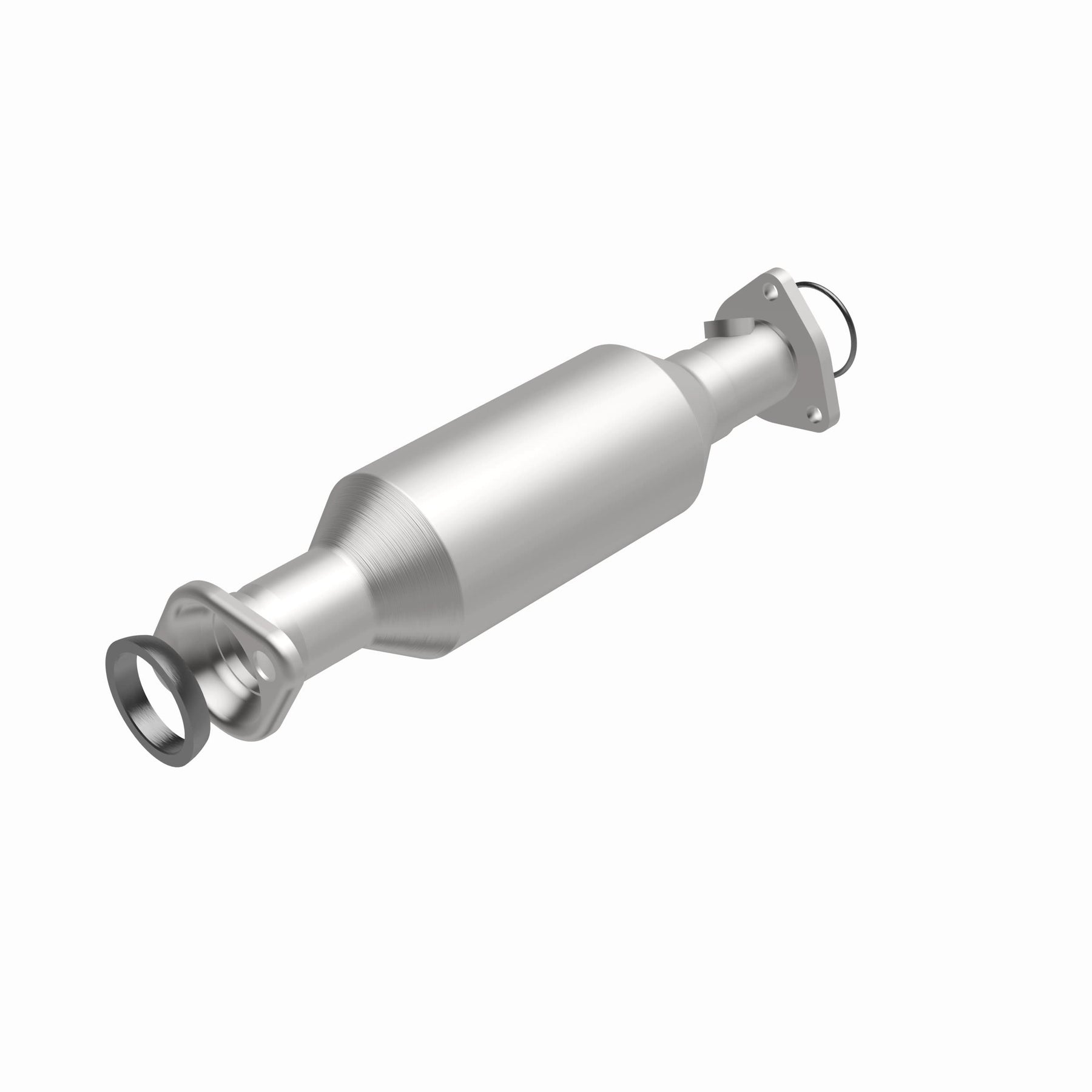

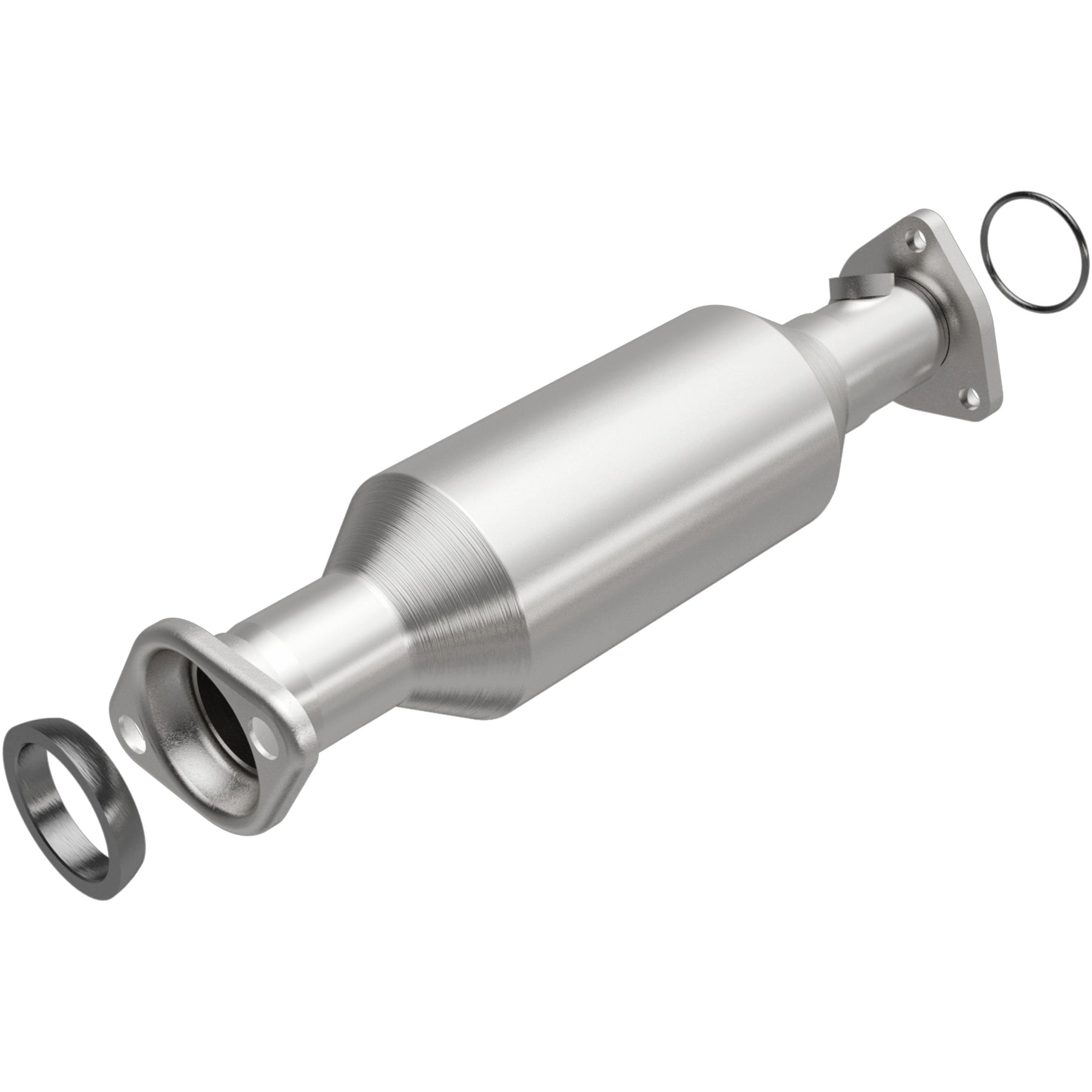

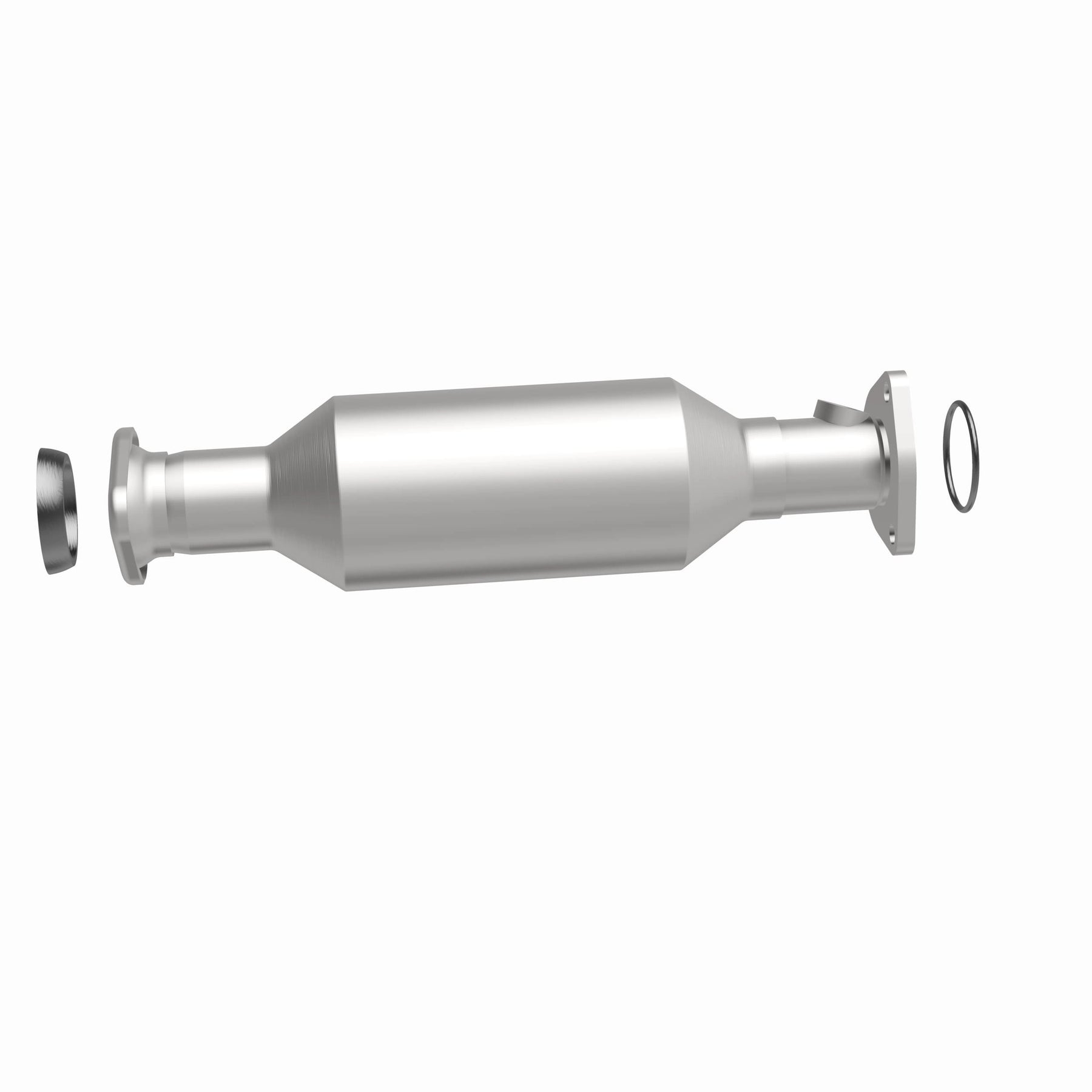

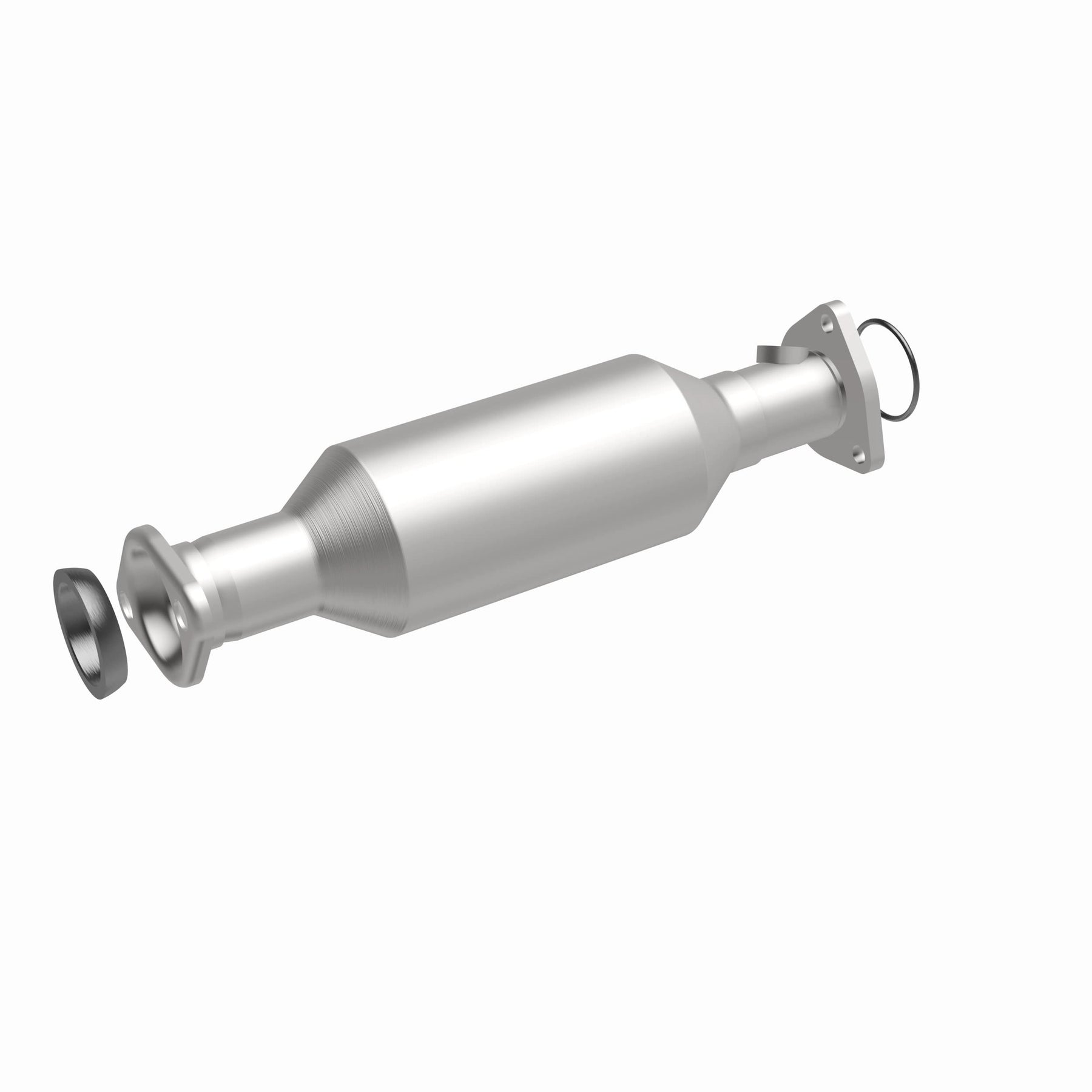

MagnaFlow Exhaust Products 22640 Catalytic Converter
Magnaflow HM Grade Direct-Fit Catalytic Converter
Keep the check engine light off with MagnaFlow HM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 22640. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. MagnaFlow 22640 includes (1) Donut Gasket, (1) Crush Ring Gasket and interchanges with OE parts 18150-P0A-L02, 18150-P0A-L12, 18150-P0A-L22, 18160-P0A-L00, 18160-P0A-L01, 18160-P0A-L02, 18160-P0A-L10, 18160-P0A-L11, 18160-P0A-L12, 18160-P0A-L20, 18160-P0A-L21, 18160-P0A-L22, 18160-P6W-A00. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with Federal/EPA Emission systems.
Features
- Durable 308 stainless steel MIG welds
- Simplifies installation with essential gaskets and hardware being included in the box
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- High strength 16 gauge 409 stainless steel tubing for exceptional corrosion resistance and maximum service life
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
Specifications
| Air Tube Adaptable | No |
| Hangers Included | No |
| Heat Shield Attached | No |
| Inlet Gasket Included | Yes |
| Inlet Mounting Hardware Included | No |
| Air Tube Count | 0 |
| Body Material | Stainless Steel |
| Body Type | Spun |
| California Air Resources Board (CARB) Certified | No |
| CARB Executive Order Number | Not Applicable |
| Clamps Included | No |
| Grade Type | Regular |
| Sensor Port Count | 1 |
| Overall Length | 16.25 IN |
| Substrate Material | Ceramic |
| Series | HM Grade |
| Outlet Gasket Included | Yes |
| New York Certified | Yes |
| Outlet Mounting Hardware Included | No |
| Prop 65 Y/N | No |
| Oxygen Sensor Location | Post Converter |
| Finish | Stainless |
| Material | Stainless Steel |
| Tube Material | Stainless Steel |
| Inlet Type | Flange |
| Outlet Type | Flange |
| Universal Or Specific Fit | Specific |
Note: Not legal for sale or installation in California, Colorado or New York.
Short Description: HM
Invoice Description: Catalytic Converter
Shipping Information
Free shipping is available for eligible orders.
Shipping: 2+ weeks.
Orders are processed during normal business days. Delivery dates may vary by carrier and destination.
