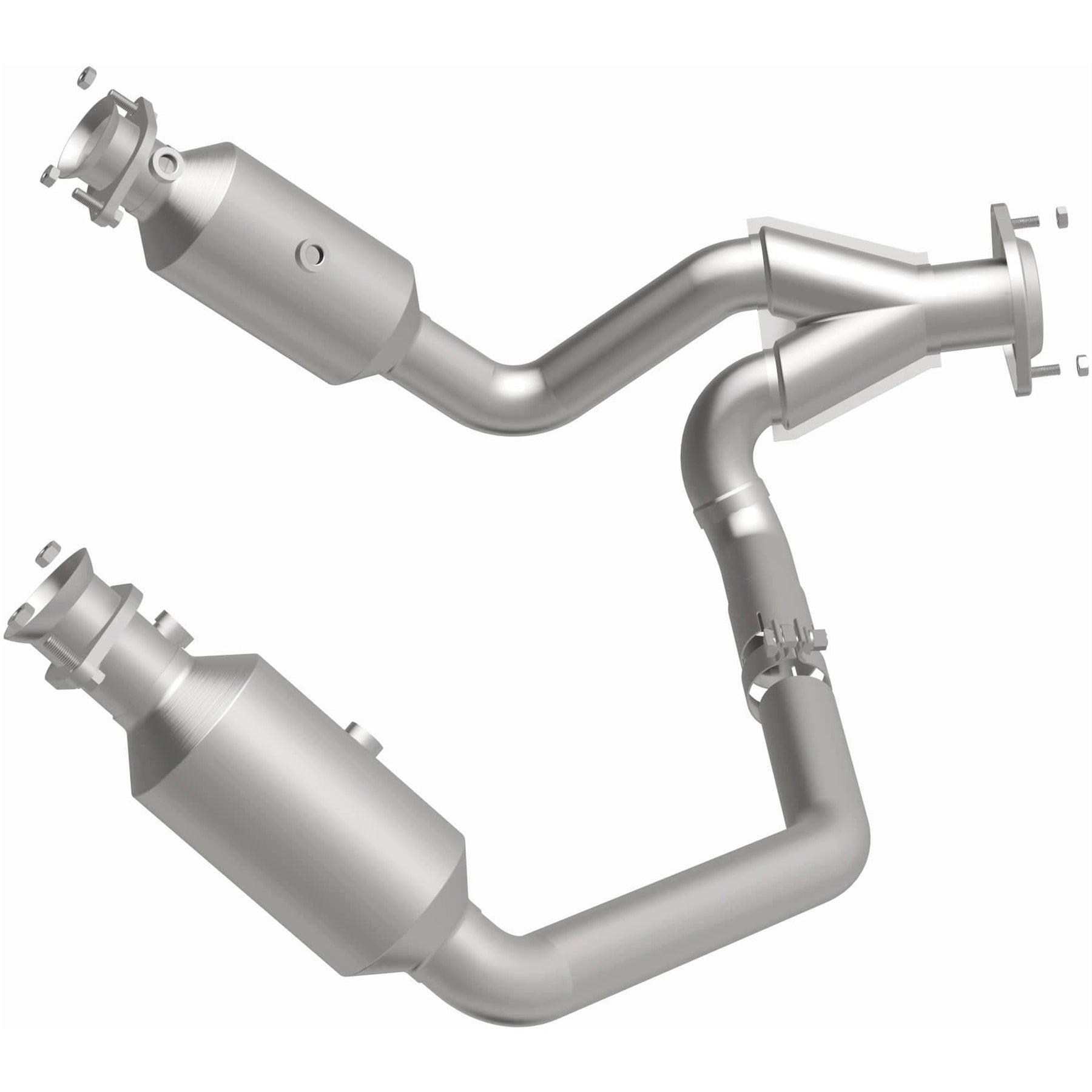

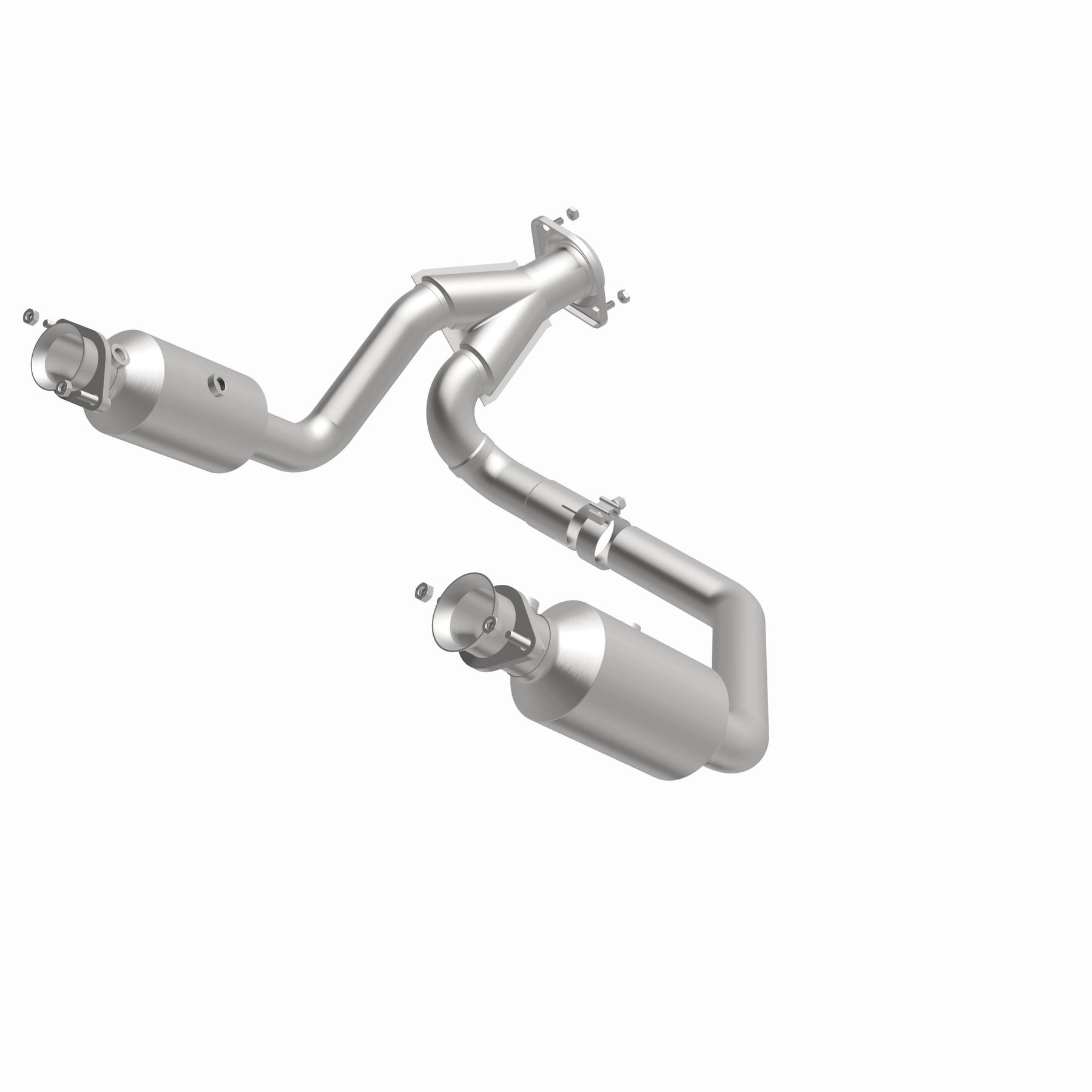

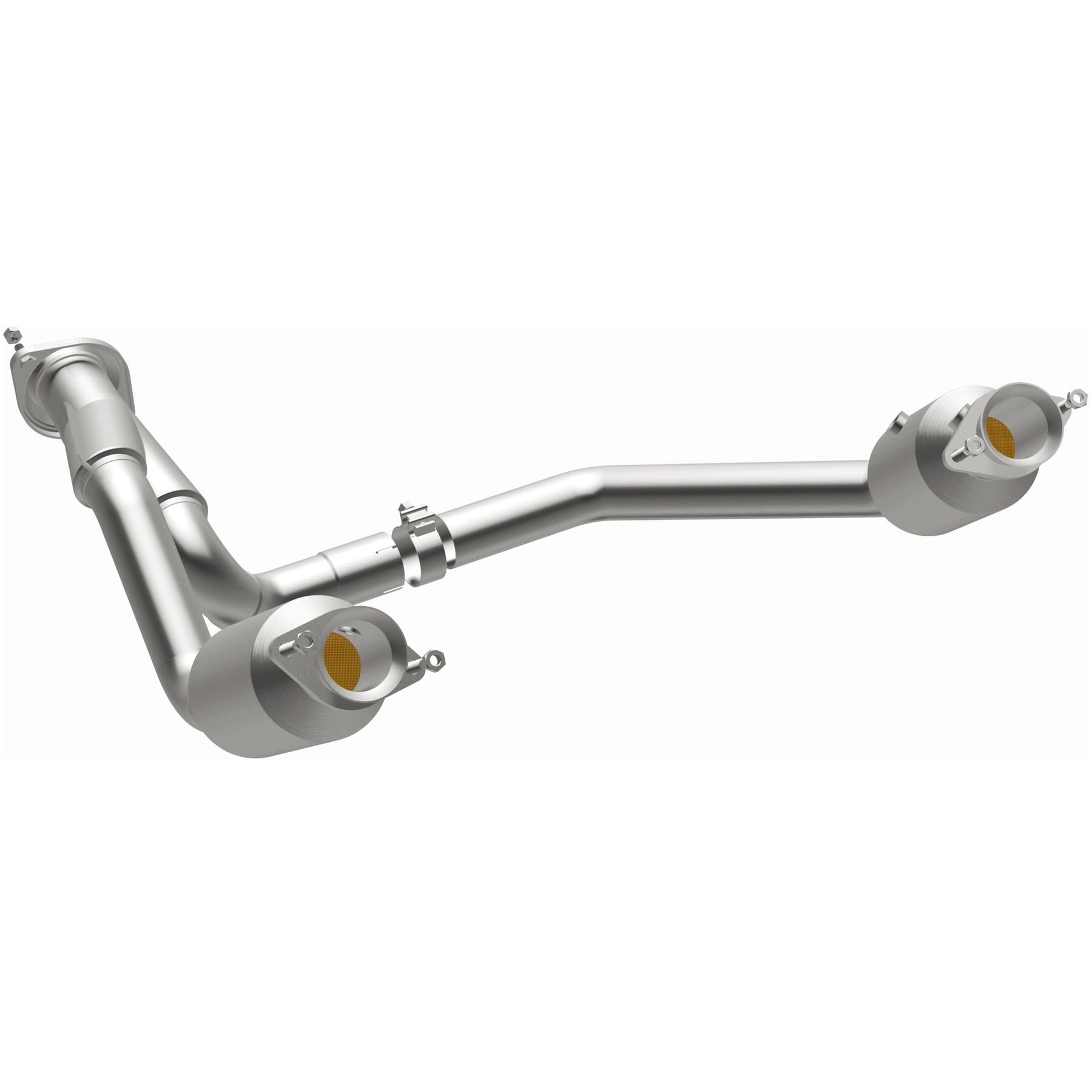

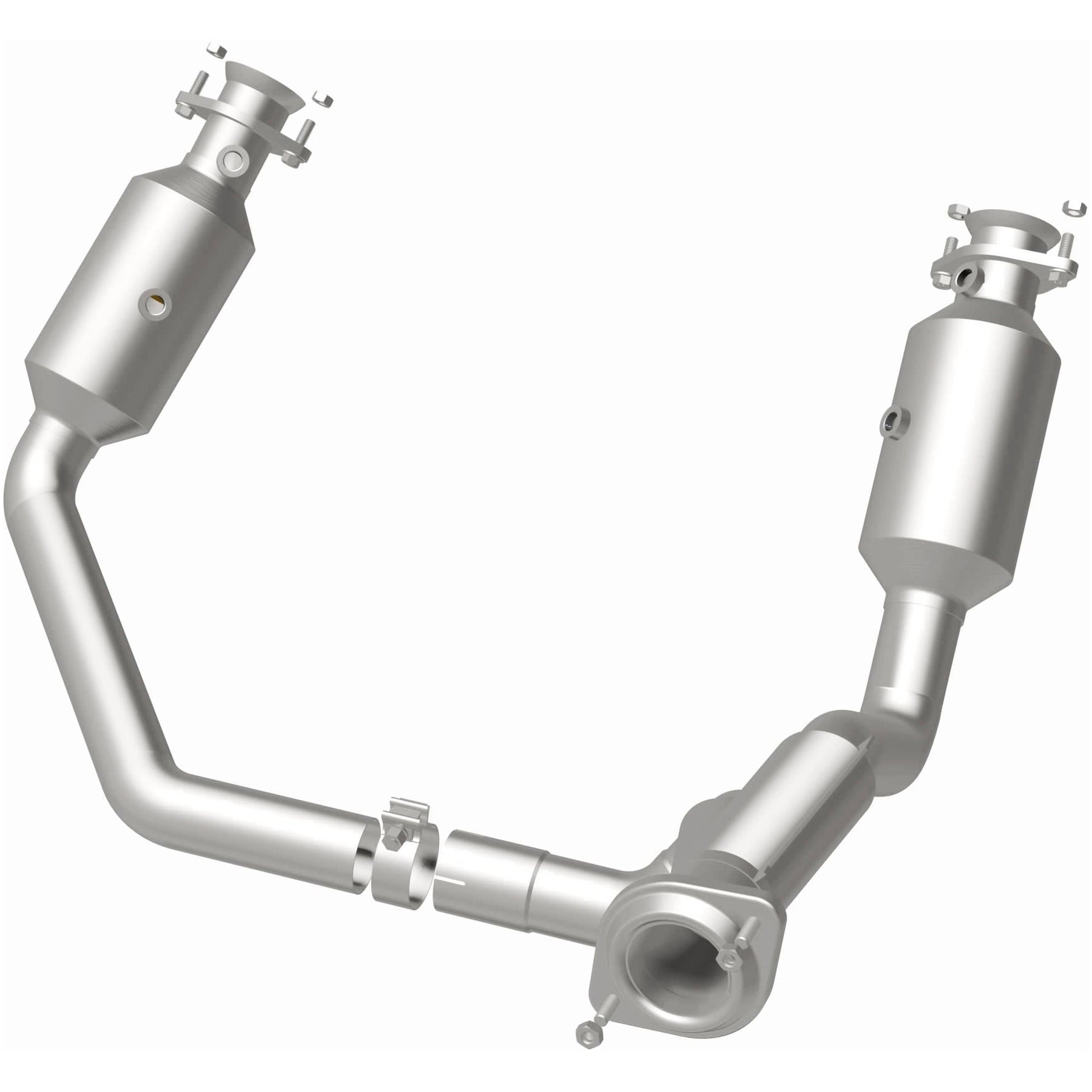

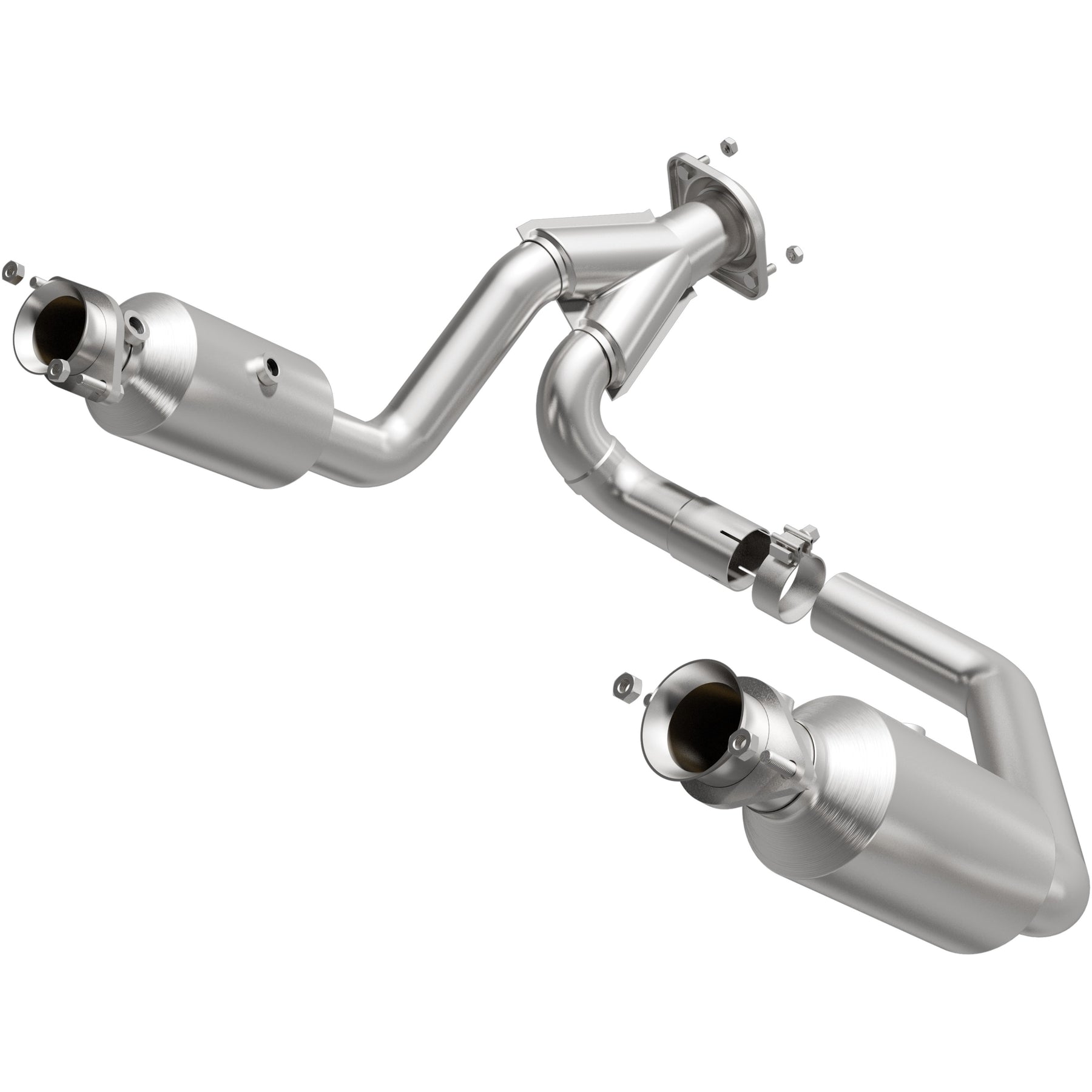

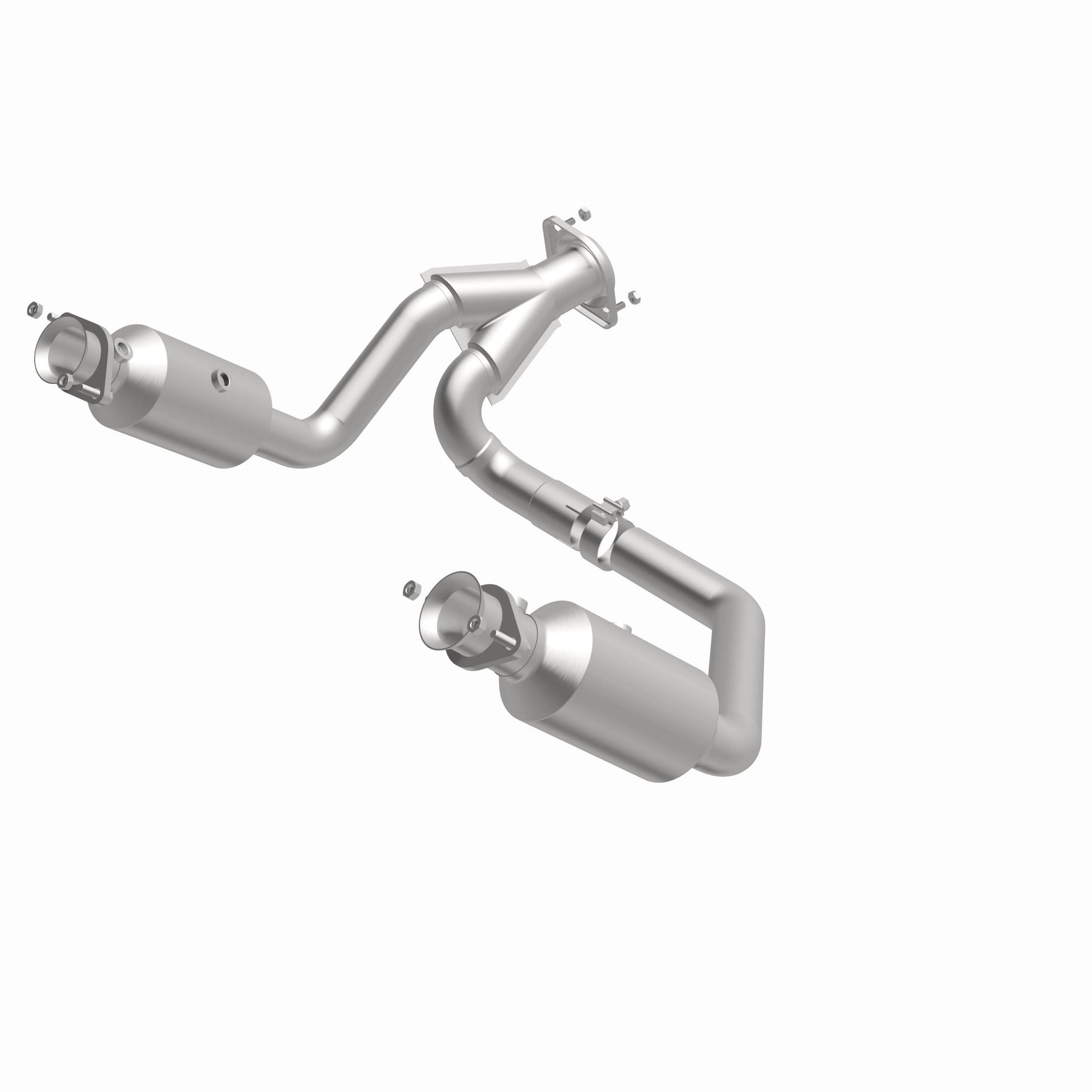

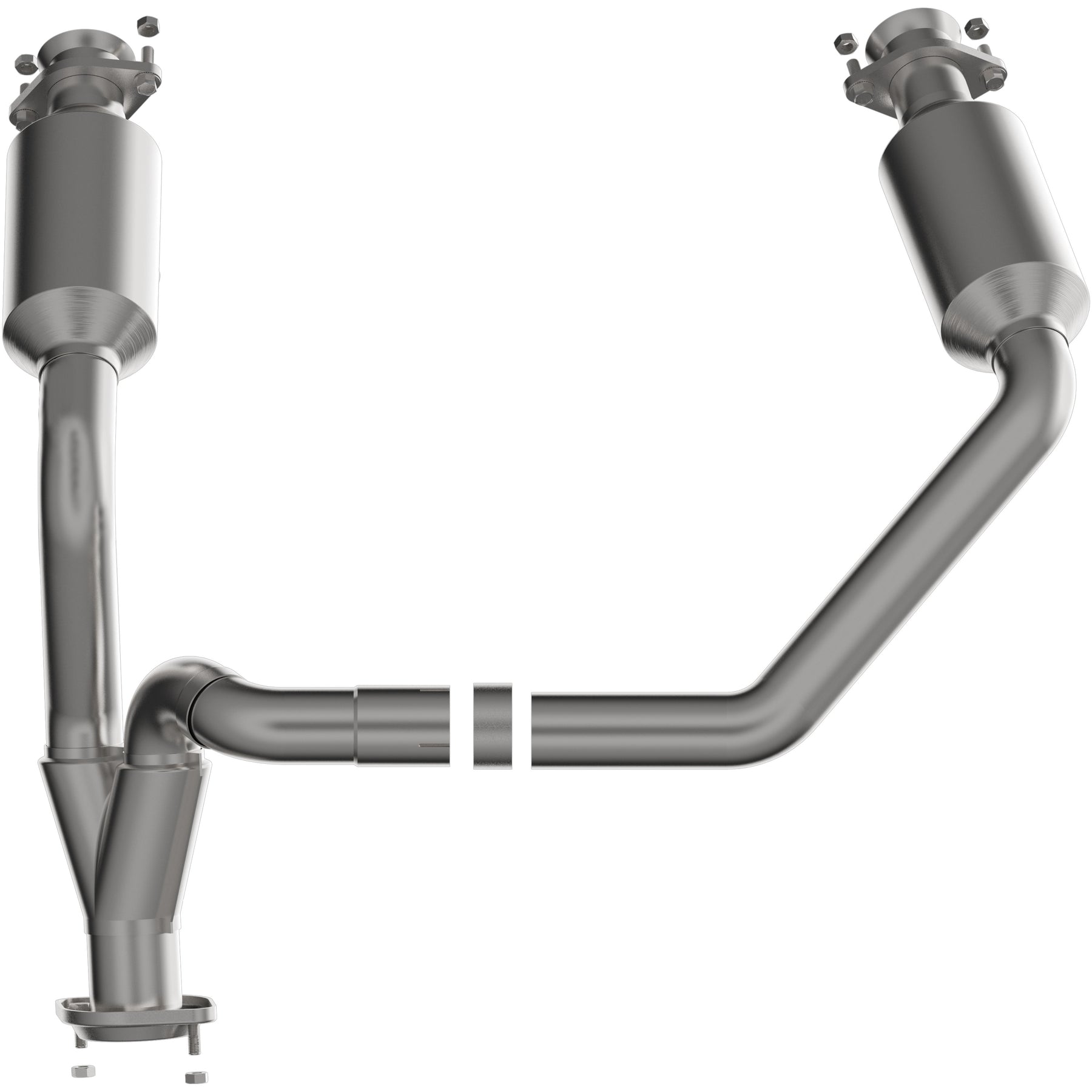

MagnaFlow Exhaust Products 280307 Catalytic Converter
Product Availability Request
Fill the form and our team will contact you.
Magnaflow OEM Grade Direct-Fit Catalytic Converter
Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 280307. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Catalytic Converter is designed to fit the 2019-2024 Ram 1500 5.7L. MagnaFlow 280307 includes (4) Bolts, (6) Nuts and interchanges with OE parts 6843 3692AA. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.
Features
- Durable 308 stainless steel MIG welds
- Simplifies installation with essential gaskets and hardware being included in the box
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- High strength 16 gauge 409 stainless steel tubing for exceptional corrosion resistance and maximum service life
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
Specifications
| Air Tube Count | 0 |
| Body Material | Stainless Steel |
| California Air Resources Board (CARB) Certified | No |
| CARB Executive Order Number | Not Applicable |
| Clamps Included | Yes |
| Body Type | Spun |
| Grade Type | Regular |
| Hangers Included | No |
| Heat Shield Attached | No |
| Inlet Gasket Included | No |
| Inlet Mounting Hardware Included | Yes |
| Overall Length | 28.5 IN |
| Sensor Port Count | 4 |
| Tube Material | Stainless Steel |
| Outlet Mounting Hardware Included | Yes |
| Substrate Material | Ceramic |
| Outlet Gasket Included | No |
| New York Certified | No |
| Prop 65 Y/N | No |
| Series | OEM Grade |
| Finish | Stainless |
| Material | Stainless Steel |
| Inlet Type | Flange |
| Outlet Type | Flange |
| Oxygen Sensor Location | Pre Converter and Midbed |
| Universal Or Specific Fit | Specific |
Note: Not legal for sale or installation in California, Colorado or New York.
Short Description: OEM
Invoice Description: Catalytic Converter
Specifications
MagnaFlow 280307 β Catalytic Converter, fits 2019-2024 Ram 1500. Key specs: oem grade series.
Warranty: 5-Year Warranty from MagnaFlow
Also known as: UPC 888563200613
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2021-2022 | Ram | 1500 | Big Horn | 5.7L V8 |
| 2024 | Ram | 1500 | Big Horn | 5.7L V8 |
| 2021 | Ram | 1500 | Laramie Longhorn | 5.7L V8 |
| 2021-2022 | Ram | 1500 | Laramie | 5.7L V8 |
| 2024 | Ram | 1500 | Laramie | 5.7L V8 |
| 2021-2022 | Ram | 1500 | Limited Longhorn | 5.7L V8 |
| 2024 | Ram | 1500 | Limited Longhorn | 5.7L V8 |
| 2021-2022 | Ram | 1500 | Limited | 5.7L V8 |
| 2024 | Ram | 1500 | Limited | 5.7L V8 |
| 2021-2022 | Ram | 1500 | Lone Star | 5.7L V8 |
| 2024 | Ram | 1500 | Lone Star | 5.7L V8 |
| 2021 | Ram | 1500 | Longhorn | 5.7L V8 |
| 2021-2022 | Ram | 1500 | Rebel | 5.7L V8 |
| 2024 | Ram | 1500 | Rebel | 5.7L V8 |
| 2021 | Ram | 1500 | Special Service | 5.7L V8 |
| 2024 | Ram | 1500 | Tradesman | 5.7L V8 |
| 2019-2020 | Ram | 1500 | 5.7L V8 | |
| 2023 | Ram | 1500 | 5.7L V8 |
18 applications listed.
