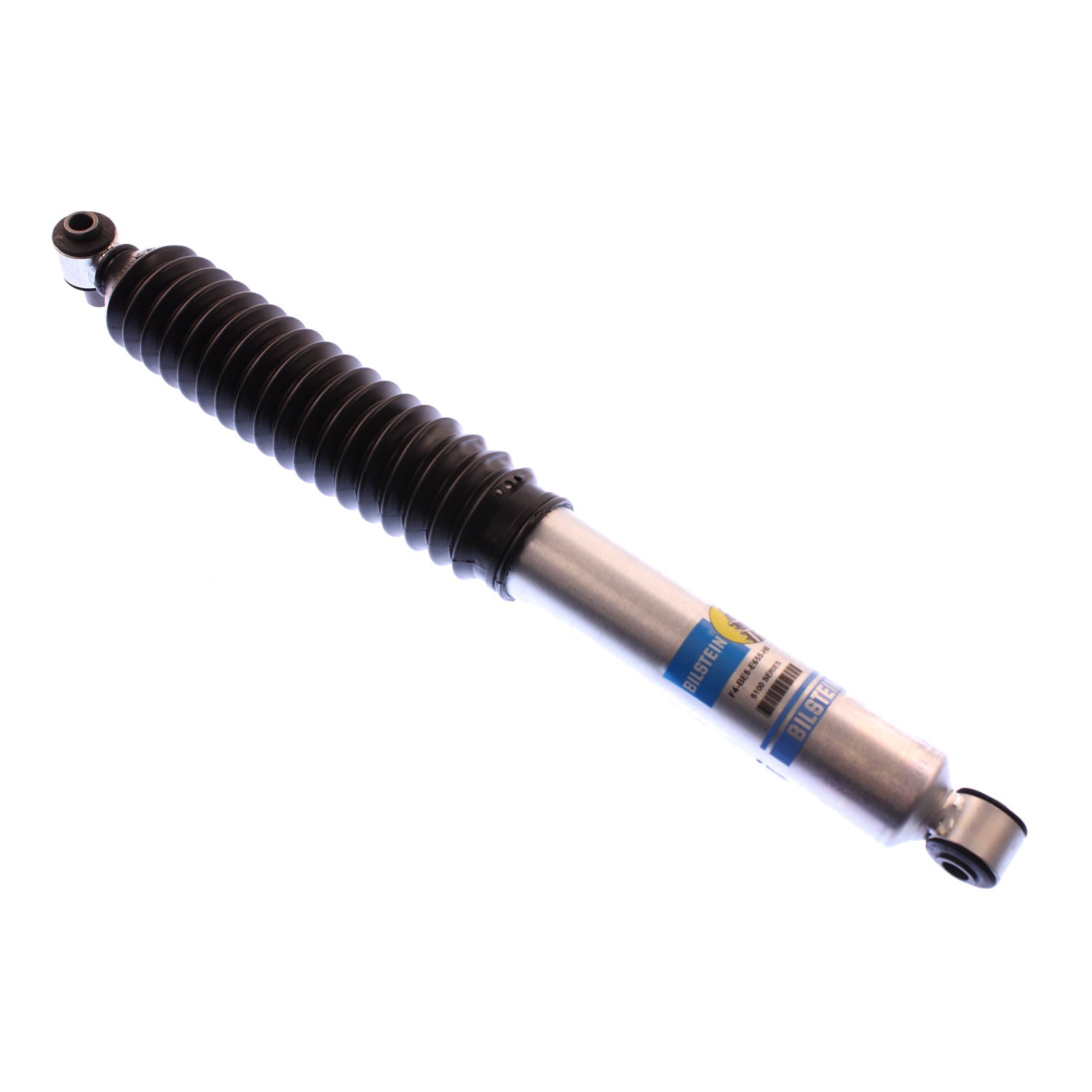

Bilstein 24-187077 - Suspension Shock Absorber Front Monotube Blazer B8 5100 Bilstein

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV's. These shock absorbers feature a monotube design which provides consistent fade free performance.

B8 5100 shock absorbers utilize a unique, velocity sensitive, Digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved.

B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Details:

• Series: B8 5100
• Internal Design:Monotube
• Lift Height: 3-4 Inch
• Lower Mount Type: Eye 12.7mm
• Upper Mount Type: Eye 12.7mm
• Finish: Zinc Plated
• Adjustable: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length Inch: 13.66
• Extended Length Inch: 21.62
• Boot Included:Black Bellows
• Pistion Diameter: 46mm
• Postion: Front
• Reservior: No
• Shaft Diameter: 14mm
• Stroke Travel Length In: 7.96
• Stroke Travel Length In: 202.2
• Notes: For Front Lifted Height 3-4 Inch
• Applications: Chevrolet Blazer 1974-1973, Blazer 1991-1987, K5 Blazer 1986-1975, K10 1986-1975, K10 Pickup 1974-1969, K10 Suburban 1986-1973, K20 1986-1975, K20 Pickup 1974-1969, K20 Suburban 1986-1973, K30 1986-1977, K30 Pickup 1974-1969, V10 Suburban 1988-1987, V20 Suburban 1988-1987, V1500 Suburban 1991-1989, V2500 Suburban 1991-1989, GMC Jimmy 1991-1973, K15 1978-1975, K15 Suburban 1978-1975, K25 1978-1975, K25/K2500 Pickup 1974-1969, K25 Suburban 1978-1975, K35 1978-1977, K35/K3500 Pickup 1974-1969, K1500 1986-1979, K1500 Suburban 1986-1979, K2500 1986-1979, K2500 Suburban 1986-1979, K3500 1986-1979, V1500 Suburban 1991-1987, V2500 Suburban 1991-1987
• Warranty: Limited Lifetime Warranty

Warranty

Limited Lifetime Warranty

Specifications
