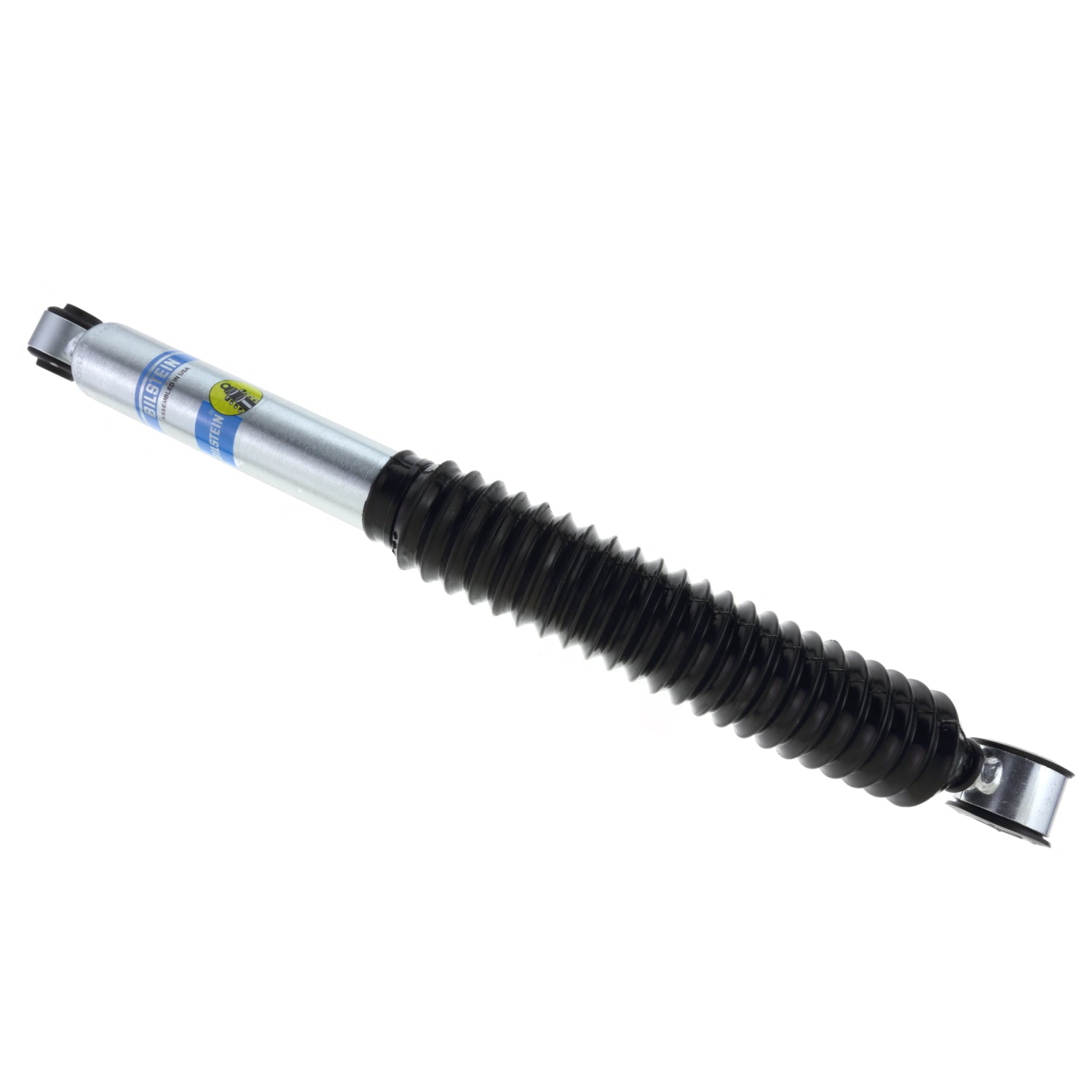

Bilstein 24-234498 - Suspension Shock Absorber B6 Monotube Front 2002-2021 Freightliner

A front monotube shock absorber with 14mm shaft diameter, the Bilstein 24-234498 B6 delivers suspension control for heavy-duty applications. Fits the 2002-2003 and 2005-2021 Freightliner XC Straight Rail and XC Straight Rail Base; the 2005-2021 Freightliner XC Raised Rail and XC Raised Rail Base; the 2008-2021 Freightliner XC Modular Rail and XC Modular Rail Base; the 2007-2019 Freightliner XC Lowered Rail and XC Lowered Rail Base; the 2005-2007 Freightliner XC Formed Rail and XC Formed Rail Base; and the 2002-2005 Freightliner XC and XC Base. This damper incorporates 12.9mm upper and 19.1mm lower eye mounts that provide secure chassis attachment while allowing articulation. The zinc-plated finish protects against corrosion, and the unit measures 381mm (15 inches) when fully collapsed and extends to 612.5mm (24.11 inches), creating a stroke range suited to varied road conditions. A black bellows boot is included to prevent dust contamination of the internal mechanisms.

• Internal Design: Monotube
• Series: B6
• Position: Front
• Upper Mount Type: Eye 12.9mm
• Boot Included: Black Bellows
• Finish: Zinc Plated
• Lower Mount Type: Eye 19.1mm
• Shaft Diameter: 14MM
• Collapsed Length (IN): 15.00
• Extended Length (IN): 24.11
• Collapsed Length (mm): 381.0
• Extended Length (mm): 612.5
• Collapsed Length Inch: 15
• Collapsed Length mm: 381
• Extended Length Inch: 24.11
• Postion: Front
• Segment: Heavy Duty
• PartType: Shocks / Struts
