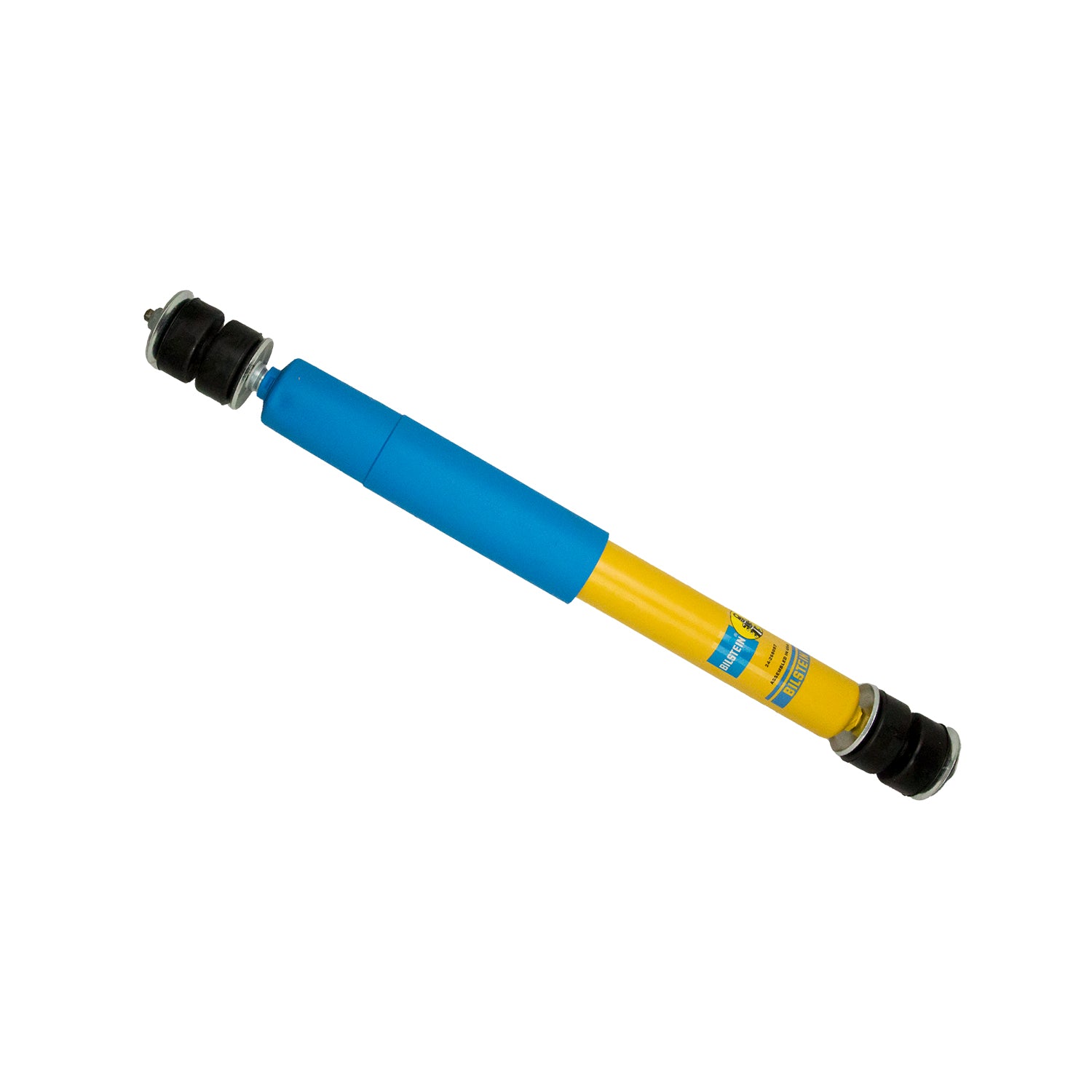

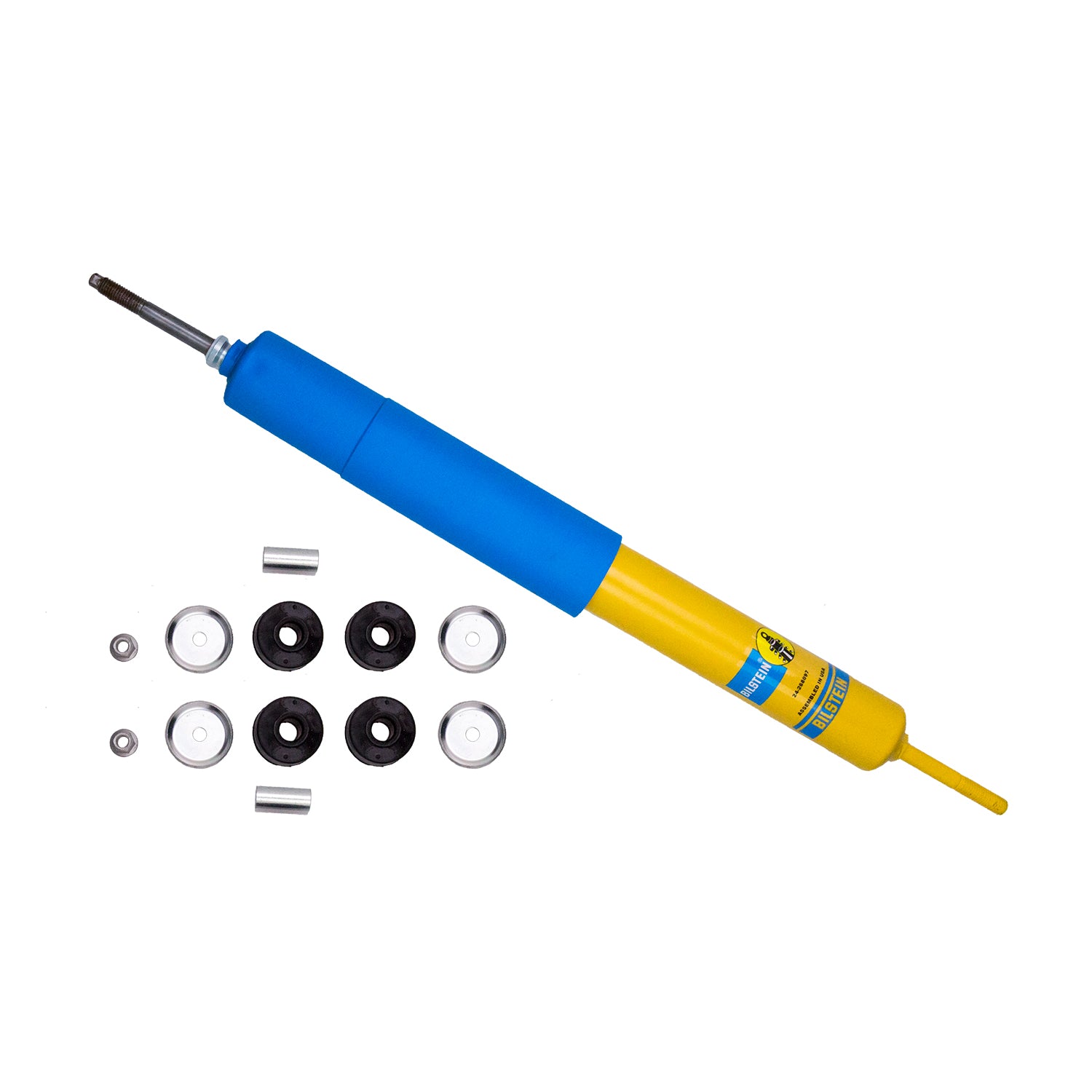

Bilstein 24-268097 - Suspension Shock Absorber Rear Monotube C4500 Kodiak 2011-2004 B6 Bilstein

Bilstein B6 shock absorbers and struts are the ideal choice for improving the performance of any vehicle. These shock absorbers and struts feature a monotube design which provides consistent fade free performance.

Bilstein B6 shock absorbers and struts utilize a unique, velocity sensitive, Digressive piston which reacts to changing road conditions to provide consistent fade free performance.

All B6 shock absorbers and struts are tuned for each specific application to assure optimal performance is achieved. Bilstein B6 shock absorbers and struts offer a significant improvement in ride quality, handling, and comfort.

Details:

• Series: B6
• Internal Design:Monotube
• Lower Mount Type: Stem
• Upper Mount Type: Stem
• Finish: Yellow Paint
• Collapsed Length Inch: 12.26
• Collapsed Length mm: 311.5
• Extended Length Inch: 20.37
• Extended Length mm: 517.5
• Boot Included:Blue Straight
• Postion: Rear
• Shaft Diameter: 14mm
• Notes: Pin to Pin Mounting Type
• Applications: Chevrolet C4500 Kodiak 2011-2004, C5500 Kodiak 2011-2004, GMC C4500 Topkick 2011-2004, C5500 Topkick 2011-2004, Holiday Rambler Vacationer 2011-2005, Vacationer XL 2008-2006, Monaco Coach La Palma 2011-2005, La Palma Diesel 2006, La Palma XL 2008-2007, Monarch 2011-2005, Monarch SE 2005, Monarch SVE 2007, Workhorse W20 2009-2005, W20 Chassis 2011-2010, W22 2009-2005, W22 Chassis 2011-2010, W24 2009-2005, W24 Chassis 2010
• Warranty: Limited Lifetime Warranty

Warranty

Limited Lifetime Warranty

Specifications
