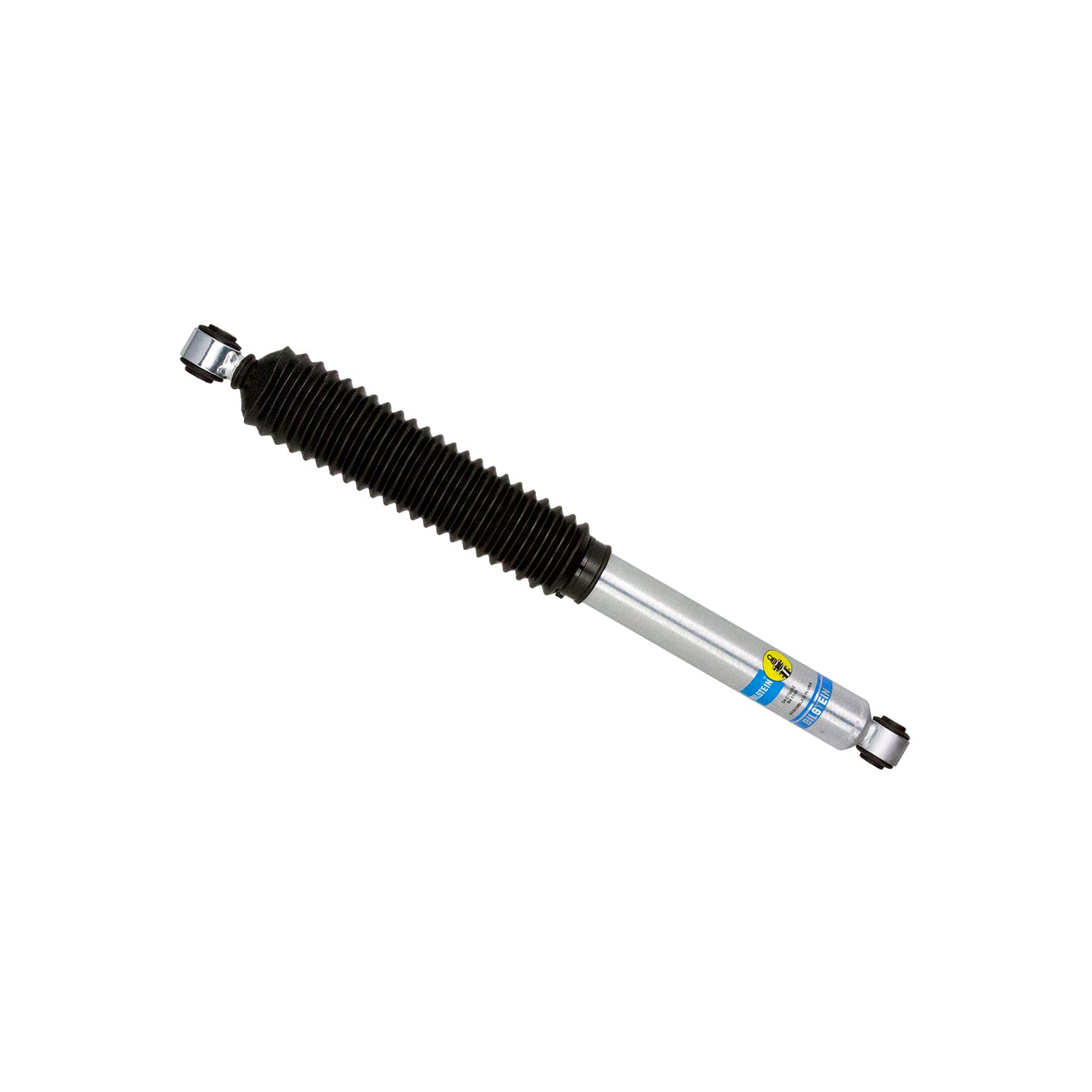

Bilstein 24-275002 Suspension Shock Absorber Rear Monotube B8 5100
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
B8 5100 - Suspension Shock Absorber
RAM 1500 2WD; '09-17; R; B8 5100; 0-1”
Specifications
| Body Design | Smooth Body (Non-Coilover) |
| Collapsed Length (IN) | 16.44 |
| Reservoir | No |
| Lower Mount Type | Eye 14.2mm |
| Finish | Zinc Plated |
| Collapsed Length (MM) | 417.5 |
| Upper Mount Type | Eye 14.2mm |
| Internal Design | Monotube |
| Series | B8 5100 |
| Boot Included | Black Bellows |
| Title | Bilstein Shock Absorbers |
| Adjustable Damping | Non-Adjustable |
| Spring Seat Included | No |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Extended Length (IN) | 26.07 |
| Extended Length (MM) | 662.2 |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 243.8 |
| Stroke/Travel Length (IN) | 9.60 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
