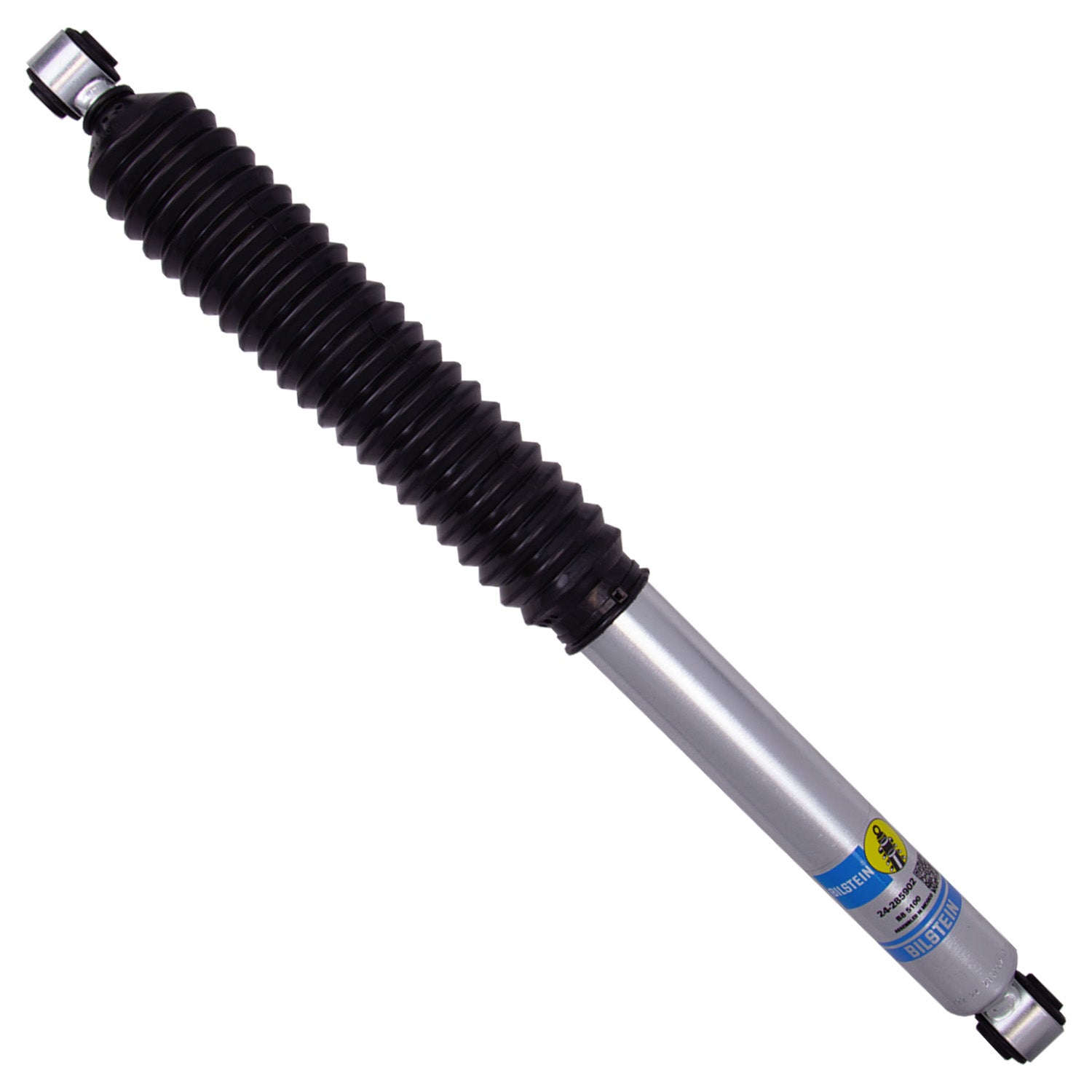

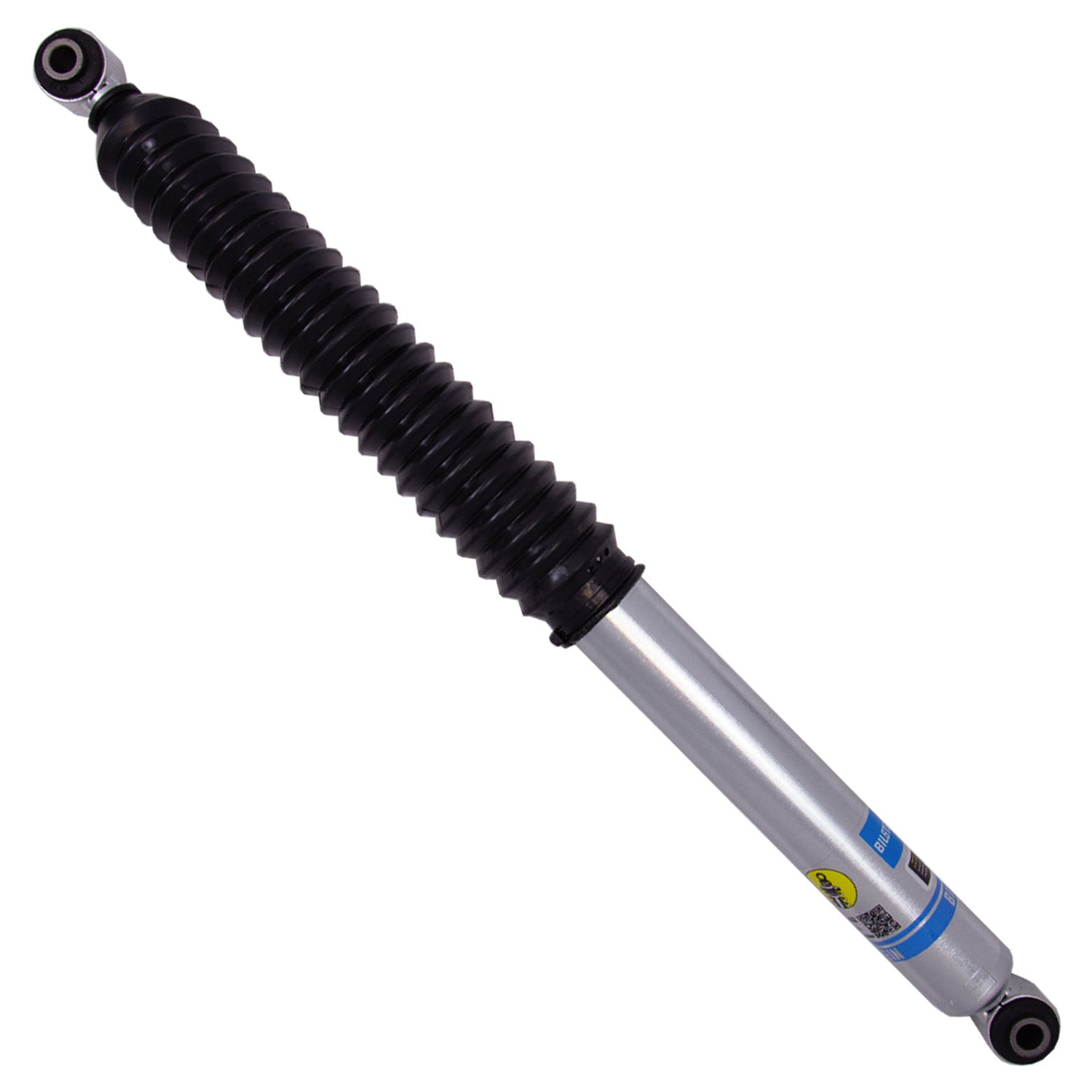

Bilstein 24-285902 - Suspension Shock Absorber B8 5100 Monotube Rear 2014-2019 Chevrolet/GMC
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
B8 5100 - Suspension Shock Absorber
GM 1500 2/4WD '14-'18; R; B8 5100; 4"lft
Specifications
| Internal Design | Monotube |
| Extended Length (IN) | 28.20 |
| Upper Mount Type | Eye 14.1mm |
| Extended Length (MM) | 716.3 |
| Reservoir | No |
| Series | B8 5100 |
| Lower Mount Type | Eye 14.1mm |
| Boot Included | Black Bellows |
| Body Design | Smooth Body (Non-coilover) |
| Finish | Zinc Plated |
| Title | Bilstein Shock Absorbers |
| Adjustable Damping | Non-Adjustable |
| Spring Seat Included | No |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Collapsed Length (IN) | 18.57 |
| Collapsed Length (MM) | 471.6 |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 244.9 |
| Stroke/Travel Length (IN) | 9.64 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
