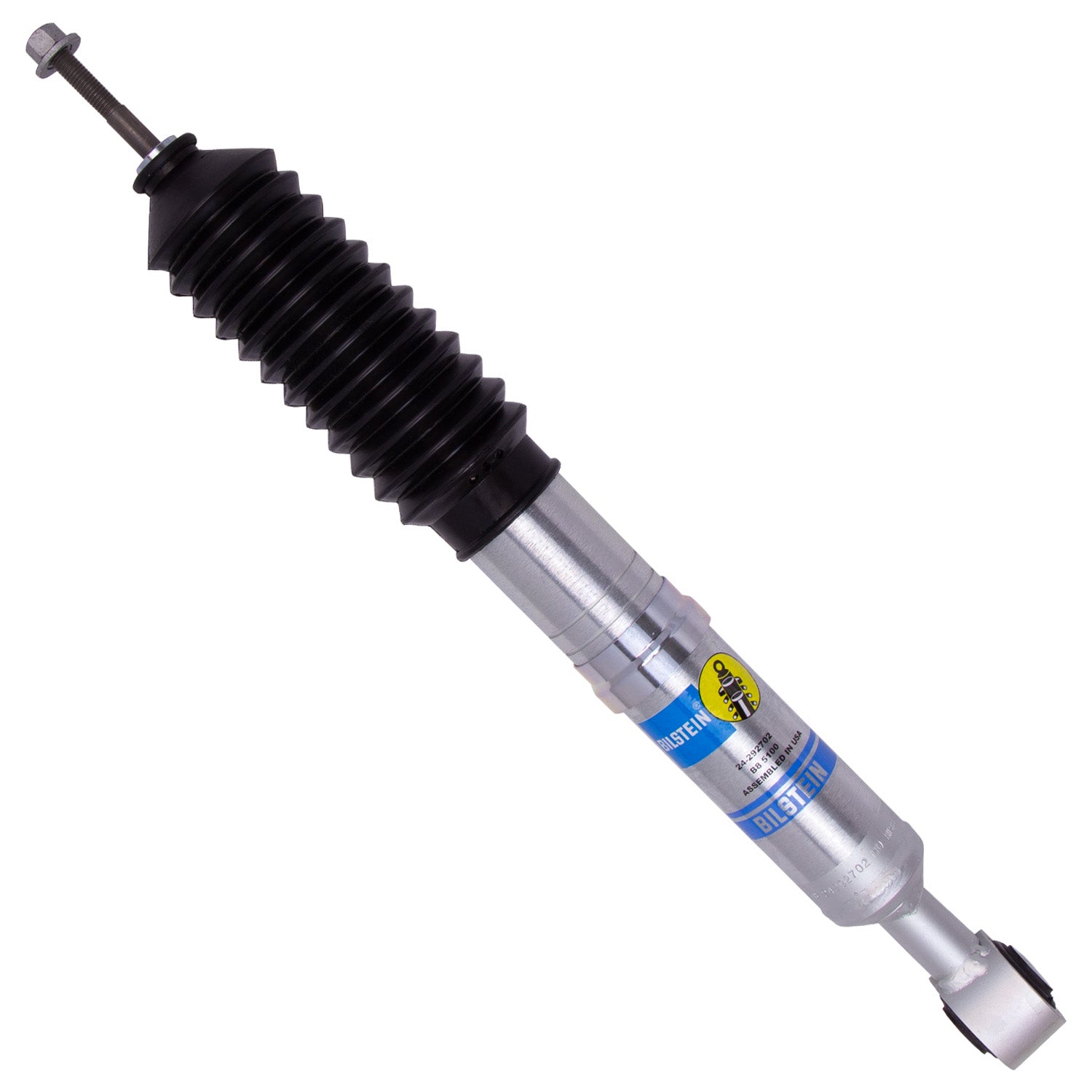

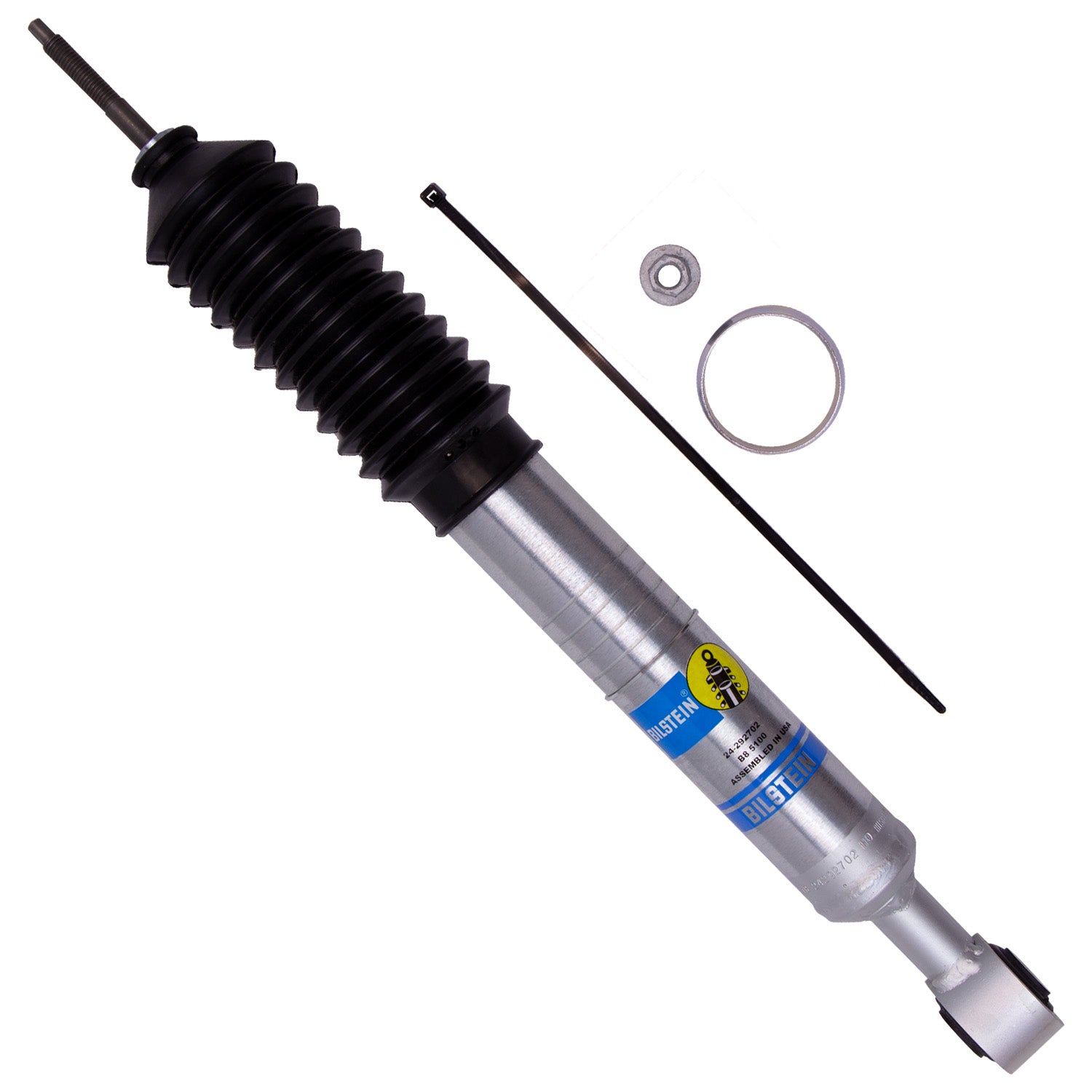

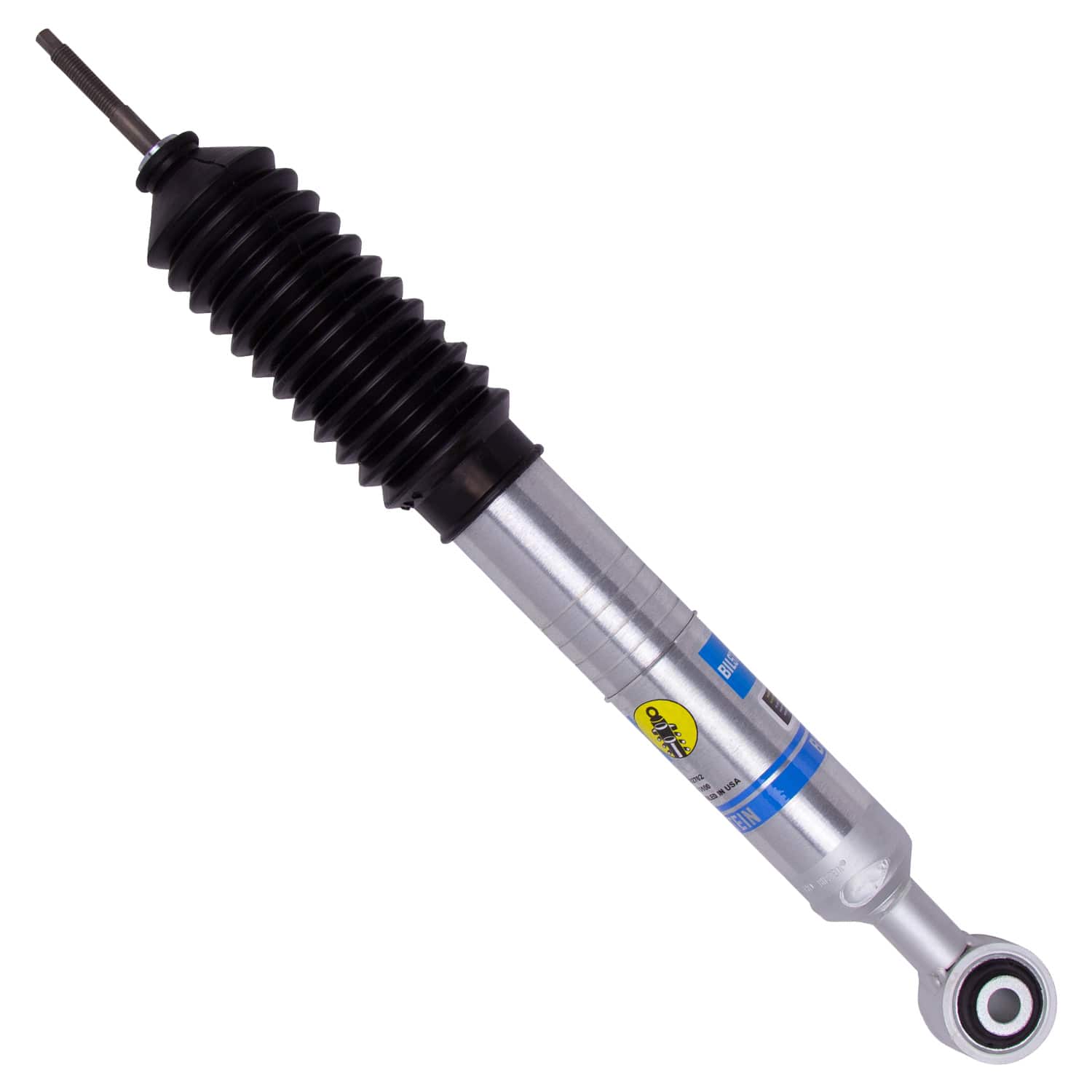

Bilstein 24-292702 - Suspension Shock Absorber B8 5100 (Ride Height Adjustable) Monotube Front 2015-2022 Chevrolet/GMC
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
GM Colorado 2/4WD; '15+; F; B8 5100
Specifications
| Lower Mount Type | Eye 14.1mm |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Collapsed Length (IN) | 14.76 |
| Title | Bilstein Shock Absorbers |
| Boot Included | Black Bellows |
| Extended Length (IN) | 19.45 |
| Extended Length (MM) | 494.0 |
| Reservoir | No |
| Internal Design | Monotube |
| Upper Mount Type | Stem |
| Finish | Zinc Plated |
| Series | B8 5100 (Ride Height Adjustable) |
| Adjustable Damping | Non-Adjustable |
| Spring Seat Included | No - Reuse OEM |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Piston Diameter | 46mm |
| Collapsed Length (MM) | 375.0 |
| Stroke/Travel Length (mm) | 119.1 |
| Shaft Diameter | 18mm |
| Stroke/Travel Length (IN) | 4.69 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
