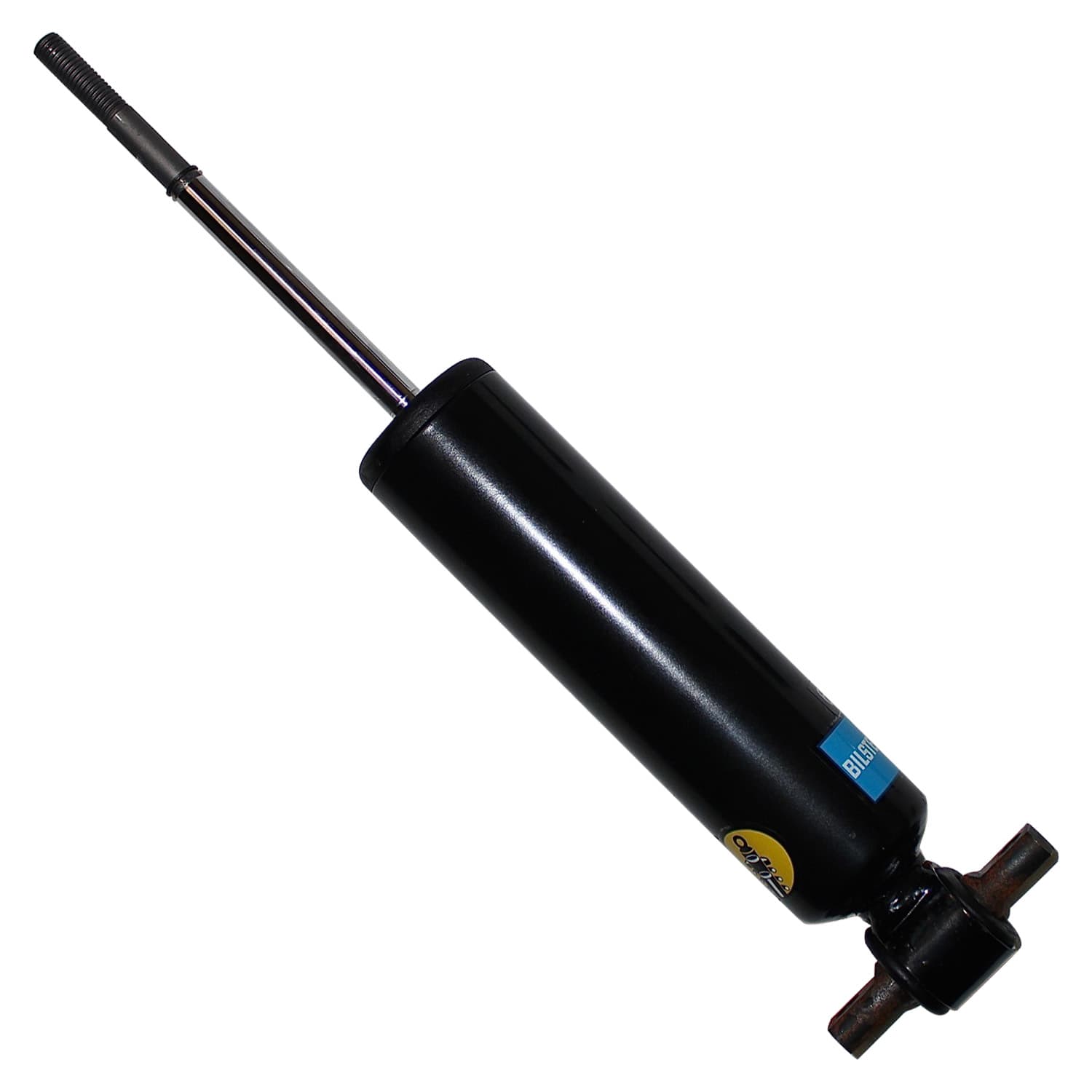

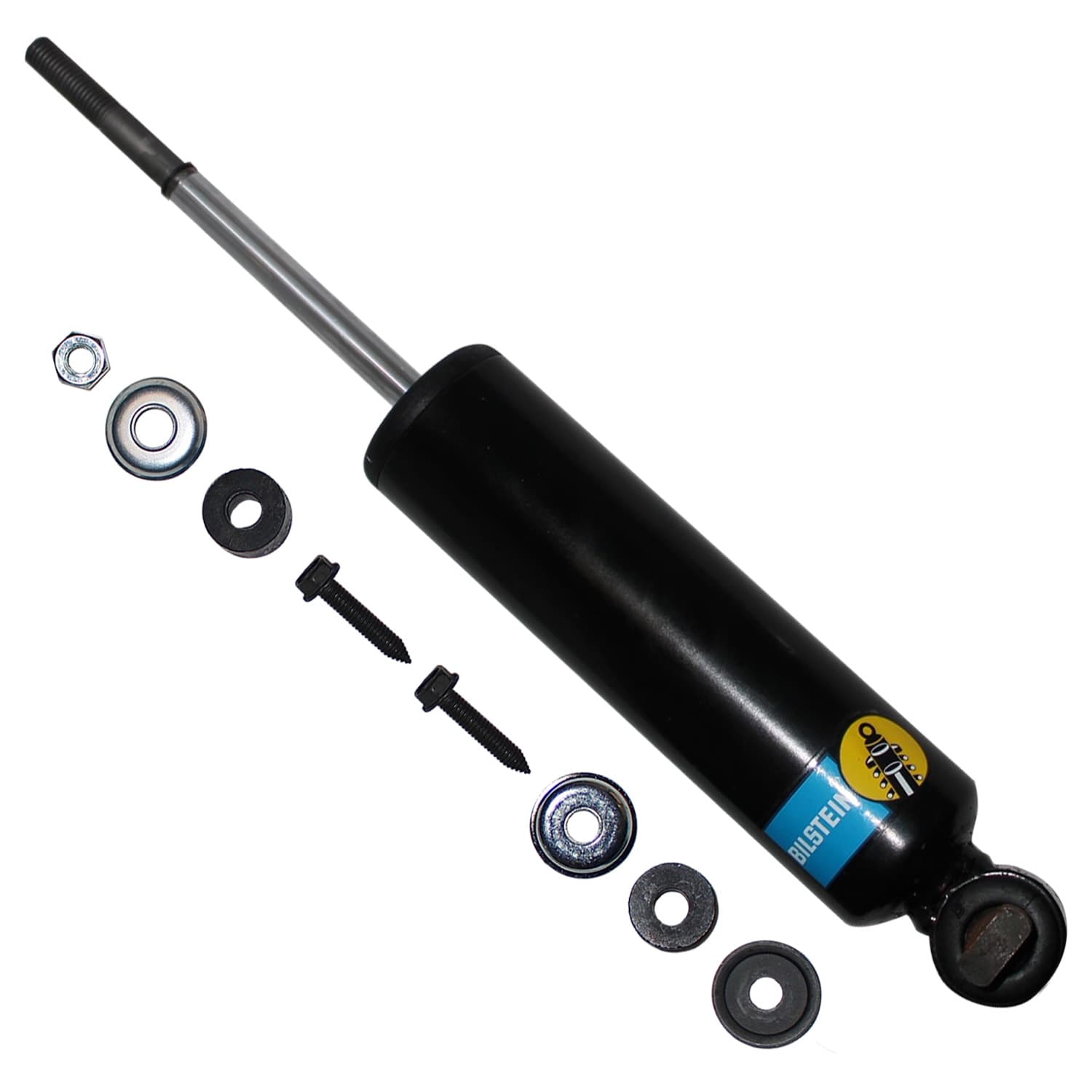

Bilstein 24-296786 - Suspension Shock Absorber SMX Series Monotube
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
This steel monotube shock absorber with a 46mm piston diameter is the Bilstein 24-296786, part of the SMX Series built for motorsports applications using stock suspension mount points. The shock features a 11mm shaft diameter, a linear piston design, and non-adjustable damping tuned for track use. It delivers 225 lb of compression and 325 lb of rebound force at 10 inches per second. The boot is not included. The spring seat is not included.
- Piston diameter: 46mm
- Shaft diameter: 11mm
- Internal design: Monotube
- Body material: Steel
- Finish: Black Paint
- Piston type: Linear
- Adjustable damping: Non-adjustable
- Upper mount type: Stem
- Lower mount type: Bar Pin
- Body design: Stock mount smooth body
- Extended length: 305.0 mm / 12.01 in
- Collapsed length: 210.0 mm / 8.27 in
- Stroke/travel length: 95.0 mm / 3.74 in
- Compression force at 10 in/sec: 225 lb
- Rebound force at 10 in/sec: 325 lb
- Boot included: No
- Spring seat included: No
Country of Origin: United States
