Bilstein 24-296854 - Suspension Shock Absorber SMX Series Monotube
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.

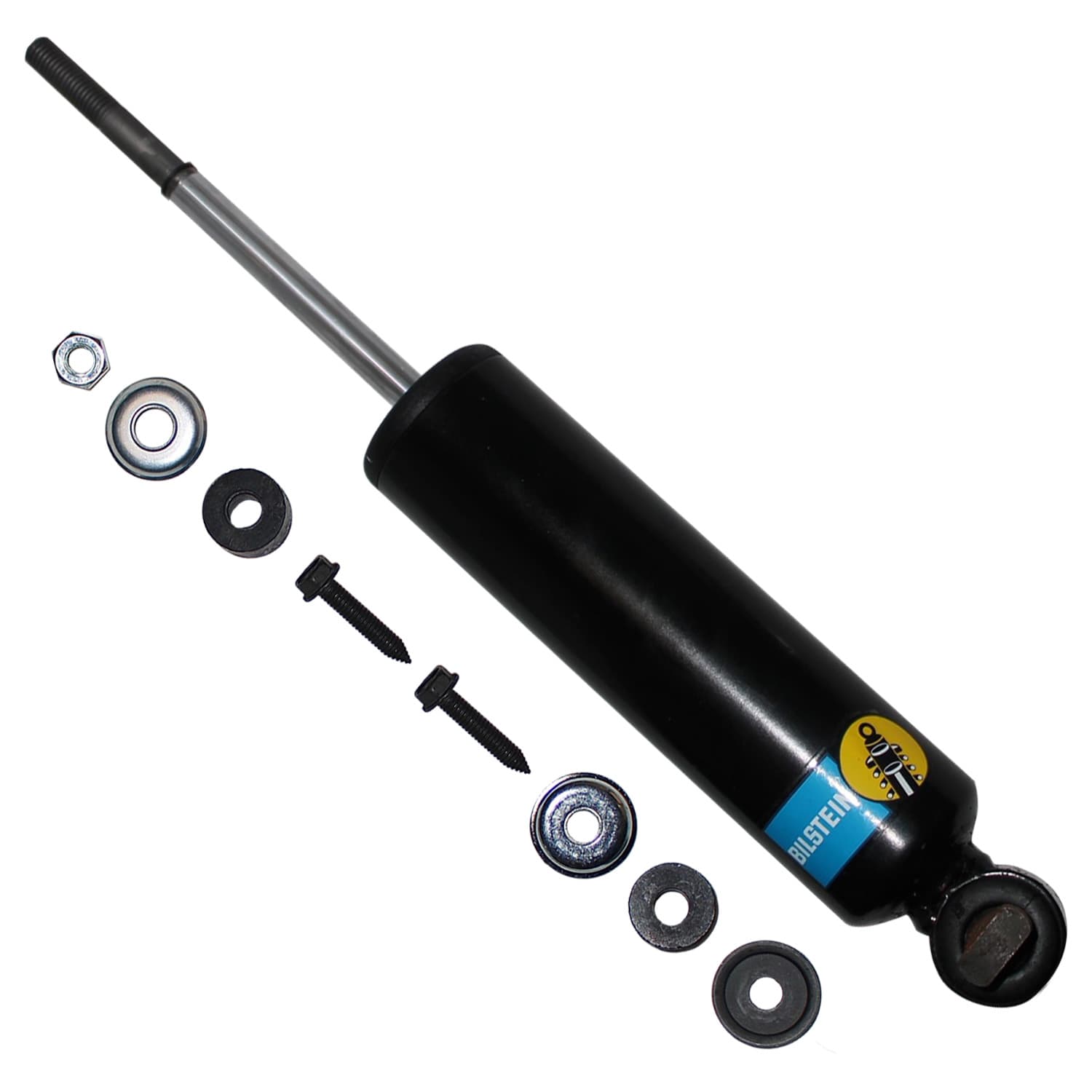

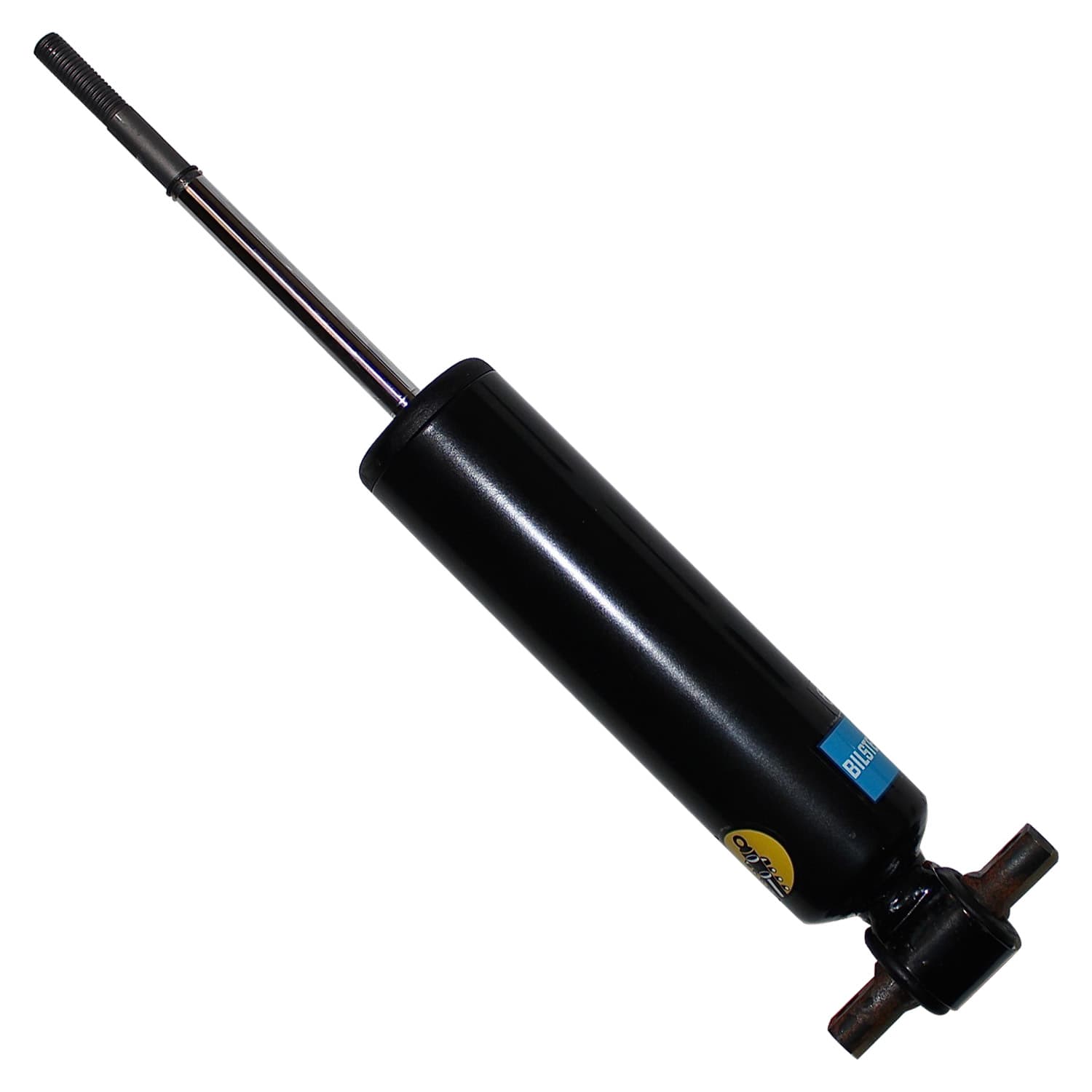

This monotube shock absorber, the Bilstein part number 24-296854 from the SMX Series, uses a 46mm piston to deliver damping control for motorsports applications. The shock features a stock mount smooth body design with a steel construction finished in black paint. It has a linear piston type, stem upper mount, and bar pin lower mount, with non-adjustable damping characteristics. The boot is not included. The spring seat is not included.
- Piston diameter: 46mm
- Shaft diameter: 11mm
- Compression at 10 inches per second: 325
- Rebound at 10 inches per second: 325
- Extended length: 12.01 inches
- Collapsed length: 8.27 inches
- Stroke/Travel length: 3.74 inches
- Body material: Steel
- Finish: Black paint
- Boot included: No
- Spring seat included: No
- Series: SMX
Weight: 3.24 lb
Country of Origin: United States
