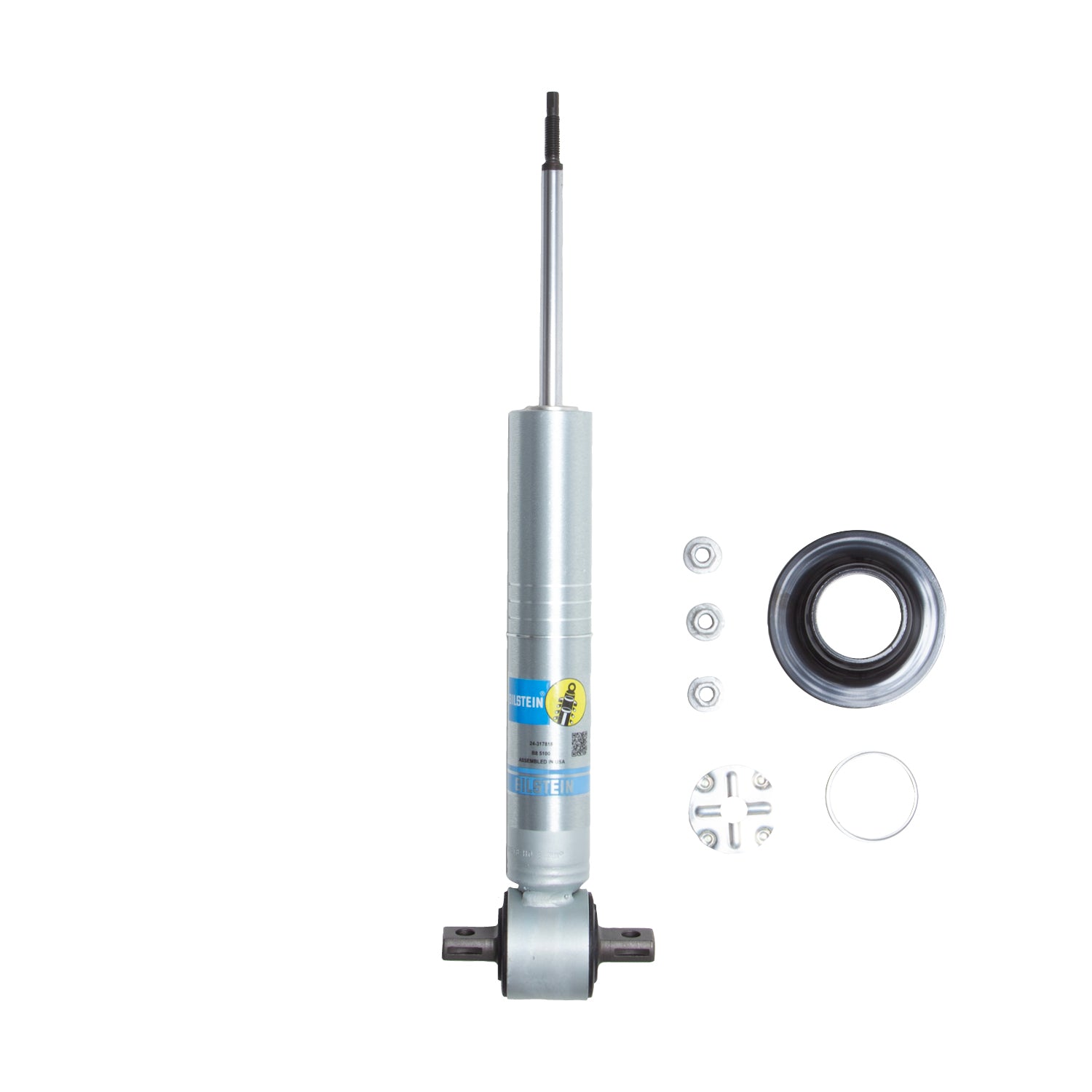

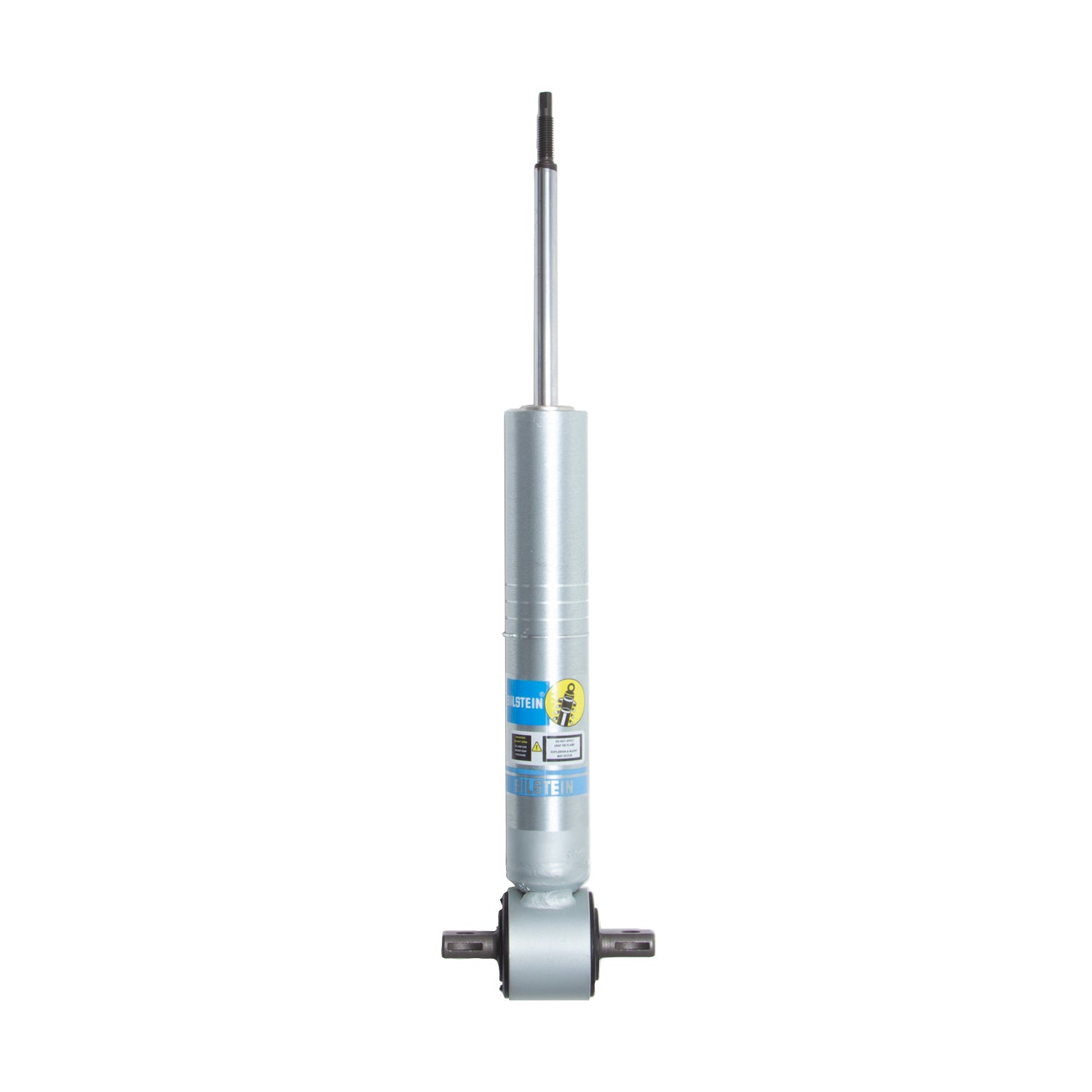

Bilstein 24-317818 - Suspension Shock Absorber B8 5100 (Ride Height Adjustable) Monotube Front 2007-2014 Chevrolet/GMC
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
Front shock absorbers for light trucks and SUVs, the Bilstein 24-317818 is a ride height-adjustable B8 5100 damper engineered for coil-spring suspension systems. Fits the 2007-2014 Chevrolet Suburban 1500 and Tahoe and GMC Yukon and Yukon XL 1500, and the 2007-2013 Chevrolet Avalanche and Silverado 1500 and GMC Sierra 1500. This monotube shock features a 46mm digressive piston with a self-adjusting deflective disc valve and includes multiple snap-ring grooves in the body for variable spring seat positioning, allowing 0 to 3 inches of front lift with factory springs depending on application. The 14mm shaft diameter and zinc-plated finish provide durability and reliable corrosion resistance across diverse terrain and weather conditions. Spring seat is included; boot and reservoir are not.
- Segment: Light Truck
- PartType: Shocks / Struts
- Series: B8 5100 (Ride Height Adjustable)
- Internal Design: Monotube
- Piston Diameter (mm): 46
- Shaft Diameter (mm): 14
- Lift Height (inch): 0-1.75
- Front Lift with Stock Length and Spacer (inch): 6
- Lower Mount Type: Bar Pin
- Upper Mount Type: Stem
- Finish: Zinc Plated
- Body Design: Snap Ring Grooved Body (Coilover)
- Spring Seat Included: Yes
- Adjustable: Non-Adjustable
- Collapsed Length (MM): 329.0
- Collapsed Length (inch): 12.95
- Extended Length (MM): 470.0
- Extended Length (inch): 18.50
- Stroke/Travel Length (mm): 141.0
- Stroke/Travel Length (inch): 5.55
- Boot Included: No
- Reservoir Included: No
- Position: Front
- Notes: Without Z55 Autoride Suspension Package, Without Air Leveling Suspension, Without Police Package
- Lift Height: 0-1.75 Inch
- 75 Inch Front Lift Height 6 Inch when utilizing stock length shock with lift spacer Without Z55 Autoride Suspension Package Without Air Leveling Suspension Without Police Package
- Reservoir: No
- Postion: Front
- Reservior: No
Weight: 7.75 lb
Country of Origin: United States
