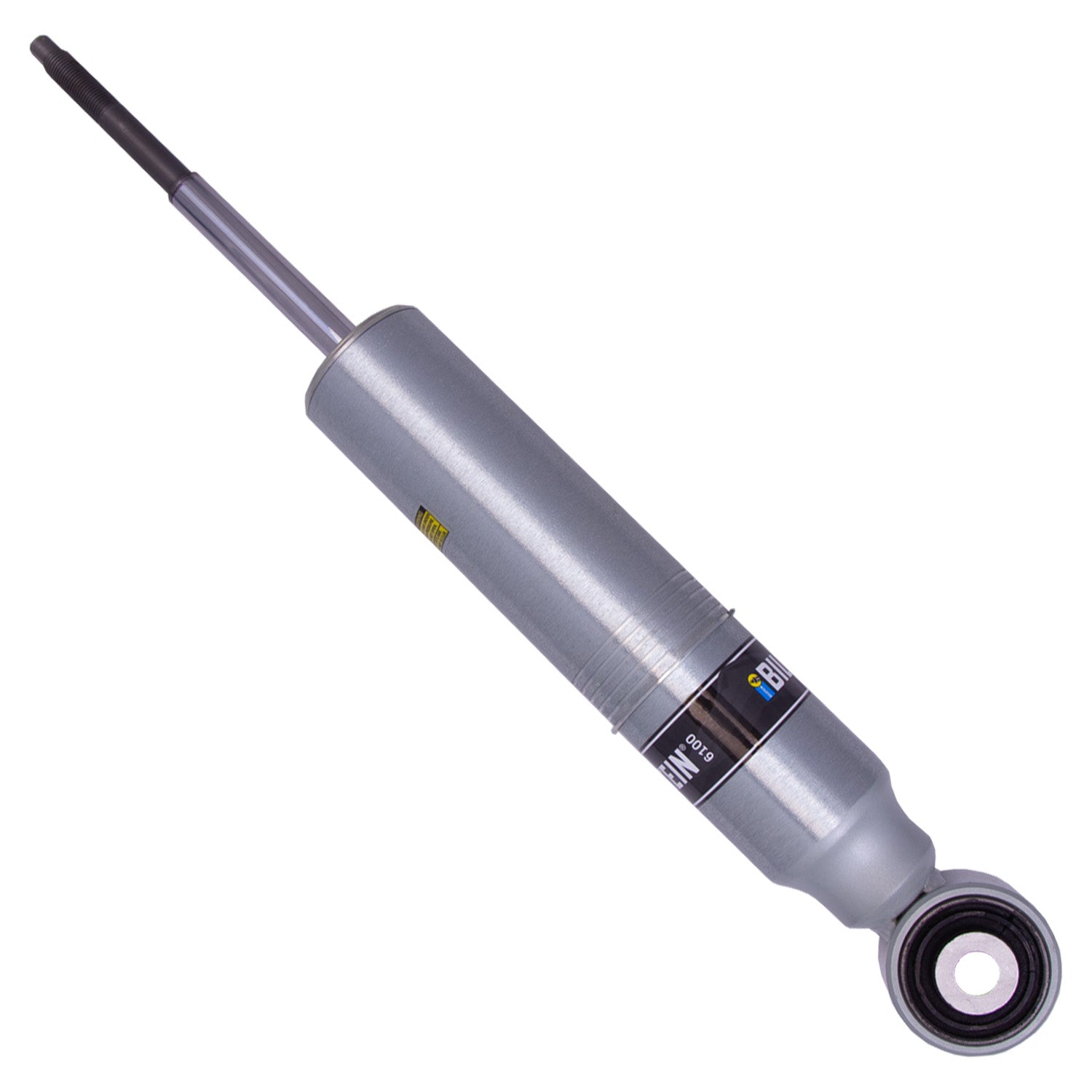

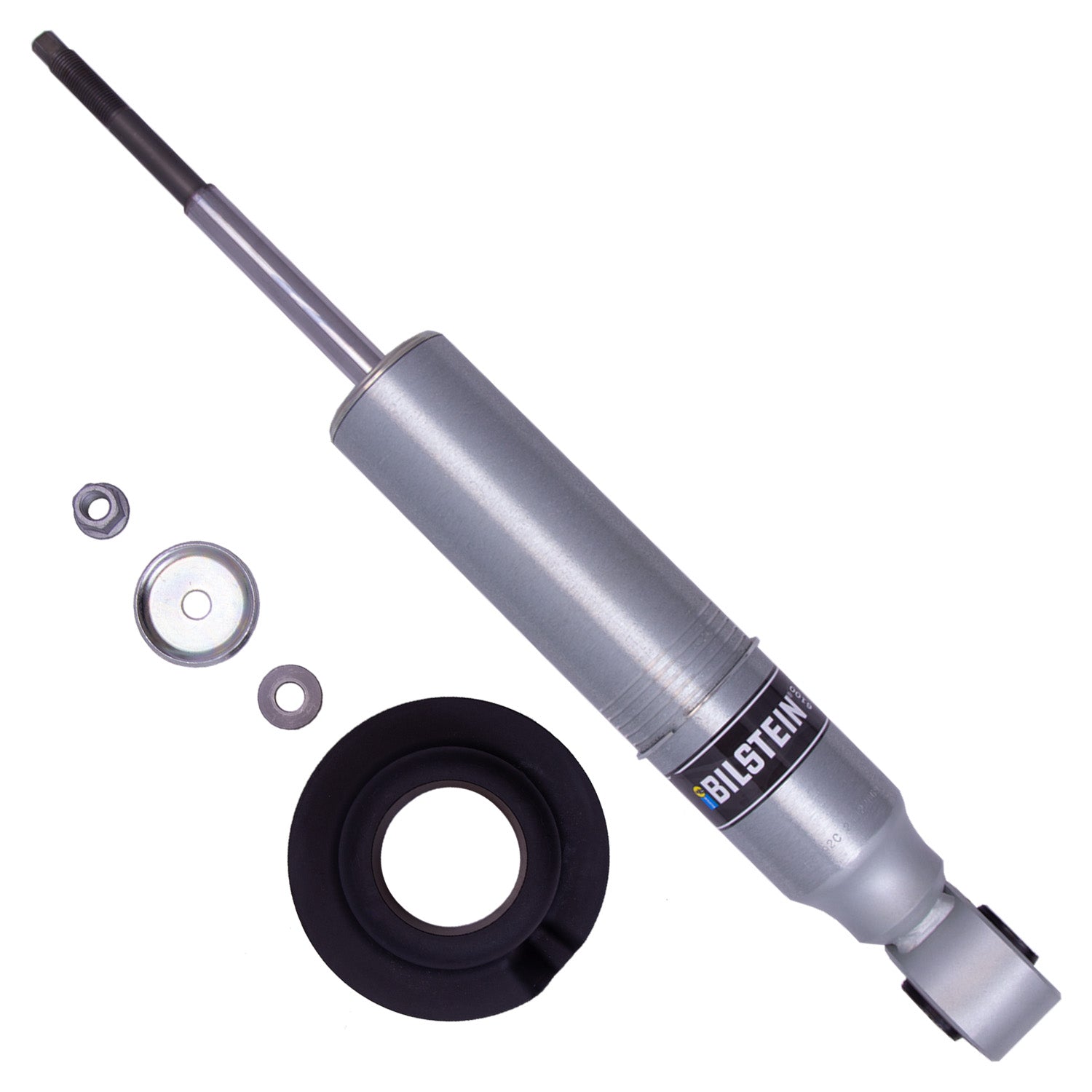

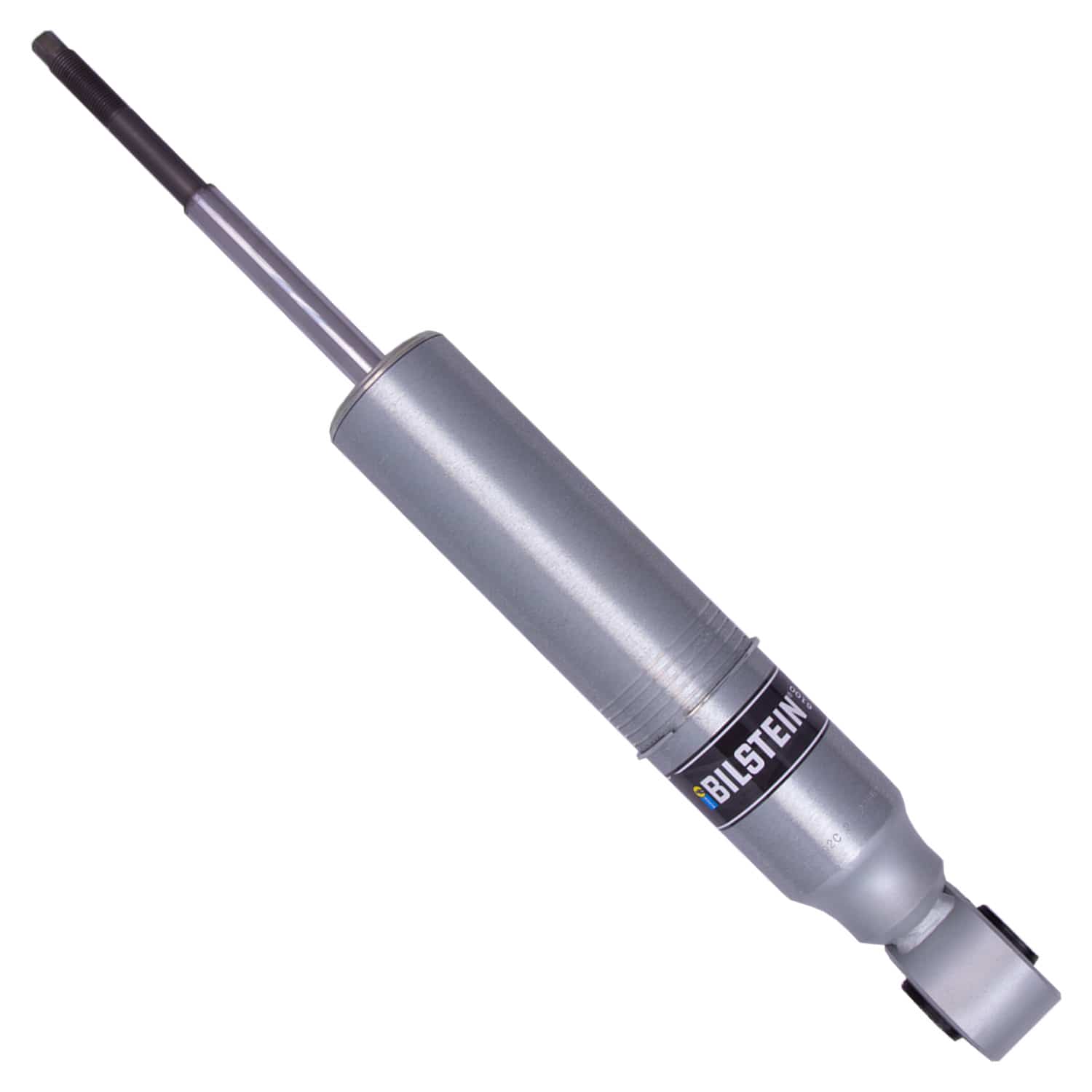

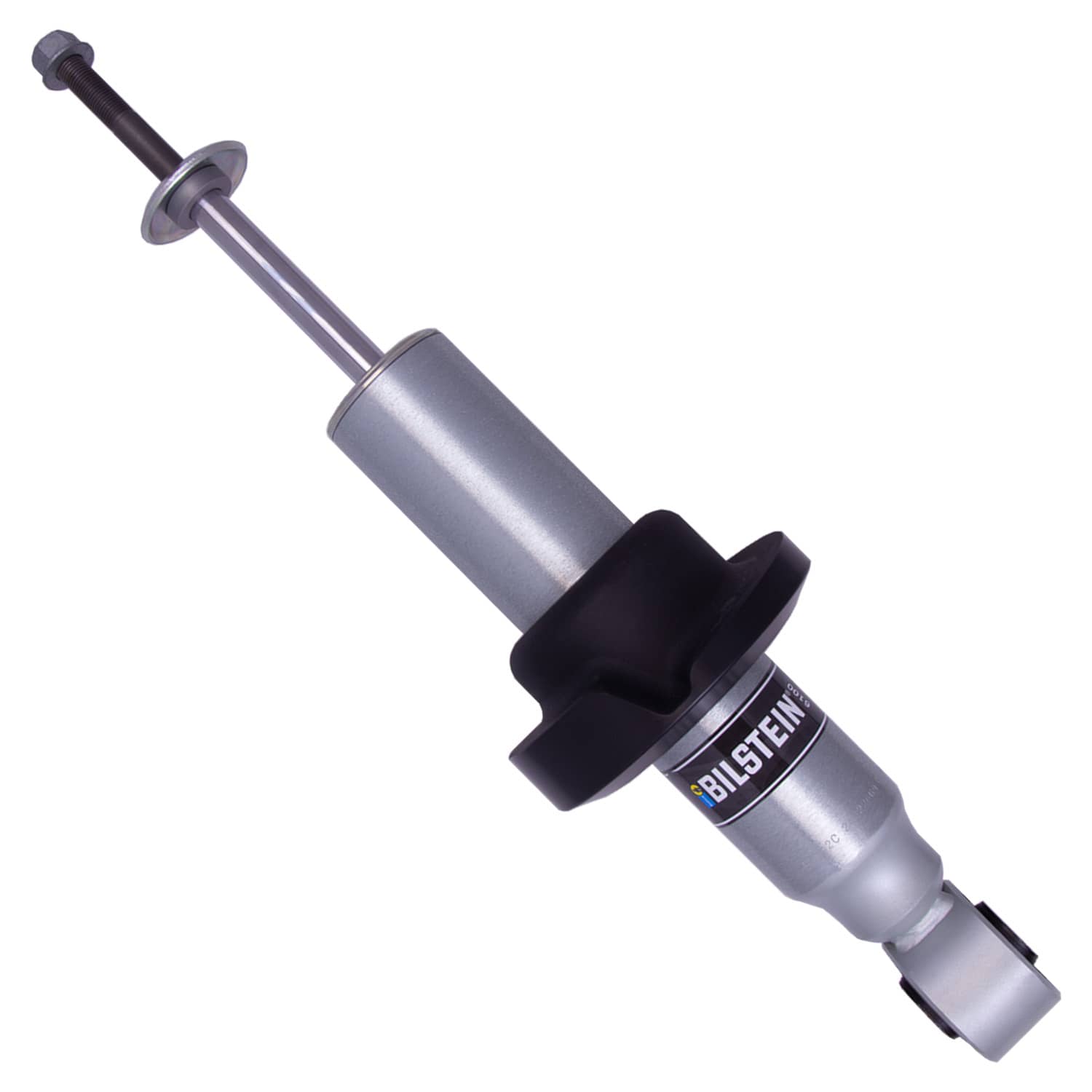

Bilstein 24-322669 - Suspension Shock Absorber Front Monotube Nissan TITAN XD 2024-2016 B8 6100 (Ride Height Adjustable) Bilstein
Product Availability Request
Fill the form and our team will contact you.
60mm Monotube Shock Absorber
Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 2.65 OD body and 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.
Features & Benefits
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
B8 6100 (Ride Height Adjustable) - Suspension Shock Absorber
Nissan Titan XD Diesel; '16-; F; B8 6100
Specifications
| Title | Bilstein Shock Absorbers |
| Finish | Zinc Plated |
| Adjustable Damping | Non-Adjustable |
| Internal Design | Monotube |
| Series | B8 6100 (Ride Height Adjustable) |
| Reservoir | No |
| Extended Length (IN) | 18.43 |
| Upper Mount Type | Stem |
| Extended Length (MM) | 468.0 |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Lower Mount Type | Eye 16mm |
| Collapsed Length (IN) | 14.42 |
| Collapsed Length (MM) | 366.2 |
| Boot Included | No Boot Supplied or Needed |
| Spring Seat Included | Yes |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Piston Diameter | 60mm |
| Stroke/Travel Length (mm) | 101.9 |
| Shaft Diameter | 18mm |
| Stroke/Travel Length (IN) | 4.01 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
