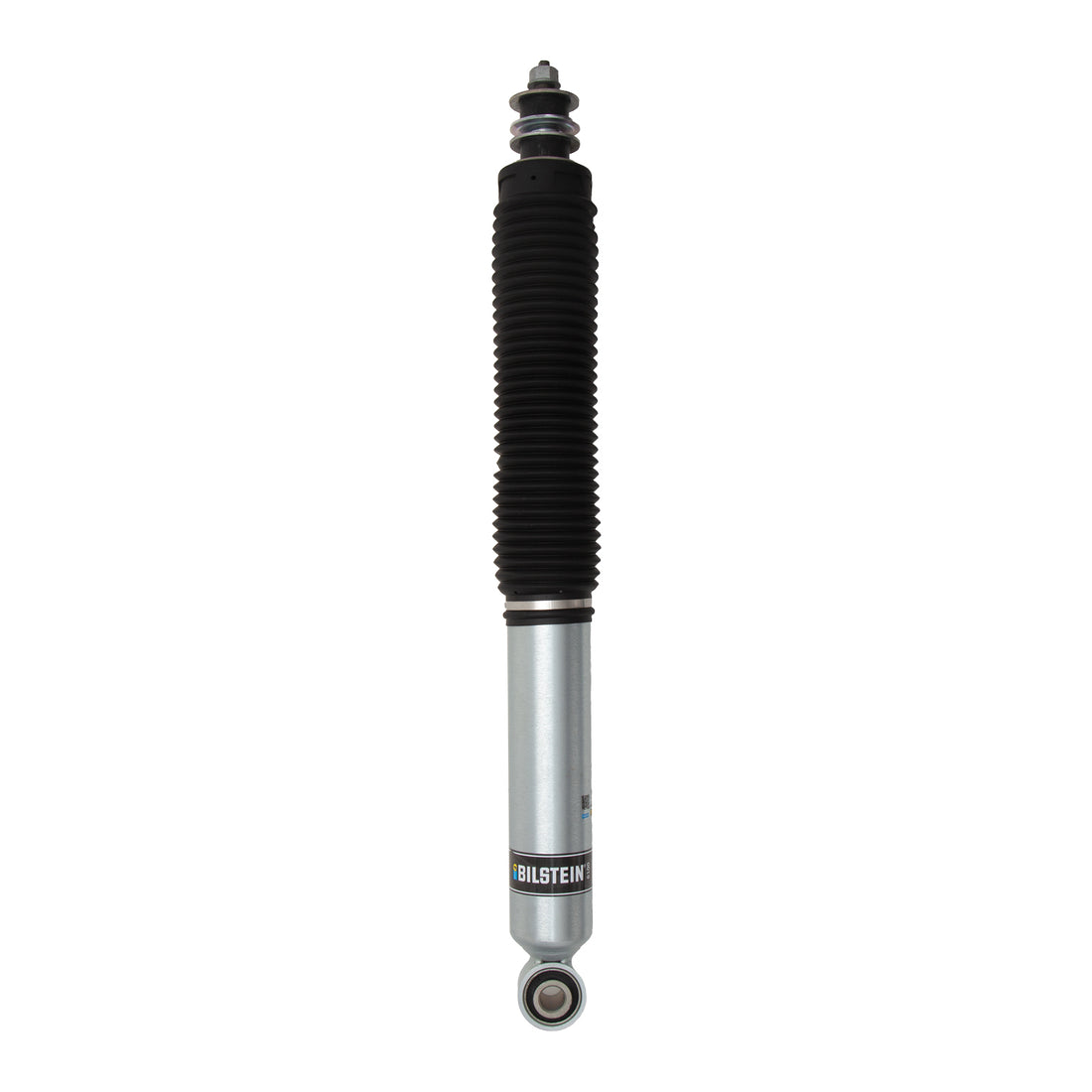

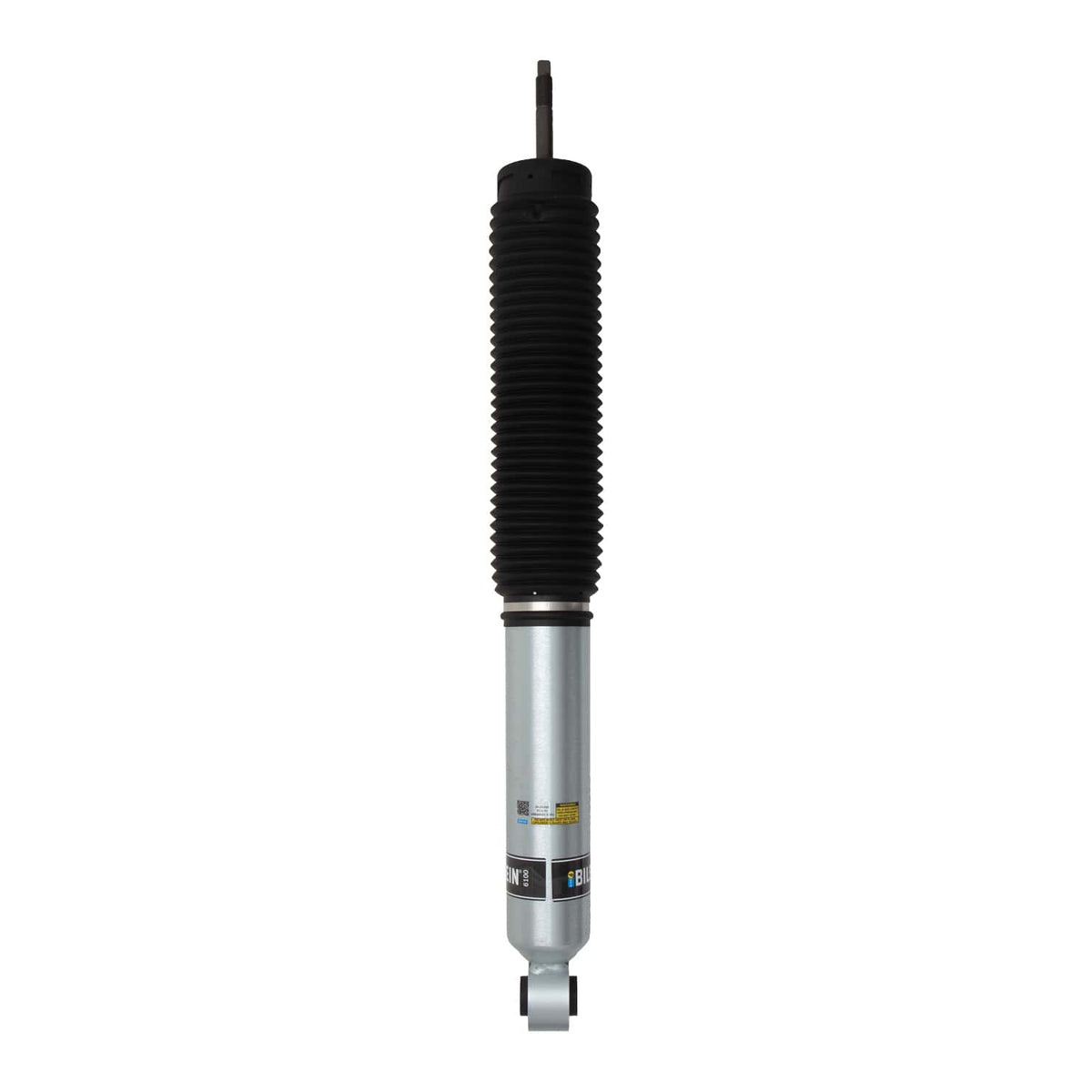

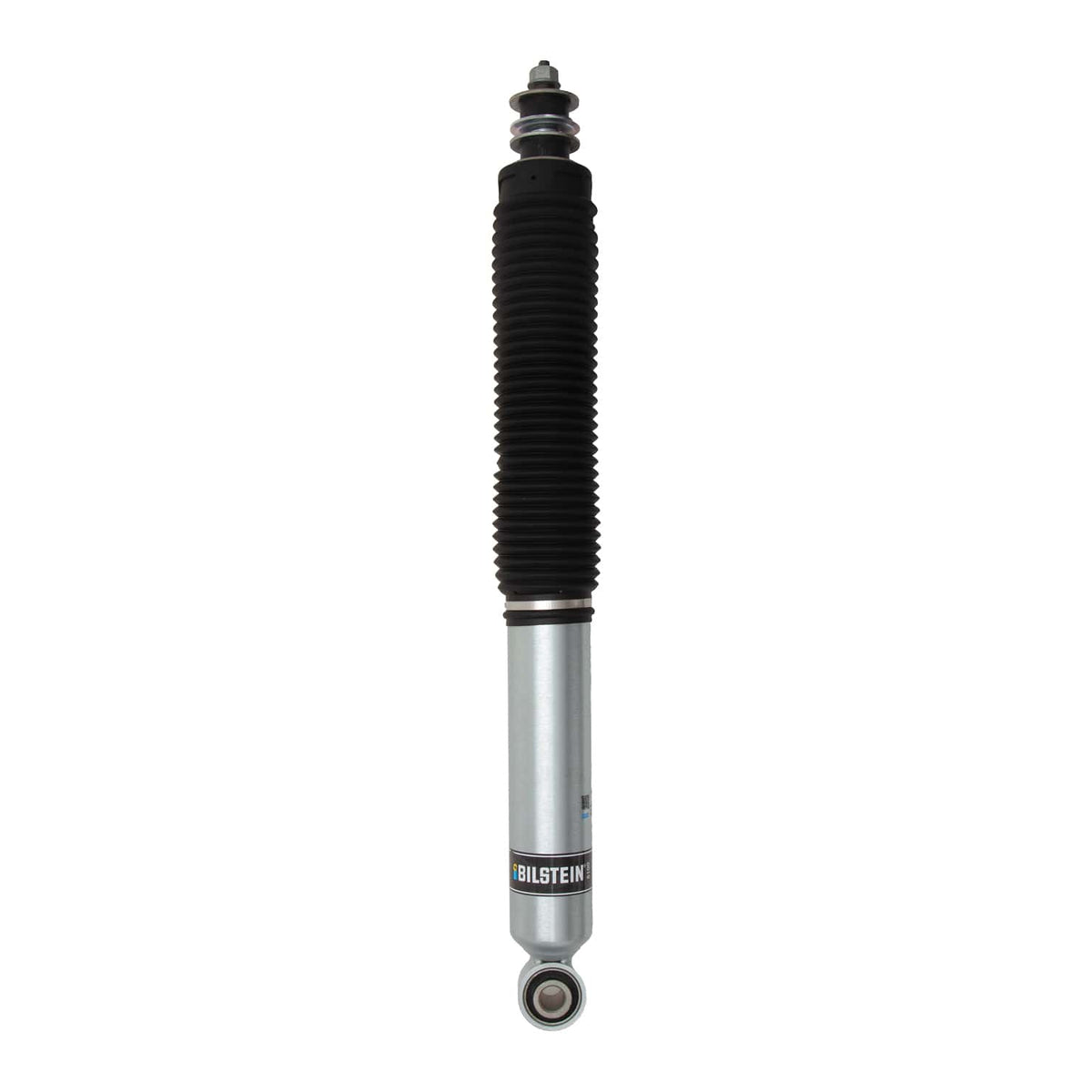

Bilstein 24-333269 - Suspension Shock Absorber B8 6100 Monotube 2024-2026 Toyota Tacoma
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.

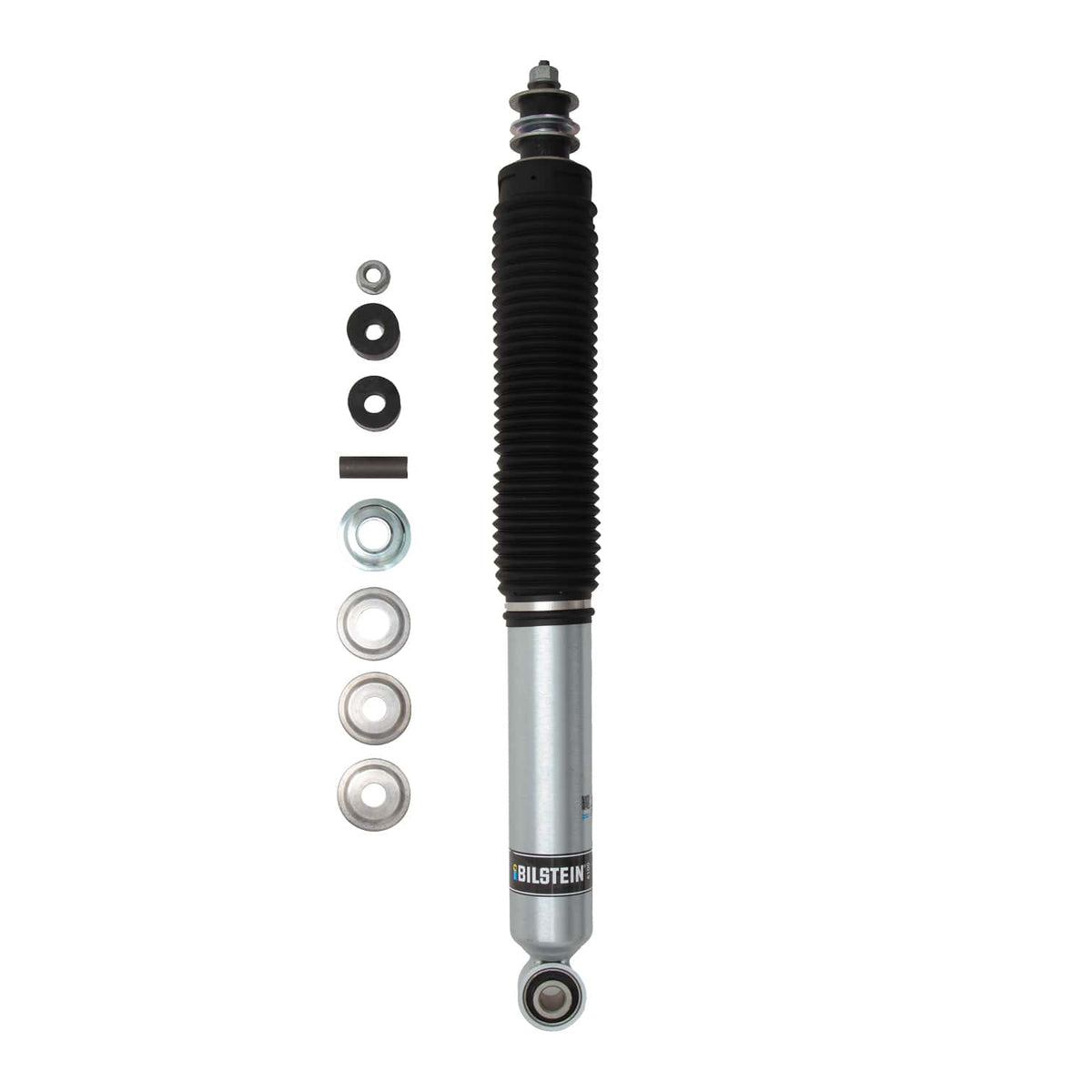

A monotube shock absorber, the Bilstein 24-333269 belongs to the B8 6100 series and has a smooth body that is non-coilover. Fits the 2024-2026 Toyota Tacoma SR5, Tacoma TRD Off-Road and Tacoma TRD Sport, and the 2024 Toyota Tacoma Limited. Its piston diameter is 60mm, and the digressive piston improves ride comfort and control over rough terrain. The monotube gas pressure design uses a large 2.65-in OD body that maximizes heat dissipation for increased shock life, and it decreases oil foaming to prevent performance loss. The shaft diameter is 18mm, the lower eye mount measures 19.1mm, and the upper mount is a stem. The shock extends to 649.2 mm (25.56 IN) and collapses to 420.4 mm (16.55 IN), giving a stroke of 228.9 mm (9.01 IN), and a black bellows boot and spring seat are included. The damping is non-adjustable, there is no reservoir, the finish is zinc plated, and the design includes vehicle specific tuning.
- Collapsed Length (IN): 16.55
- Shaft Diameter: 18mm
- Stroke/Travel Length (mm): 228.9
- Extended Length (IN): 25.56
- Collapsed Length (mm): 420.4
- Piston Diameter: 60mm
- Extended Length (mm): 649.2
- Stroke/Travel Length (IN): 9.01
- Series: B8 6100
- Boot Included: Black Bellows
- Lower Mount Type: Eye 19.1mm
- Internal Design: Monotube
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-coilover)
- Upper Mount Type: Stem
- Spring Seat Included: Yes
- Finish: Zinc Plated
Weight: 10.55 lb
Country of Origin: United States
