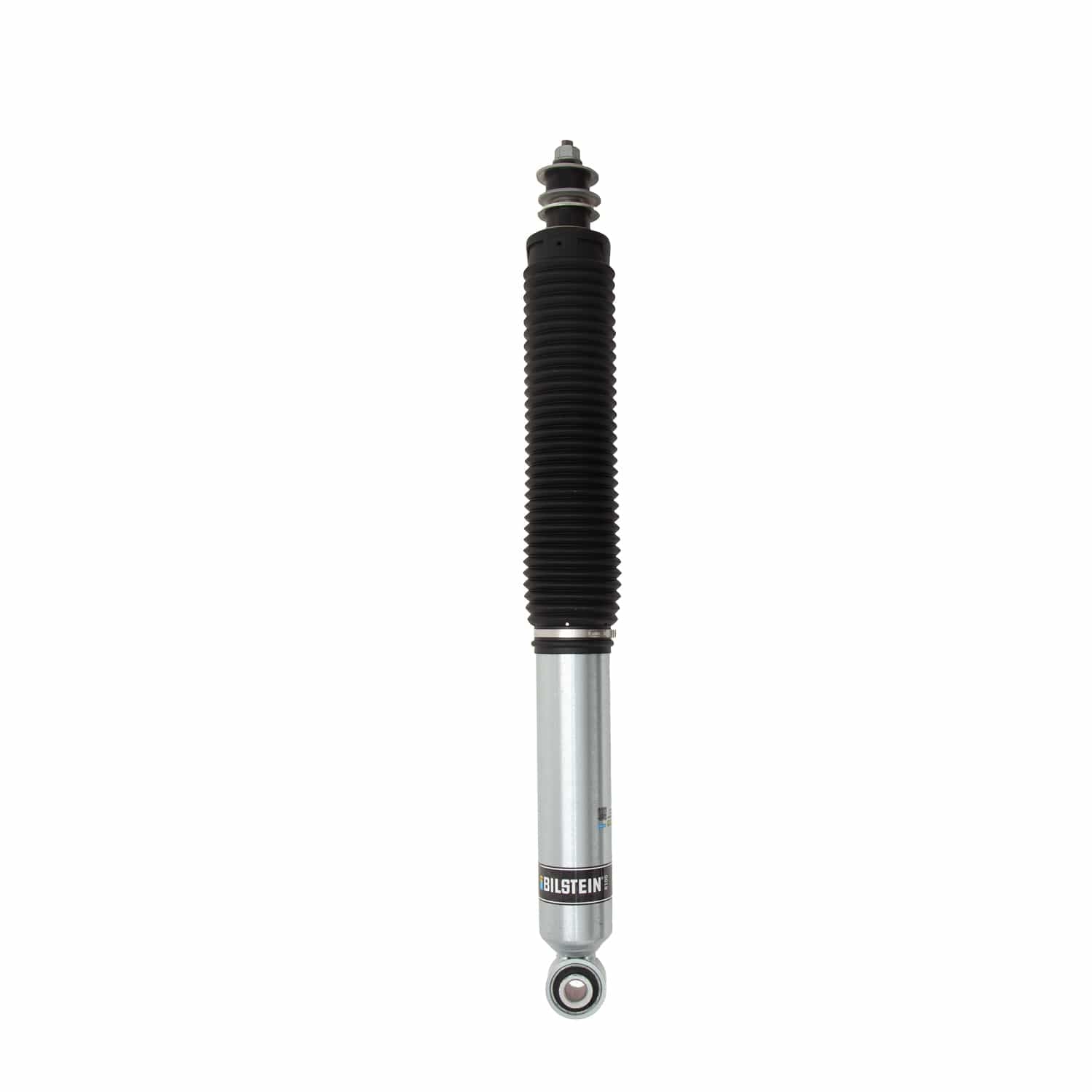

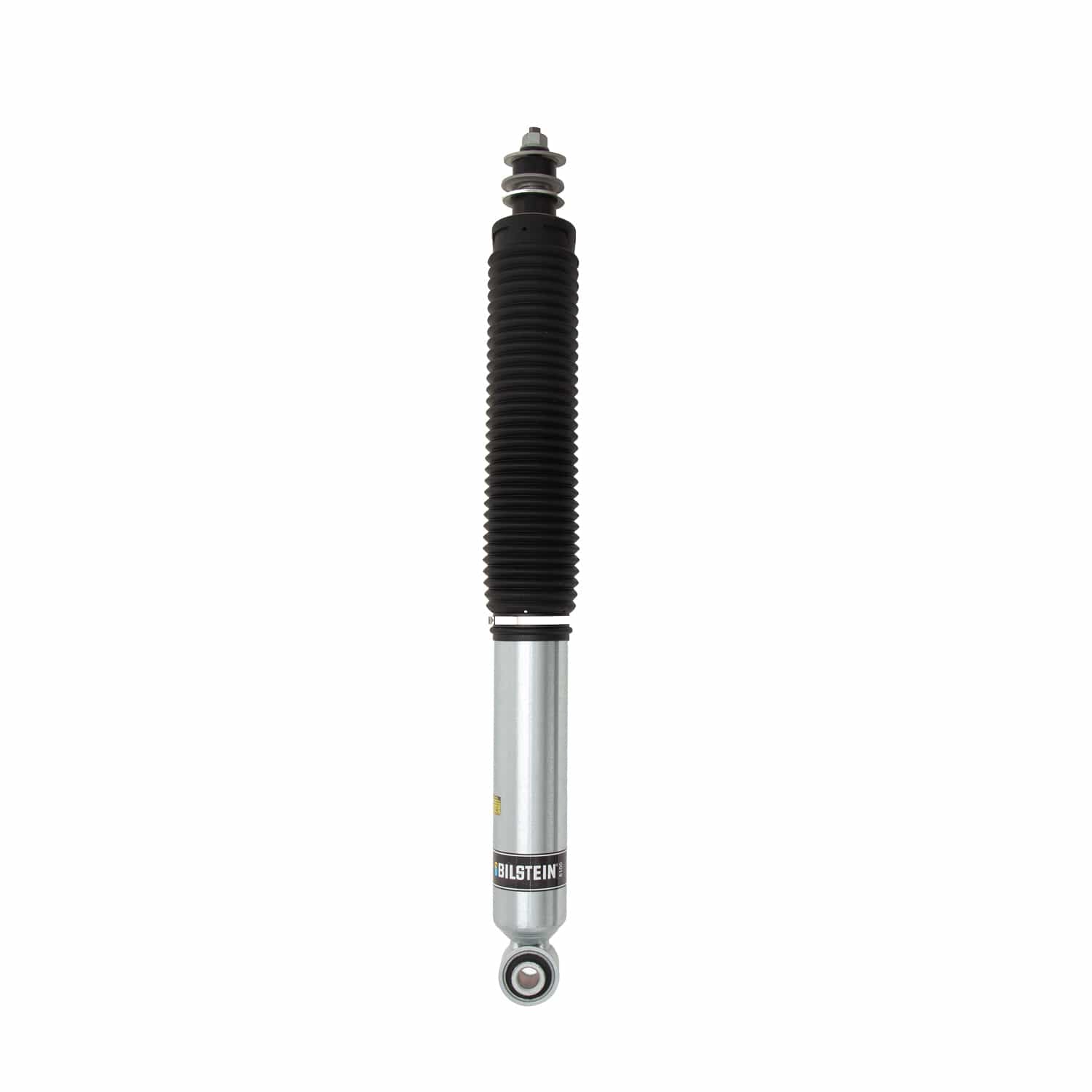

Bilstein 24-347440 - Suspension Shock Absorber B8 6100 Monotube 2024-2026 Toyota 4Runner/Land Cruiser
Product Availability Request
Fill the form and our team will contact you.
60mm Monotube Shock Absorber
Bilstein B8 6100 shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design with a large 2.65-in OD body and 60mm digressive piston maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while providing a smoother ride and more control over rough terrain. The B8 6100 will provide increased durability, making them perfect for vehicles subjected to rugged roads and harsh conditions.
Features
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Specifications
| Boot Included | Yes |
| Internal Design | Monotube |
| Series | B8 6100 |
| Spring Seat Included | No |
| Piston Diameter | 60mm |
| Prop 65 (Y/N) | Y |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable Damping | Non-Adjustable |
| Stroke/Travel Length (IN) | 9.62 |
| Upper Mount Type | Stem |
| Extended Length (IN) | 25.97 |
| Lower Mount Type | Eye 19.1mm |
| Stroke/Travel Length (mm) | 244.4 |
| Body Design | Smooth Body (Non-Coilover) |
| PartType | Shocks / Struts |
| Segment | Light Truck |
| Shaft Diameter | 18mm |
| Collapsed Length (mm) | 415.4 |
| Collapsed Length (IN) | 16.35 |
| Extended Length (mm) | 659.6 |
Short Description: Shock
Invoice Description: Toyota LC250 '24+; R; B8 6100; 0-1.75"
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2025-2026 | Toyota | 4Runner | SR5 |
| 2025-2026 | Toyota | 4Runner | TRD Off-Road Premium |
| 2025-2026 | Toyota | 4Runner | TRD Off-Road |
| 2025-2026 | Toyota | 4Runner | TRD Sport Premium |
| 2025-2026 | Toyota | 4Runner | TRD Sport |
| 2024-2026 | Toyota | Land Cruiser | 1958 |
| 2024-2026 | Toyota | Land Cruiser | Base |
| 2024 | Toyota | Land Cruiser | First Edition |
8 applications listed.
