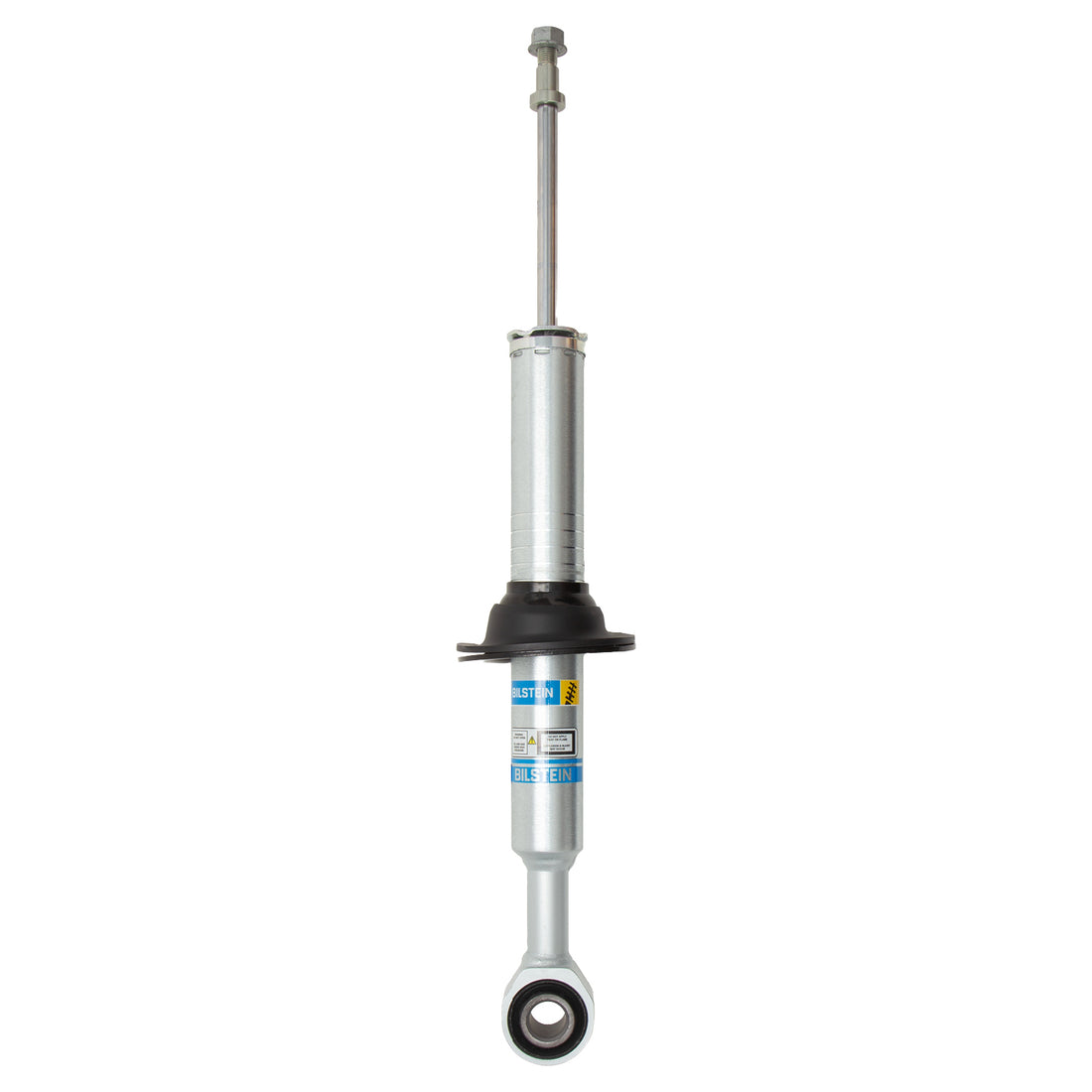

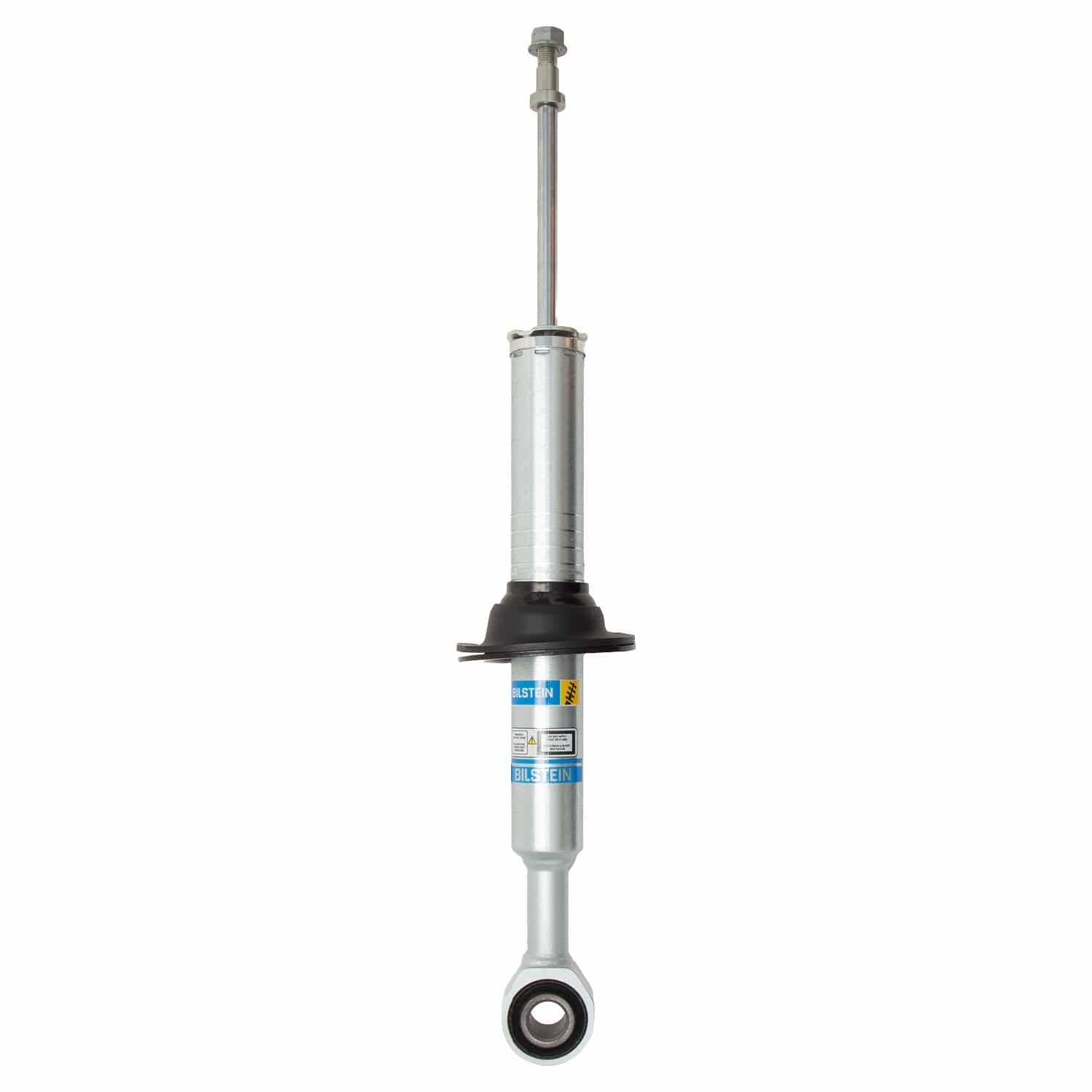

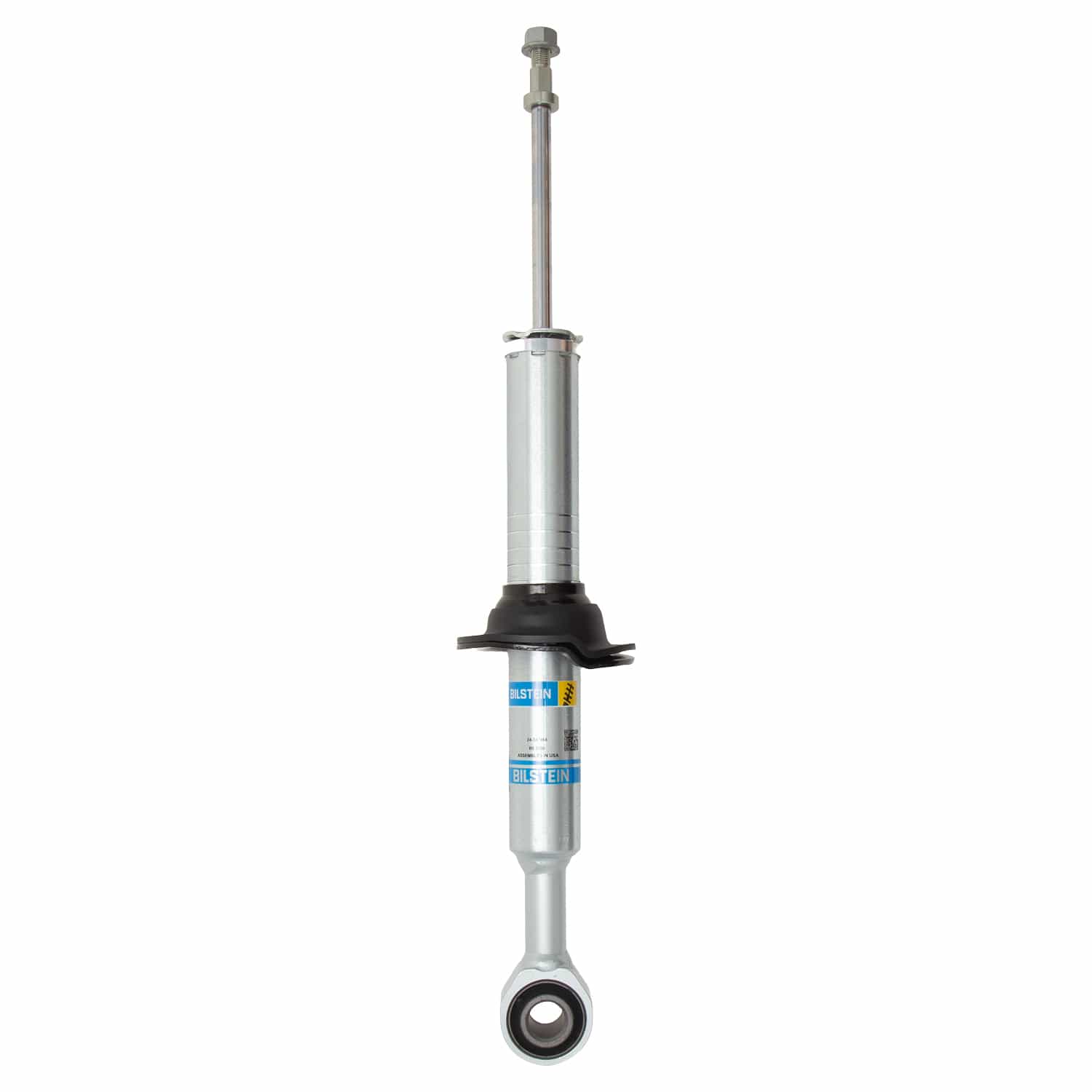

Bilstein 24-347464 Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Internal Design | Monotube |
| Body Design | Snap Ring Grooved Body (Coilover) |
| PartType | Shocks / Struts |
| Segment | Light Truck |
| Boot Included | No |
| Series | B8 5100 (Ride Height Adjustable) |
| Piston Diameter | 46mm |
| Prop 65 (Y/N) | Y |
| Adjustable Damping | Non-Adjustable |
| Upper Mount Type | Stem |
| Lower Mount Type | Eye 24.3mm |
| Shaft Diameter | 14mm |
| Collapsed Length (mm) | 481.7 |
| Collapsed Length (IN) | 18.96 |
| Extended Length (mm) | 621.3 |
| Spring Seat Included | Yes |
| Finish | Zinc Plated |
| Reservoir | No |
| Stroke/Travel Length (IN) | 5.50 |
| Extended Length (IN) | 24.46 |
| Stroke/Travel Length (mm) | 139.7 |
Short Description: Shock
Invoice Description: Toyota LC250; '24+; F; B8 5100; 0-2.75"
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
