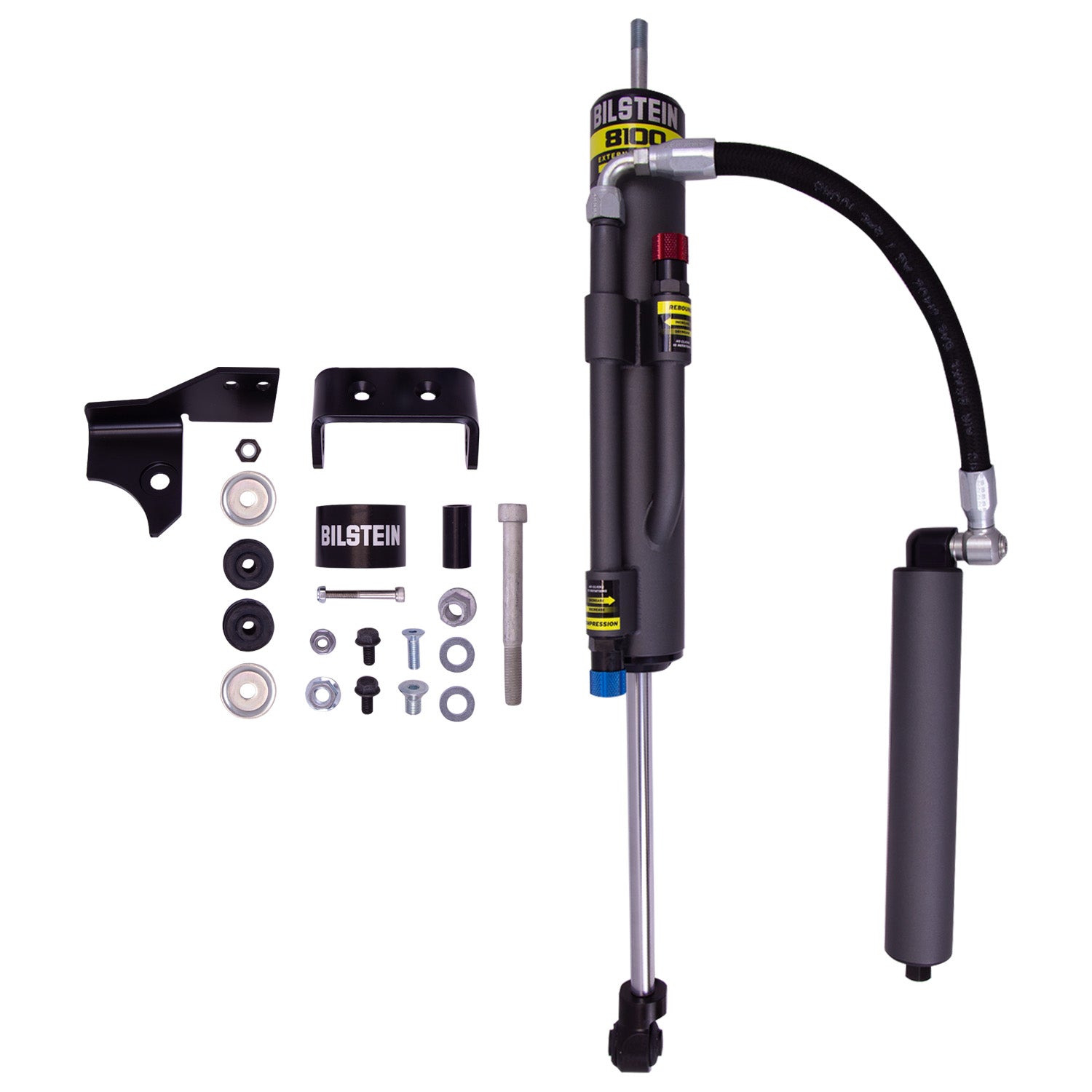

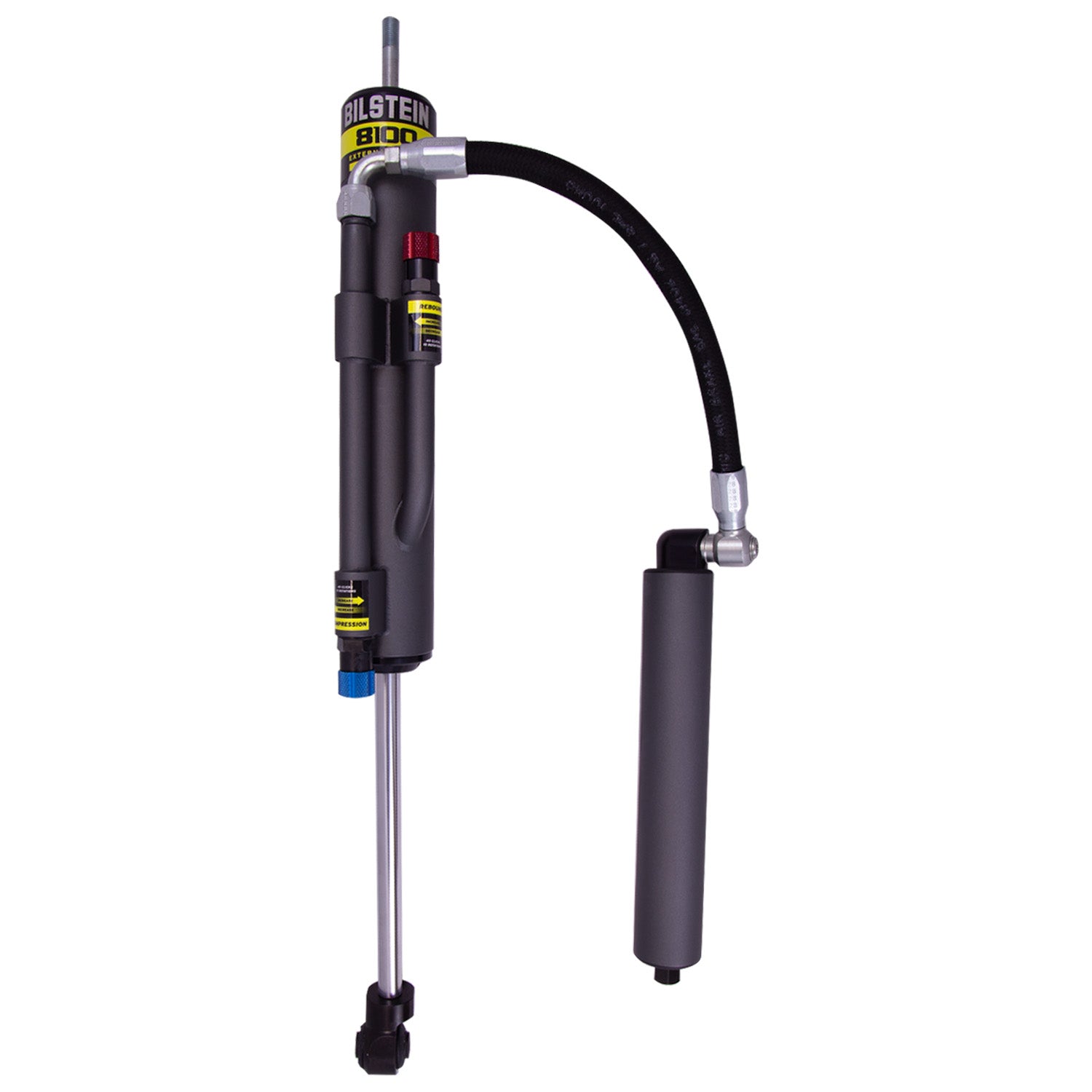

Bilstein 25-291292 - Suspension Shock Absorber B8 8100 (Bypass) Monotube Front Right 2007-2018 Jeep Wrangler JK/Wrangler
Product Availability Request
Fill the form and our team will contact you.
60mm Shock Absorber
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Features & Benefits
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
B8 8100 (Bypass) - Suspension Shock Absorber
Jeep Wrangler JK '07-18; FR; 8100 Bypass
Specifications
| Finish | EVO Grey |
| Adjustable Damping | Double Adjustable Compression and Rebound with Click Adjuster Knobs |
| Title | Bilstein Shock Absorbers |
| Body Design | Bypass Body (Non-Coilover) |
| Extended Length (MM) | 686.6 |
| Series | B8 8100 (Bypass) |
| Boot Included | No |
| Lower Mount Type | Eye 12.1mm |
| Spring Seat Included | No |
| Extended Length (IN) | 27.03 |
| Reservoir | Yes |
| Internal Design | Monotube |
| Upper Mount Type | Stem |
| PartType | Shocks / Struts |
| Segment | Light Truck |
| Collapsed Length (IN) | 17.20 |
| Collapsed Length (MM) | 437.0 |
| Piston Diameter | 60mm |
| Shaft Diameter | 18mm |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
