Bilstein 25-343854 - Suspension Shock Absorber M 9400 Black Hawk Monotube
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.

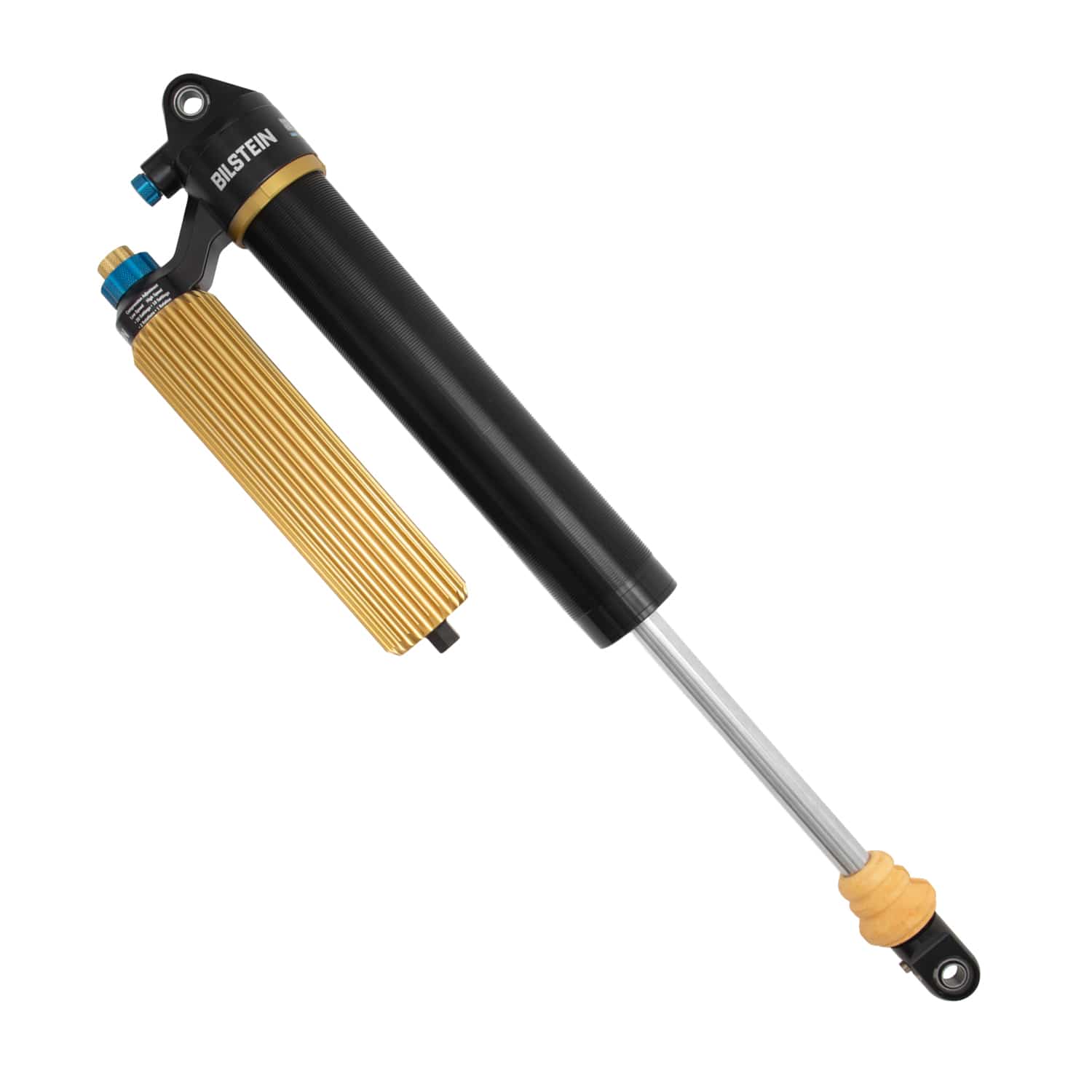

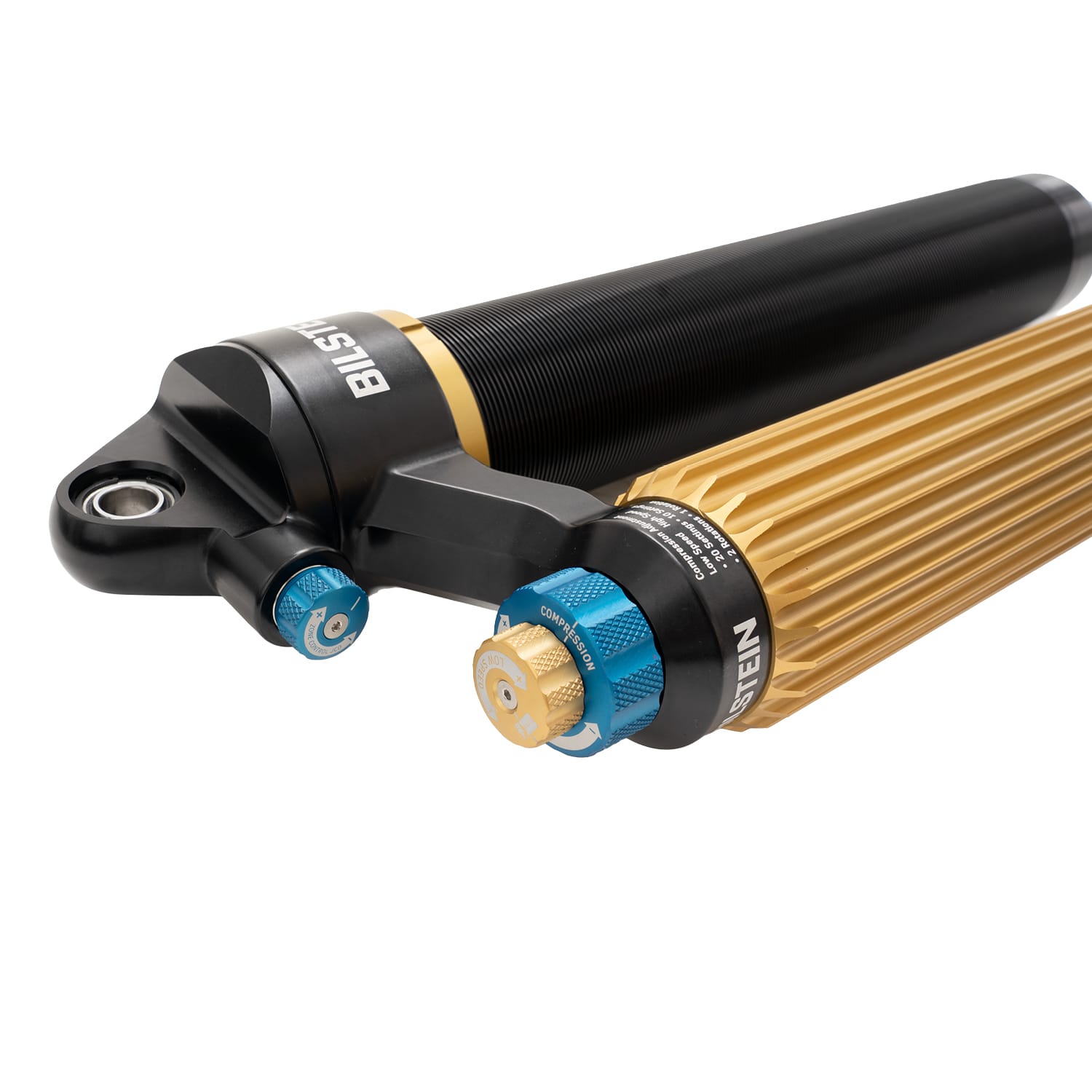

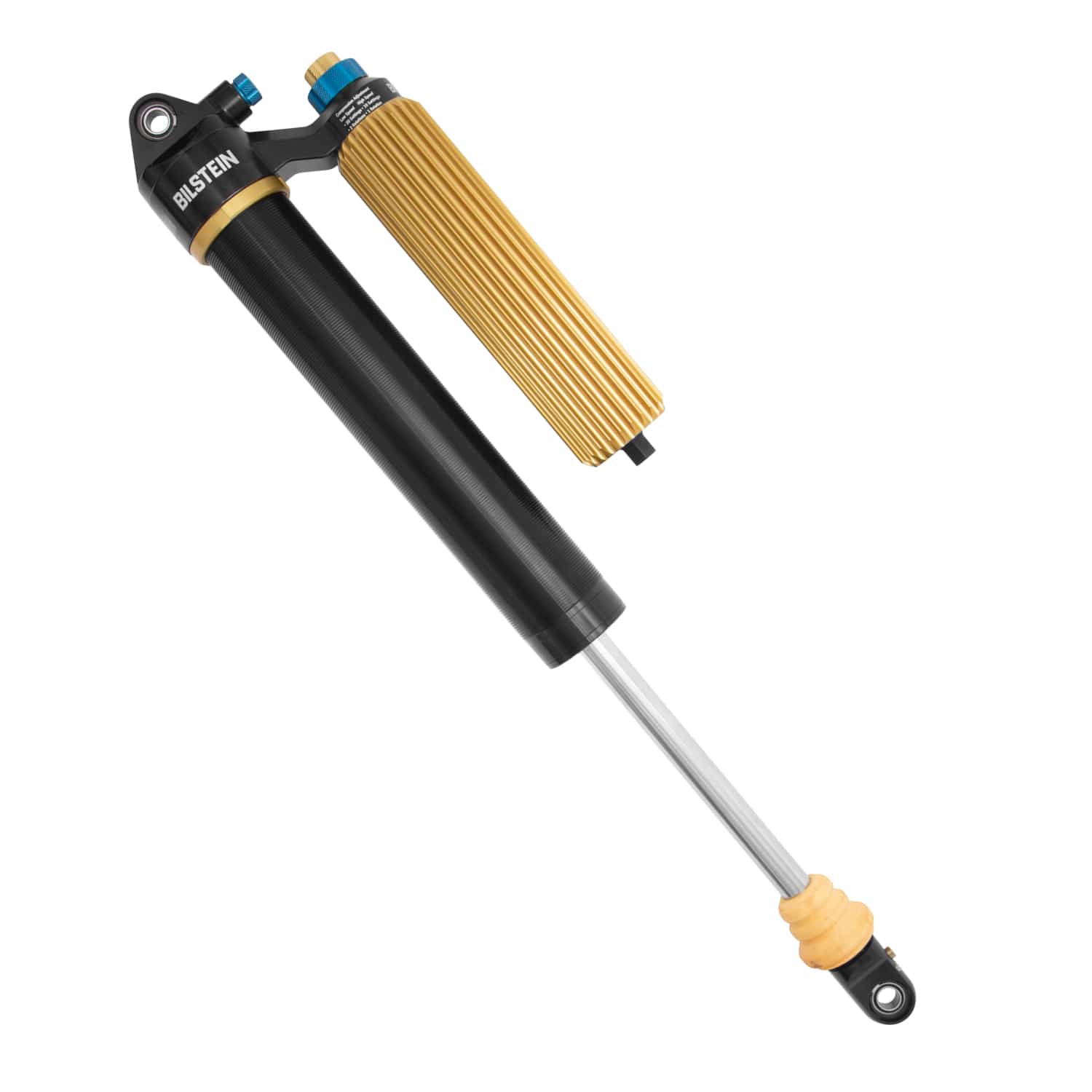

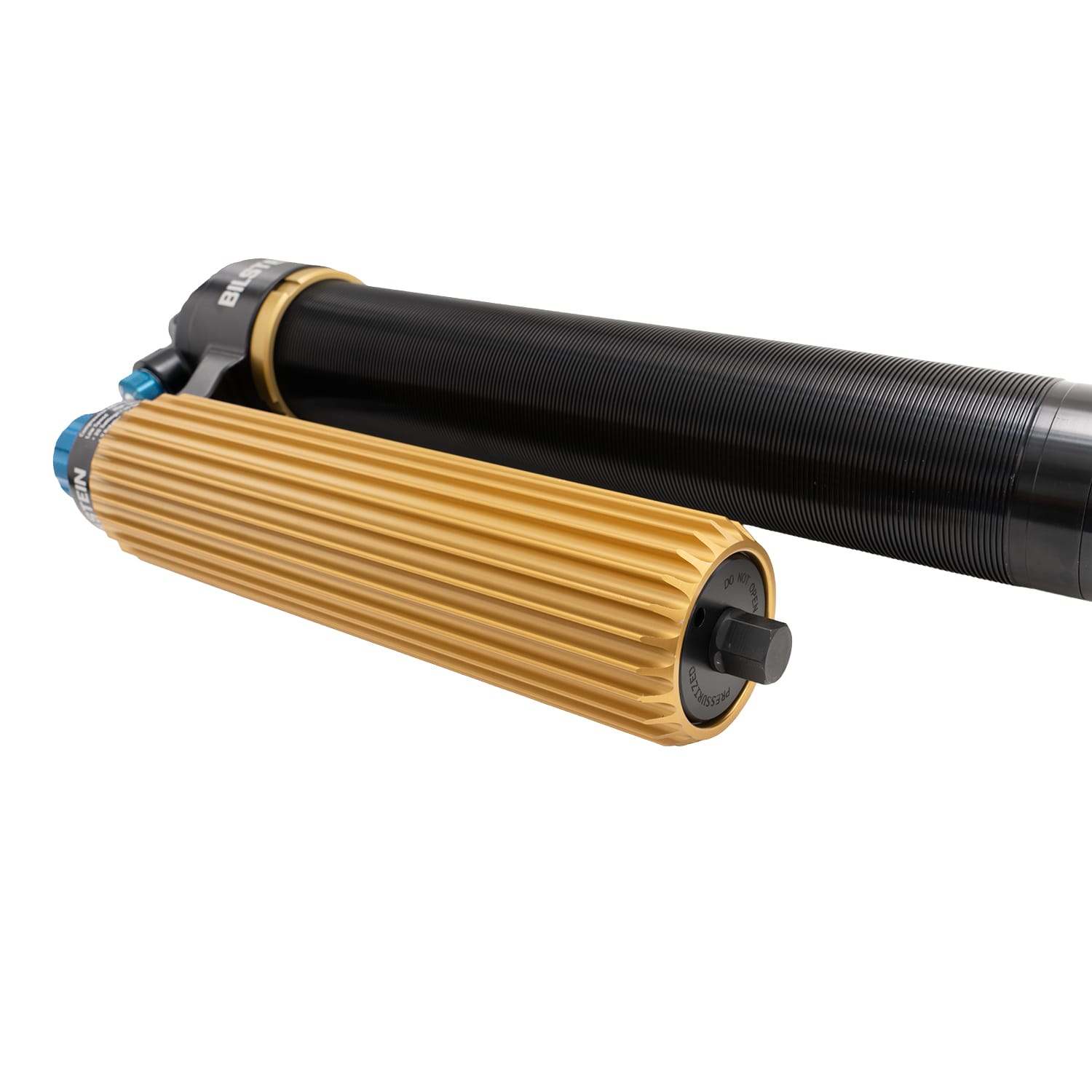

A 70mm monotube shock absorber, the Bilstein 25-343854 is a 4-way adjustable coilover designed for off-road performance. This part is a universal fit. The internally patented ZoneControl system features five independently tuned damping zones with Jounce Cut Off and Rebound Cut Off hydraulic controls for bottom-out and droop management. The shock body is machined from 6061 extruded aluminum with Type III hard anodized finish, provides 30% faster heat dissipation than comparable designs, and weighs 10% to 25% lighter than similar welded bypass steel shocks. The boot is not included. The spring seat is not included.
- Piston diameter: 70mm
- Shaft diameter: 25.4mm
- Body material: Aluminum alloy
- Internal design: Monotube
- Finish: Type III hard anodized
- Damping: 4-way adjustable (high and low speed compression, rebound, JCO)
- Mounts: Eye to eye, 5/8 inch
- Collapsed length: 622.2mm (24.50 inches)
- Extended length: 978.0mm (38.50 inches)
- Reservoir: Yes
- Boot: Not included
- Spring seat: Not included
- Requires coil spring hardware kit 13-360054
- Heim spacer kit: B4-KT1-Z241A07
- Dimension: 14 inches
Country of Origin: United States
