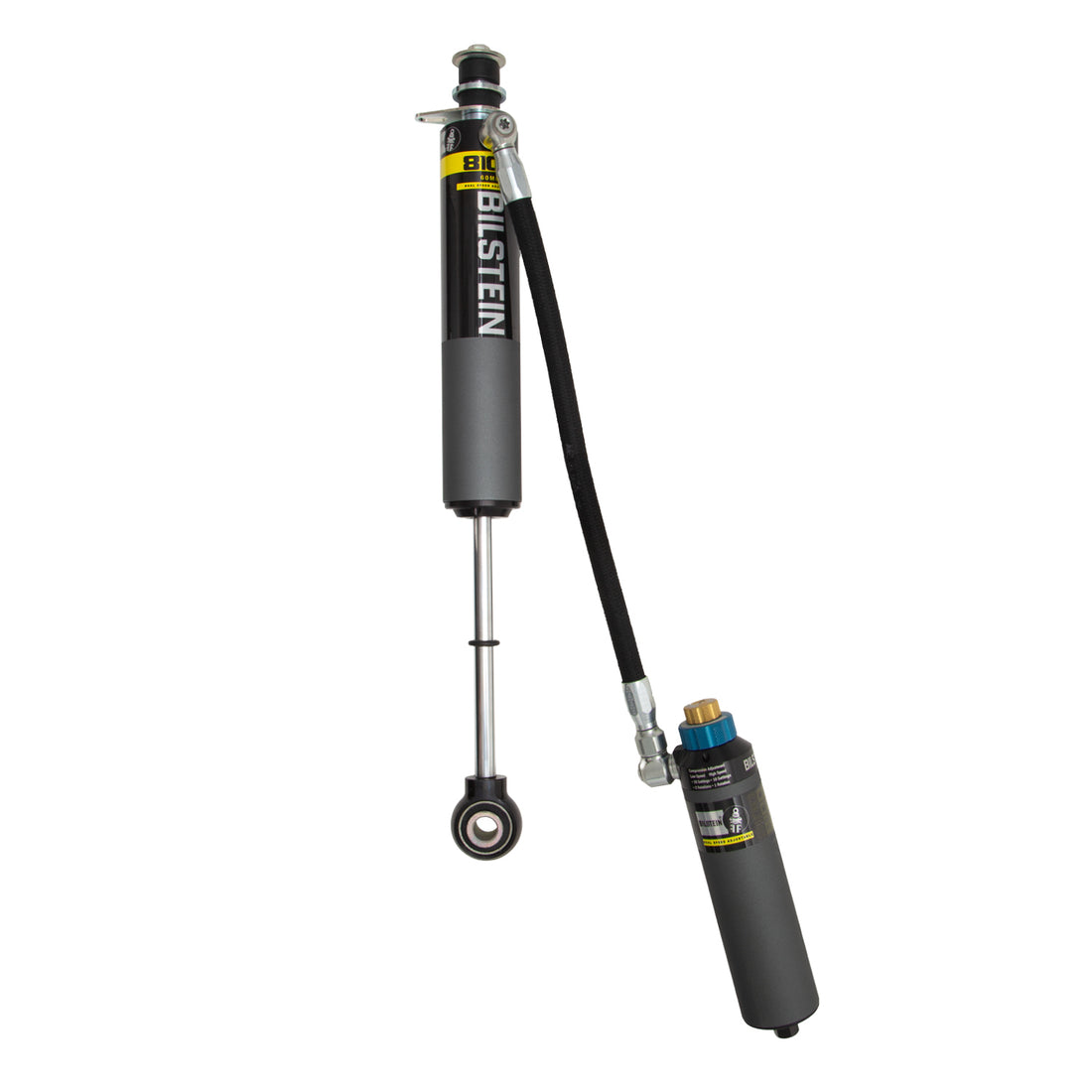

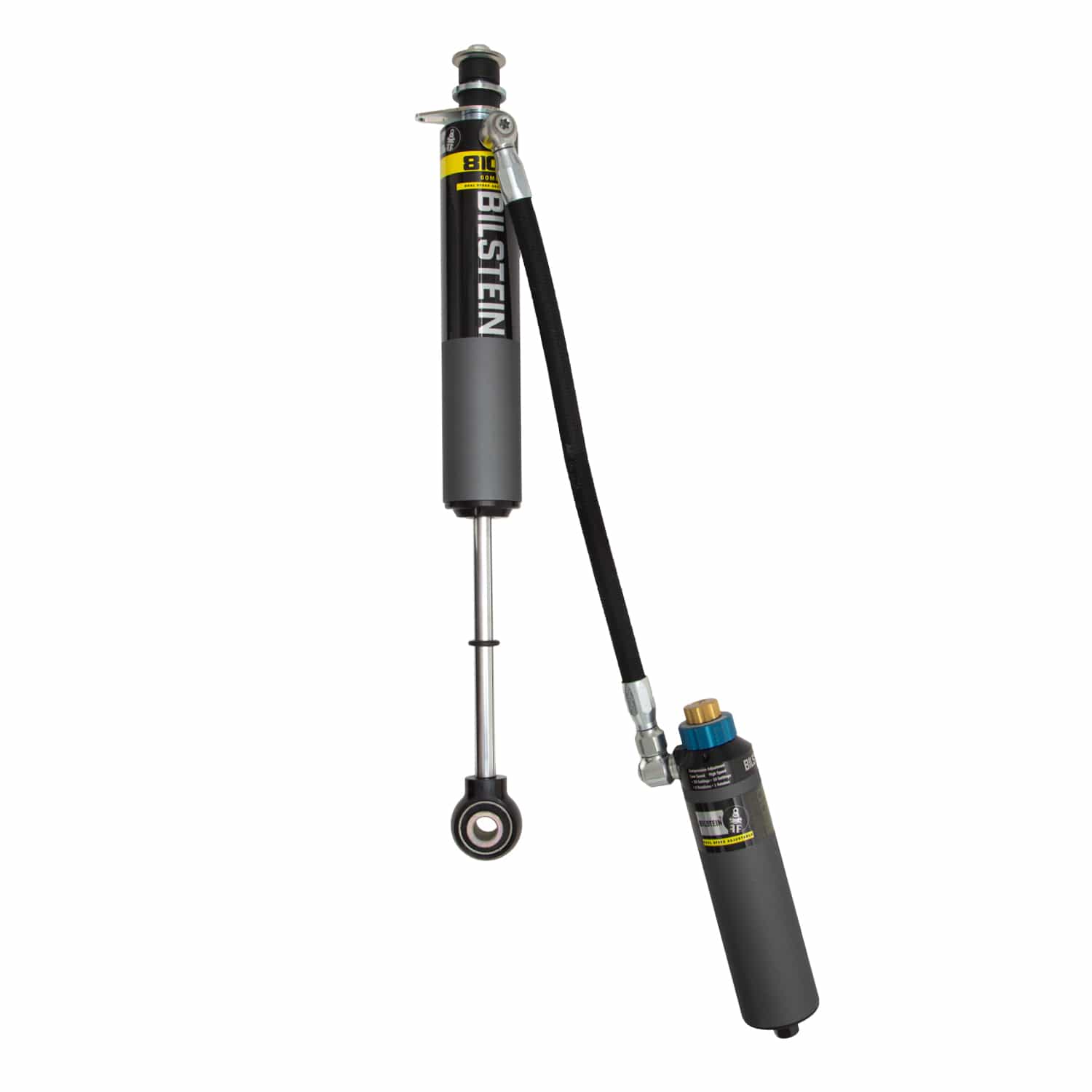

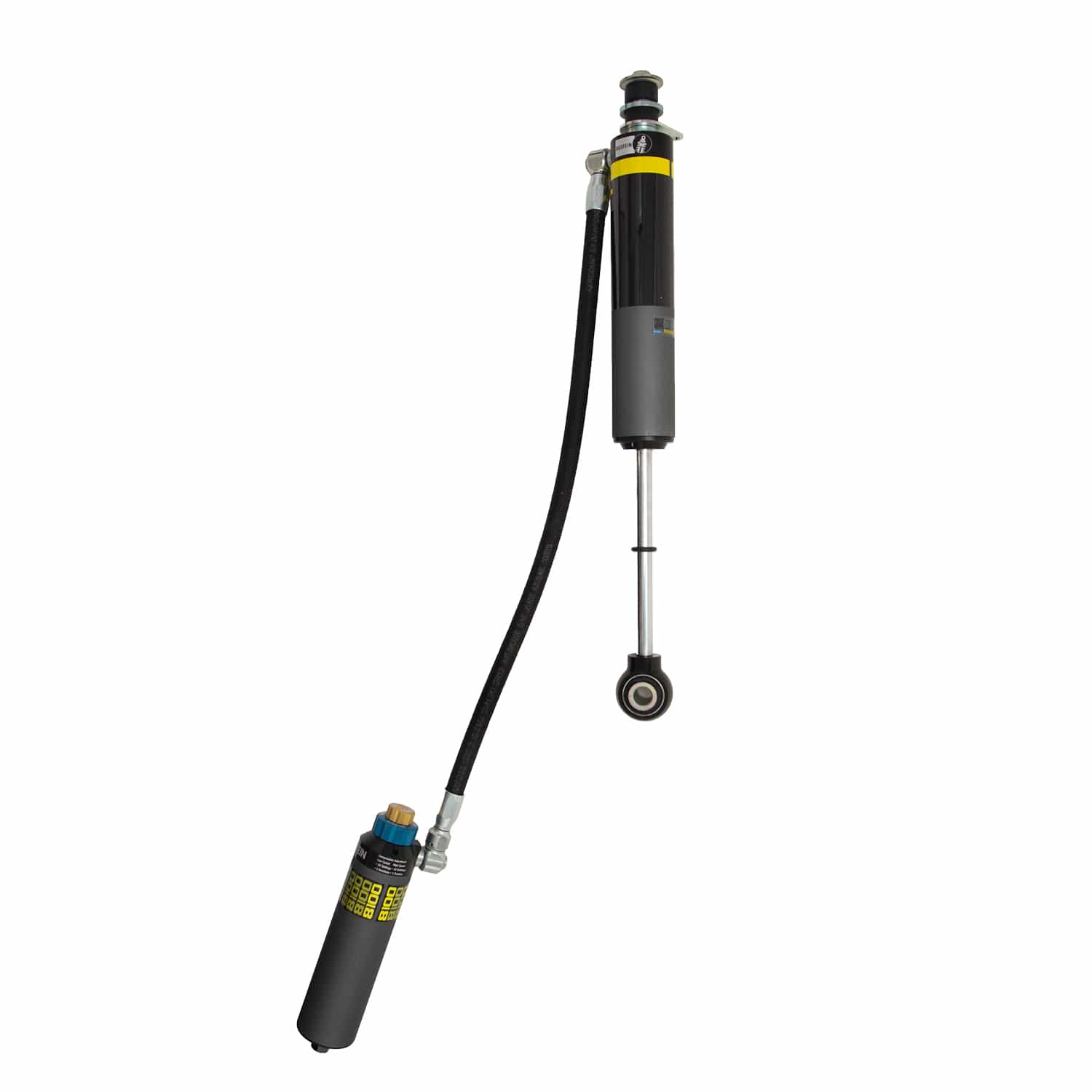

Bilstein 25-350500 - Suspension Shock Absorber B8 8100 (DSA) Monotube 2007-2014 Toyota FJ Cruiser
Product Availability Request
Fill the form and our team will contact you.
60mm Shock Absorber
The Bilstein B8 8100 (DSA) reservoir shock absorber is an adjustable large bore 60mm (2.65" OD) direct fit solution for lifted trucks and SUVs.Β Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy, hassle free installation.Β These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (DSA) will allow you to tame the terrain in comfort.
Features
- 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
- Direct fit for an easy installation
- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface
Specifications
| Lower Mount Type | Eye 19.1mm |
| Internal Design | Monotube |
| Segment | Light Truck |
| Body Design | Bypass Body (Non-Coilover) |
| Shaft Diameter | 18mm |
| Collapsed Length (mm) | 379.5 |
| Prop 65 (Y/N) | Y |
| Boot Included | No |
| Finish | EVO Grey |
| Spring Seat Included | No |
| PartType | Shocks / Struts |
| Extended Length (IN) | 23.48 |
| Extended Length (mm) | 596.5 |
| Piston Diameter | 60mm |
| Upper Mount Type | Stem |
| Adjustable Damping | Click Adjusters for High and Low Speed Compression |
| Collapsed Length (IN) | 14.94 |
| Reservoir | Yes |
| Series | B8 8100 (DSA) |
Short Description: Shock
Invoice Description: Toyota FJ 07-14; R B8 8100 DSA EVO; 0-2"
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007-2014 | Toyota | FJ Cruiser | Base |
| 2007 | Toyota | FJ Cruiser | TRD Special Edition |
| 2008 | Toyota | FJ Cruiser | Trail Teams Special Edition |
3 applications listed.
