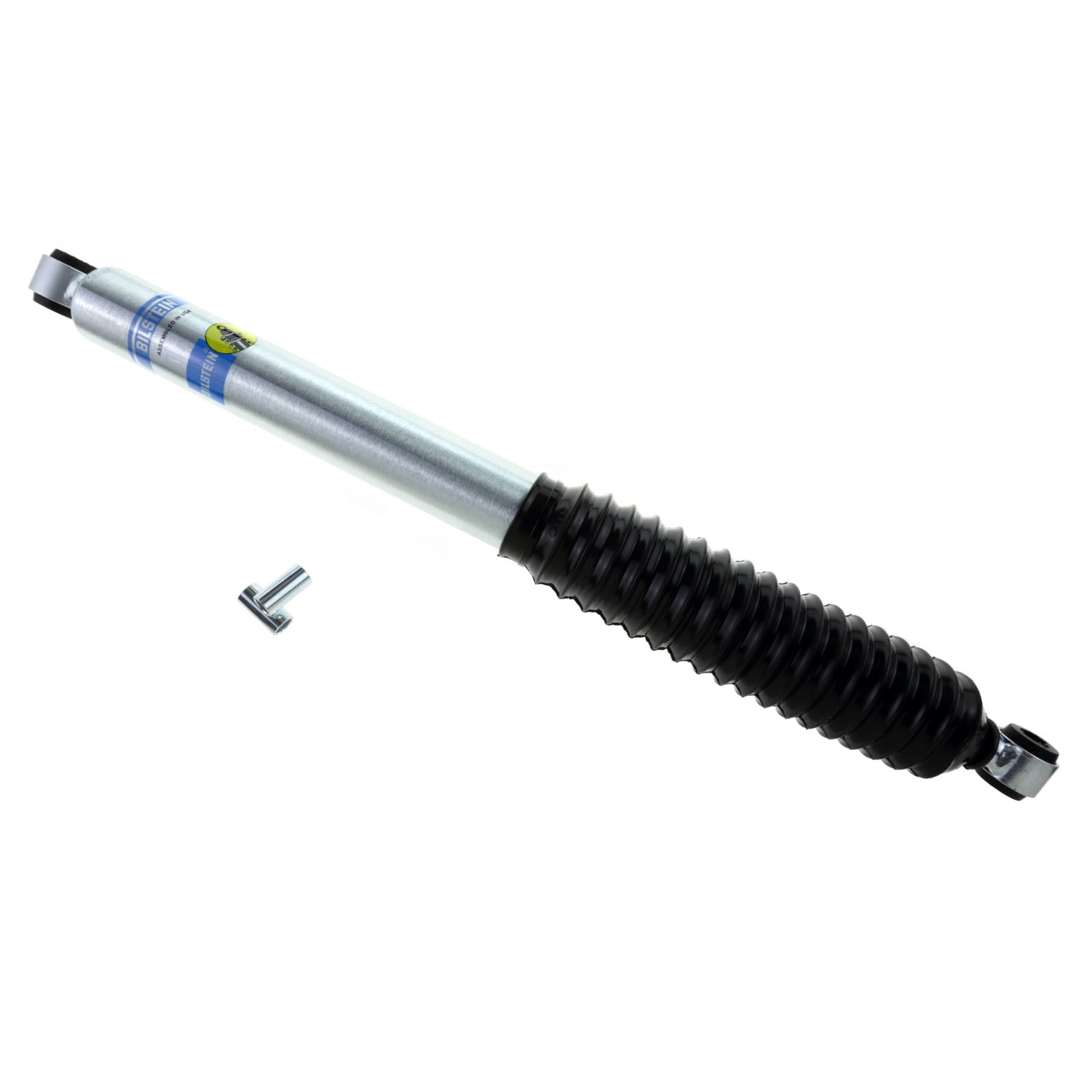

Bilstein 33-104645 Suspension Shock Absorber Front Monotube B8 5125
Product Availability Request
Fill the form and our team will contact you.
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment.
These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments.

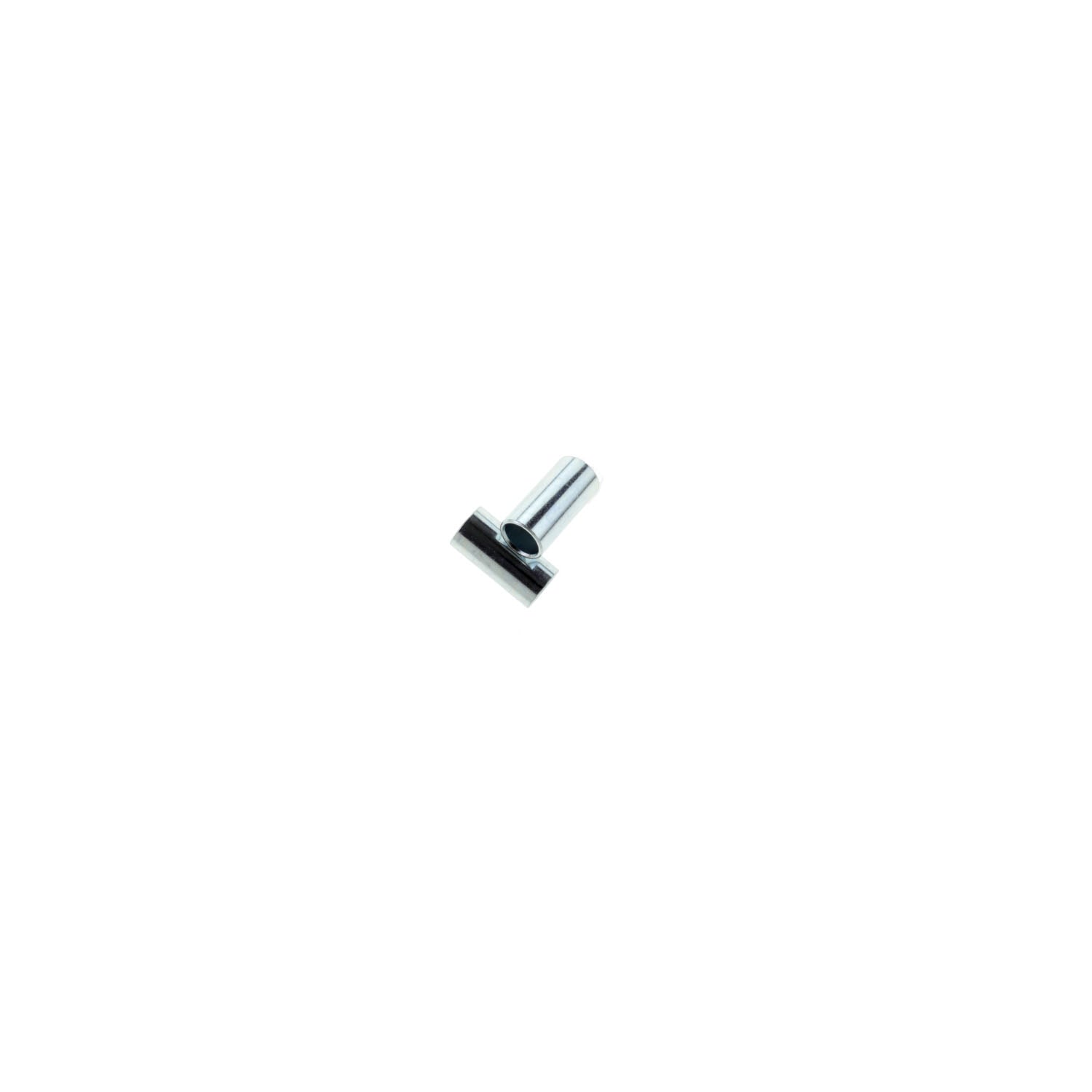

All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving.
Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Details:
- Series: B8 5125
- Internal Design:Monotube
- Lift Height: 4-6 Inch
- Lower Mount Type: Eye 5/8in
- Upper Mount Type: Eye 5/8in
- Finish: Zinc Plated
- Adjustable: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Collapsed Length Inch: 15.91
- Compression at 52m s: 595
- Extended Length Inch: 25.91
- Boot Included:Black Bellows
- Mount Type: Eye-to-Eye
- Pistion Diameter: 46mm
- Postion: Front
- Rebound at 52m/s: 1810
- Reservior: No
- Shaft Diameter: 14mm
- Stroke Travel Length In: 10.01
- Stroke Travel Length In: 254.3
- Notes: For Front Lifted Height 4-6 Inch Use With Double Shock Kit
- Applications: Ford Excursion 2005-2000, F-250 Super Duty 2004-1999, F-350 Super Duty 2004-1999
- Warranty: Limited 90 Day Warranty
Warranty
Limited 90 Day Warranty
Specifications
| Finish | Zinc Plated |
| Series | B8 5125 |
