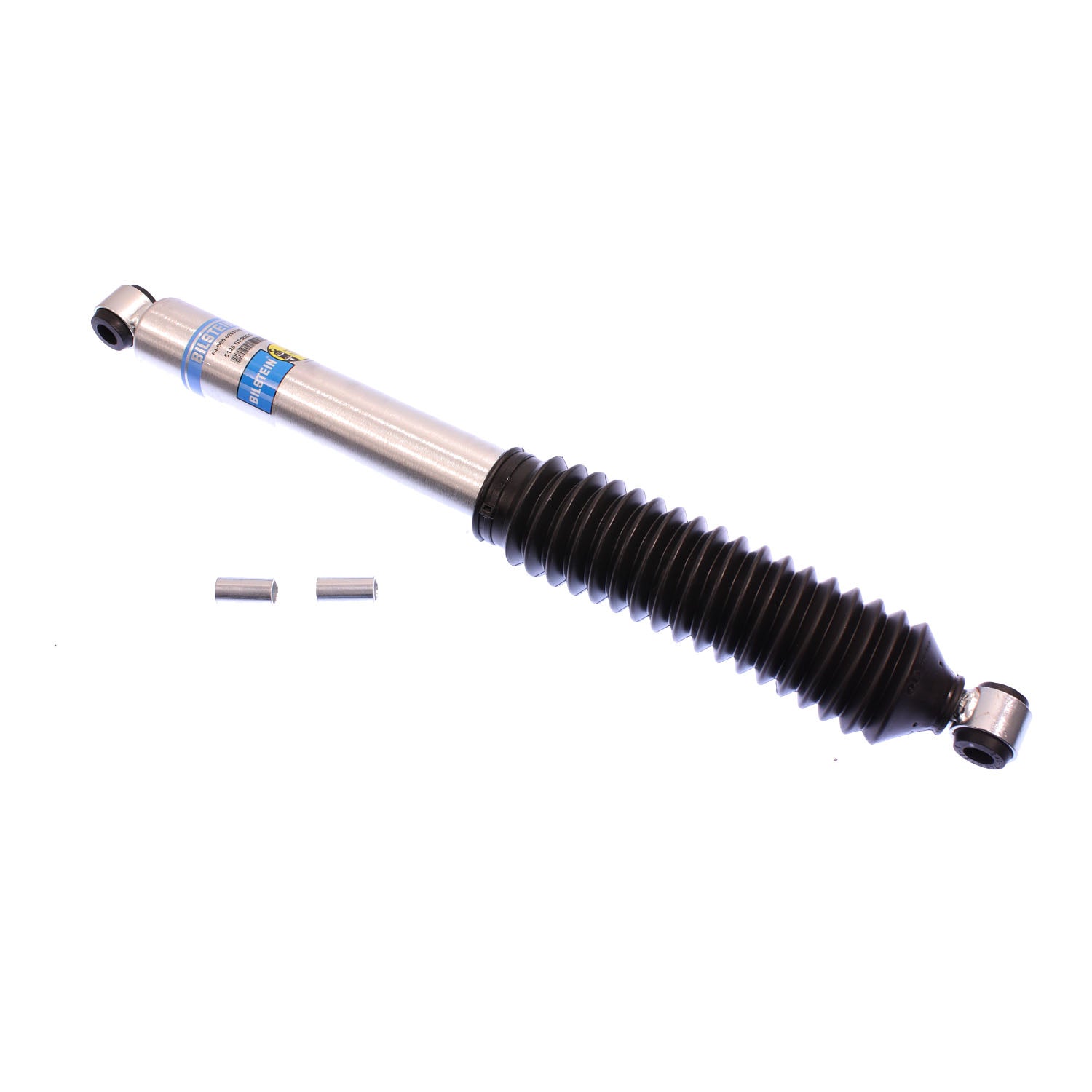

Bilstein 33-185606 - Suspension Shock Absorber Front Rear Monotube Jeep CJ5 1983-1959 CJ5A 1968-1966 CJ7 1986-1976 Toyota Land Cruiser 1982-1960 B8 5125 Bilstein

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment.

These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments.

All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving.

Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Details:

• Series: B8 5125
• Internal Design:Monotube
• Lift Height: 0-4 Inch
• Lower Mount Type: Eye 5/8in
• Upper Mount Type: Eye 5/8in
• Finish: Zinc Plated
• Adjustable: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length Inch: 14.13
• Compression at 52m s: 620
• Extended Length Inch: 22.57
• Boot Included:Black Bellows
• Mount Type: Eye-to-Eye
• Pistion Diameter: 46mm
• Postion: Front, Rear
• Rebound at 52m/s: 2495
• Reservior: No
• Shaft Diameter: 14mm
• Stroke Travel Length In: 8.43
• Stroke Travel Length In: 214.1
• Notes: For Rear Lifted Height 0-4 Inch
• Applications: Jeep CJ5 1983-1959, CJ5A 1968-1966, CJ7 1986-1976, Toyota Land Cruiser 1982-1960
• Warranty: Limited 90 Day Warranty
