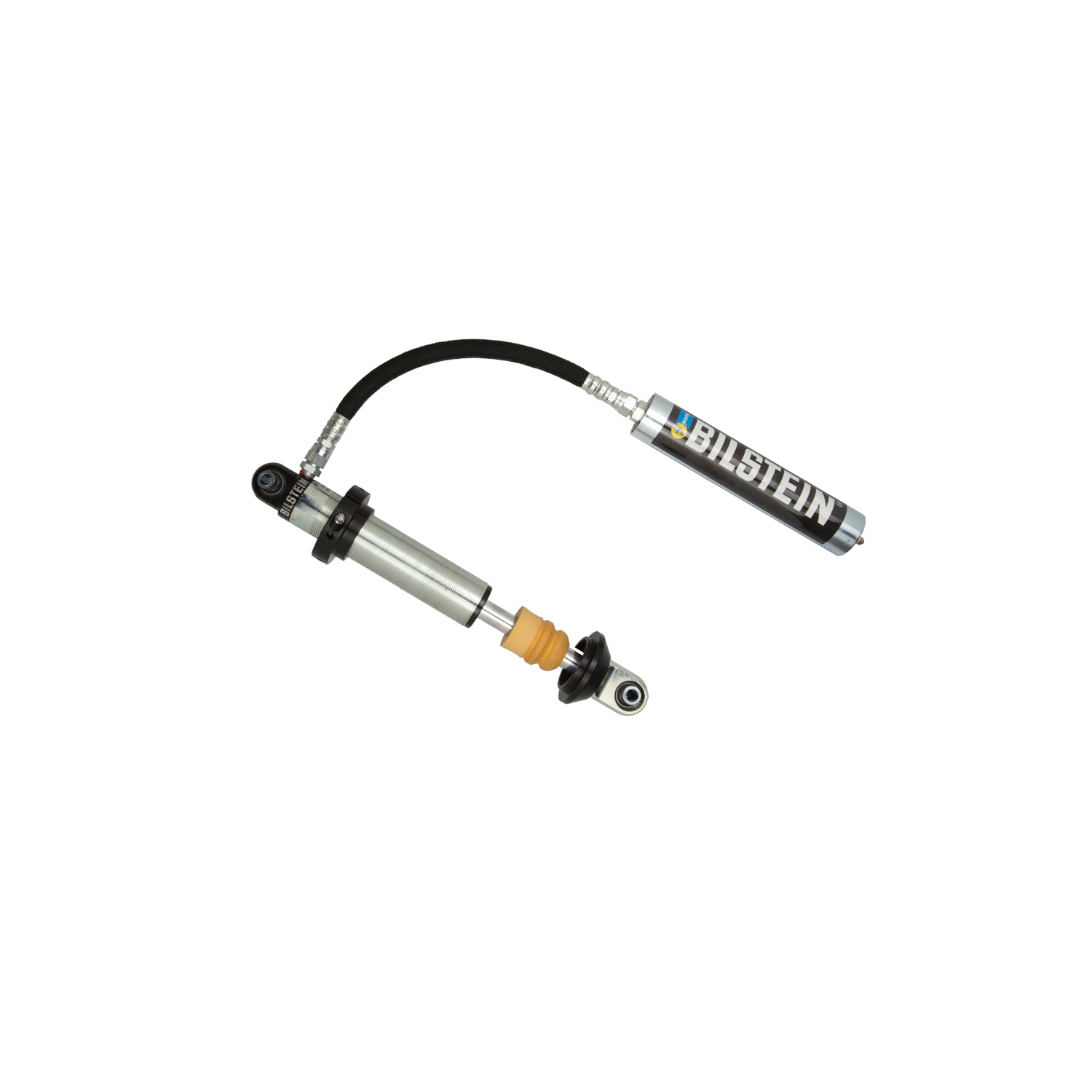

Bilstein 33-225463 - Suspension Shock Absorber B8 8125 Monotube
Product Availability Request
Fill the form and our team will contact you.
46mm Coilover w/ Hardware
Bilstein B8 8125 coilovers are engineered for the serious off-road enthusiast, available in both 46mm (2 inch) and 60mm (2.65 inch) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths, these performance coilovers are perfect for custom coilover suspension applications. Equipped with a competition designed, 3-stage seal pack, these coilovers withstand the harshest off-road environments. All B8 8125 coilovers include a 22mm hard chromed, case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. Bilstein B8 8125 coilovers are completely owner rebuildable with replacement parts available from Bilstein. All components are machined to precise tolerances and made in the USA to insure high quality.
Features
- Available in 46mm and 60mm monotubes for consistent, fade-free performance
- Threaded body with dual-rate coilover hardware
- Remote reservoir for greater resistance to heat and increased travel length
Specifications
| Internal Design | Monotube |
| Extended Length (IN) | 17.00 |
| Mount Type | Eye-to-Eye |
| Lower Mount Type | Eye .5x1.5in |
| Reservoir | Yes |
| Optional Reservoir Clamp | B4-KT1-Z315A00 |
| Body Design | Threaded Body Screw Top (Coilover) |
| Rebound @0.52m/s | 2550 |
| Compression @0.52m/s | 1000 |
| Finish | Zinc Plated |
| Upper Mount Type | Eye .5x1.5in |
| Extended Length (MM) | 431.8 |
| Series | B8 8125 |
| Collapsed Length (MM) | 304.8 |
| Spring Seat Included | Yes |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Collapsed Length (IN) | 12.00 |
| Piston Diameter | 46mm |
| Stroke/Travel Length (mm) | 127.0 |
| Shaft Diameter (mm) | 22.0 |
| Stroke/Travel Length (IN) | 5.00 |
Short Description: Shock
Invoice Description: 46mm Coilover W/ Reservoir, 5"
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Warranty: Limited Lifetime Warranty
