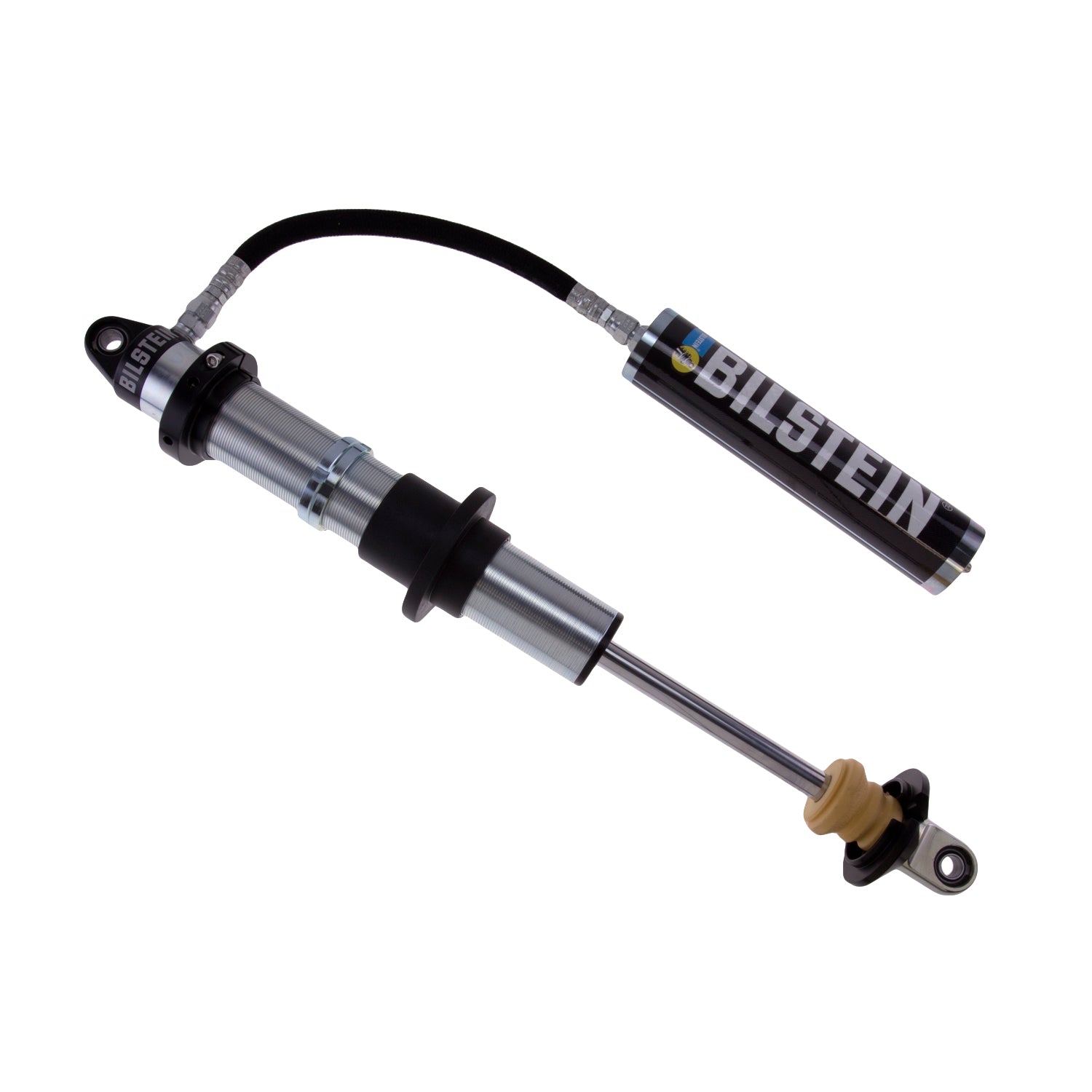

Bilstein 33-225593 - Suspension Shock Absorber 60mm Coilover w/ Hardware 10 Inch Travel Monotube B8 8125 Bilstein

Bilstein B8 8125 coilovers are engineered for the serious off-road enthusiast, available in both 46mm (2 inch) and 60mm (2.65 inch) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths, these performance coilovers are perfect for custom coilover suspension applications.

Equipped with a competition designed, 3-stage seal pack, these coilovers withstand the harshest off-road environments.

All B8 8125 coilovers include a 22mm hard chromed, case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat.

The zinc coated threaded body allows for quick ride height adjustments and spring changes.

Bilstein B8 8125 coilovers are completely owner rebuildable with replacement parts available from Bilstein. All components are machined to precise tolerances and made in the USA to insure high quality.

Details:

• Series: B8 8125
• Internal Design:Monotube
• Lower Mount Type: Eye .5x1.5in
• Upper Mount Type: Eye .5x1.5in
• Finish: Zinc Plated
• Body Design: Threaded Body Screw Top (Coilover)
• Collapsed Length Inch: 19.5
• Compression at 52m s: 1100
• Extended Length Inch: 29.5
• Mount Type: Eye-to-Eye
• Pistion Diameter: 60mm
• Rebound at 52m/s: 3700
• Reservior: Yes
• Shaft Diameter mm: 22
• Stroke Travel Length In: 10
• Stroke Travel Length In: 254
• Notes: 60mm Coilover w/ Hardware 10 Inch Travel
• Warranty: Limited Lifetime Warranty
