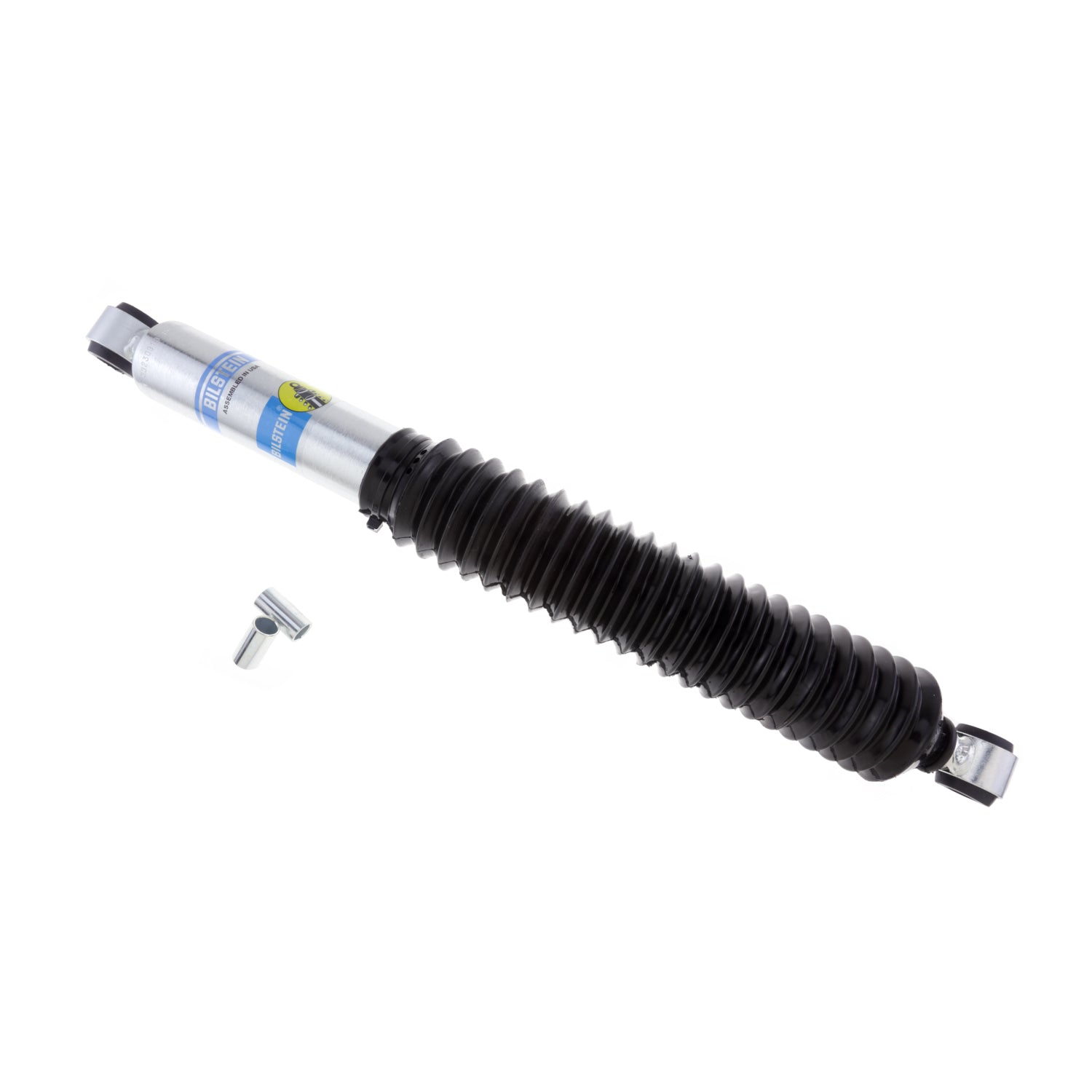

Bilstein 33-230313 - Suspension Shock Absorber B8 5125 Monotube Rear 1976-1986 Jeep CJ7/CJ5
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Internal Design | Monotube |
| Body Design | Smooth Body (Non-Coilover) |
| Reservoir | No |
| Series | B8 5125 |
| Collapsed Length (IN) | 13.66 |
| Mount Type | Eye-to-Eye |
| Lower Mount Type | Eye 5/8in |
| Finish | Zinc Plated |
| Upper Mount Type | Eye 5/8in |
| Boot Included | Black Bellows |
| Adjustable Damping | Non-Adjustable |
| Spring Seat Included | No |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Rebound @0.52m/s | 1810 |
| Extended Length (MM) | 551.2 |
| Compression @0.52m/s | 595 |
| Extended Length (IN) | 21.70 |
| Piston Diameter | 46mm |
| Collapsed Length (MM) | 347.0 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 204.2 |
| Stroke/Travel Length (IN) | 8.04 |
Short Description: Shock
Invoice Description: Lifted Truck; B8 5125; 207mm Stroke
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Warranty: Limited 90 Day Warranty
