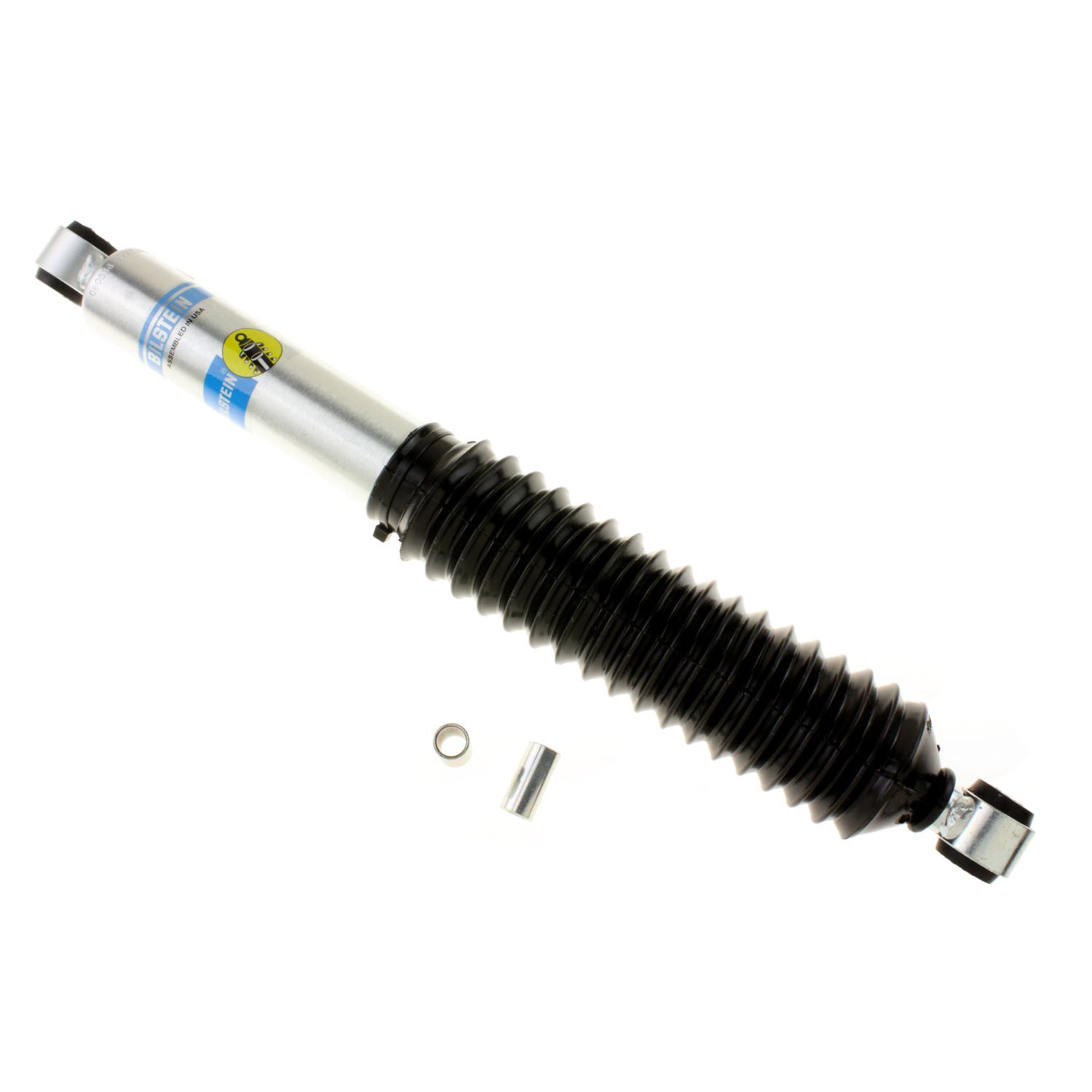

Bilstein 33-233970 - Suspension Shock Absorber B8 5125 Monotube Front, Rear 1976-1986 Jeep CJ7/CJ5

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment.

These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments.

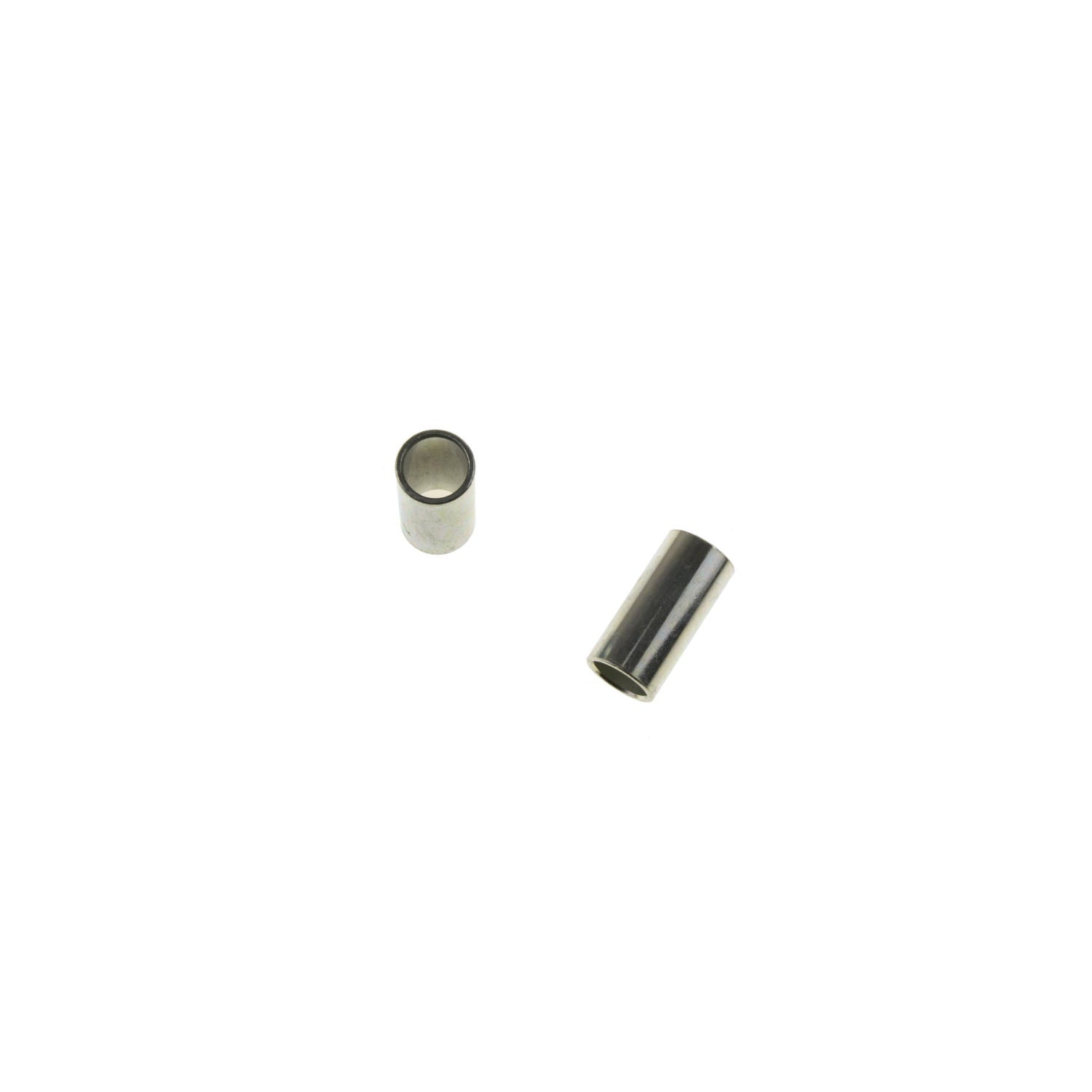

All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving.

Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Details:

• Series: B8 5125
• Internal Design:Monotube
• Lift Height: 0-1 Inch
• Lower Mount Type: Eye 5/8in
• Upper Mount Type: Eye 5/8in
• Finish: Zinc Plated
• Adjustable: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length Inch: 13.04
• Compression at 52m s: 620
• Extended Length Inch: 20.41
• Boot Included:Black Bellows
• Mount Type: Eye-to-Eye
• Pistion Diameter: 46mm
• Postion: Front, Rear
• Rebound at 52m/s: 2495
• Reservior: No
• Shaft Diameter: 14mm
• Stroke Travel Length In: 7.37
• Stroke Travel Length In: 187.2
• Notes: For Front Lifted Height 0-2. 5 Inch For Rear Lifted Height 0-1 Inch
• Applications: Jeep CJ5 1983-1976, CJ7 1986-1976
• Warranty: Limited 90 Day Warranty

Warranty

Limited 90 Day Warranty
