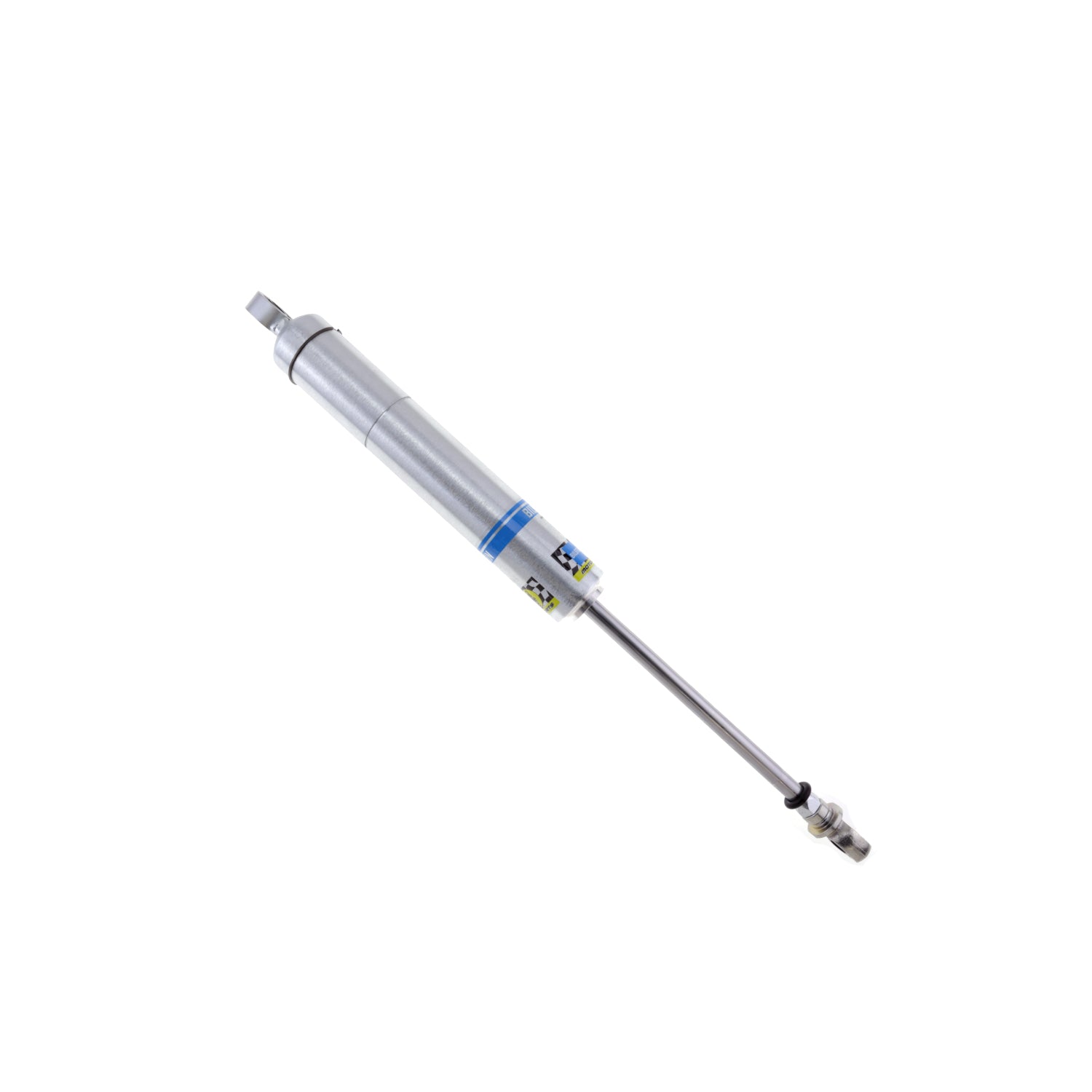

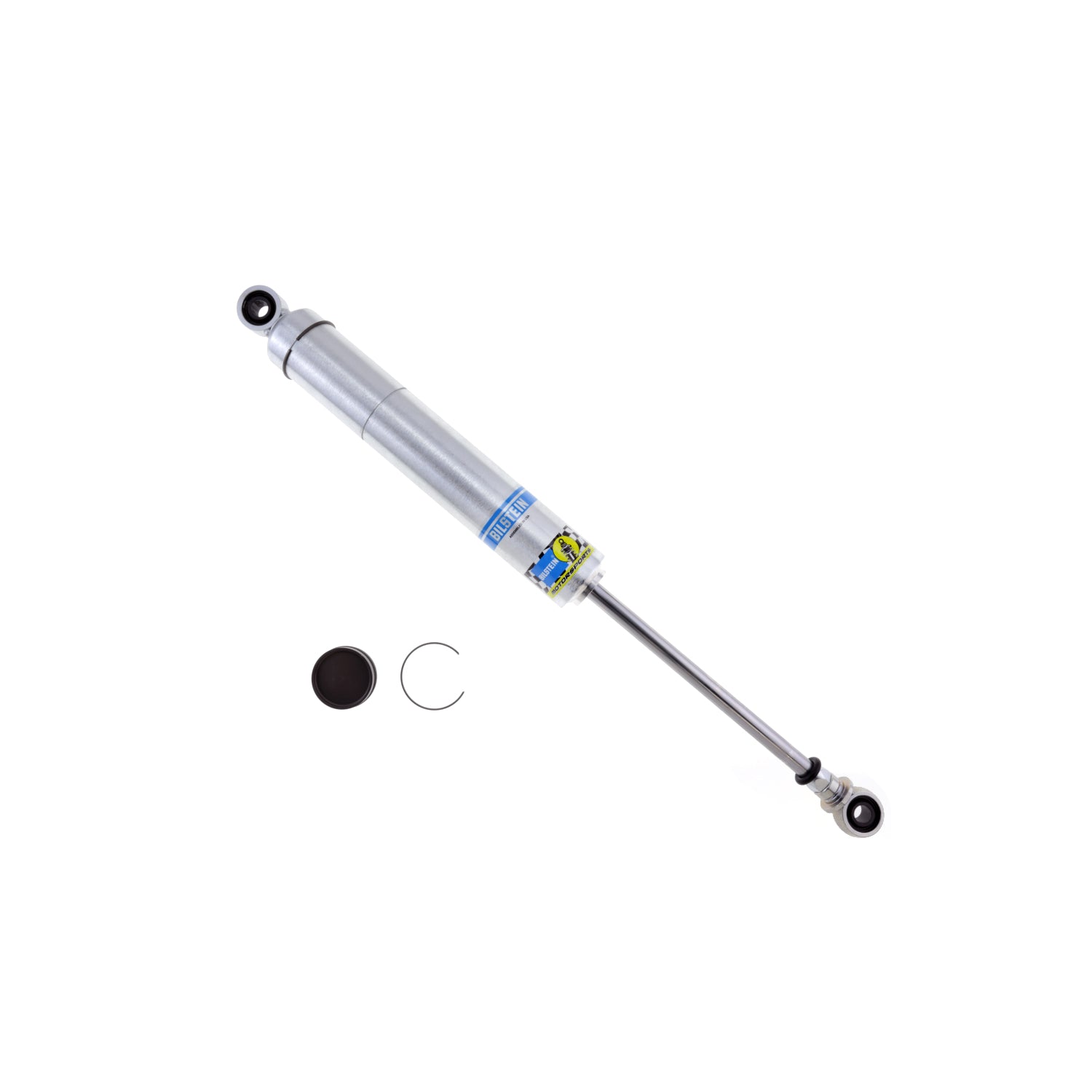

Bilstein 33-243450 - Suspension Shock Absorber SZ Series Monotube
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Features & Benefits
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- Standard 1/2” graphite heims
SZ Series - Suspension Shock Absorber
Plated Shock Kit, 8", Digressive, Oval
Specifications
| Adjustable Damping | Non-Adjustable |
| Boot Included | No |
| Collapsed Length (IN) | 14.25 |
| Internal Design | Monotube |
| Extended Length (IN) | 22.20 |
| Finish | Zinc Plated |
| Extended Length (MM) | 564.0 |
| Body Material | Steel |
| Lower Mount Type | 1/2in Heim |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | 1/2in Heim |
| Series | SZ Series |
| Piston Type | Digressive |
| Body Design | Smooth Body (Non-coilover) |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Spring Hardware | B4-BOA-0000117 |
| Piston Diameter | 46mm |
| Collapsed Length (MM) | 362.0 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 201.9 |
| Stroke/Travel Length (IN) | 7.95 |
