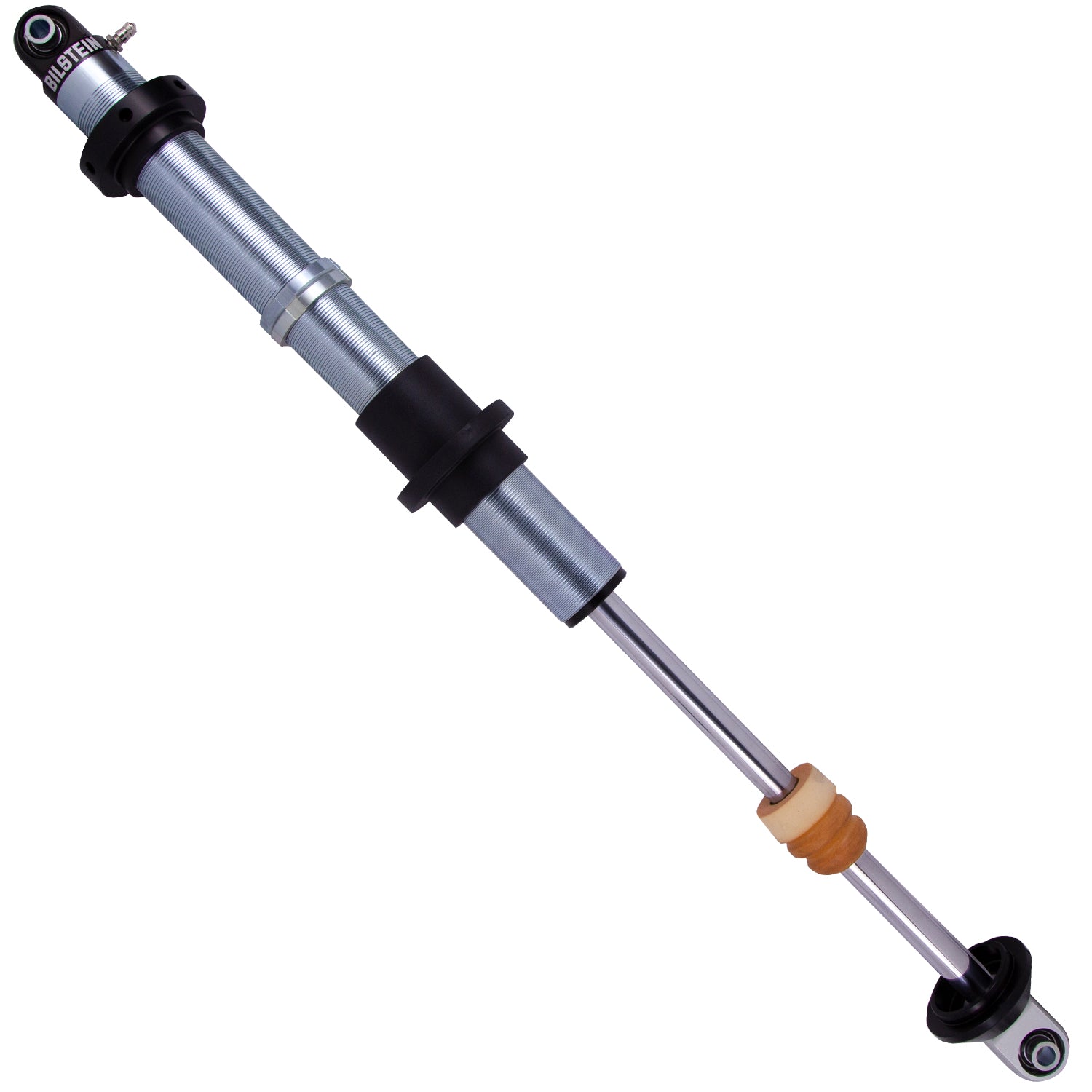

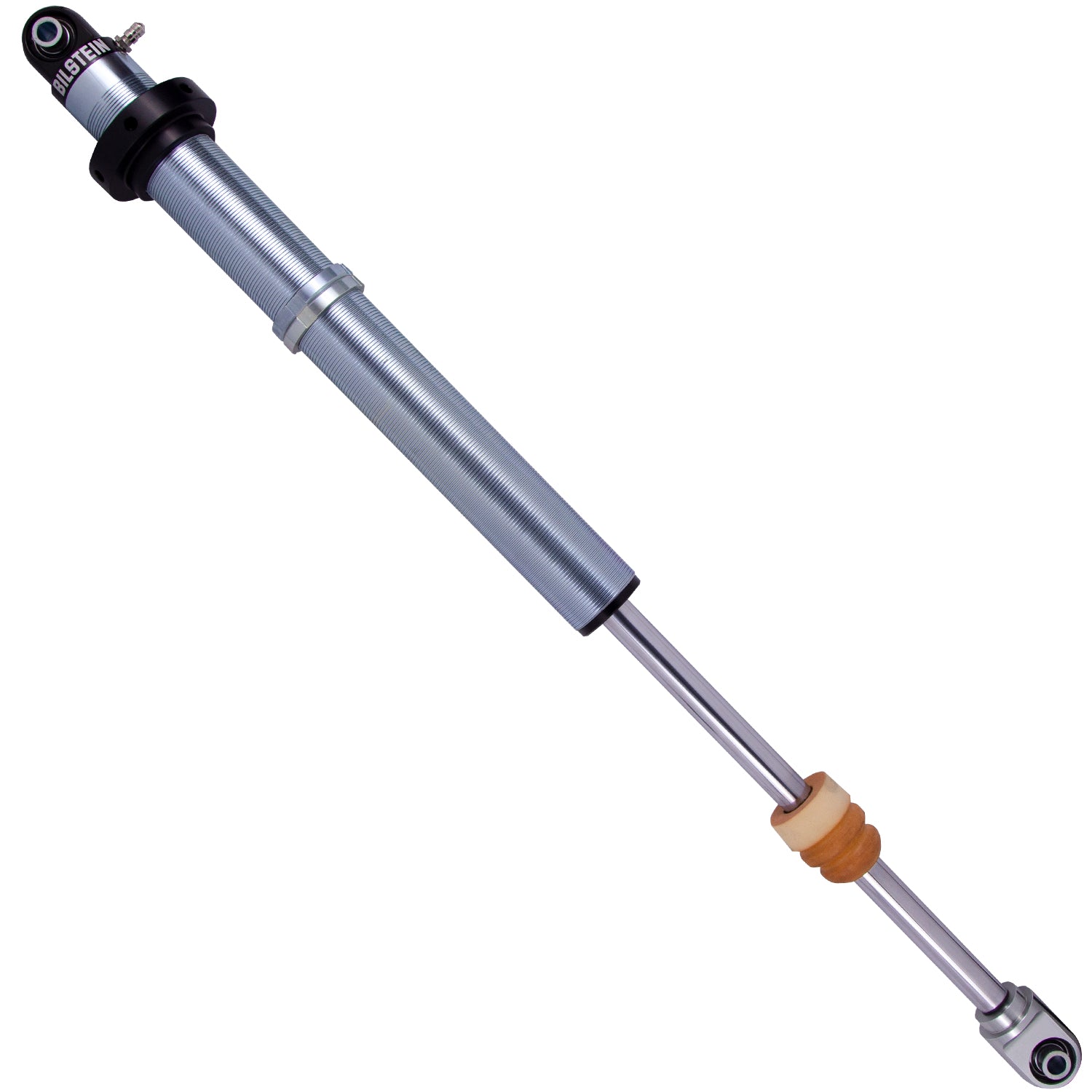

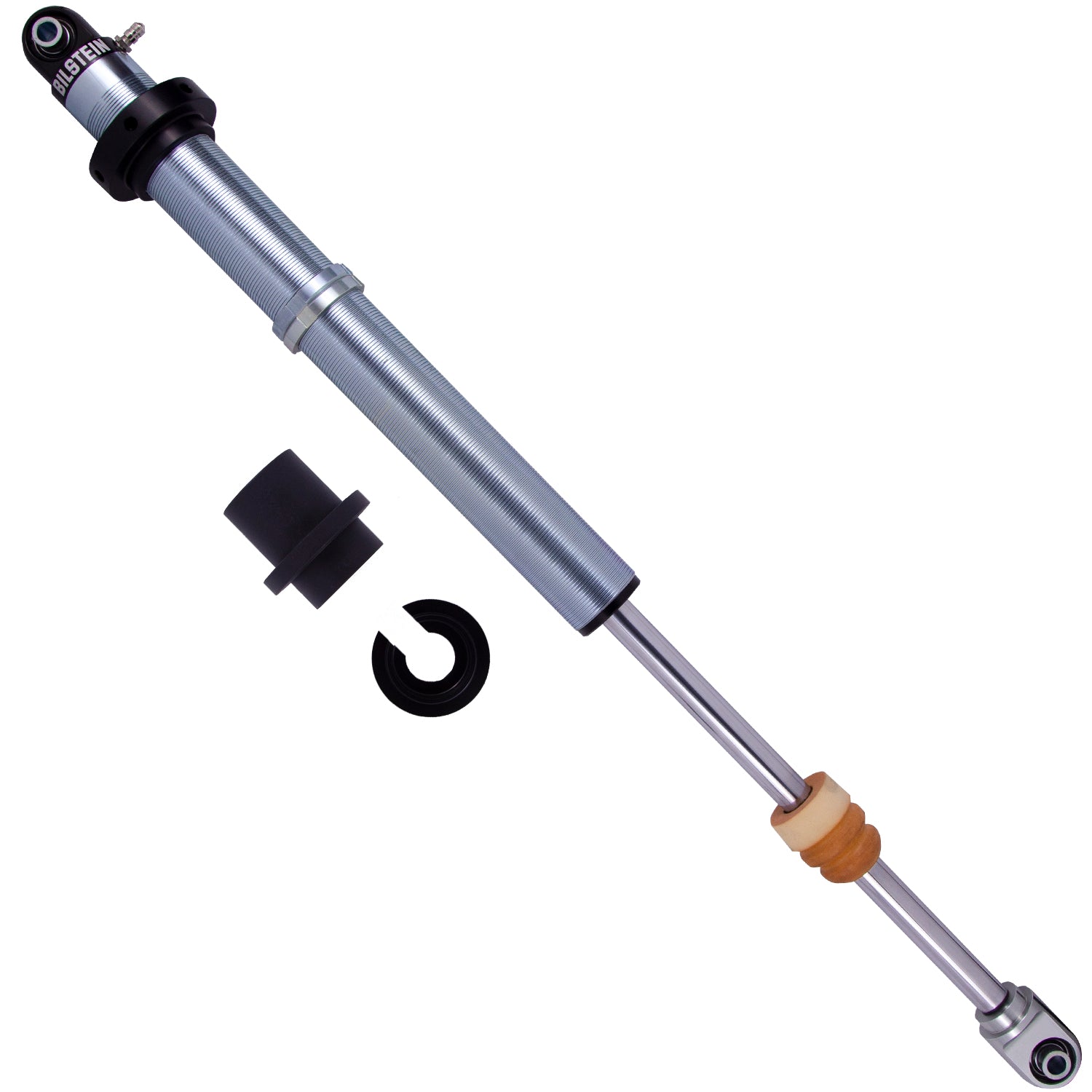

Bilstein 33-243559 - Suspension Shock Absorber M 9200 (Coil Carrier) Monotube
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
Features & Benefits
- 46mm monotube design
- Designed to hold the coils in place
- To be used in conjunction with Bypass shocks
M 9200 (Coil Carrier) - Suspension Shock Absorber
46mm Coil-Carrier, 14", 9200 Series
Specifications
| Finish | Zinc Plated |
| Mount Type | Eye-to-Eye |
| Extended Length (MM) | 901.7 |
| Boot Included | N/A |
| Optional Reservoir Clamp | N/A |
| Series | M 9200 (Coil Carrier) |
| Collapsed Length (MM) | 546.1 |
| Lower Mount Type | Eye .5x1.5in |
| Body Design | Threaded Body (Coilover) |
| Internal Design | Monotube |
| Extended Length (IN) | 35.50 |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Eye .5x1.5in |
| Reservoir | Yes |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Compression @0.52m/s | Coil Carrier No Valving |
| Rebound @0.52m/s | Coil Carrier No Valving |
| Collapsed Length (IN) | 21.50 |
| Piston Diameter | 46mm |
| Stroke/Travel Length (IN) | 14.00 |
| Shaft Diameter (mm) | 22.0 |
| Stroke/Travel Length (mm) | 355.6 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
