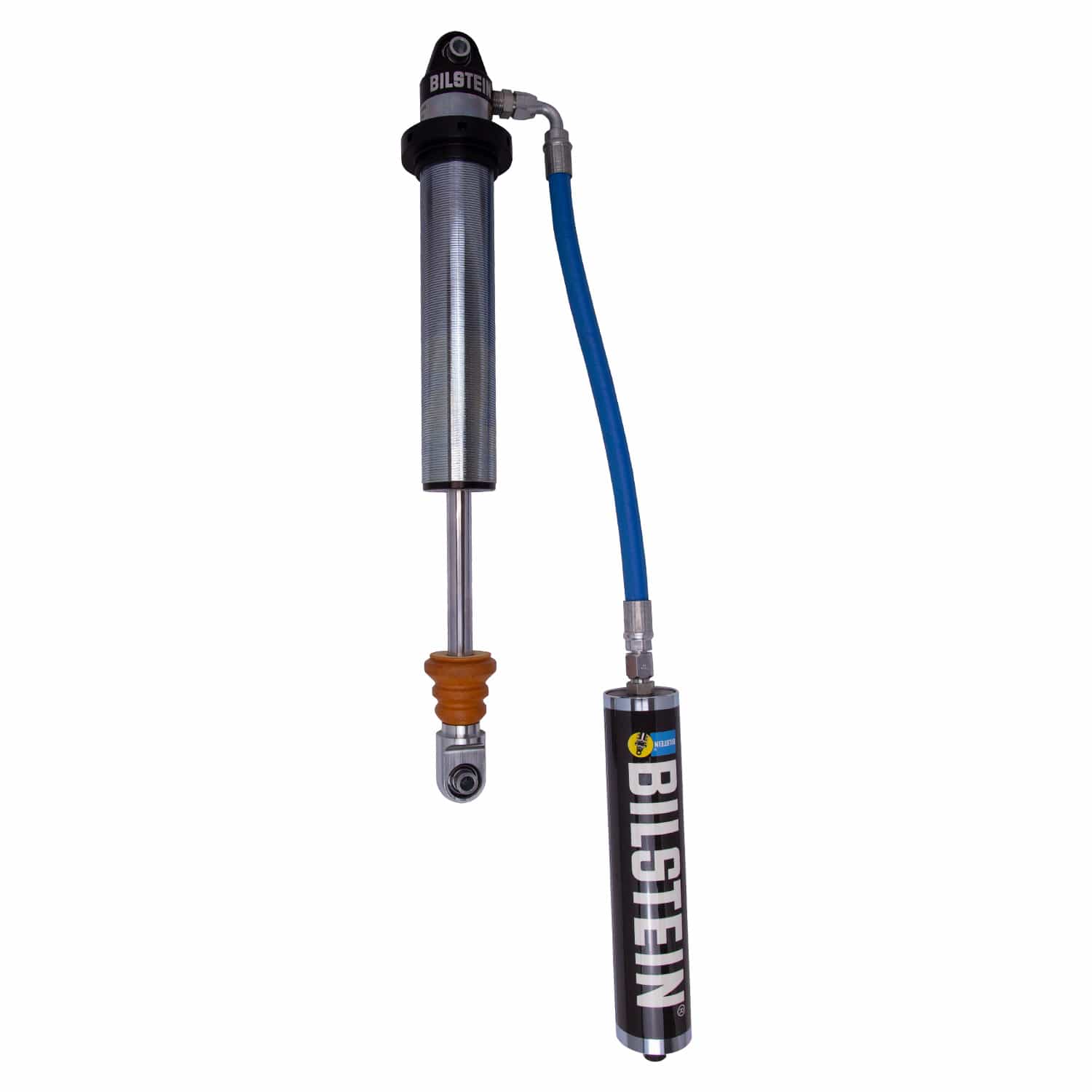

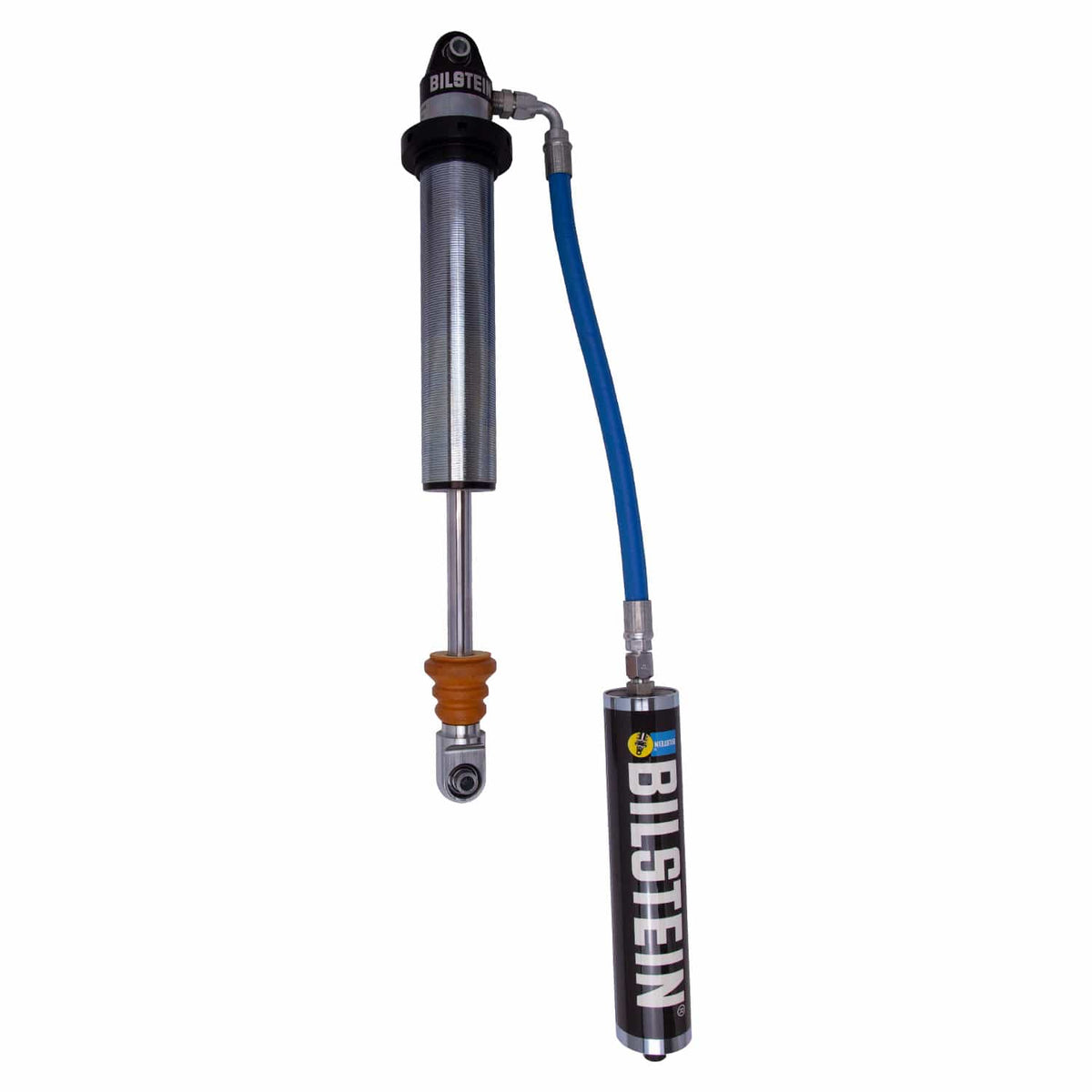

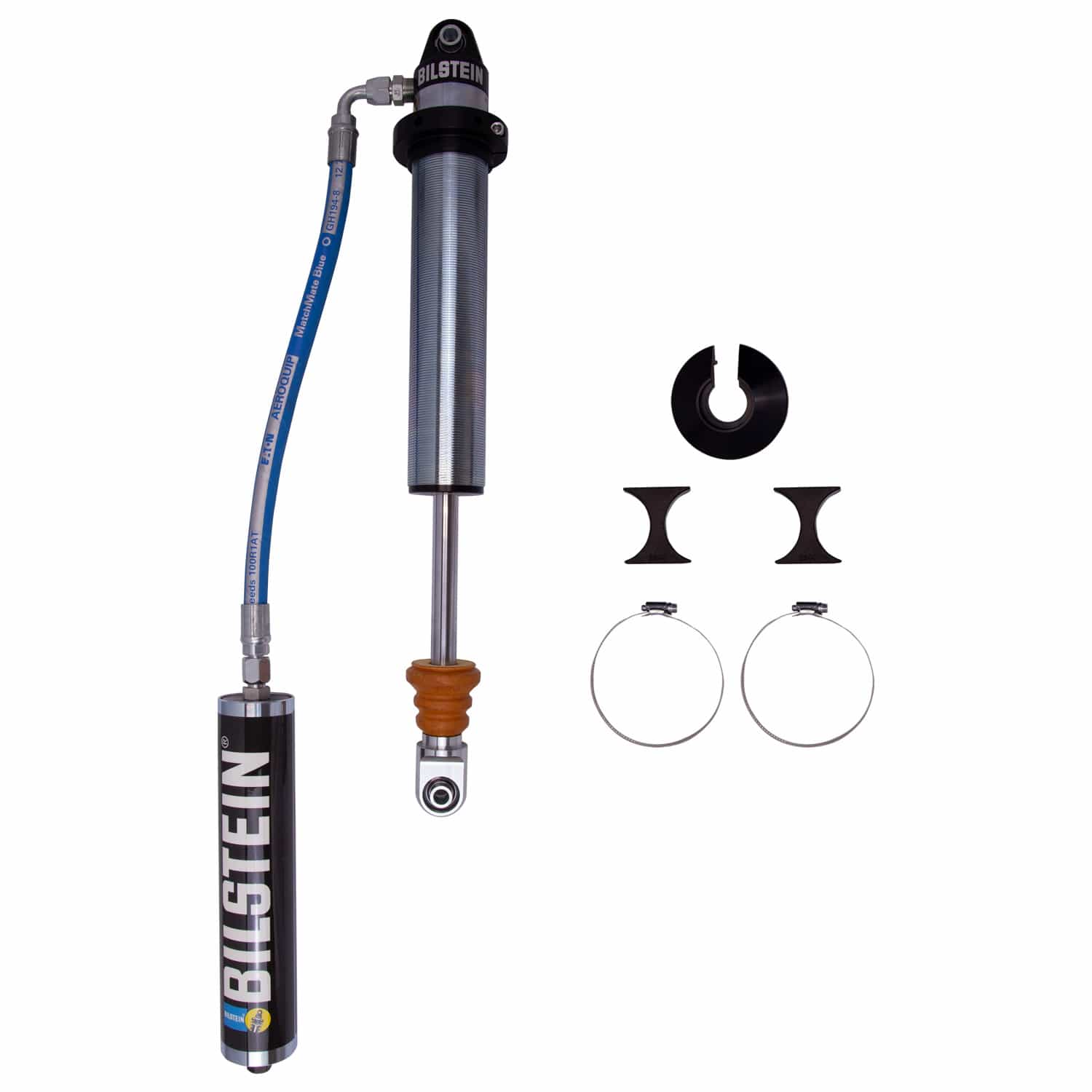

Bilstein 33-244464 - Suspension Shock Absorber 60mm Coilover 8 Inch 255/100 9200 Series Monotube M 9200 (Coilover) Bilstein
Product Availability Request
Fill the form and our team will contact you.
60mm Monotube Shock Absorber
Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
Features & Benefits
- Available in 46mm and 60mm monotubes

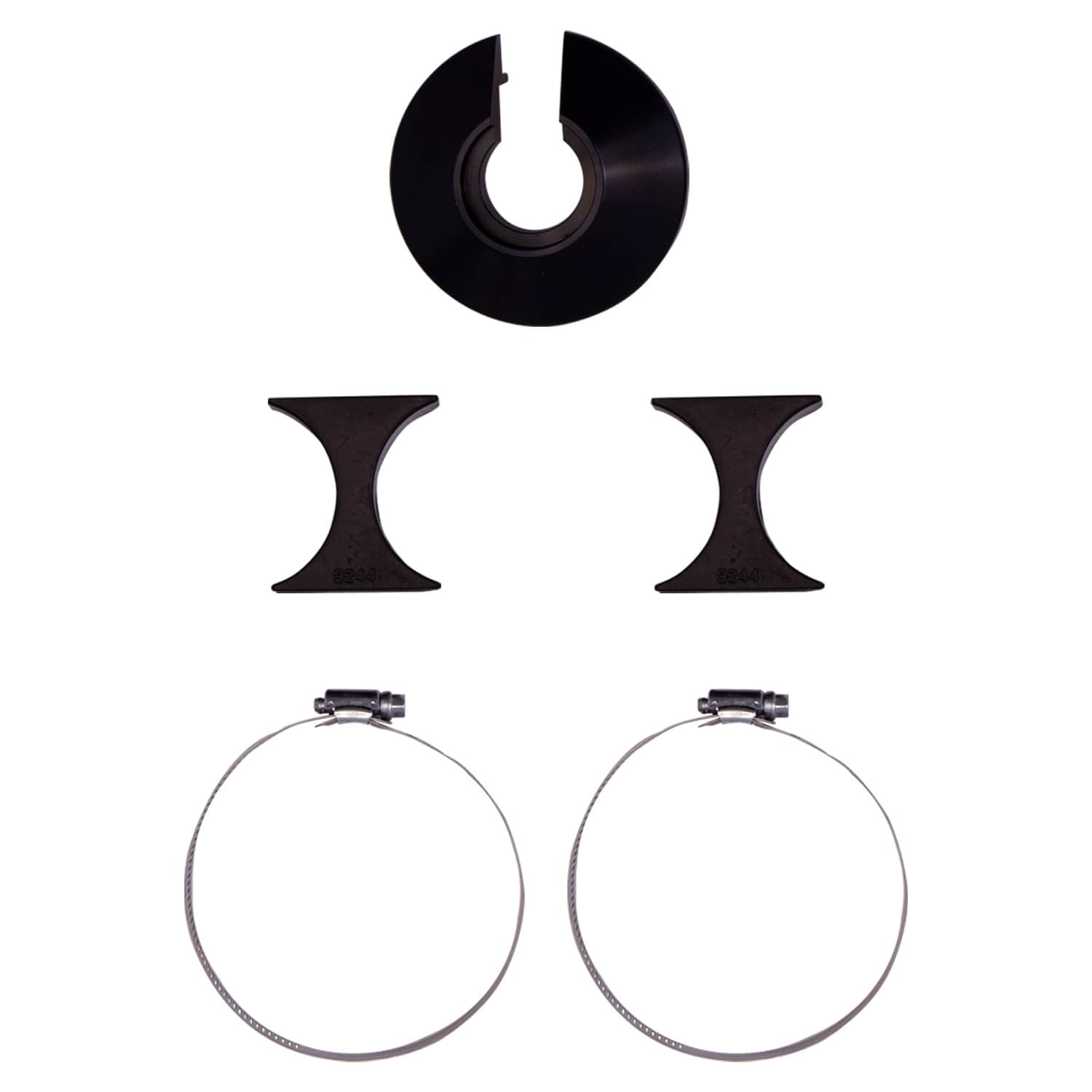

- Threaded body with dual-rate coilover hardware
- Multiple stroke lengths available ranging from 8" to 16"
M 9200 (Coilover) - Suspension Shock Absorber
60mm Coilover, 8", 255/100, 9200 Series
Specifications
| Body Design | Threaded Body (Coilover) |
| Reservoir | Yes |
| Extended Length (MM) | 647.7 |
| Boot Included | N/A |
| Title | Bilstein Shock Absorbers |
| Series | M 9200 (Coilover) |
| Extended Length (IN) | 25.50 |
| Upper Mount Type | Eye .5x1.5in |
| Mount Type | Eye-to-Eye |
| Lower Mount Type | Eye .5x1.5in |
| Optional Reservoir Clamp | N/A |
| Collapsed Length (MM) | 444.5 |
| Compression @0.52m/s | 1000 |
| Rebound @0.52m/s | 2550 |
| Internal Design | Monotube |
| Finish | Zinc Plated |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Collapsed Length (IN) | 17.50 |
| Piston Diameter | 60mm |
| Stroke/Travel Length (mm) | 203.2 |
| Shaft Diameter (mm) | 22.0 |
| Stroke/Travel Length (IN) | 8.00 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
