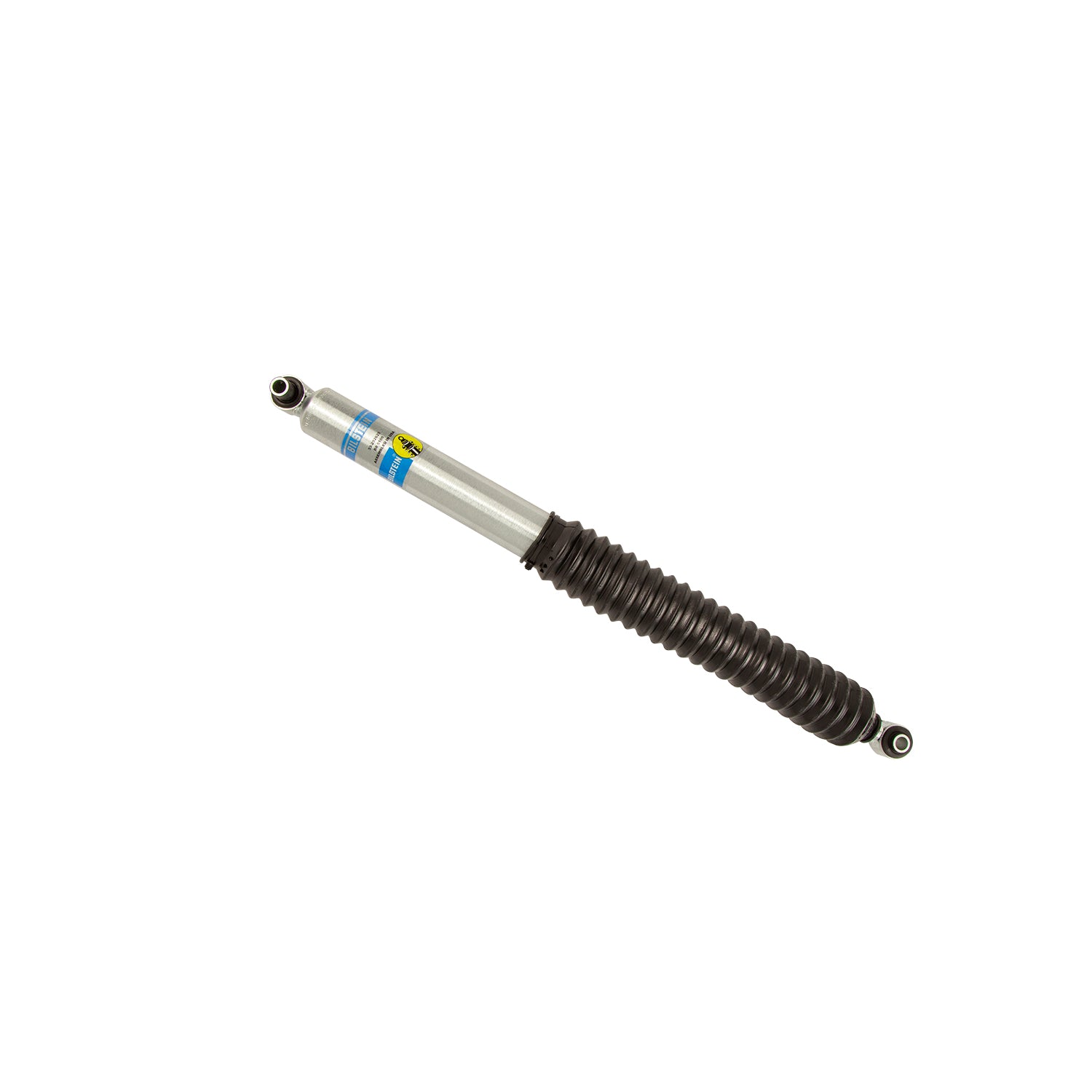

Bilstein 33-292625 - Suspension Shock Absorber Front Monotube Jeep Wrangler 2025-2018 2-3 Inch B8 5100 Bilstein
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
B8 5100 - Suspension Shock Absorber
Jeep JL Wrangler 4dr; '18+; F; B8 5100;
Specifications
| Body Design | Smooth Body (Non-coilover) |
| Title | Bilstein Shock Absorbers |
| Internal Design | Monotube |
| Finish | Zinc Plated |
| Boot Included | Black Bellows |
| Series | B8 5100 |
| Collapsed Length (MM) | 433.5 |
| Upper Mount Type | Eye 12.8mm |
| Extended Length (MM) | 682.7 |
| Reservoir | No |
| Lower Mount Type | Eye 12.8mm |
| Collapsed Length (IN) | 17.07 |
| Extended Length (IN) | 26.88 |
| Adjustable Damping | Non-Adjustable |
| Spring Seat Included | No |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 249.2 |
| Stroke/Travel Length (IN) | 9.81 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
Shipping Information
Free shipping is available for eligible orders.
Shipping: For USA - Up to 50lbs.
Orders are processed during normal business days. Delivery dates may vary by carrier and destination.
