Bilstein 33-315553 - SNS2 Series - Suspension Shock Absorber
Product Availability Request
Fill the form and our team will contact you.

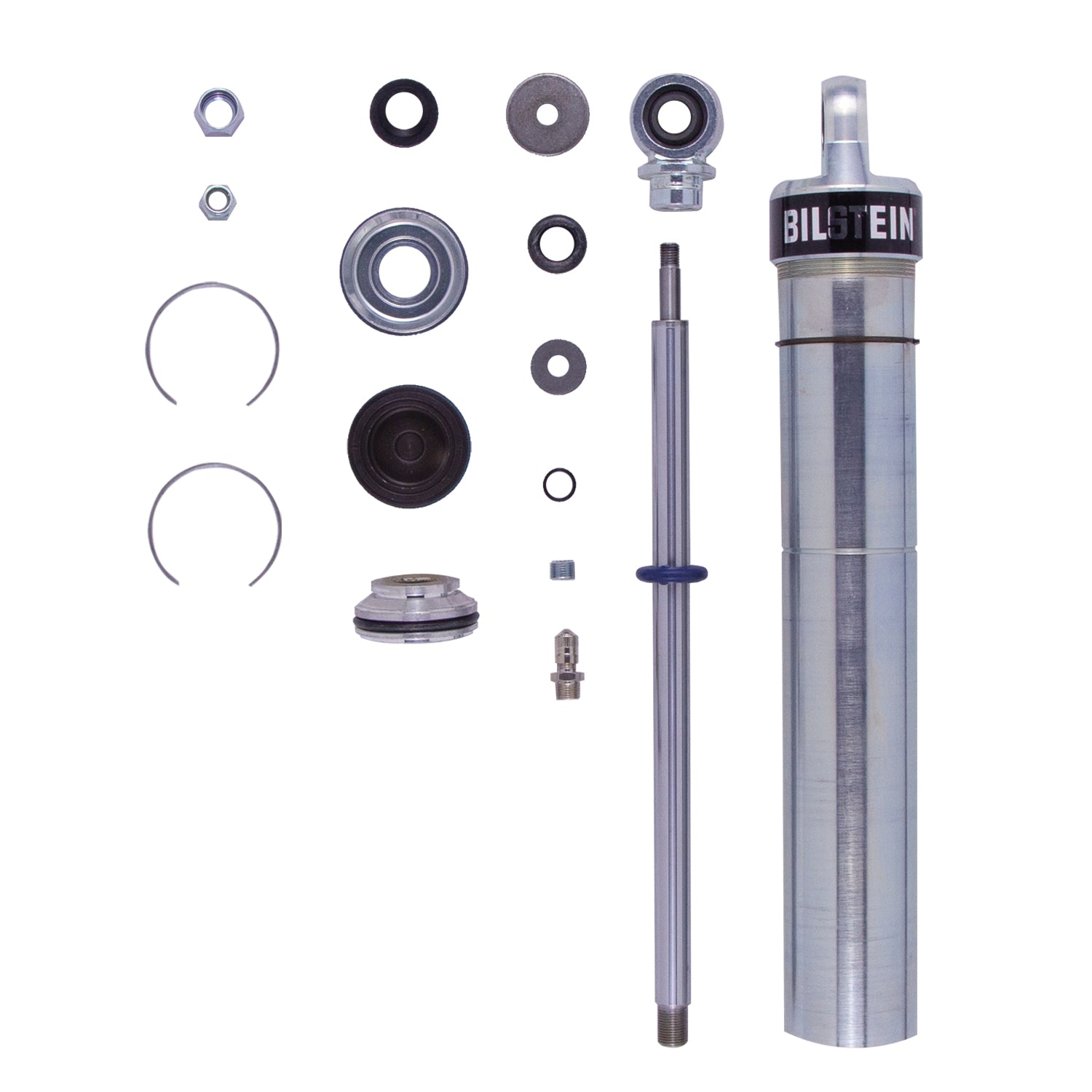

46mm Monotube Shock Absorber
Bilstein SNS2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers feature a steel body cap and a Schrader valve or fill plug. They are upgradeable to adjustable shafts and can be converted to a coilover (kit sold separately). SNS2 Series shock absorbers are ideal for racers whose sanctioning rules require an all steel construction with rebuild capability.
Features & Benefits
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- Standard 1/2β graphite heims
Specifications
| Adjustable Damping | Non-Adjustable |
| Boot Included | No |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | 1/2in Heim |
| Collapsed Length (MM) | 356.3 |
| Lower Mount Type | 1/2in Heim |
| Collapsed Length (IN) | 14.03 |
| Finish | Zinc Plated |
| Piston Type | Sold Separately |
| Series | SNS2 Series |
| Extended Length (IN) | 21.80 |
| Body Material | Steel |
| Internal Design | Monotube |
| Body Design | Smooth Body Screw Top (Non-coilover) |
| Extended Length (MM) | 553.8 |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 197.4 |
| Stroke/Travel Length (IN) | 7.77 |
β WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
