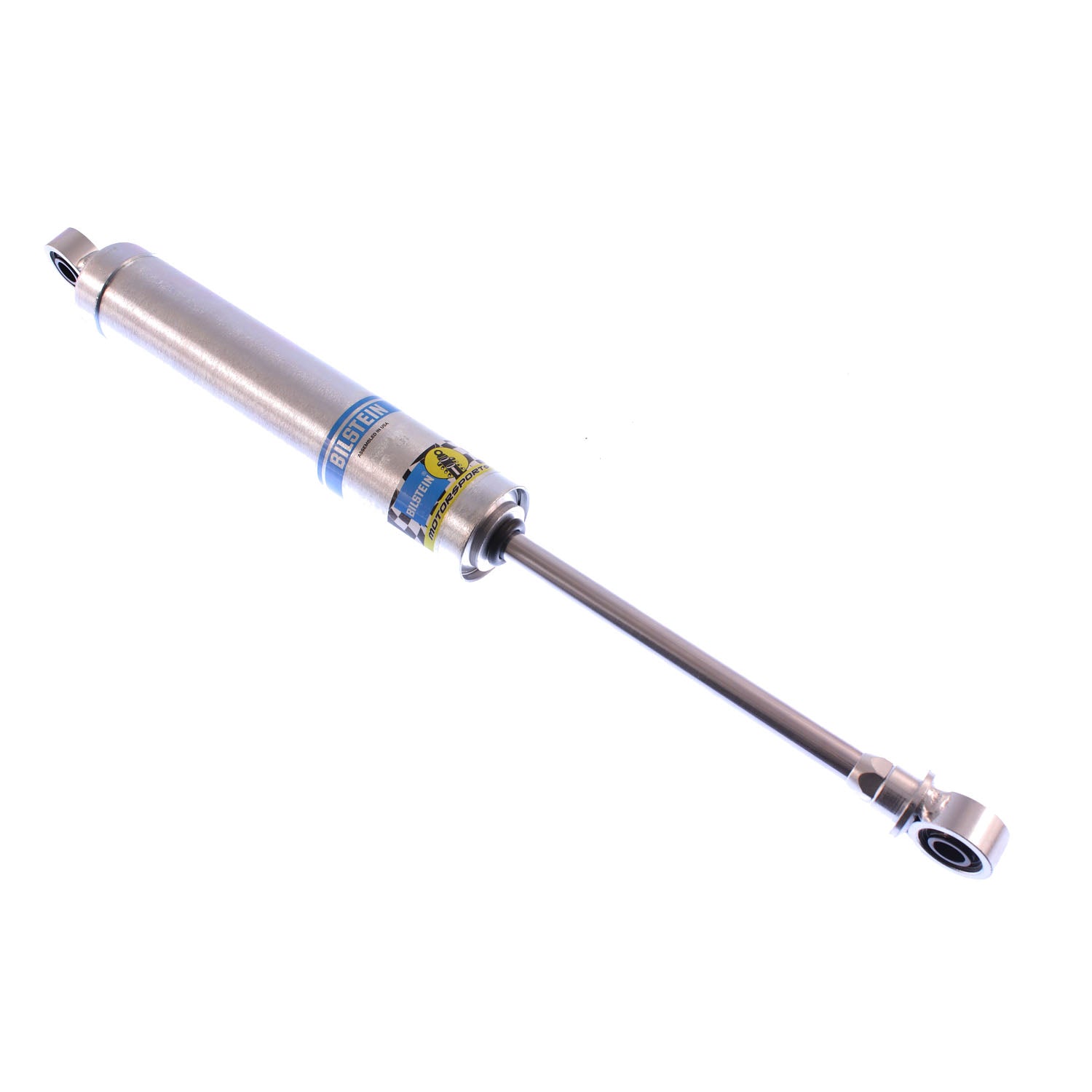

Bilstein 33-321899 - Suspension Shock Absorber SZ/SL 9 Inch Non Adjustable Linear C5-R5 Monotube SL Series Bilstein
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein SL Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). SL Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Features & Benefits
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- Standard 1/2β graphite heims
SL Series - Suspension Shock Absorber
SZ/SL, 9" Non Adj. Lin. C5-R3
Specifications
| Collapsed Length (IN) | 14.88 |
| Spring Seat Included | No |
| Piston Type | Linear |
| Series | SL Series |
| Extended Length (MM) | 597.5 |
| Finish | Zinc Plated |
| Lower Mount Type | 1/2in Heim |
| Body Design | Smooth Body (Non-coilover) |
| Adjustable Damping | Non-Adjustable |
| Upper Mount Type | 1/2in Heim |
| Title | Bilstein Shock Absorbers |
| Extended Length (IN) | 23.52 |
| Body Material | Steel |
| Internal Design | Monotube |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Rebound @ 10"/sec | 175 |
| Compression @ 10"/sec | 275 |
| Boot Included | No |
| Piston Diameter | 46mm |
| Collapsed Length (MM) | 378.0 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 219.5 |
| Stroke/Travel Length (IN) | 8.64 |
β WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
